Jenny mao for finished packs. Or are you looking to purchase cells? If cells you’re goingbto pay a premium for less than 100!
I was thinking cells for a bit because it seemed cost effective I dont have the tools to test then out and at most I'd have some shrink wrap bricks 😅

I guess I'll buy finished packs.

Are there finished packs beyond 48v 25ah? or should I use the NKK switches suggestion in the other post?


Sorry the 48v 35ah finished packs is what I meant , Jenny Mao mentioned them from ShanShan Tech and I couldnt find any info on those packs.

I assume I need the right keywords or a direct link to the websites because Google only gives me the same search results.

I was thinking cells for a bit because it seemed cost effective I dont have the tools to test then out and at most I'd have some shrink wrap bricks 😅

I guess I'll buy finished packs.

Are there finished packs beyond 48v 25ah? or should I use the NKK switches suggestion in the other post?


Sorry the 48v 35ah finished packs is what I meant , Jenny Mao mentioned them from ShanShan Tech and I couldnt find any info on those packs.

I assume I need the right keywords or a direct link to the websites because Google only gives me the same search results.
She doesn’t sell Shan Shan, Hailong cases. They’re crap compared to Reention Polly cases. Converse with her. She’s really goo about follow up. Go to reention.com for their specifications.

Shan Shan and Reention are case makers, not battery pack builders. Shark pack is a common name with no clear source.

I have a shrink wrap 36v 21700 pack. And a Reention polly case 48v 21700 pack shipping hopefully next week.

Email her directly for a quote. No quotes available here. You need to decide what it is you want. You will not get 35Ah in a case.

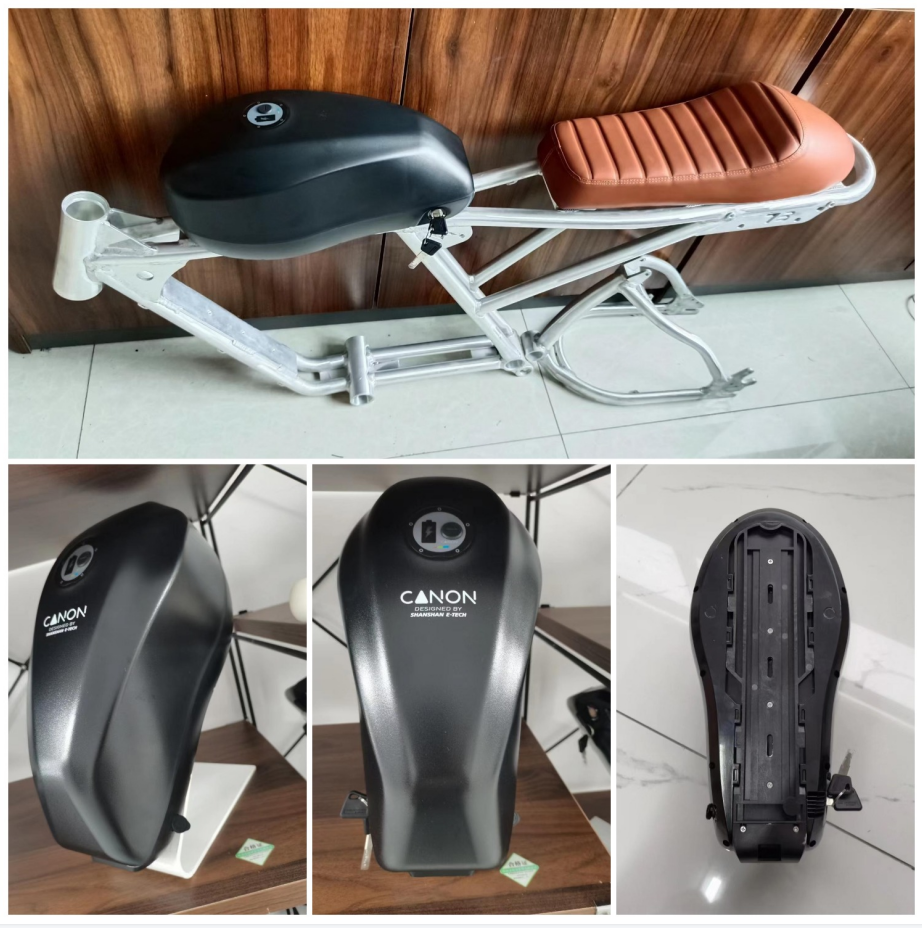

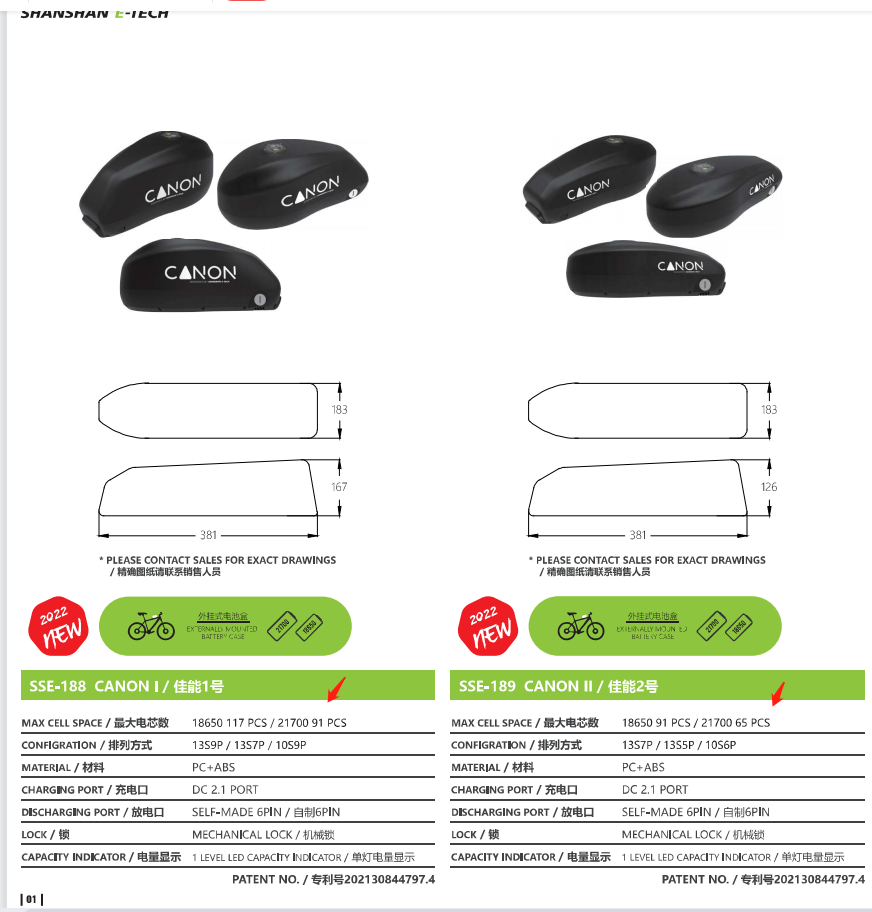

The Shanshan Canon-1 is available for max 91pcs 21700 cells.
It is downtube type case, similar as Hailong or Polly batteries. But there is no power on/off lock on the case.





Gosh that’s ugly!
Designed to resemble a gas tank...
Shown on a top-tube; it would look really weird on a downtube...

Personally, I'd gladly forgo motorcycle styling, to get the heaviest thing on the whole bike placed a little lower... To me, top-tube mounted battery packs mean the bike's designer chose fashion over function.

That said, I'm glad to see replacement packs for almost any bike design!

Edit: Also, I really hope that bike shown, doesn't bother having pedals. With a seat like that, there's no point!

Purchased Cases Reference:

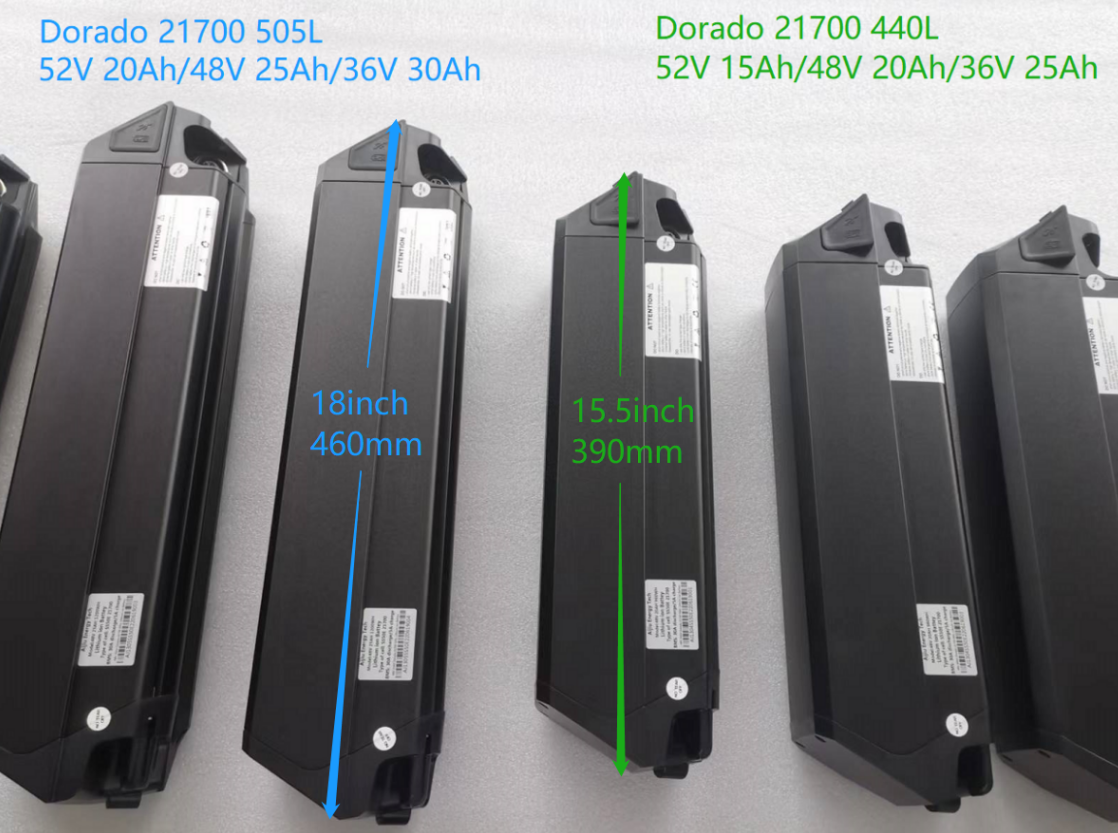

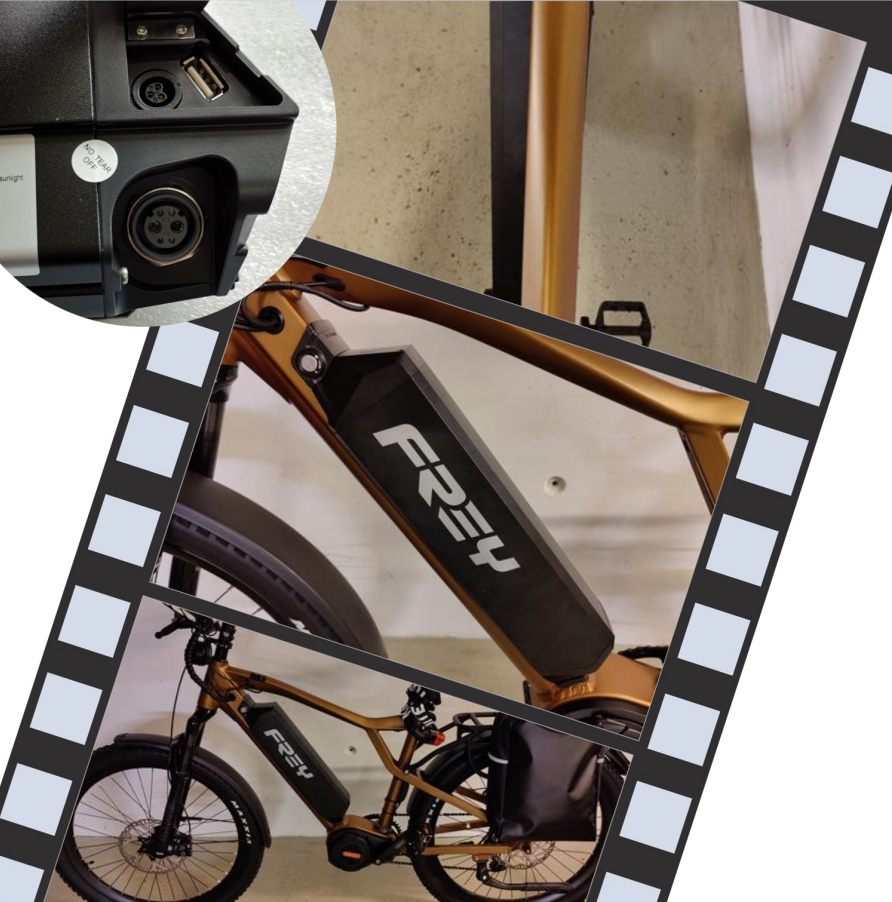

Dorado 21700 505L 48V 25AH 1200WH for Frey AM1000HT
1) 18inch/460mm Battery Length
2) 13S5P Samsung 50E 21700 Cells Pack
3) 6holes/2pin discharging Port
4) Reention 3pin Charging Port
5) 30Amp BMS for 1000W motor
6) With USB Port
7) With 54.6V 4amp Charger-3pin


  • Like
Reactions: ovt

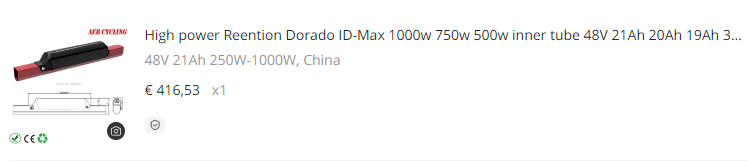

Nice! What is the price for the new battery? Unfortunately i already bought a Dorado ID-Max+ 18650 48v 21Ah last year. I paid only 416€ and i noticed that 21700 costs almost 600€.


Last edited:
Hopefully @Jenny Mao will check back soon. Just curious if there is a battery option for the Frey CC. Contemplating on getting the CC or the CC fat and the battery option is the main decision on which one I may get.

Nice! What is the price for the new battery? Unfortunately i already bought a Dorado ID-Max+ 18650 48v 21Ah last year. I paid only 416€ and i noticed that 21700 costs almost 600€.

View attachment 137452
Fresh price is about USD600 for the 48V 25Ah battery, with shipping cost and custom tax all included to most European countries.

  • Like
Reactions: ovt
Hopefully @Jenny Mao will check back soon. Just curious if there is a battery option for the Frey CC. Contemplating on getting the CC or the CC fat and the battery option is the main decision on which one I may get.
It is intergrated SYR006 Pathfinder battery used on Frey CC, max 48V 17.5Ah or 52V 17.5Ah, no higher capacity upgrade option.

Designed to resemble a gas tank...
Shown on a top-tube; it would look really weird on a downtube...

Personally, I'd gladly forgo motorcycle styling, to get the heaviest thing on the whole bike placed a little lower... To me, top-tube mounted battery packs mean the bike's designer chose fashion over function.

That said, I'm glad to see replacement packs for almost any bike design!

Edit: Also, I really hope that bike shown, doesn't bother having pedals. With a seat like that, there's no point!

Yeah I don't get the mini bike concept either but different strokes....

I also am a fan of keeping weight low and centered that is why rack type batteries have never been high on my list. But as far as tt mounted batteries go I have found that they really don't do much to compromise handling as long as you are within the parameters of the bikes ability.

On my mtb I have a tt bag that fits the stock case battery that only fits on the top of the tt. Decreases standover but doesn't seem to be an issue for the mostly gravel riding I intend to use 2 batteries for. Taken it along on some neighborhood rides that also encompass some rooty/rocky single track and it didn't cause any problems that I could see but my bike is a full power type.

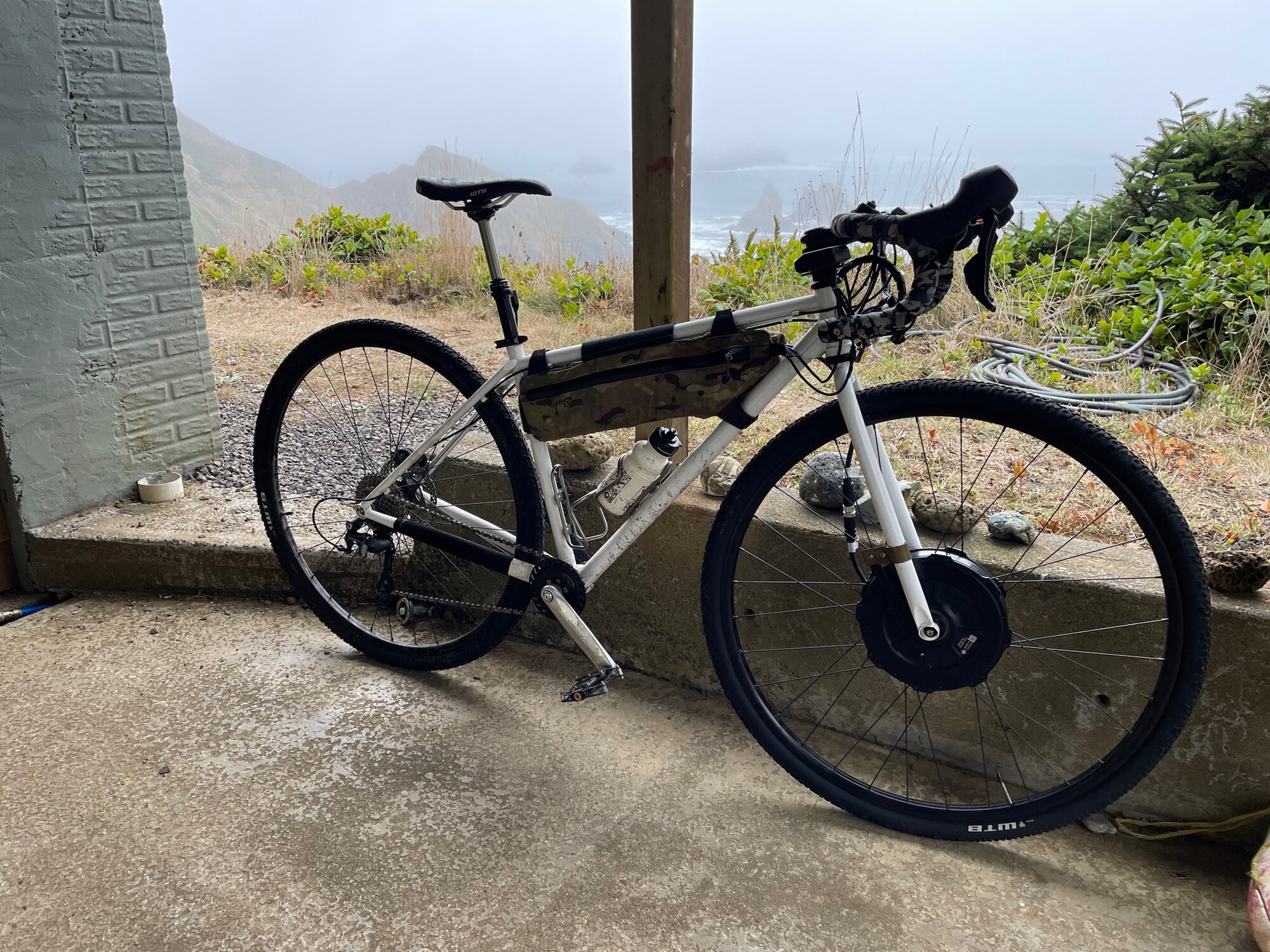

For my gravel bike that I am trying to finish off I got enough out of the first attempt at getting it going, around 50 miles, to determine that the soft shell 20ah 2170 cell pack in the tt bag, along with the controller, had 0 effect on handling. Once again though the bike will be primarily used on multi surface roads. Excuse the wiring as I haven't gotten everything dialed in yet but soon I hope as I am juggling it with two other builds.




As long as cost is being discussed my latest order included two 10ah 48v 2170 cell soft packs and one 36v 15ah 2170 cell soft shell triangle pack and the total was $606usd. I am really happy that it seems like battery cost has gone down even with shipping costs going up. The 52v 20ah soft pack for the above was less than $400 once again using the 50E's.

hi Jenny what is the upgrade options for a RadMission?

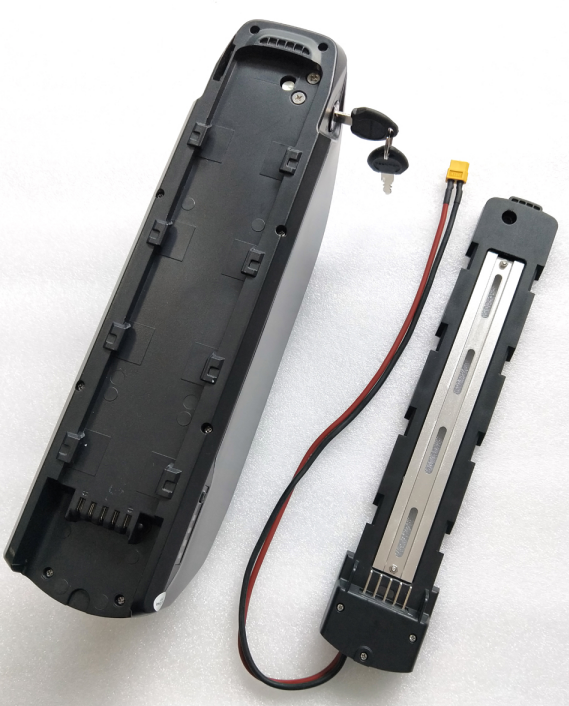

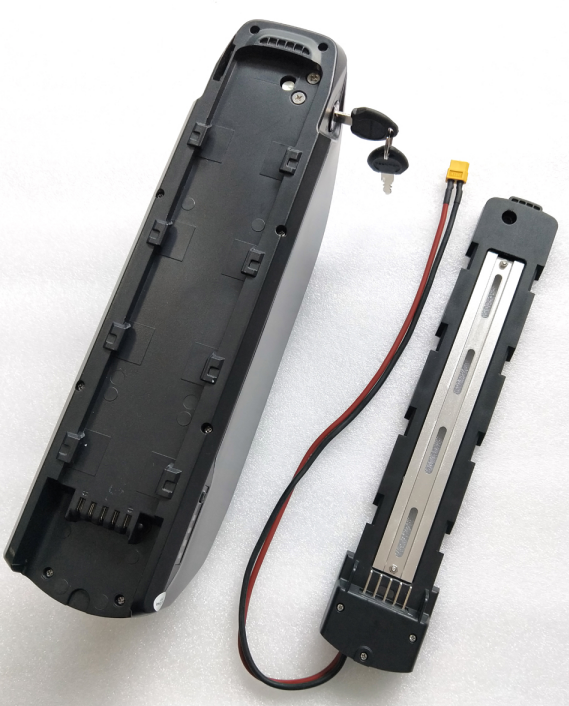

Hi, there is no direct upgrade battery for RadMission as the case and its mount plate are Rad Power proprietary design. If you can replace the mount plate, the Reention Polly is suggested, and now the newly released Polly DP-2170-7 is available for max 48V 25Ah or 52V 25Ah by Samsung 50E 21700 cells.

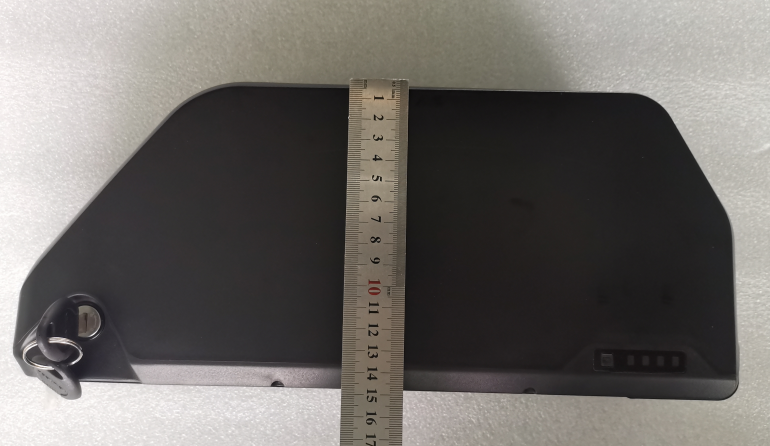

Battery size 368x95x156mm
