Reention Dorado 48V 25Ah 29Ah&36V 30Ah (505L) Replacement Battery for eBikes Surface 604,NCM,Rize,Magnum,Aventon

Thanks for posting Jenny!

Lockdown in Shanghai will be totally lifted on tomorrow, 1st June. Will push all paid orders shipment as fast as we can. Appreciate all your continued great support.
Let me know when things are getting caught up. I don't need my battery anytime soon. Take care of your new customers first.

My 21700 pack is AWESOME. I'm pleasantly surprised by the improved performance over 18650's. I'm glad I took your advice!

I'm happy to read your good news!

Let me know when things are getting caught up. I don't need my battery anytime soon. Take care of your new customers first.

My 21700 pack is AWESOME. I'm pleasantly surprised by the improved performance over 18650's. I'm glad I took your advice!

I'm happy to read your good news!
Can you elaborate please? What battery is the 18650's, voltage, Ah, and the 21700? And what is the difference in range between the two batteries? For example with my Reention Dorado ID MAX battery I can cover around 100km.

21700 are less $ than 18650 cells.

Jenny will follow up and make suggestions based on your eBike.

My 21700 pack from her is awesome. Better mileage than my 18650 batteries.

I just wanted to know if a battery that has 21700 cells and one of 18650 cells with the same Ah, can travel a longer distance?

Last edited:
I just wanted to know if a battery that has 21700 cells and one of 18650 cells with the same Ah, can travel a longer distance?
21700 cells have higher amp hours than 18650. 21700’s also discharge at a slower rate. Yes, you’ll get better range.

  • Like
Reactions: ovt
It shows exactly Reention EEL Pro used for Core 5 on Ride1up site.
So 48V 14AH by Samsung 35E cells with 25A BMS is maximum upgrade capacity option.
Hi Jenny, do you think there is any possibility that the improved 21700 cells will someday be retro-fitted into a Reention Eel Pro form?

Like Jimmy666 back here, I have Ride1Up Core-5 bikes too and would like to order the best spare batteries I can. The one you mentioned above would be an improvement, 21700 cells even better! Sent a PM as well. Thanks, your info is greatly appreciated!

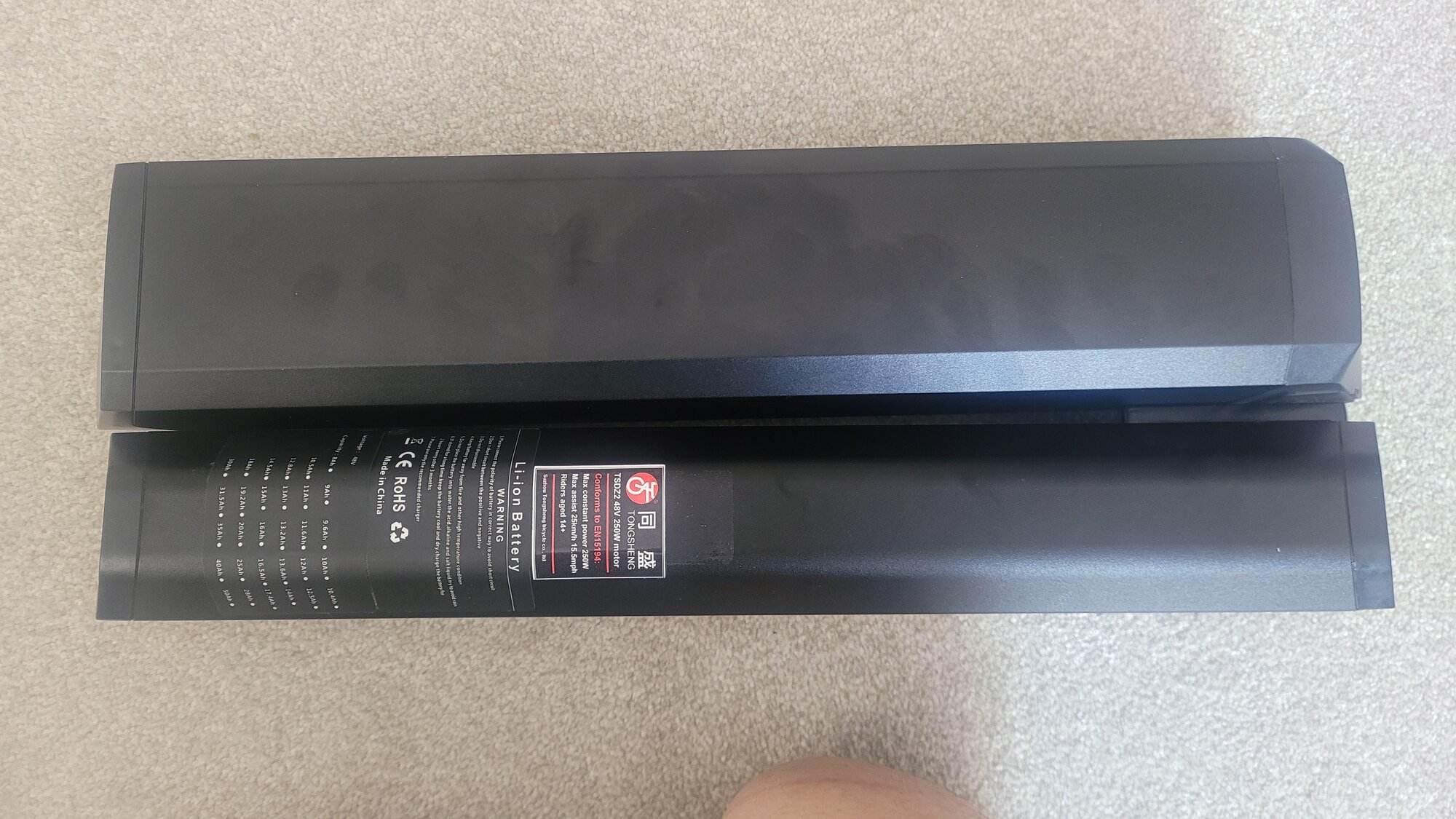

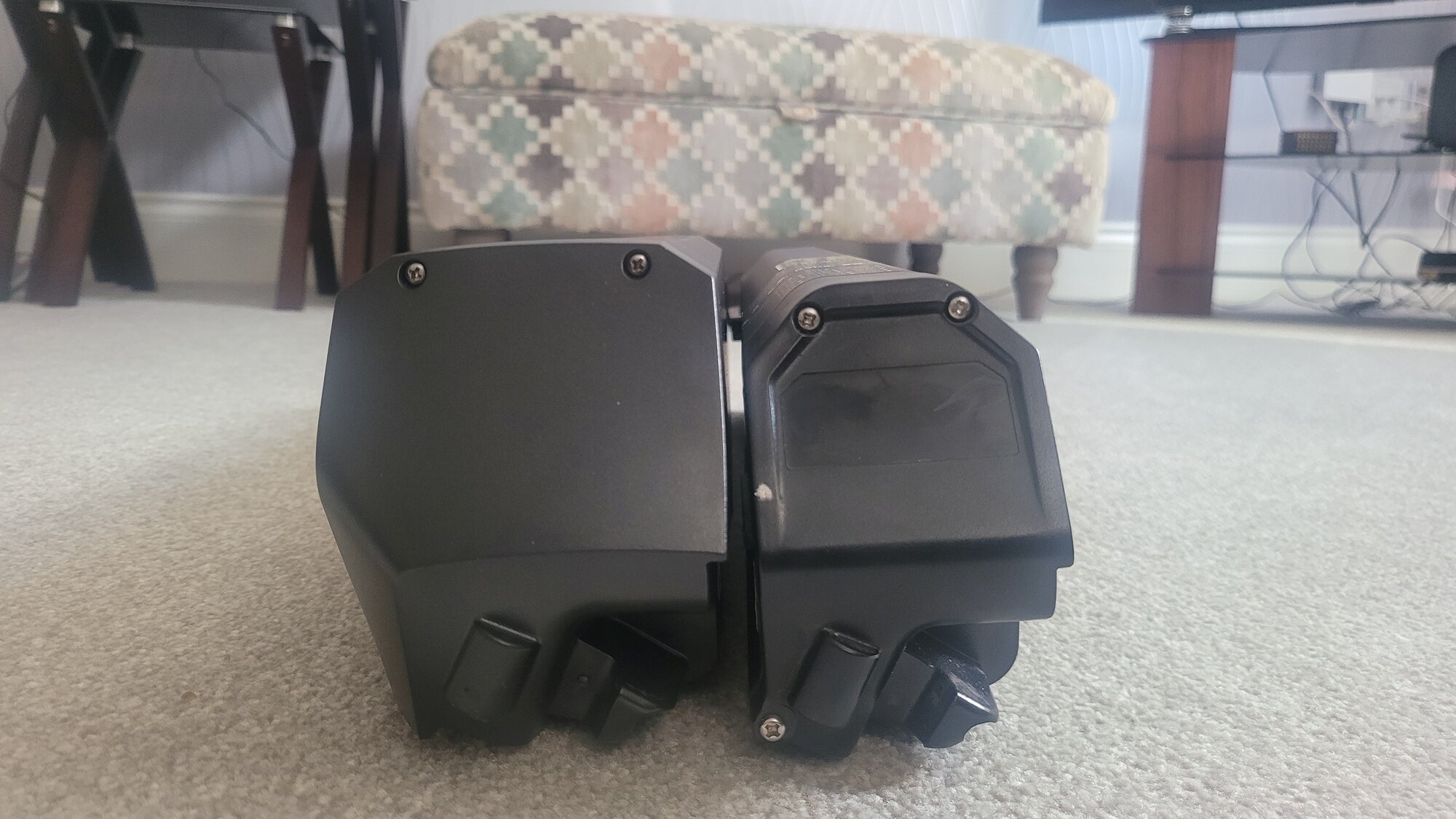

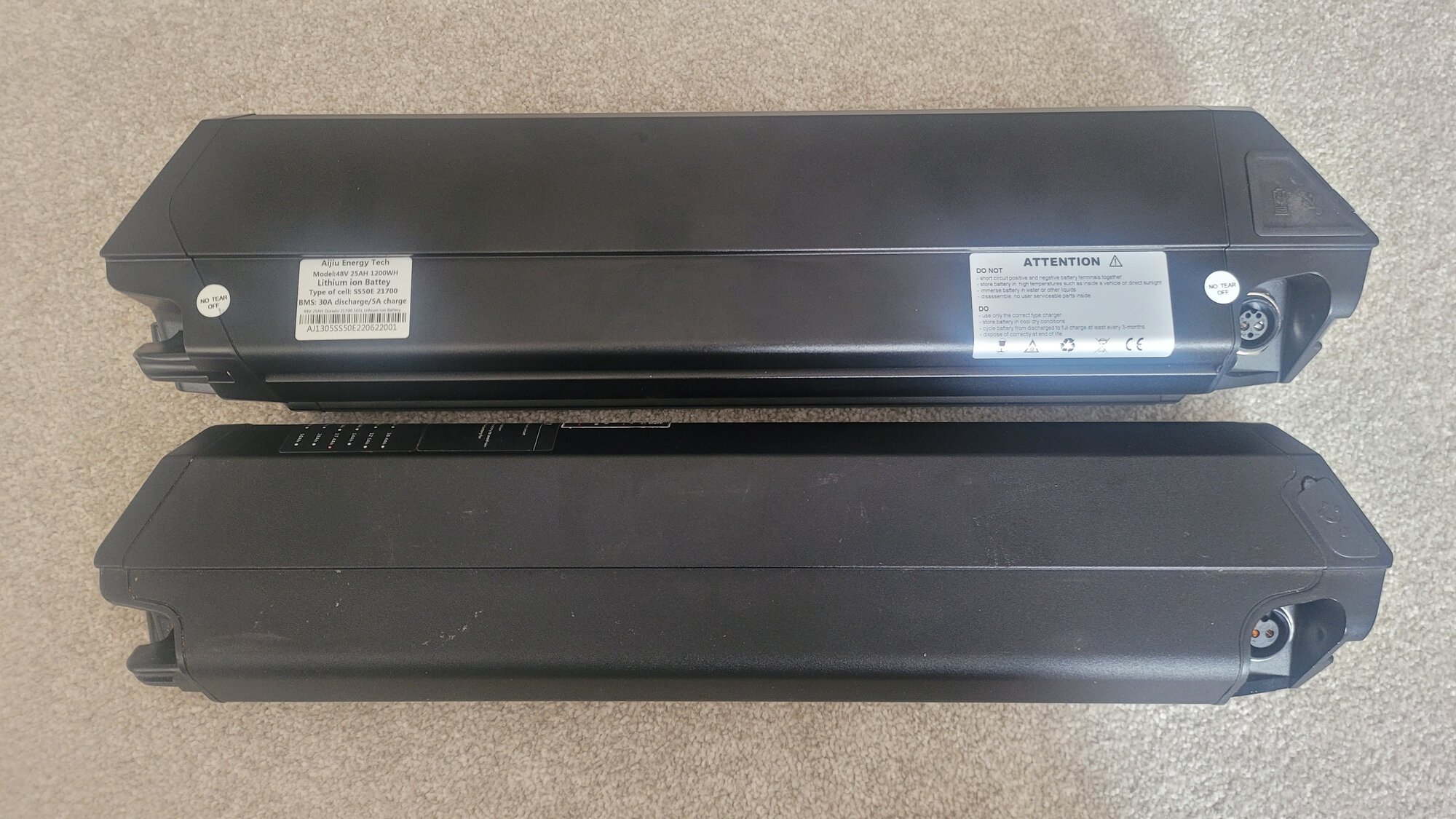

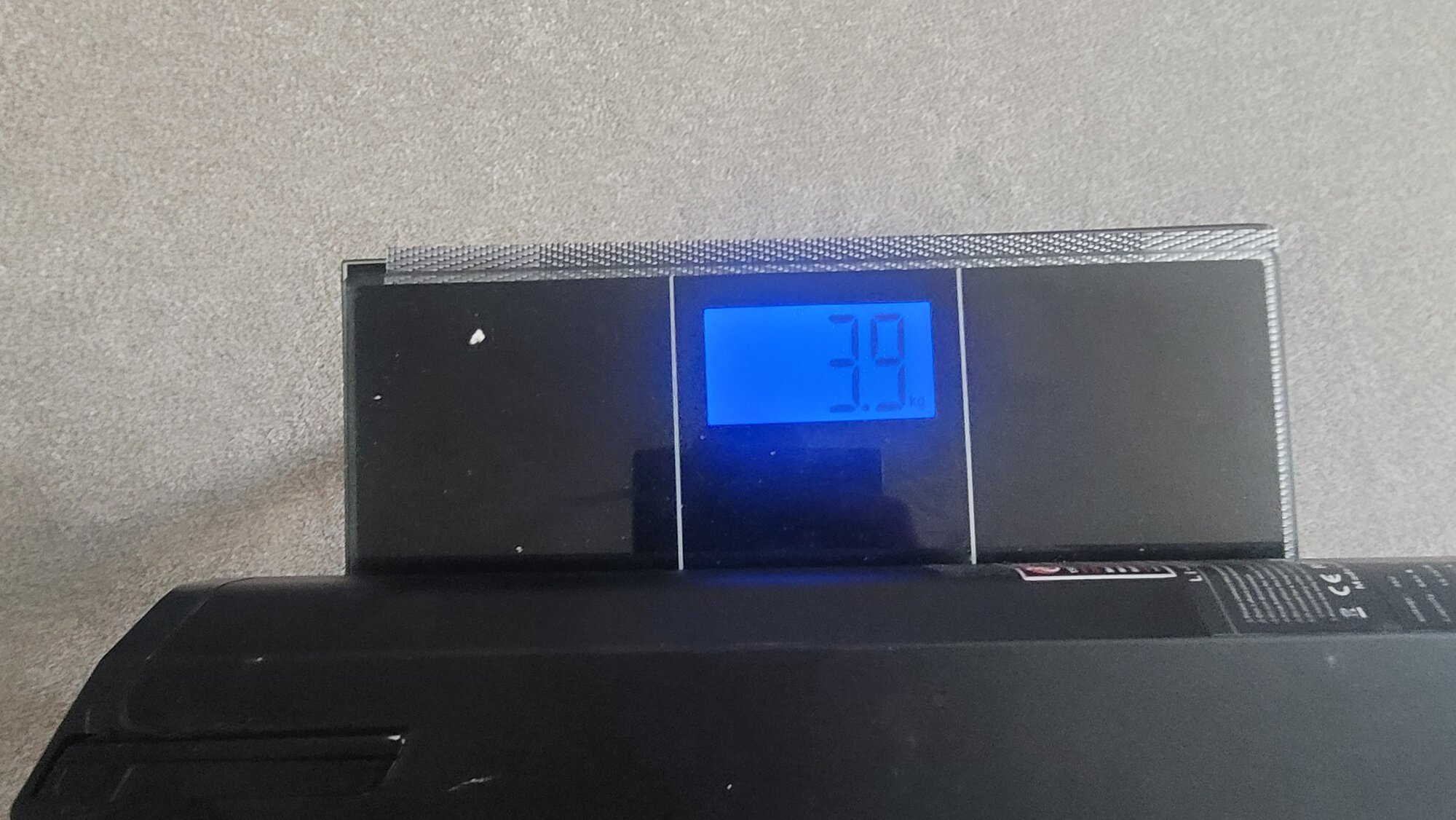

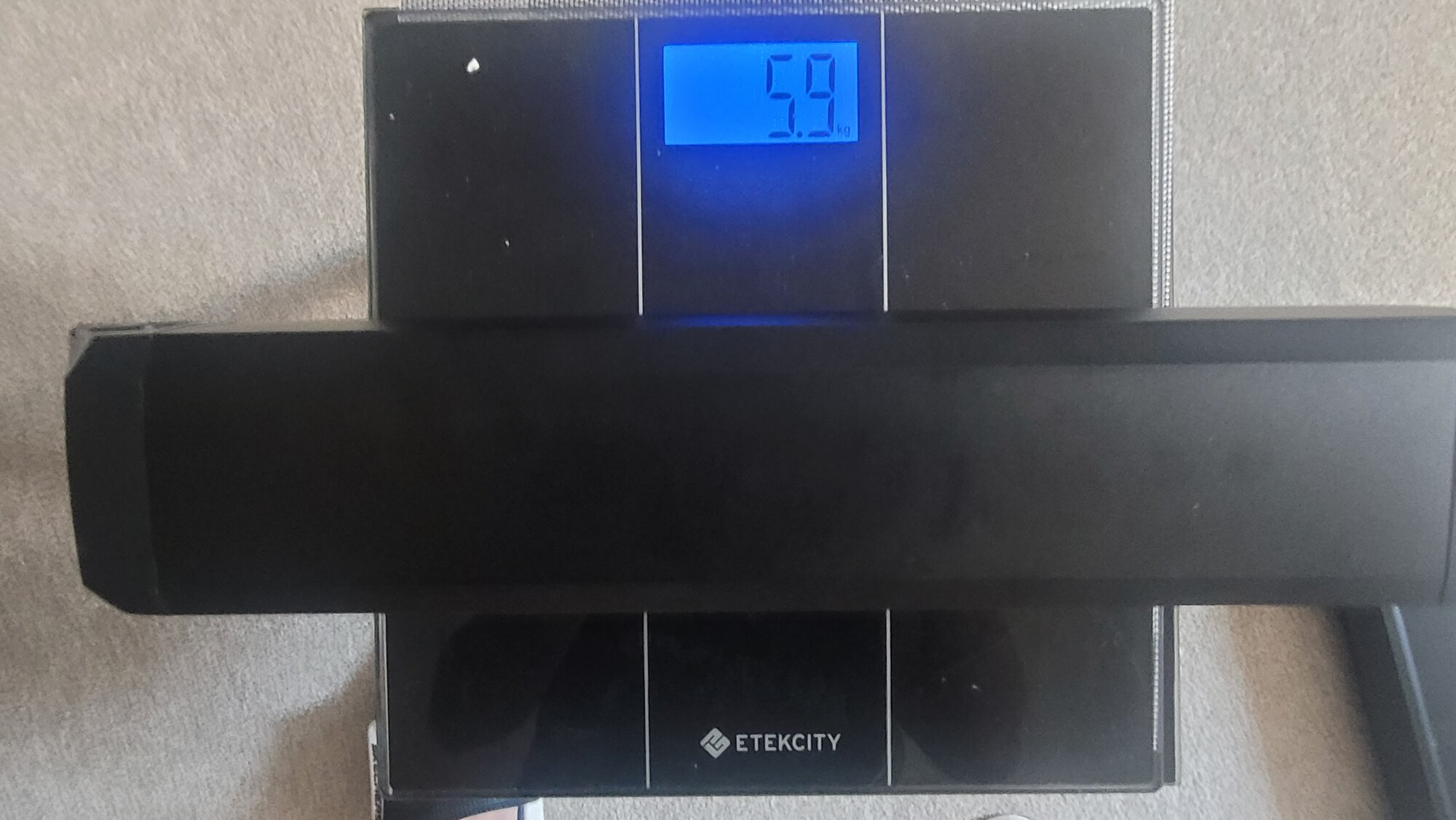

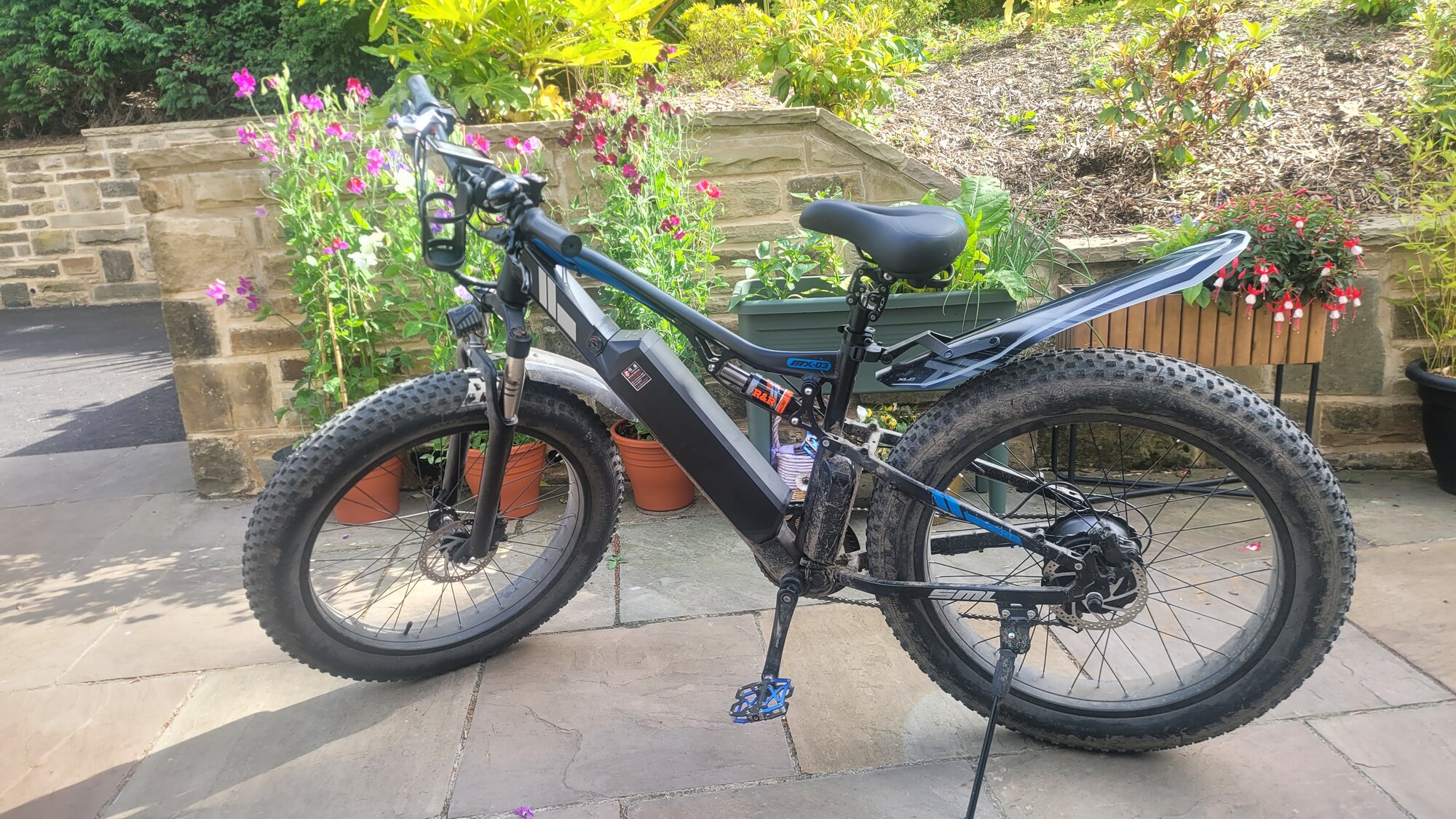

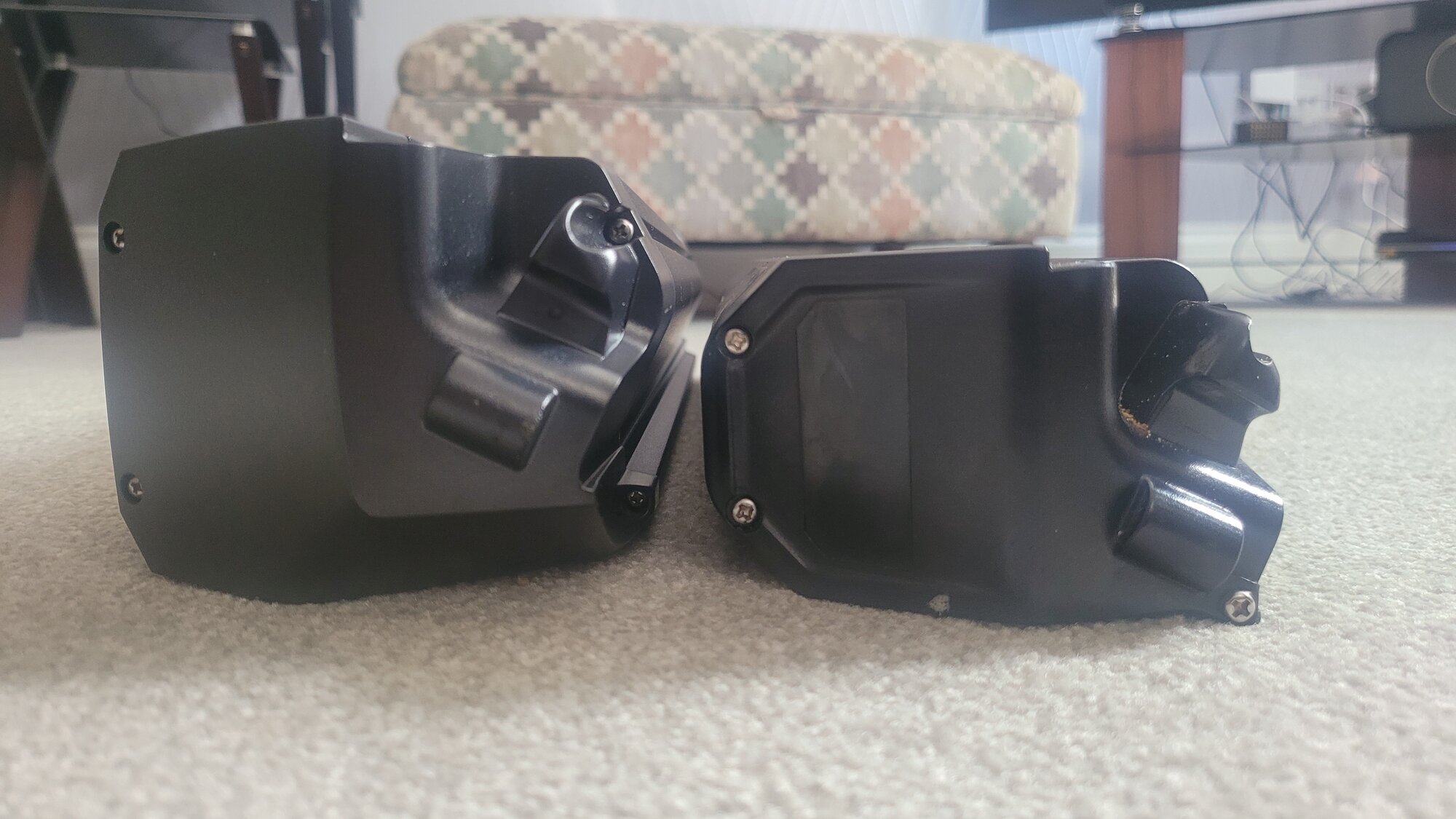

Had a quick ride out today mostly steep hills, covered 21 miles and voltage went from 54v to 51.5 using power assist 2-5 (hills was steep) , battery still showing full, the power delivery is smooth with no battery sag at all , I was smiling away going up the hills using the right gears as appropriate and using good maintained speed up the steep hills I'll finish the battery tomorrow it will be mainly flat riding, I want to see if there's much battery sag near the end of battery and then give it a good charge , the battery is a little bit bulkier than original but not too much(see pic)
So far I'm happy with the performance but much more testing needed.

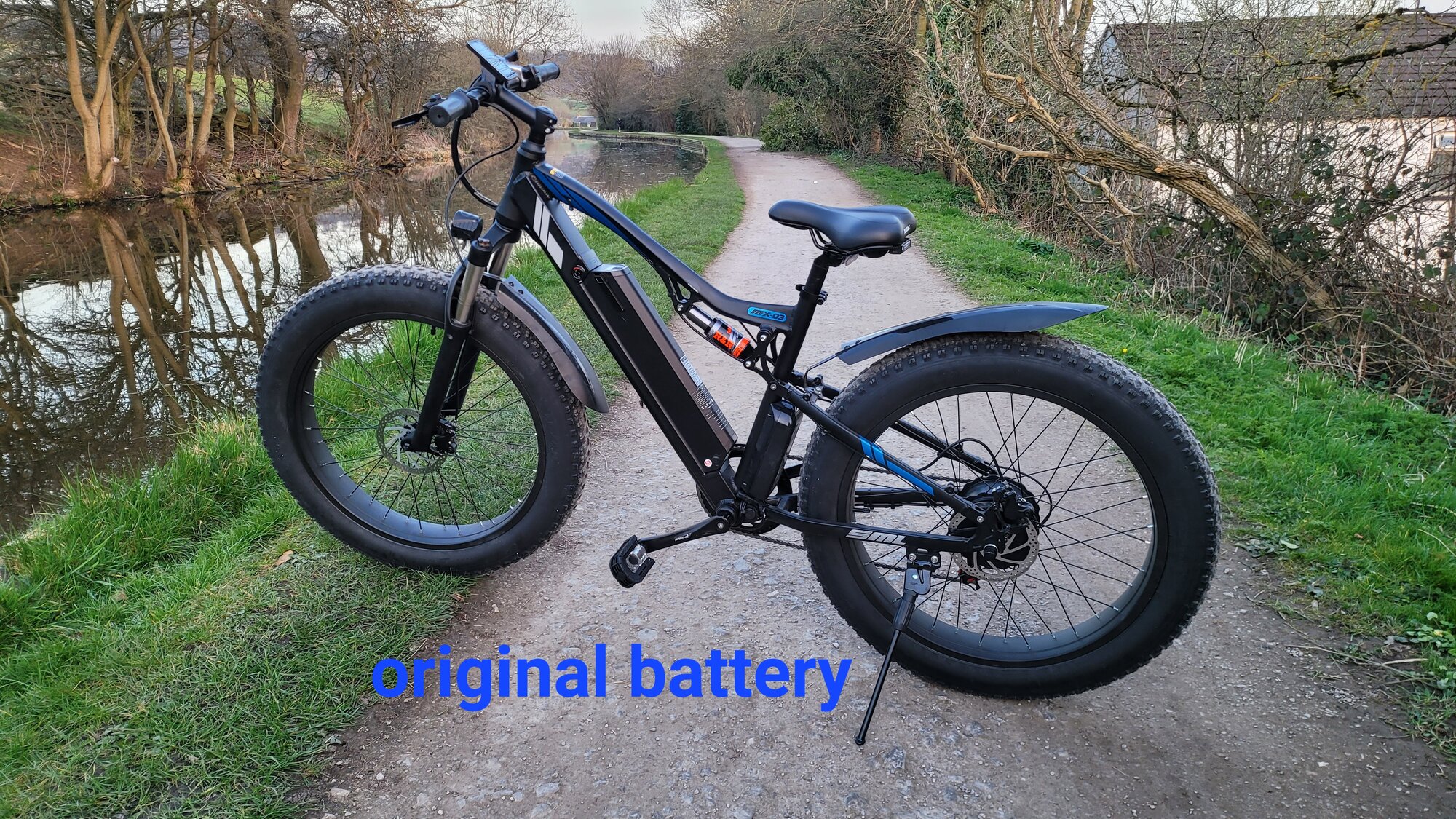

The battery fits well and plenty of clearance if any shengmilo mx03 owners wondered, any questions or requests welcome ,
One thing I noticed when riding up steep hills before I got this battery was it could do with a little bit more torque but with this battery there's no voltage drop/sag and handle them well obviously with a bit of effort that's how I like to use my gears, I'll keep this thread updated


Attachments

  • 20220325_181546.jpg
    846.5 KB · Views: 183
  • 20220714_161243.jpg
    618.4 KB · Views: 193
  • 20220713_125351.jpg
    325.1 KB · Views: 176
  • 20220713_125404.jpg
    233.9 KB · Views: 167
  • 20220713_125129.jpg
    292.5 KB · Views: 184
  • 20220713_125050.jpg
    250 KB · Views: 169
  • 20220713_125028.jpg
    388.9 KB · Views: 184
  • 20220713_125146.jpg
    353.8 KB · Views: 180
Hi Jenny, do you think there is any possibility that the improved 21700 cells will someday be retro-fitted into a Reention Eel Pro form?

Like Jimmy666 back here, I have Ride1Up Core-5 bikes too and would like to order the best spare batteries I can. The one you mentioned above would be an improvement, 21700 cells even better! Sent a PM as well. Thanks, your info is greatly appreciated!
If you in fact have the EEL pro version it's actually quite limiting.
52 18650 cells. Sadly Reention hasn't posted the drawings and details. Jenny is currently quite swamped. I don't expect batteries to be shipped till the end of the month. Based on the written specs, 48V 13s4p, 52V 14s3p.

21700 cells have higher amp hours than 18650. 21700’s also discharge at a slower rate. Yes, you’ll get better range.
I do get better performance. Enough that I'm needing to make some mid drive programming changes.
with a new 18650 pack 350W in 4th is about 13MPH. with the 21700 pack, 17.5MPH. I was very surprised. Range is also quite a bit better. I'll have a better number once I run the pack on a Grin CA3.1 and Grin controller

Just want to chime in and mention I updated my review of this 25ah battery from Jenny after 1 year of use over on this thread. I re-ran my capacity tests to see how much it degraded over a year (hint: it didn't) and was stunned it did so well to be honest. There's a 52v version on the way to me know and I am going to do a similar review of it.


Anyone get a spare battery for the surface 604 Werk recently? Interested in picking one up.

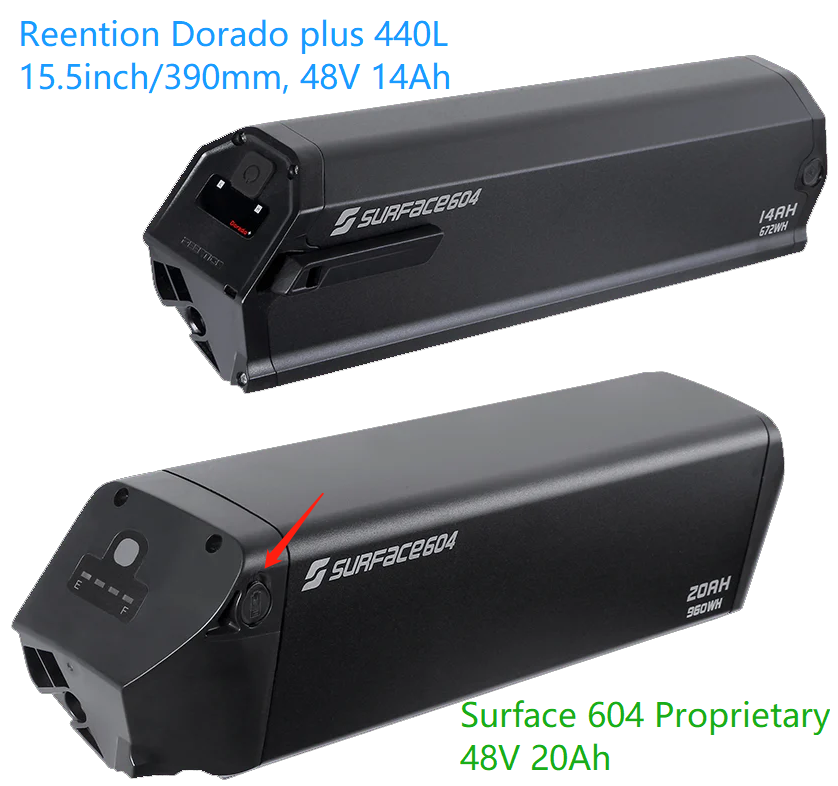

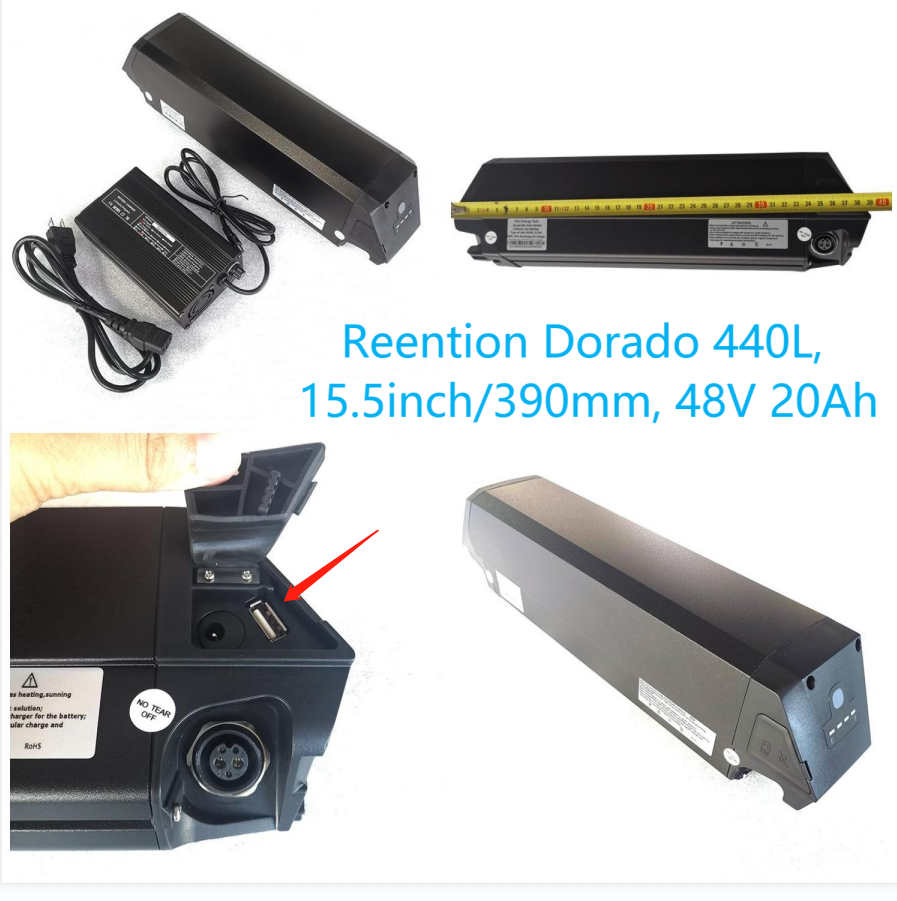

Hi, it is short Dorado 440L, battery length about 15.5inch/390mm, that is used on Surface 604 2022 Werk, Shred,Rook, Colt,and Boar. Surface604 provides the Reention Dorado plus 440L 48V 14Ah and their own proprietary design of 48V 20Ah. We have the Reention Dorado 21700 440L case for same 48V 20Ah, (charging port position is different) built with Samsung 50E 21700 cells, with 30A BMS, compatible with 250W-1000W motor.

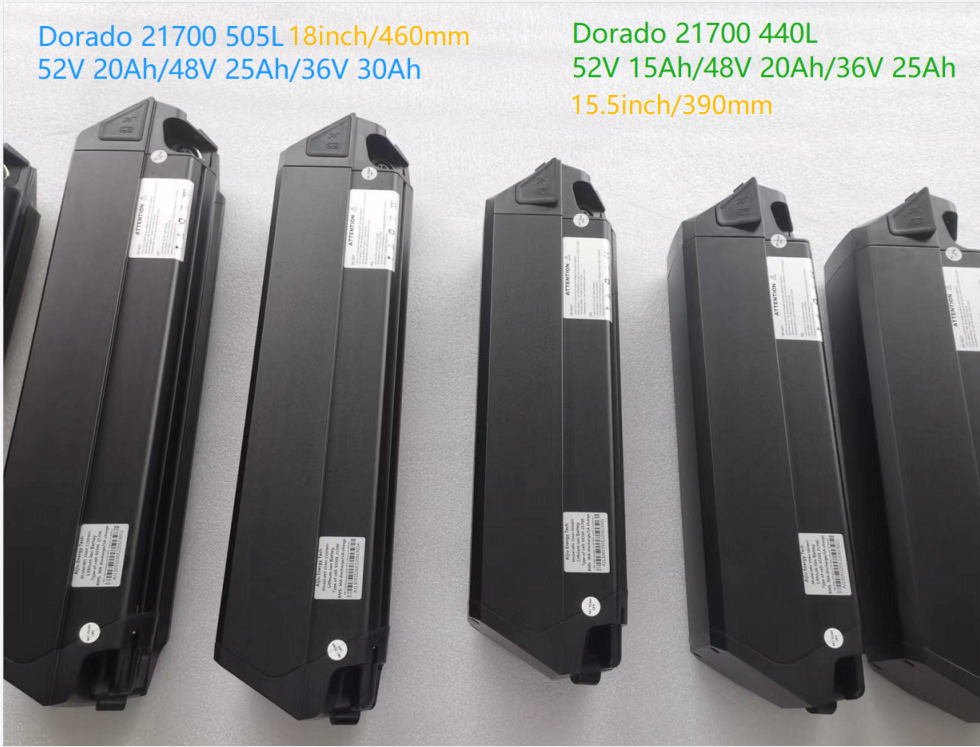

Here are some Dorado 21700 440L 48V 20Ah ready in stock for shipment. Pls contact me via email or Alibaba for more details.Thank you!

[email protected]






Hi Jenny, do you think there is any possibility that the improved 21700 cells will someday be retro-fitted into a Reention Eel Pro form?

Like Jimmy666 back here, I have Ride1Up Core-5 bikes too and would like to order the best spare batteries I can. The one you mentioned above would be an improvement, 21700 cells even better! Sent a PM as well. Thanks, your info is greatly appreciated!
Will absolutely get back and update when the EEL PRO is available for 21700 options someday, not now.

Today, we have all orders paid in lockdowns shipped away, and some of riders already got the battery and did some biking test. Thank you for all your updates and patience. Now will push all new orders shipped ASAP. There are still some Dorado 505L 48V 25Ah and the short Dorado 440L 48V 20Ah readily available for shipment.


You mentioned 48v 35ah cells from ShanShan tech in an earlier post @Jenny Mao
Do you know how we can get a hold of those or when?

Alternatively
How much for 2 48V 25ah batteries :)
Thank you!
