It's so much easier to just use a switch. DPDT

We used an inexpensive voltmeter. The switch has three positions.


Frame battery - OFF - Rack battery

Screen Shot 2022-05-10 at 1.03.02 PM.png

Last edited:
I found this video on youtube that explains quite well how to connect two batteries in series with a switch.


I found this video on youtube that explains quite well how to connect two batteries in series with a switch.

Thanks for sharing. It is a mechanical switch to let the battery discharge from one to another as you want. So no concern to maintain the two batteries in same voltage level as the video explains.

Your welcome! I also thank you all!!🙏I'm still learning things about the ebikes. So in the end the best choice is a mechanical switch rather than Double Battery Discharge Converter, right? Even if that converter doing everything automatically can be a bit stressful on batteries.

Eunorau Dual Battery Conveter

WattWagons Dual Battery Conveter

Bolton Dual Battery Parallel Connector
Which have you used?

I have the Aliexpress version. As Jenny points out there can be downsides to these devices.
I DON'T get increased mileage. There's lots of marginal and sometimes downright incorrect information on YouTube.
I trust my experience over opinions.

If any problems pop up there's no recourse. And no warranties.

I found this video on youtube that explains quite well how to connect two batteries in series with a switch.

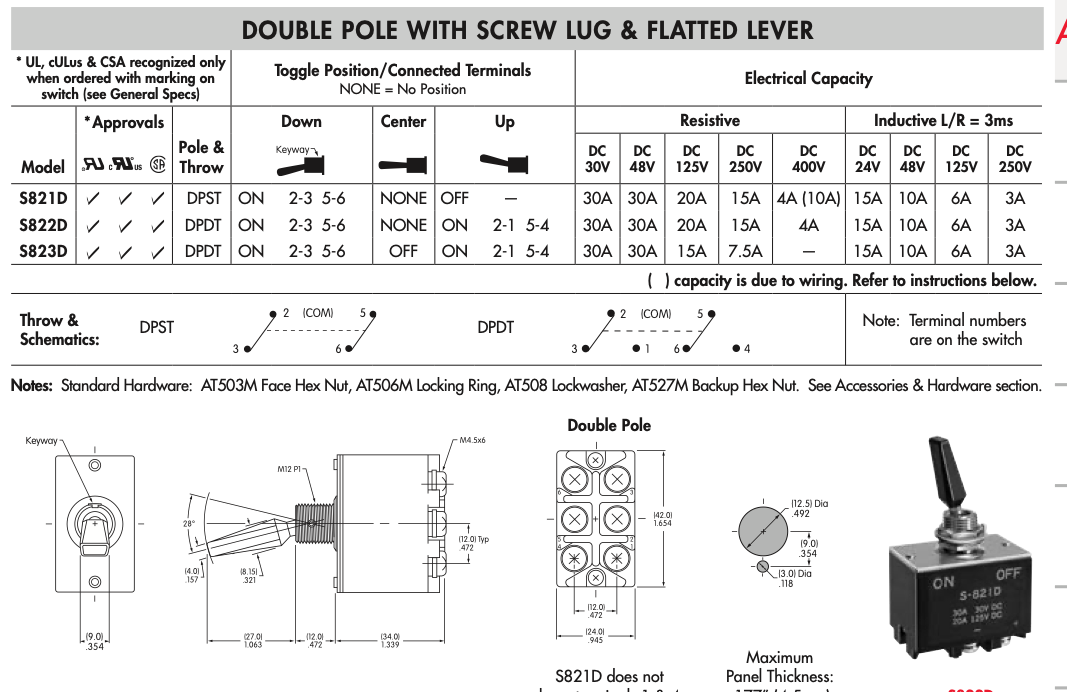

I'd not be happy using a $4 switch. The specifications are worrisome.
Type: (ON)/OFF/(ON) ;Connector Type: DPDT ;Power: 15A 250VAC / 20A 125VAC

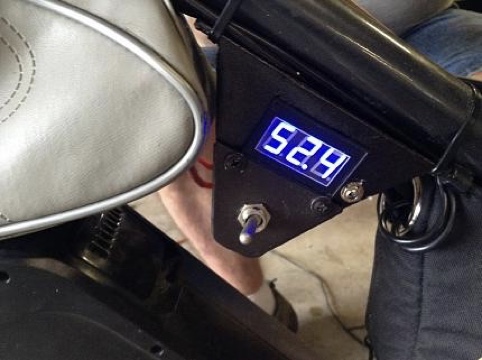

It's so much easier to just use a switch. DPDT

We used an inexpensive voltmeter. The switch has three positions.

View attachment 122949
Frame battery - OFF - Rack battery

View attachment 122952
UPDATED SWITCH VERSION

Be certain the switch you use is up to the task. Confirm the switch specifications. The switch I posted has been used on a dozen bikes but not tested with any pack over 48V(54.6V) and 30A.

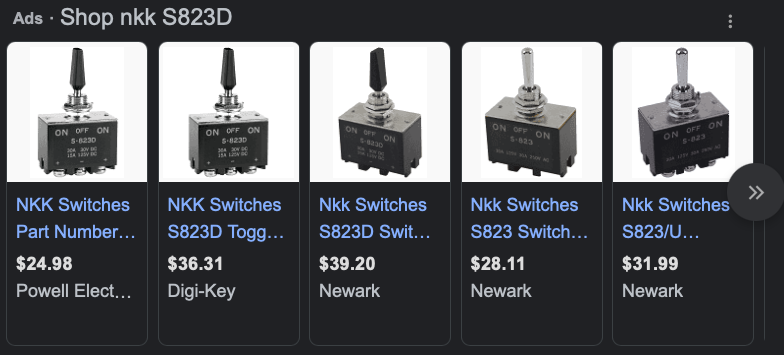

Screen Shot 2022-05-10 at 1.07.27 PM.png

Now I'm a little confused, so in the end should I buy a mechanical switch or a Double Battery Discharge Converter?

Your welcome! I also thank you all!!🙏I'm still learning things about the ebikes. So in the end the best choice is a mechanical switch rather than Double Battery Discharge Converter, right? Even if that converter doing everything automatically can be a bit stressful on batteries.
So why don't you just put it on a rack and swap when needed it's the best safest option

Now I'm a little confused, so in the end should I buy a mechanical switch or a Double Battery Discharge Converter?
It's up to you. Others will claim the devices posted work for them. But so far I haven't seen a review of the devices by any source I trust. So far all we see here are the results of someone with no experience searching and finding devices. Given the nature of lithium batteries, I feel safest with a switch.

  • Like
Reactions: ovt
I have seen a cheaper ebike using switch, for example budget friendly FTH Power X2-F (covered on EBR YouTube channel), but if you look at ebikes that are a little more expensive, Rize, Juiced, DOST, Ariel Rider, or even higher end bikes like WattWagons or Riese & Muller, they don't use switch.

Obviously it's up to you to go which one, but even if you watch EBR coverage on YouTube, there are tons of dual battery ebikes, and switch seems to be rare.
Seriously!? Posters should take the opinions of someone that has no relevant experience just parroting Google searches?

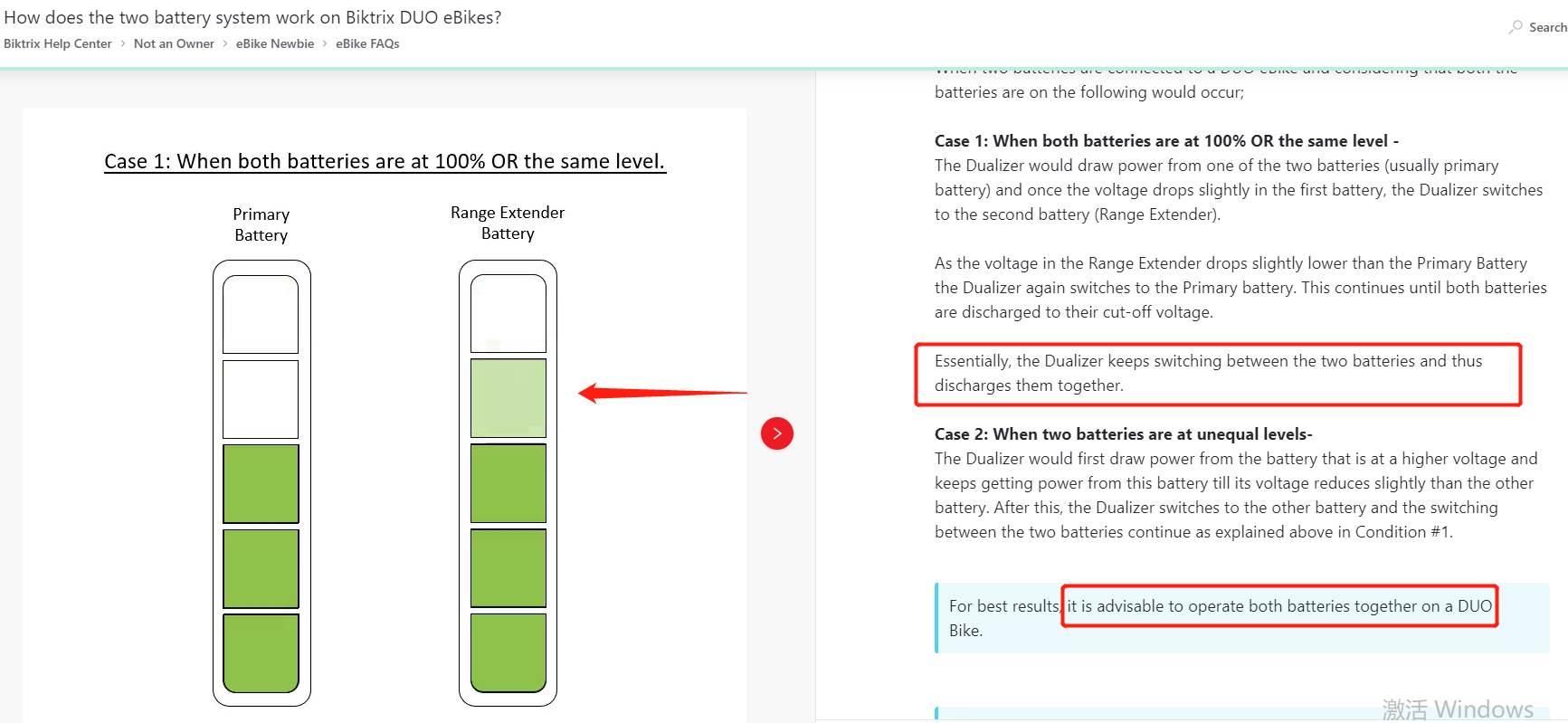

This is how dual battery converter works explained by Biktrix. But I haven't figured it out clear myself. 😅 It sounds like the converter smartly keeps switching between the two batteries, makes the two batteries dynamically in same level voltage till the cut off voltage. If so, there is always only one battery discharging at any time. But Biktrix explains it is two batteries discharge together and they advise to operate two batteries at the same time. Quite confused.

But if the primary battery is firstly used till ends, and then turn on the secondary battery, to avoid the converter keeps switching. Is this better? Any ideas.



Last edited:
  • Like
Reactions: ovt

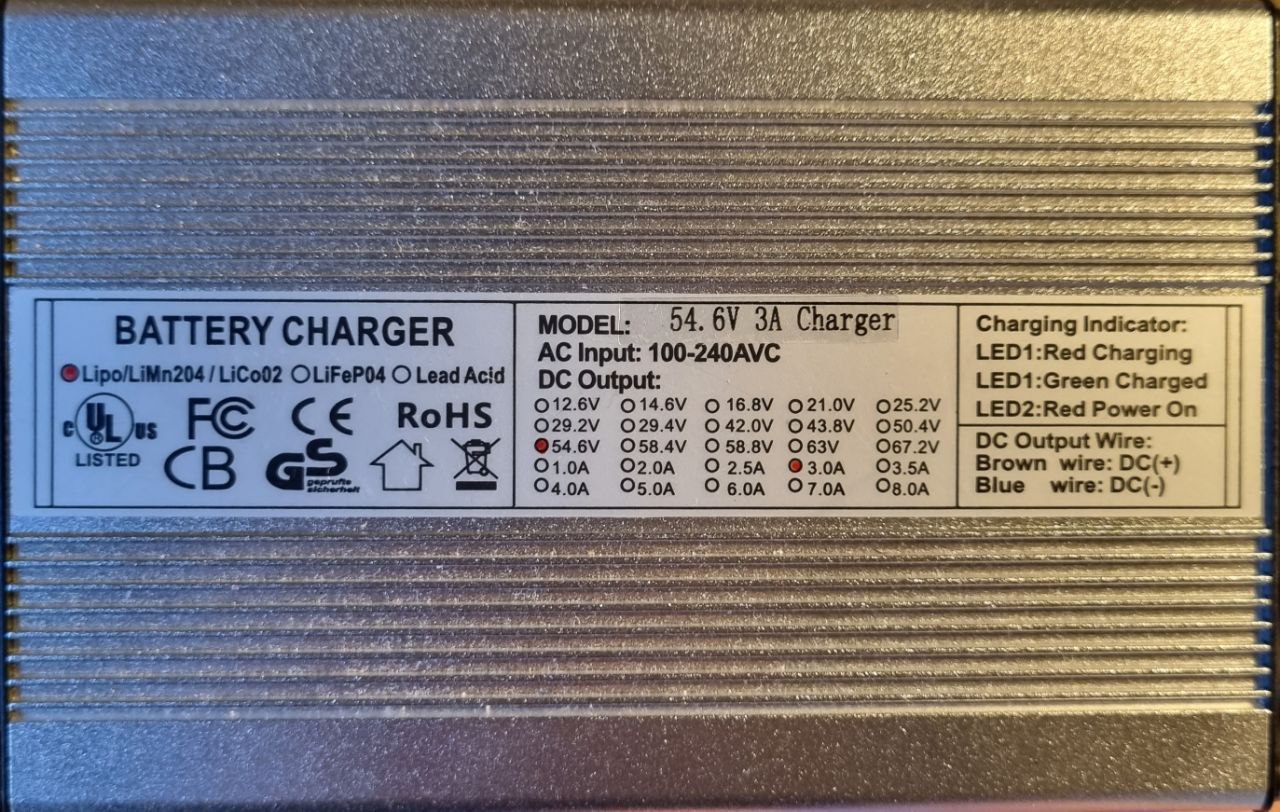

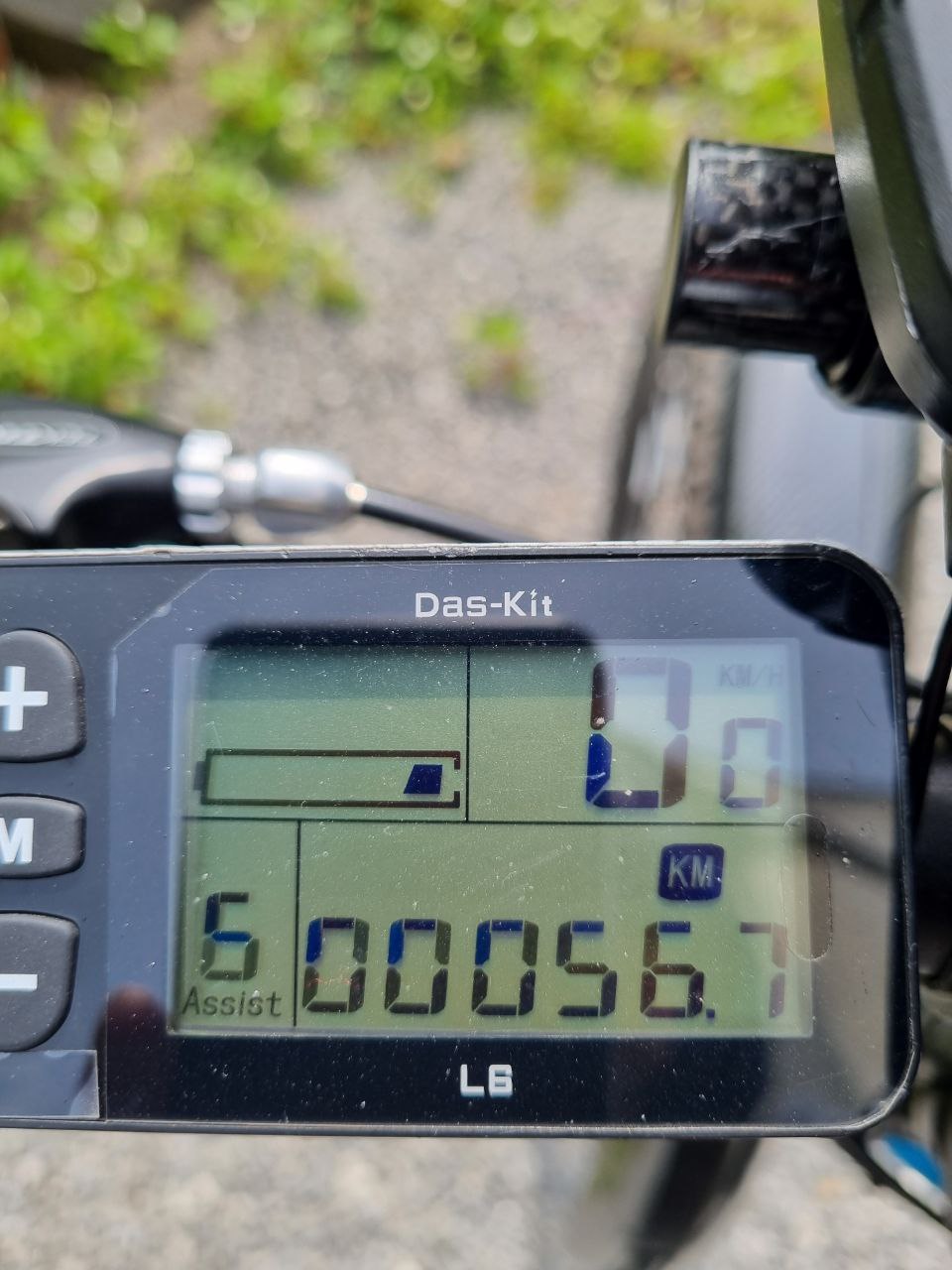

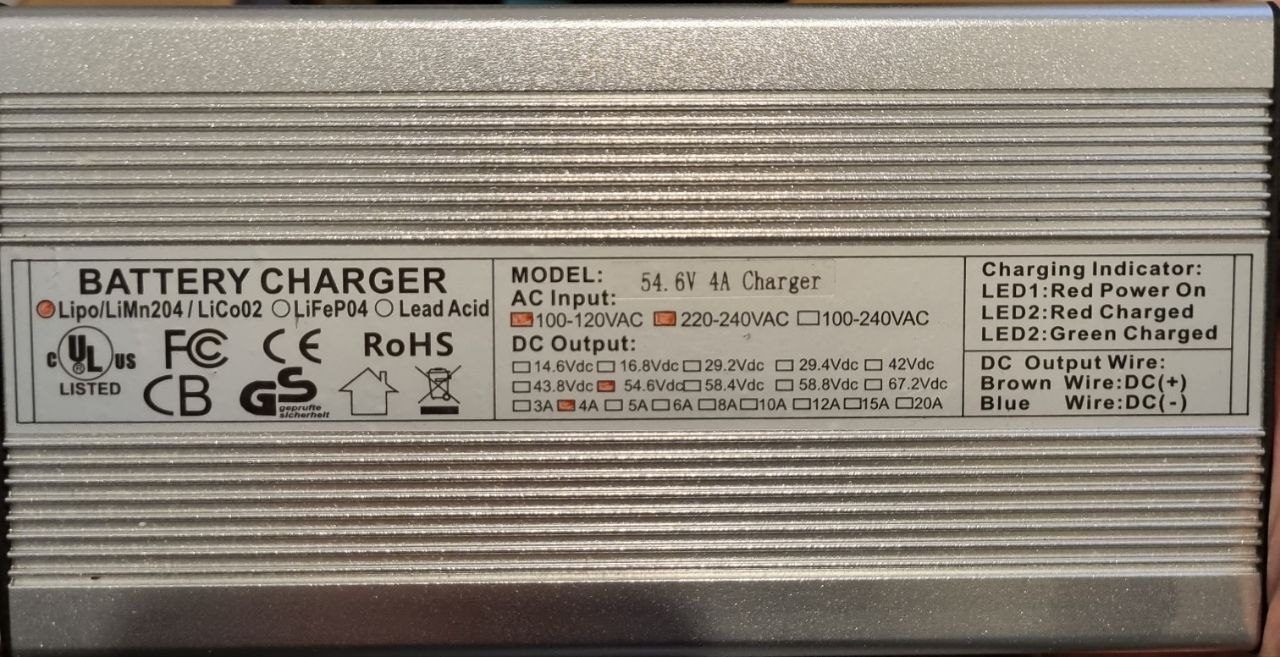

Does anyone know why if you charge the battery with a higher amperage charger it discharges faster? I have two chargers, the stock 3A with which the battery came, and I bought another 4A. If I charge the 48v 21Ah (1008Wh) battery with the 3A charger I can cover 100km, and if I do it with the 4A one the autonomy is smaller. I took some pictures today, after 56.7km I had only one bar left, but with that remaining bar I could have covered another 15-20km. Let's say a total of 75km traveled by charging the battery with the 4A charger. So there is a difference of 25km. There are already electric bikes that have 4A or higher chargers in stock, even 10Amps fast charging, and I don't understand why with my 4A charger I lose over 20km that I could have covered. Charging time with 4A charger is somewhere around 5.5hours. Maybe someone will enlighten me.


Attachments

  • photo_2022-05-13_21-47-28.jpg
    260.6 KB · Views: 163
  • photo_2022-05-13_21-47-36.jpg
    195 KB · Views: 149
  • photo_2022-05-13_21-47-40.jpg
    144.1 KB · Views: 150
Last edited:
Could it be that charging at a higher amperage causes the cells to NOT balance properly? Kind of like when you fill a bucket of water with the hose full open, water will splash out. Topping it off will be harder. As opposed to, filling the bucket slowly so the water doesn’t spill over.

Could it be that charging at a higher amperage causes the cells to NOT balance properly? Kind of like when you fill a bucket of water with the hose full open, water will splash out. Topping it off will be harder. As opposed to, filling the bucket slowly so the water doesn’t spill over.
I don't know,it's just an amp difference between them. There are other bikes that come from the factory with 4amp chargers, and scooters that have 10A chargers.

Could it be that charging at a higher amperage causes the cells to NOT balance properly? Kind of like when you fill a bucket of water with the hose full open, water will splash out. Topping it off will be harder. As opposed to, filling the bucket slowly so the water doesn’t spill over.
Some chargers cut off earlier , charge with 4amp then plug 3amp in and see if it charges more ,, you could always check with a multimeter from both chargers

Some chargers cut off earlier , charge with 4amp then plug 3amp in and see if it charges more ,, you could always check with a multimeter from both chargers
Thanks for your advice!! I'll do that next time.👍
