Giant SyncDrive Pro 2020 "tuning"
- Thread starter Stefan Mikes
- Start date
FlatSix911
Well-Known Member
- Region
- USA
- City
- Silicon Valley
TheEqualiser
Active Member
I would have thought that the Badass Box would definitely be the way to go. And they do ship within Australia, so reasonably quickly. You can always test out what effect it will have by swapping your speed sensor to the outside of the chain stay with cable ties and attaching your magnet to the crank instead of the spoke. It will work but I think some people have reported problems over time where the software presumably picks up the fact that the cadence is exactly the same as the "speed". You will also need a security Torx bit if you want to remove your speed sensor. You would certainly be pleased though with the results from the Badass Box (even better if you don't have a display reporting annoying numbers too@Stefan Mikes - great thread! and you're lucky to have your brother to help/do the install - it looked like a nightmare!
It makes the BadAss4 appear sooo much easier, and fortunately my e-bike has the old school spoke magnet
).Yeah I hit the 25km/hr limit constantly.
I wouldn’t want to de-restrict if the limit here was the same as say California
Cheers
Mike
Stefan Mikes
Gravel e-biker
- Region
- Europe
- City
- Mazovia, PL
I agree with you Mike. I don't activate the derestrictor on my Giant Trance E+ off-road as even 25 km/h there is high speed. However, I need to derestrict when riding on paved roads. It is not that I ride very fast there (e-MTBs are not speed demons) but it is vital for me to easily ride at just 28 km/h and with no "wall-effect" at the motor cut-off. It is actually very dangerous when the motor cuts off while I cross an intersection...
that's a great heads up! - cheers
, and is the clincher.Moving the speed sensor to the crank just became harder (requiring a security Torx)...and I like the way the BAB can be removed in seconds...
Mike
This Speedbox video shows significant work for the install on a Giant - no crank removal, undoing the chain ring apparently provides access, but still requires getting lots of stuff off to swing the motor down for the install:
From my perspective, still a difficult install.
@Stefan Mikes - cheers again for this thread
cheers
Mike
or when overtaking another cyclist...hitting the 25km/h wall as you pass is quite scary...
FlatSix911
Well-Known Member
- Region
- USA
- City
- Silicon Valley
Thanks for sharing the video... by contrast here is the BadAssBox 3-step installation process.This Speedbox video shows significant work for the install on a Giant - no crank removal, undoing the chain ring apparently provides access, but still requires getting lots of stuff off to swing the motor down for the install:
From my perspective, still a difficult install.
@Stefan Mikes - cheers again for this thread
cheers
Mike
1. Clip BAB over the frame-mounted speed sensor. 2. Reposition the spoke magnet. 3. Done!
Last edited:
I really like that @iskjone. That 'blast mode' ist a lot of fun on paved roads.
@MRB, I'm sorry to hear about your problems, did you solve "speed sensor red light" issue ?
I decided to go digital way; just as this great thread started thanks to @Stefan. This time that electronic solution is VOLspeed V3.
Let's start, get that in that slim LIV Vall PRO 2021 body
Will that be @Kal botox correction or heart surgery ?
let's find out...
FlatSix911
Well-Known Member
- Region
- USA
- City
- Silicon Valley
Good luck with the installation... you will not be disappointed with the top speed performance improvement.I really like that @iskjone. That 'blast mode' ist a lot of fun on paved roads.
@MRB, I'm sorry to hear about your problems, did you solve "speed sensor red light" issue ?

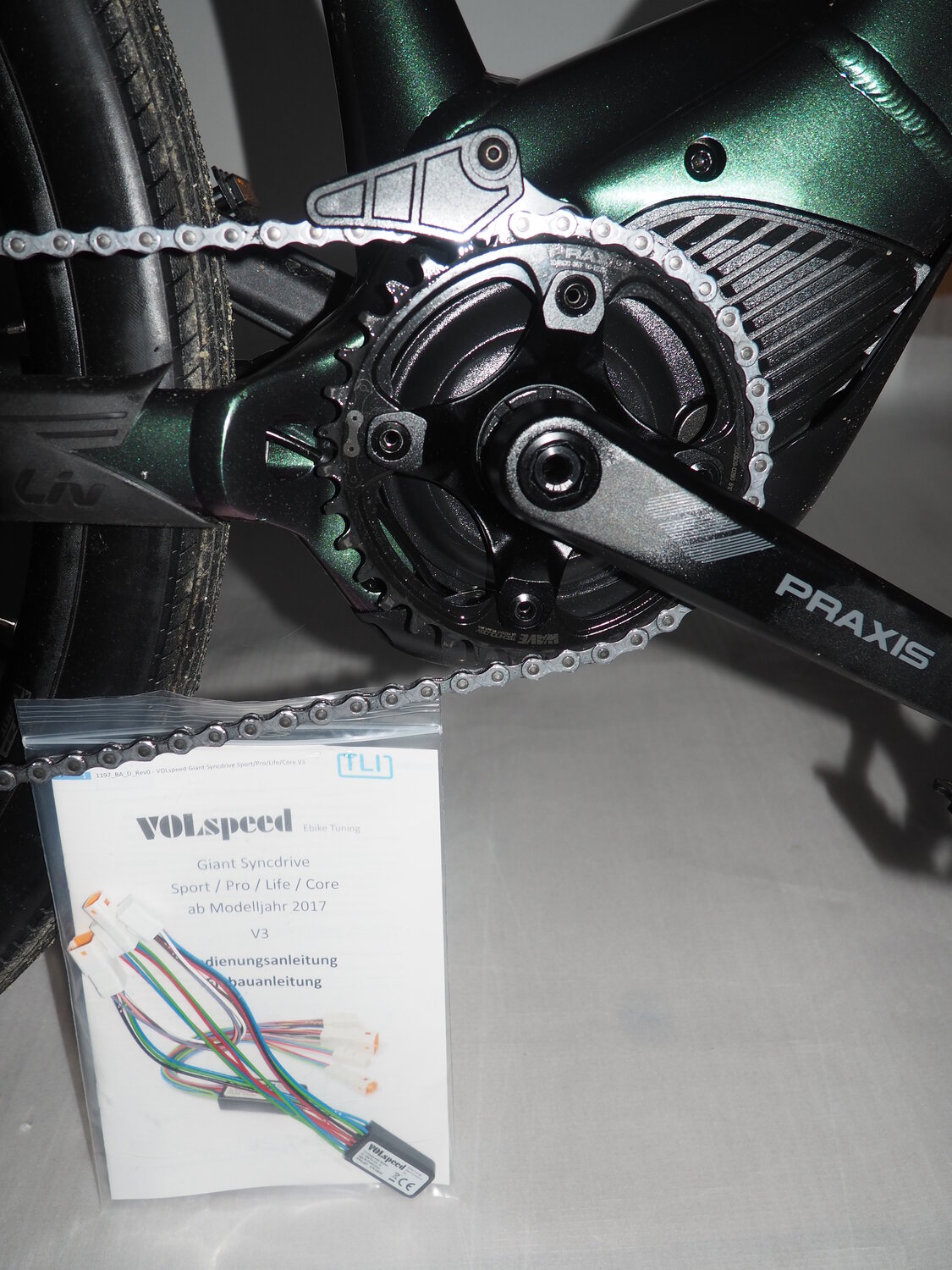

I decided to go digital way; just as this great thread started thanks to @Stefan. This time that electronic solution is VOLspeed V3.
Let's start, get that in that slim LIV Vall PRO 2021 body
View attachment 79078
Will that be @Kal botox correction or heart surgery ?
let's start....one post per operation ? I have to raise my post numbers
first step....remove Crank
no sound (I had to cut out sound ... inappropriate language ) , but that first bang when the bolt loosens is very nervous because you don't want to break the axles on the new bike..
first step....remove Crank
) , but that first bang when the bolt loosens is very nervous because you don't want to break the axles on the new bike..@FlatSix911, to reveal a little moreGood luck with the installation... you will not be disappointed with the top speed performance improvement.
Stefan Mikes
Gravel e-biker
- Region
- Europe
- City
- Mazovia, PL
I cannot wait until you produce the chainring removal tool from Cyclus...
@Stefan, sorry, no more videos, just photos. Maybe I'll record more if a friend needs help with GIANT FATHOM E+ 1 PRO installation.
So,who survived the first bolt bang with me, can continue, others please select easier topic
With help of Lockring tool i had no trouble to remove chainring bolt, unscrew clockwise ! :
then remove plastic under and side cover and its here in all its glory:
So,who survived the first bolt bang with me
, can continue, others please select easier topic With help of Lockring tool i had no trouble to remove chainring bolt, unscrew clockwise ! :
in all its glory:
Last edited:
Stefan Mikes
Gravel e-biker
- Region
- Europe
- City
- Mazovia, PL
So you had the Lockring tool. Go on!
unscrew top motor mounting bolts M8 and M6 bolts, loose bottom bolts to drop motor. Won't drop ? It will with little help of wooden wedge on front motor housing bolt bulge and frame. Don't mess up with metal screwdriver, you'll damage frame and wiring,
it's out:
it's out:
Last edited:
Stefan Mikes
Gravel e-biker
- Region
- Europe
- City
- Mazovia, PL
Go on, Tomaž!
