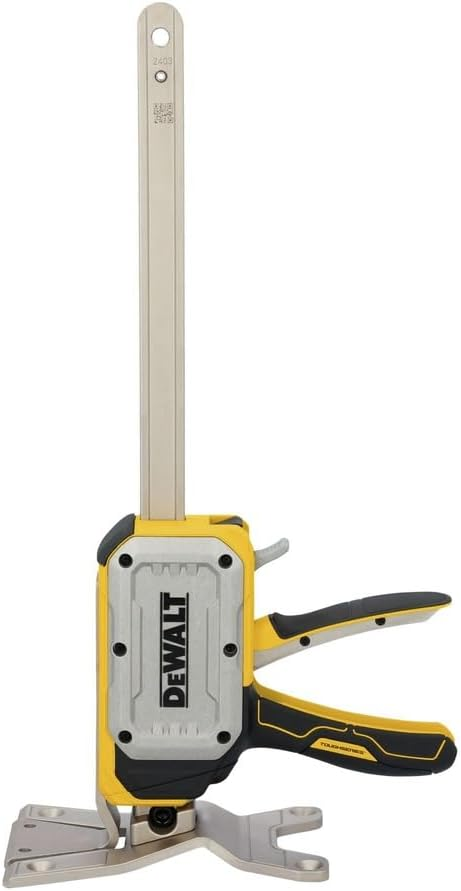

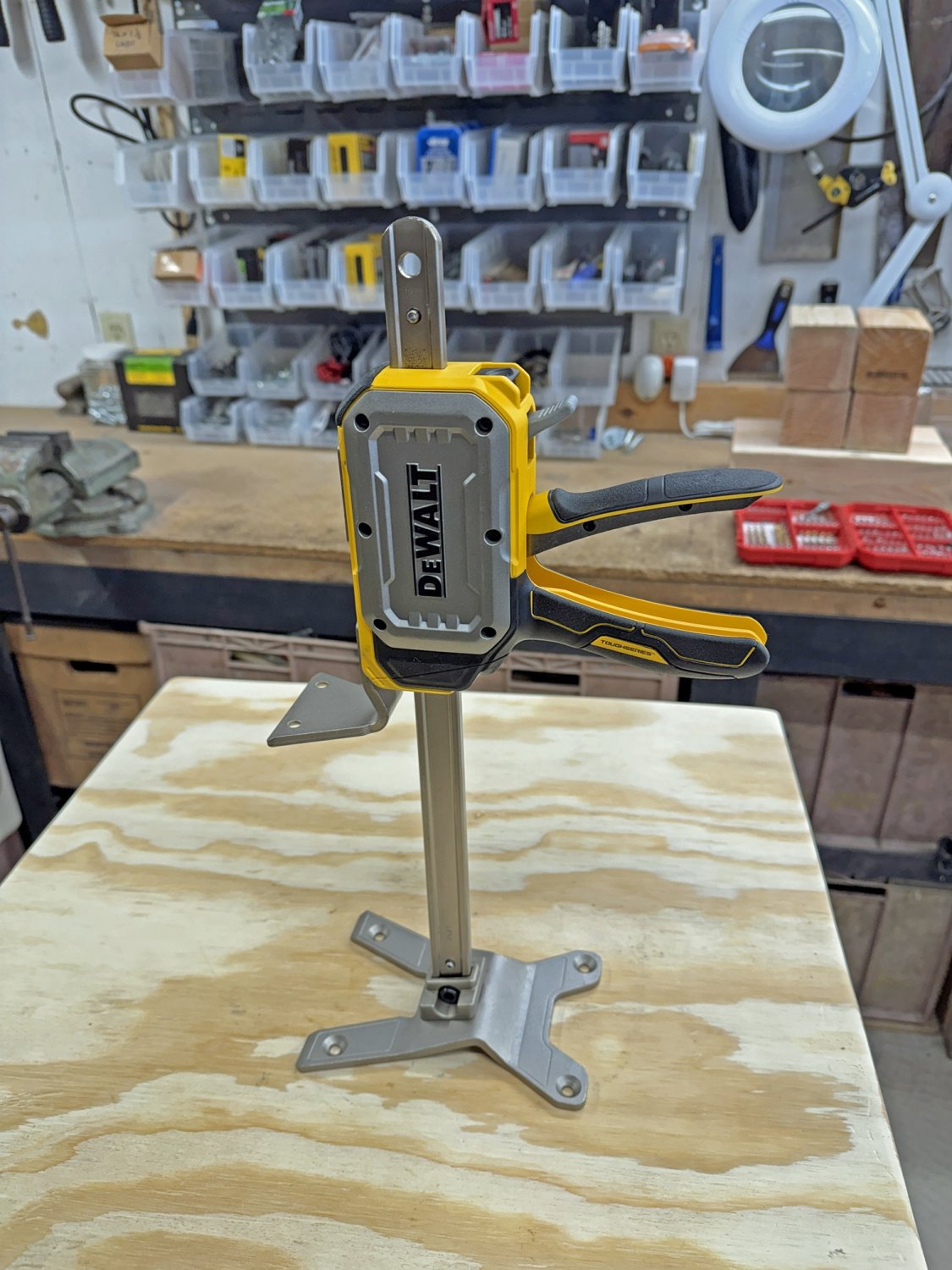

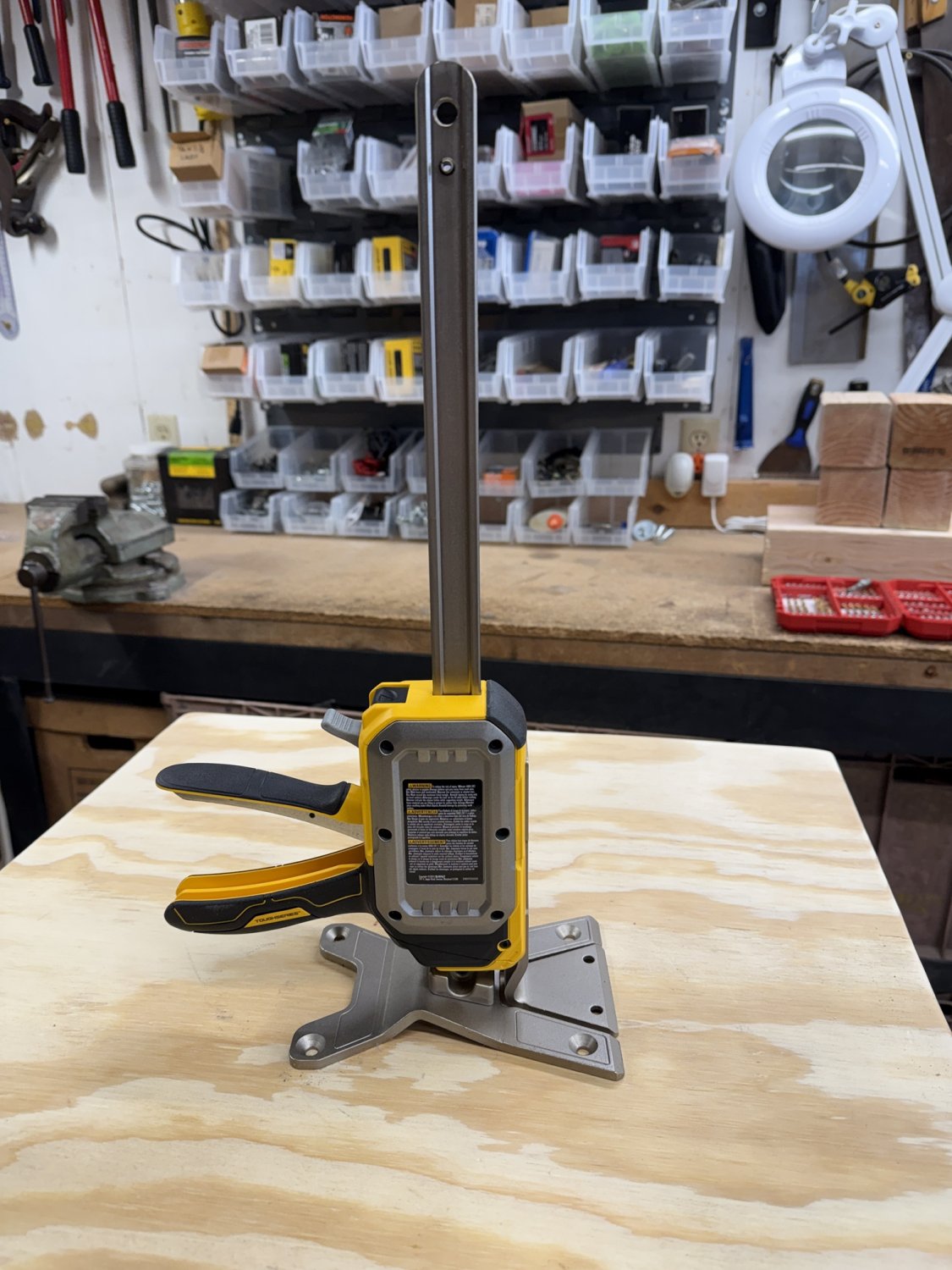

Picked up a couple of these on sale last week:

Among other uses, they work great for making quick bike adjustments without putting the bike on the work stand. With the bike supported by the kick stand, I just put this hand jack under the bottom bracket and lift the rear wheel off the ground an inch or so.



[stompandgo]

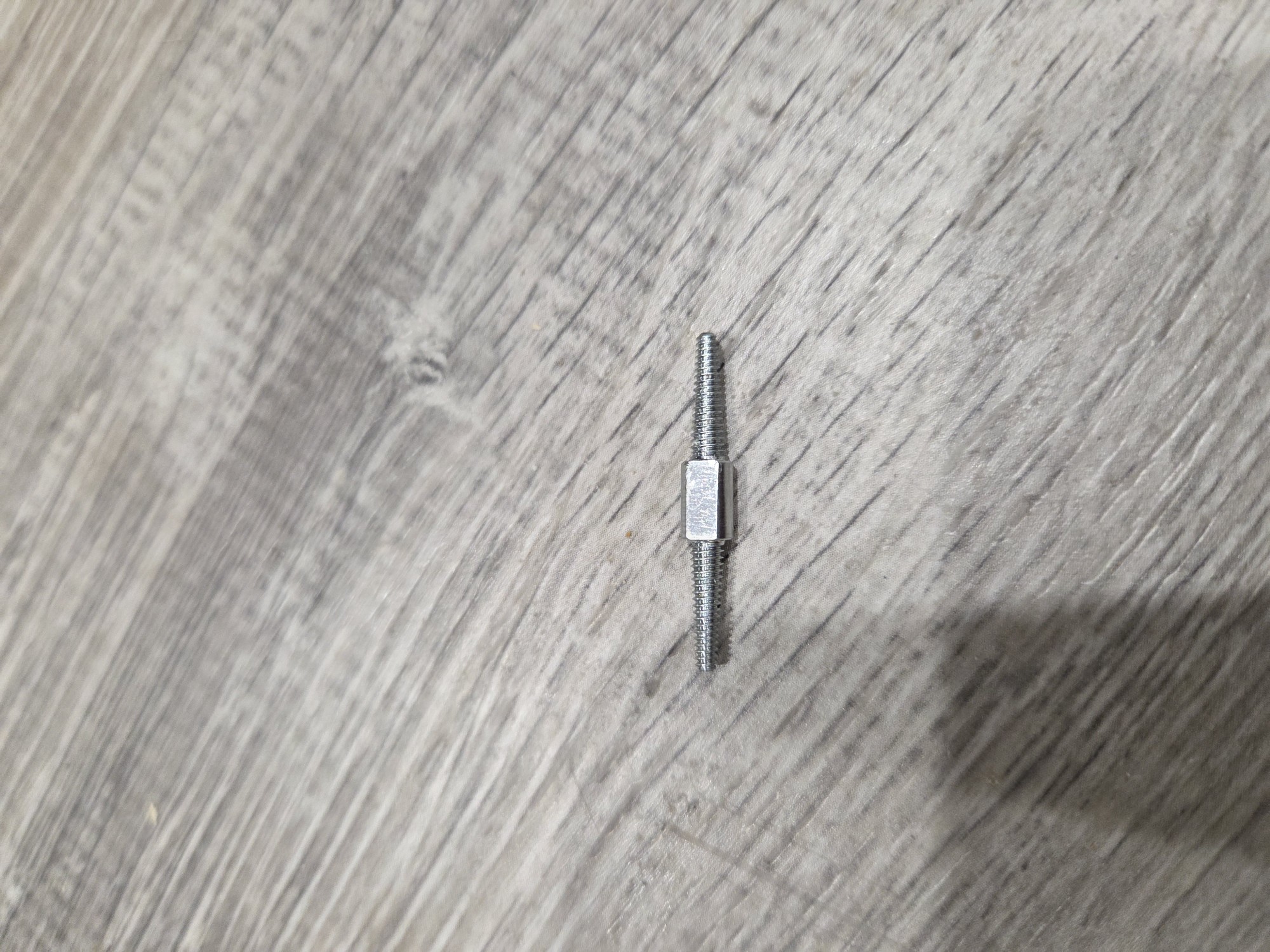

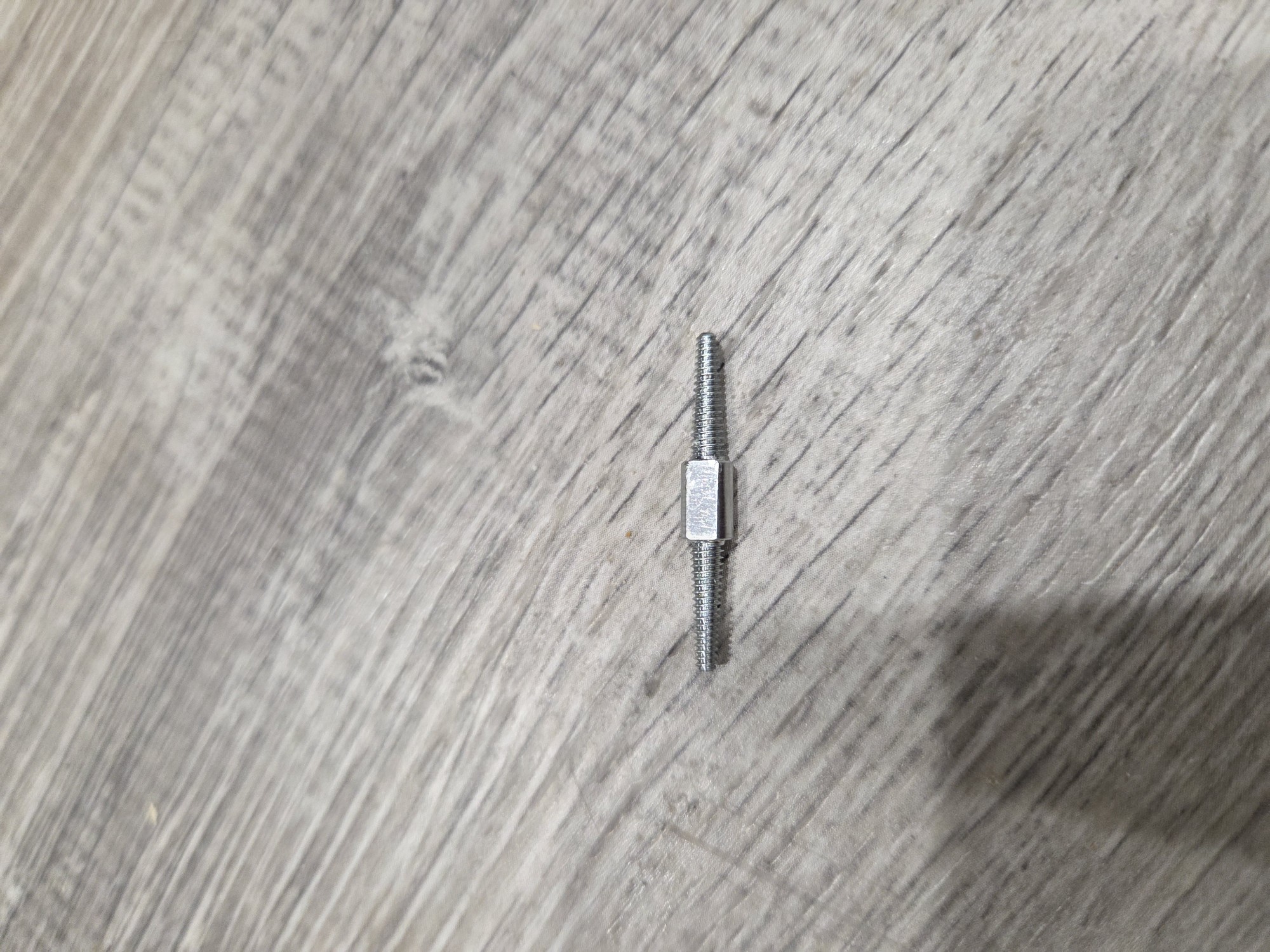

This is part of the Park IR1.3 internal routing kit. I used it this morning to replace the brake hose in the Pinarello fork.



[RunForTheHills]

View attachment 205376

This is part of the Park IR1.3 internal routing kit. I used it this morning to replace the brake hose in the Pinarello fork.

I don't have any carbon frames with internal routing, but I have something similar for fishing wire through walls.



[stompandgo]

I use glow sticks, but that's a nice kit.



[RunForTheHills]

I use the fiberglass rods 90% of the time, but the magnepull has come in handy. I bought it for a tricky pull in my home and it paid for itself.



[PedalUma]

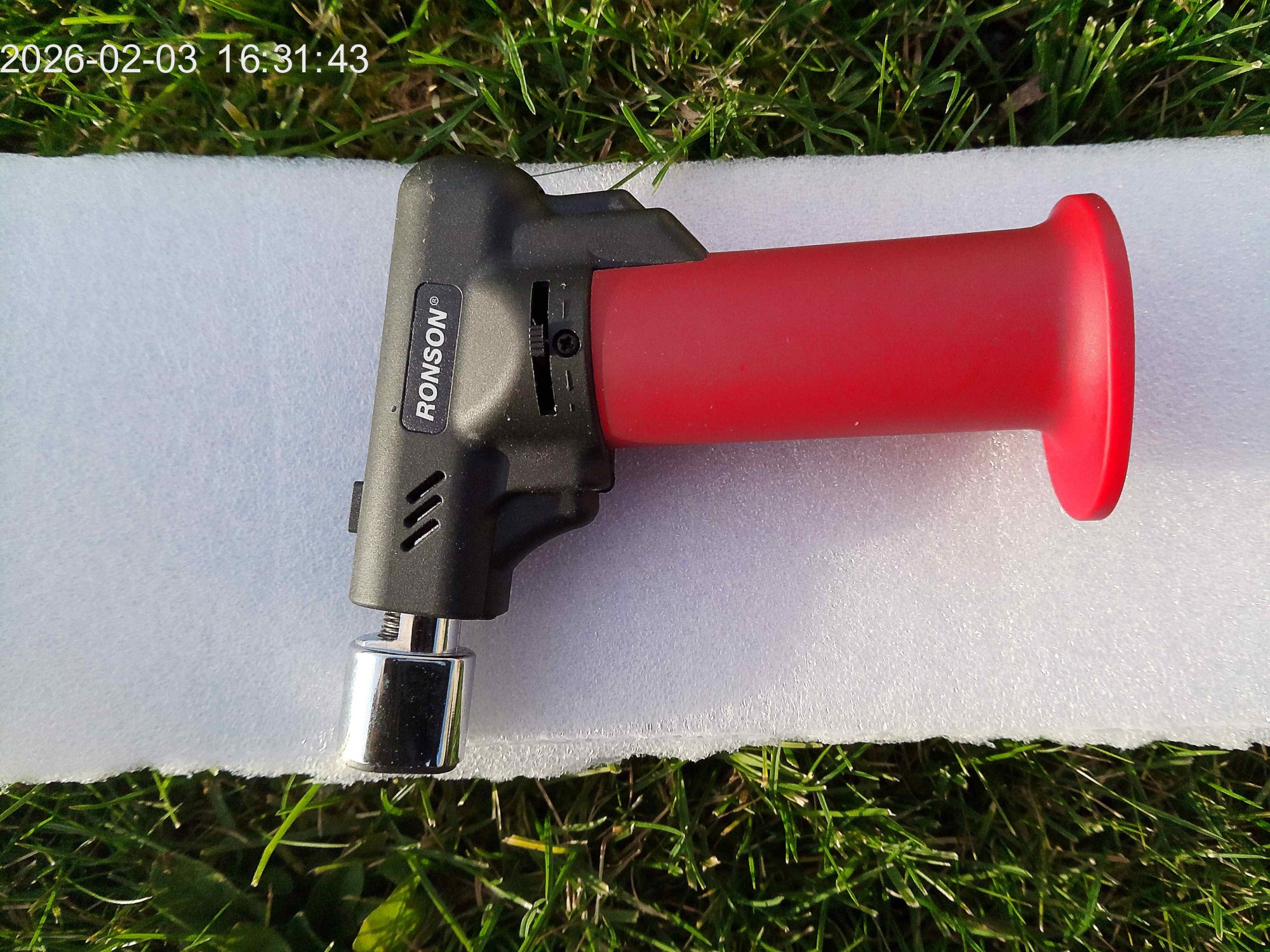

Soldering 20-30 amp or 16-14 gauge discharge wires with even a good soldering iron with a fresh tip can be a pain. You need to heat them for 3 or four minutes and might end up with a grey surface (bad) instead of a bright surface (good) and have to redo it. All electrical conductors also conduct heat away. So, I took a tip from people with high developed meh-heads, also folks like Richard Pryor and Whitney Houston and am using a little butane torch. Both fuel delivery and oxygen mix, with a top carb, are adjustable. The point of the blue flame makes the process take about four seconds. It always looks shined and nice. If I recall it was $6.35 in a Tractor Supply check-out bin. Maybe for truckers looking for a 2 AM pick-me-up. What is funny is that the huge gleaming downtown electric bike shop does not own a multimeter or a soldering iron. They cannot diagnose or fix stuff. Only using guess work to start replacing parts. Oh, it might be the $1200 battery, lets order one and see it that works! It will take three weeks of prime ride time to get here. Nope that didn't work so, let's order a new display and try that. With no rides from April 15th to June 2nd.



[gromike]

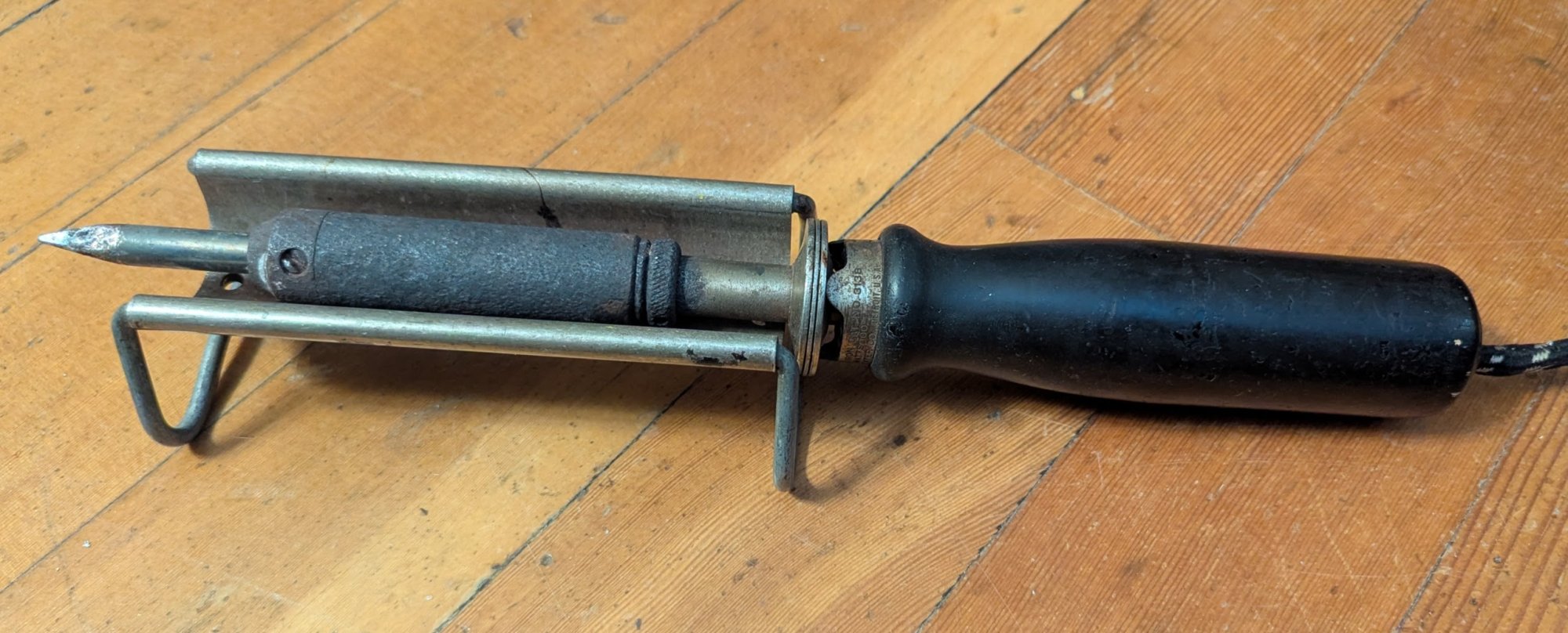

For soldering those fine stranded larger wires nothing beats an American Beauty:



[RunForTheHills]

For soldering those fine stranded larger wires nothing beats an American Beauty:
View attachment 205467

It's not the size of the tool, but how you use it...



[fooferdoggie]

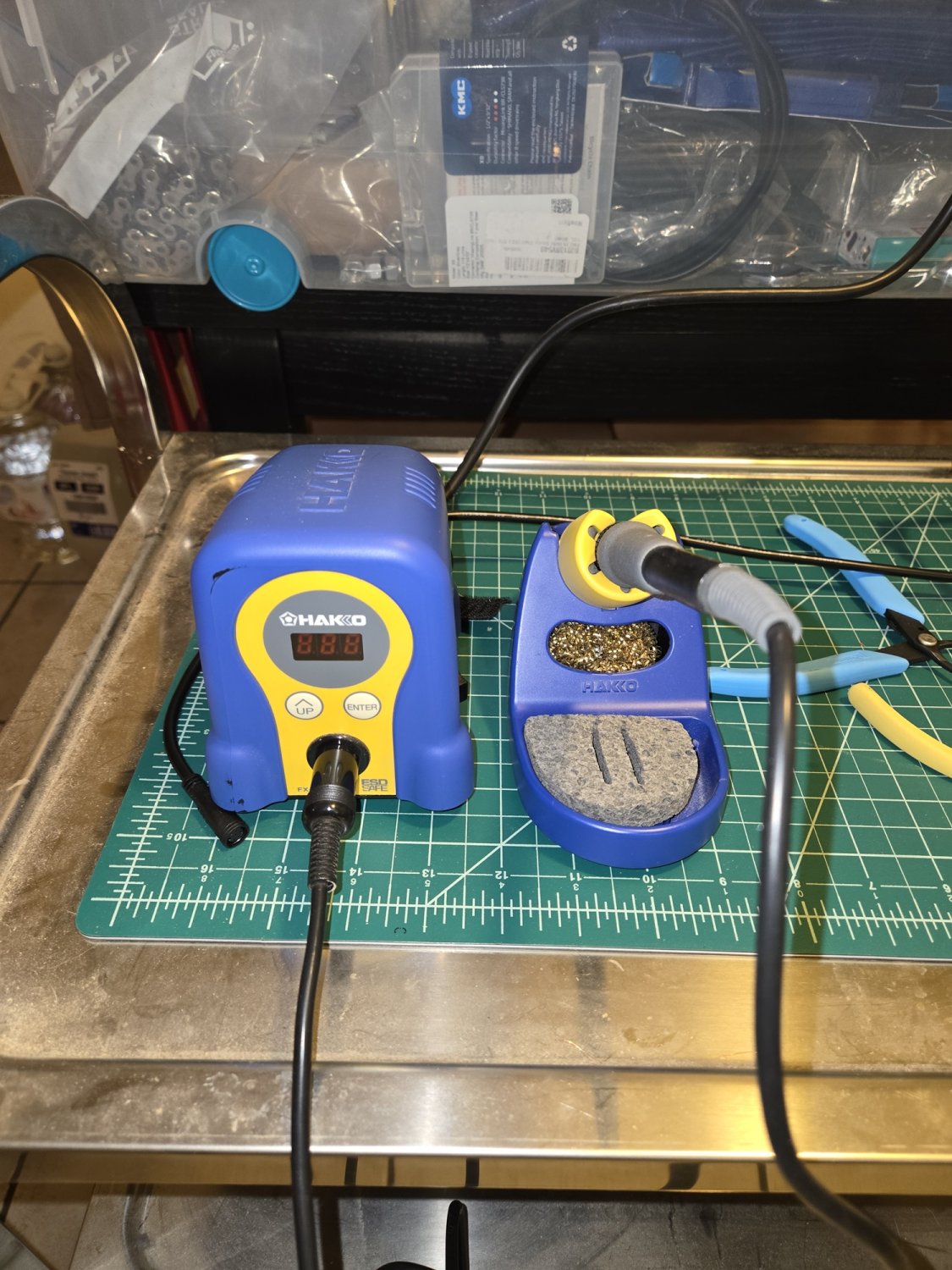

It's not the size of the tool, but how you use it...
View attachment 205468

I have that one too.



[spokewrench]

Soldering 20-30 amp or 16-14 gauge discharge wires with even a good soldering iron with a fresh tip can be a pain. You need to heat them for 3 or four minutes and might end up with a grey surface (bad) instead of a bright surface (good) and have to redo it. All electrical conductors also conduct heat away.

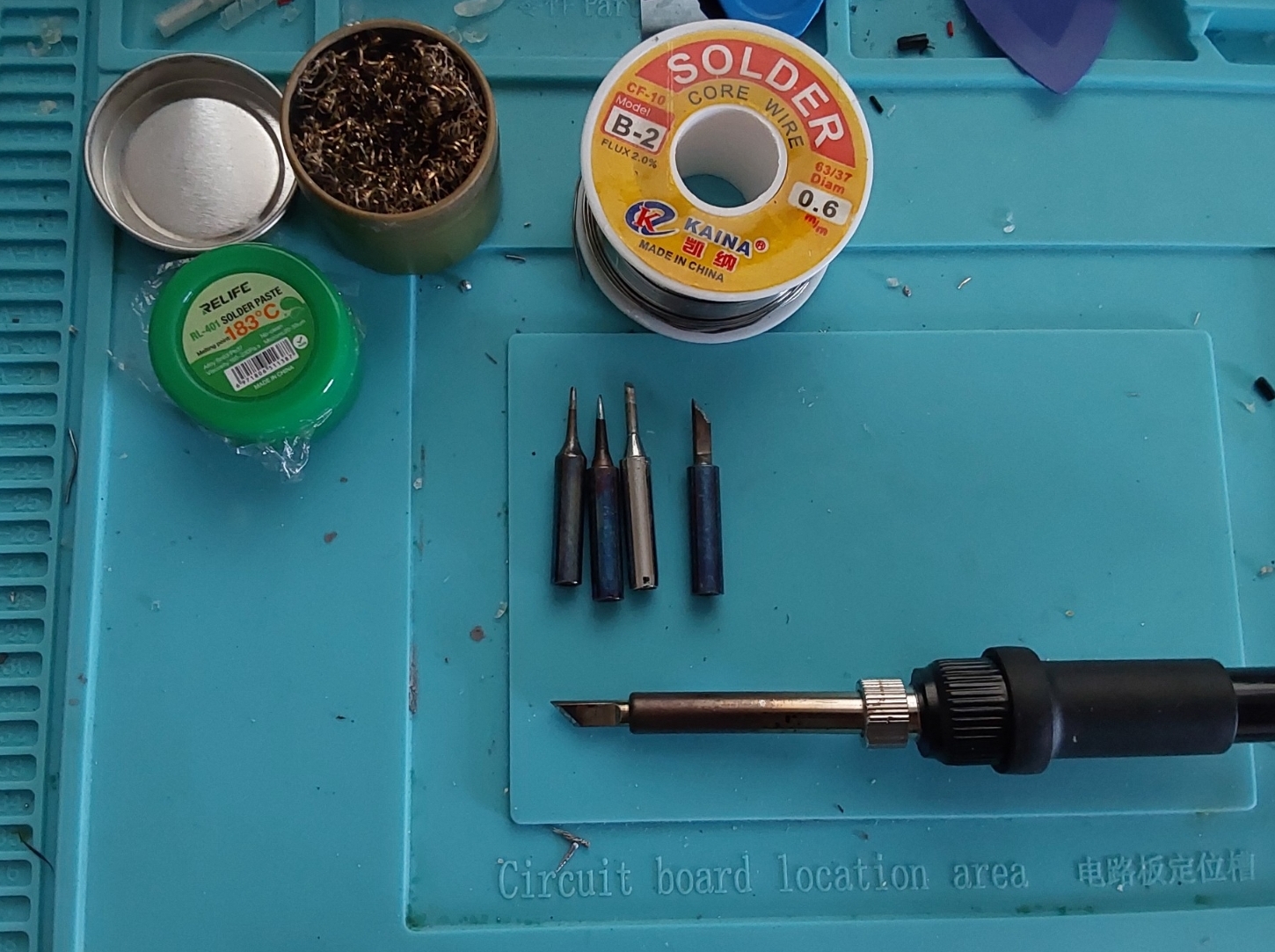

The mass of the tip is important. I have a temperature-controlled pencil iron of just a few watts. It came with assorted tips. With the right tip and temp, it's good on 14 gauge. For bigger stuff, I use a much bigger tip that attaches to a propane torch.

In 7th grade we learned to make boxes of tin-plated steel. Cut with tin snips. Bend with a brake. Take an iron with a tip about an inch in diameter and two inches long. Clean it with sandpaper, add flux, and stick it in a toaster-size electric furnace on the bench. When it's hot, melt and wick solder from a bar. Run the tip of the iron along a seam of your box. The method must have been foolproof because it worked for me!



[Gionnirocket]

True dat.... a larger chisel point works much better for larger wires and connectors than a small pencil tip.

Plug in a spare mating connector to hold everything true.Then I wrap the plastic of the connector with a small piece of damp cloth to keep it cool.
Tin the wire first and use lots of flux on the connector. Don't rely on just the flux core of the solder.
No 3 - 4 minutes of heating necessary if you use the right temperature, +400°c. and it's more like 10 seconds at most.. especially if you use a quality low temp solder for electronics.


This said nothing works better than factory connector with leads and a butt splice imo.
Your Melting Point May Vary. . .



[Old-tool-guy]

View attachment 205464

I have a similar torch thats great for browning cheese and flan.



[PedalUma]

It is ironic that yesterday I saw a guy get busted with one. I was in a restaurant, there was a guy outside acting crazy and smoking from a small glass pipe. He kept going over to my bike. The manager called the cops. They got the torch and pipe and put him in the back of the Explorer.

I have a similar torch thats great for browning cheese and flan.



[PedalUma]

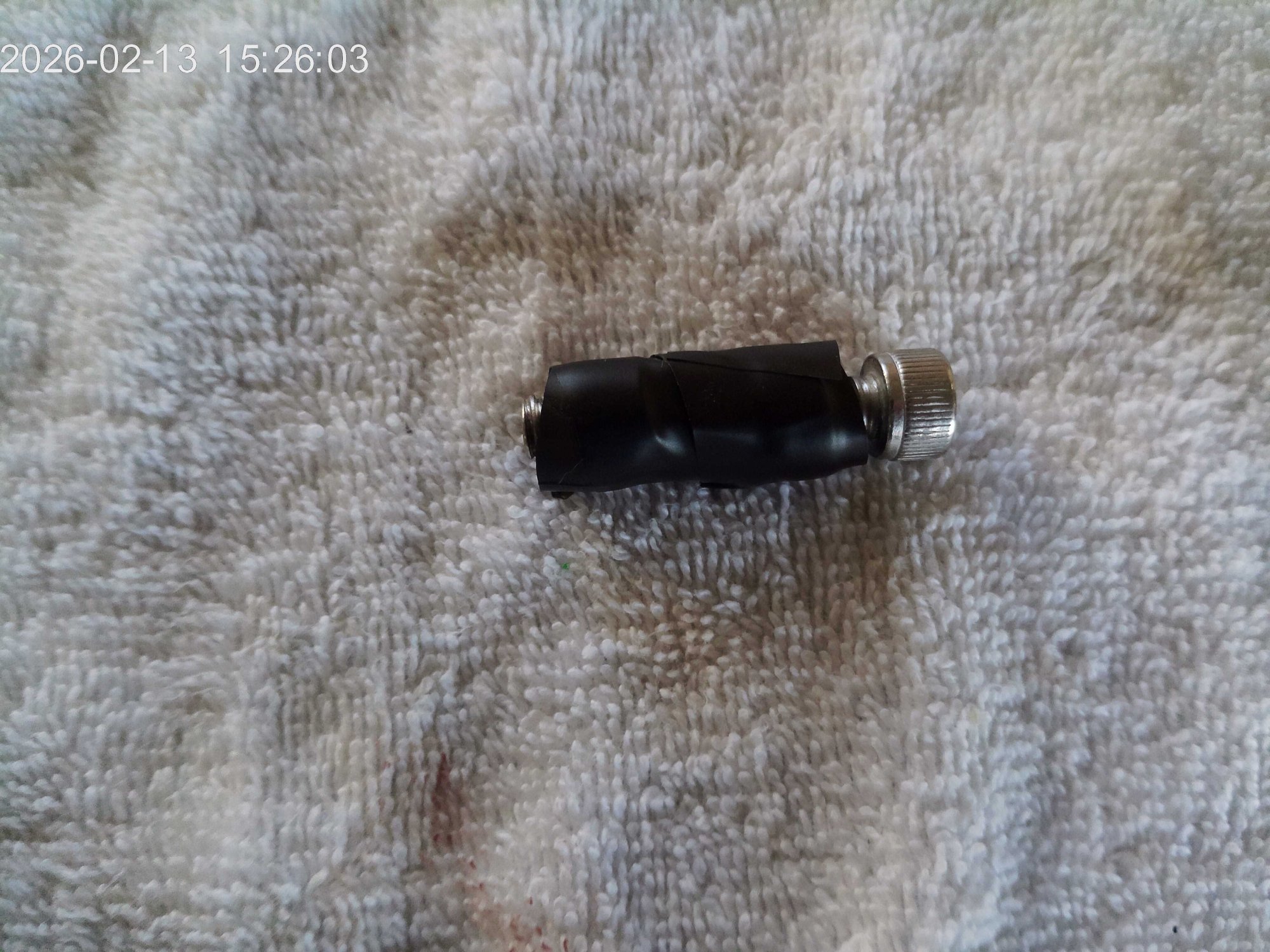

A guy saw a couple of videos on how to adjust brakes, so he extended the barrel adjuster on his hydro.



[PedalUma]

Mid-drive motor mount. It goes between the top front of the motor and the down tube. The diamond makes it self-centered.



[stompandgo]

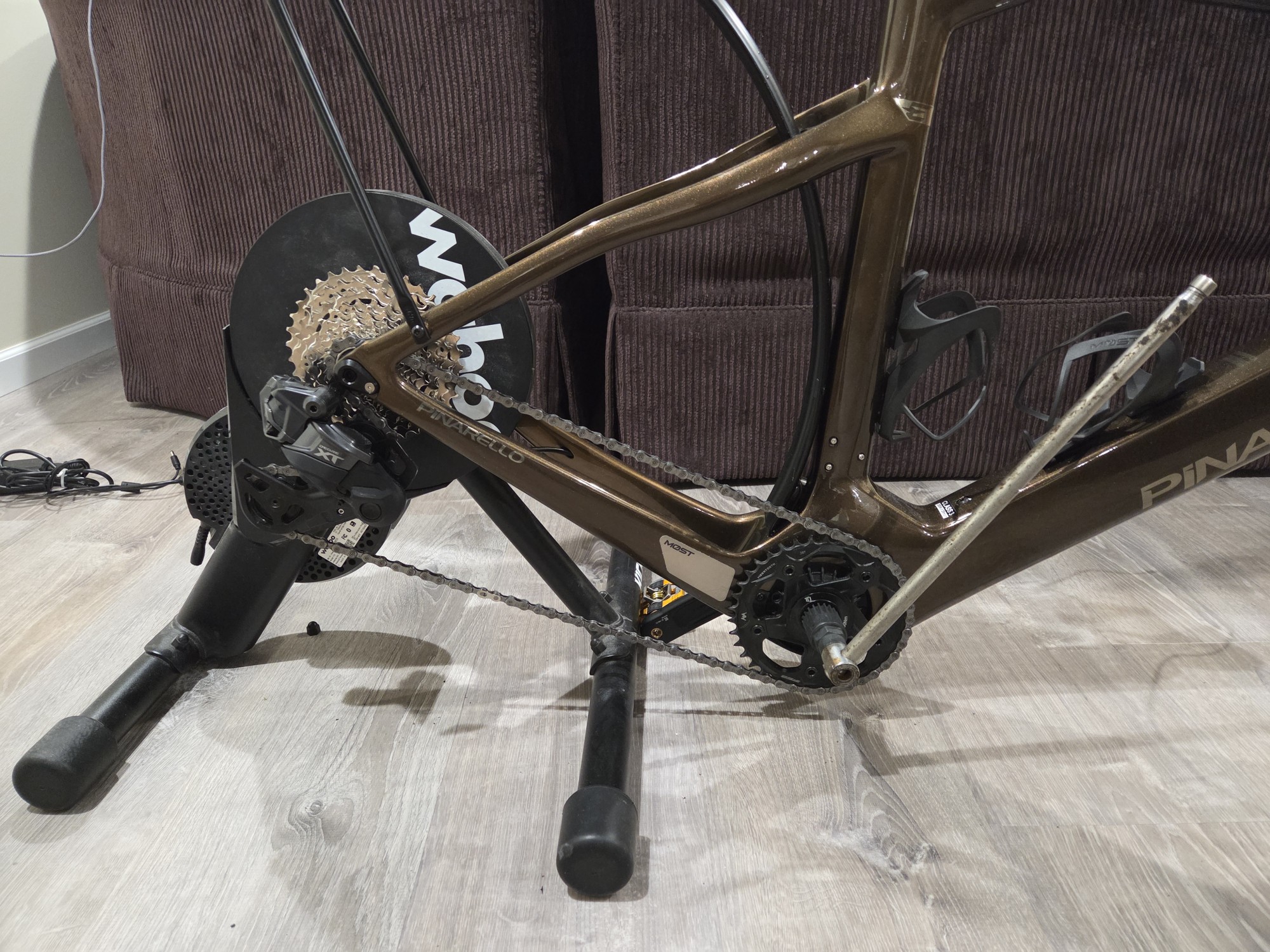

Alternative uses for your Kickr Core



[PedalUma]

I needed a new frame pump. This one is compact and versatile and also works on tires, both Presta and Schrader. It is also fully serviceable.



[PedalUma]

A bunch of kids have the junk hub-drive moped style bikes. They are always getting flats. 80% of the time it is the rear because the front kicks up the debris and makes a pass to the back. The local eBike store charges $40 labor plus the tube at $15. I just did one in nine minutes by using Muc-Off innertube sealant. It is important to use silicone grease in the valve stem to preventing the sealant from sealing the valve open. It will also prevent future flats. That other place is closed on Sundays and Mondays, then would want the bike for three days. That kid needs to get to school tomorrow morning.



[fooferdoggie]

A bunch of kids have the junk hub-drive moped style bikes. They are always getting flats. 80% of the time it is the rear because the front kicks up the debris and makes a pass to the back. The local eBike store charges $40 labor plus the tube at $15. I just did one in nine minutes by using Muc-Off innertube sealant. It is important to use silicone grease in the valve stem to preventing the sealant from sealing the valve open. It will also prevent future flats. That other place is closed on Sundays and Mondays, then would want the bike for three days. That kid needs to get to school tomorrow morning.

muc off is messy. I used it for a bit but man it becomes a sticky mess if it dries. it really plugged up the valves as you know.



[PedalUma]

muc off is messy. I used it for a bit but man it becomes a sticky mess if it dries. it really plugged up the valves as you know.

Add some Stan's after about 9 mos. to keep it fresh. Tubes and tires are air permeable, at a molecular level, like a screen door. I use a needle nose vice grip to secure the valve against the rim. And cardboard under the insertion. I Q-tip the valve stem twice and add the silicone in the stem before reinstallation of the core. The place downtown sold it hard and now has to make up for it as it drys and clogs valves. They do not understand the dynamics and cause.
