I got my Hydra!!


Active Member
It's here! After a very long wait I've received my mid-life crisis 😂

As you can see, I need to finish building it, but since I let the cat outta the bag, well here it is.

Drivetrain Frame Size: Large Hydra Color: (H-237) Tungsten

Motor: Bafang M620 48V 1000W / DPC-18 Display / Throttle
** Display is actually a DP C010.CB
CANBus Protocol

Battery: Frame Integrated 48V 17.5 ah

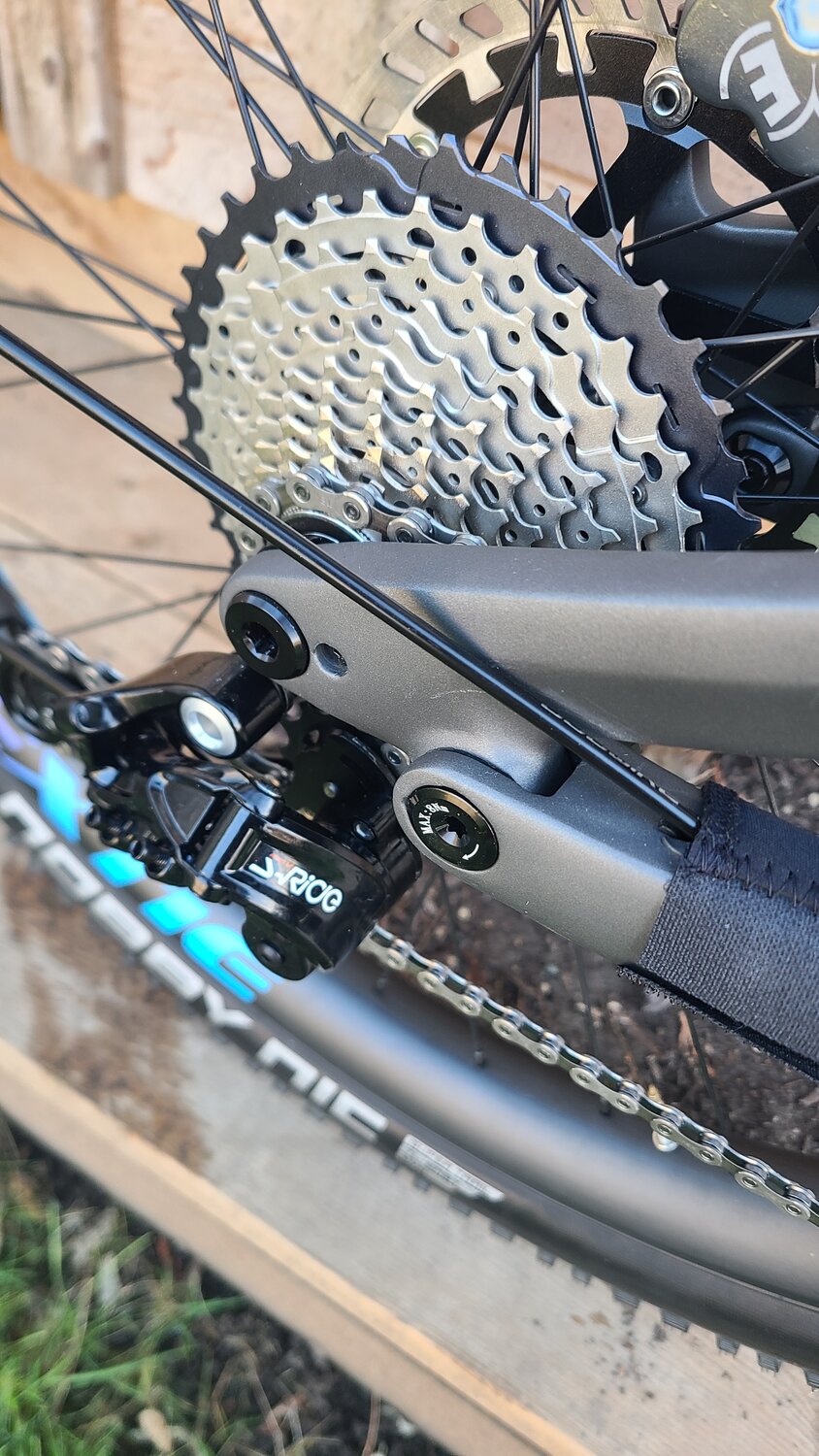

Gearing: S-Ride Shifter & Derailleur, 11-speed cassette (11-42T)

Chainring: 130 BCD - 44t steel stock

Chain: Shimano 11s

Cranks: Watt Wagons Aluminum 160mm

Wheelset: Nextie 52/SRC 29er -

Rims: Carbon

Tires: Schwalbe Knobby Nic 29x2.60

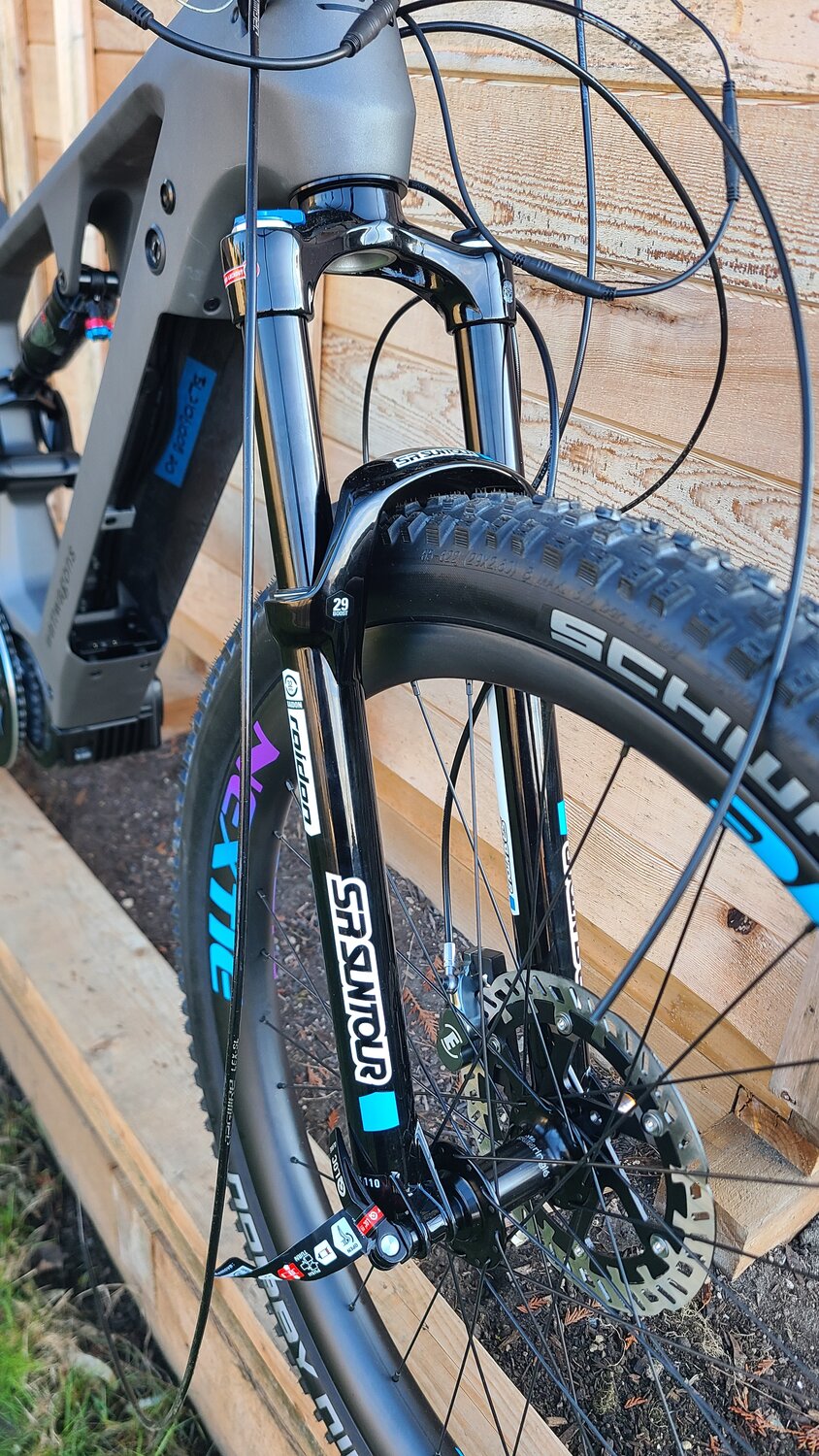

Front Suspension: Suntour Radion 29r 15x110mm

Rear Suspension: Manitou Mara Inline

Brakes: Magura MT7e

Rotors: Magura MDR-P 203mm

Cockpit Handlebar: ProTaper Aluminum 31.8/810mm Black

Stem: Star Union Standard 31.8/50mm Black

Grips: PNW Loam XL Black

Seatpost: Star Union Standard 31.6 Black

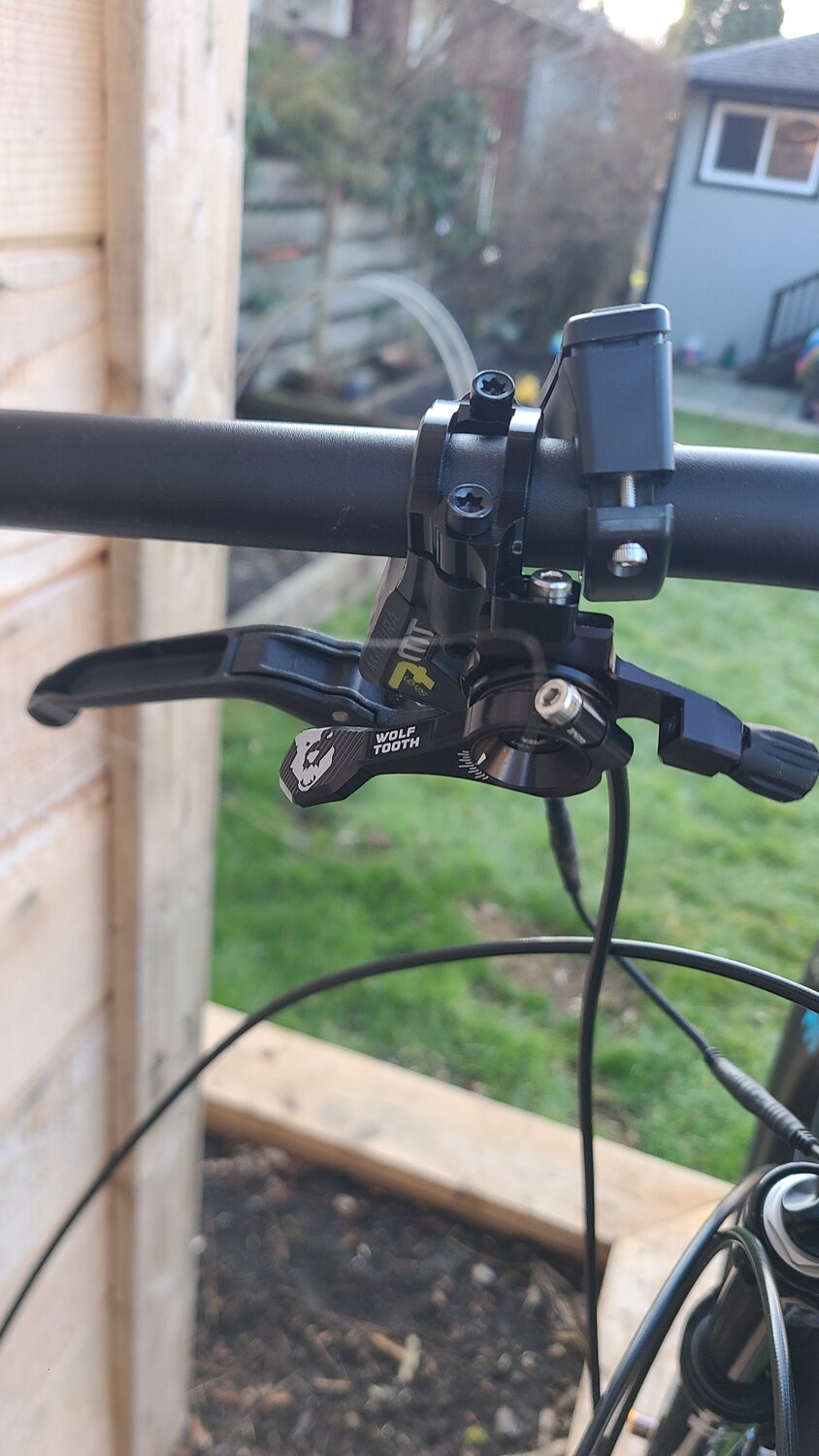

*Bought OneUp V2 dropper with Wolf Tooth ReMote

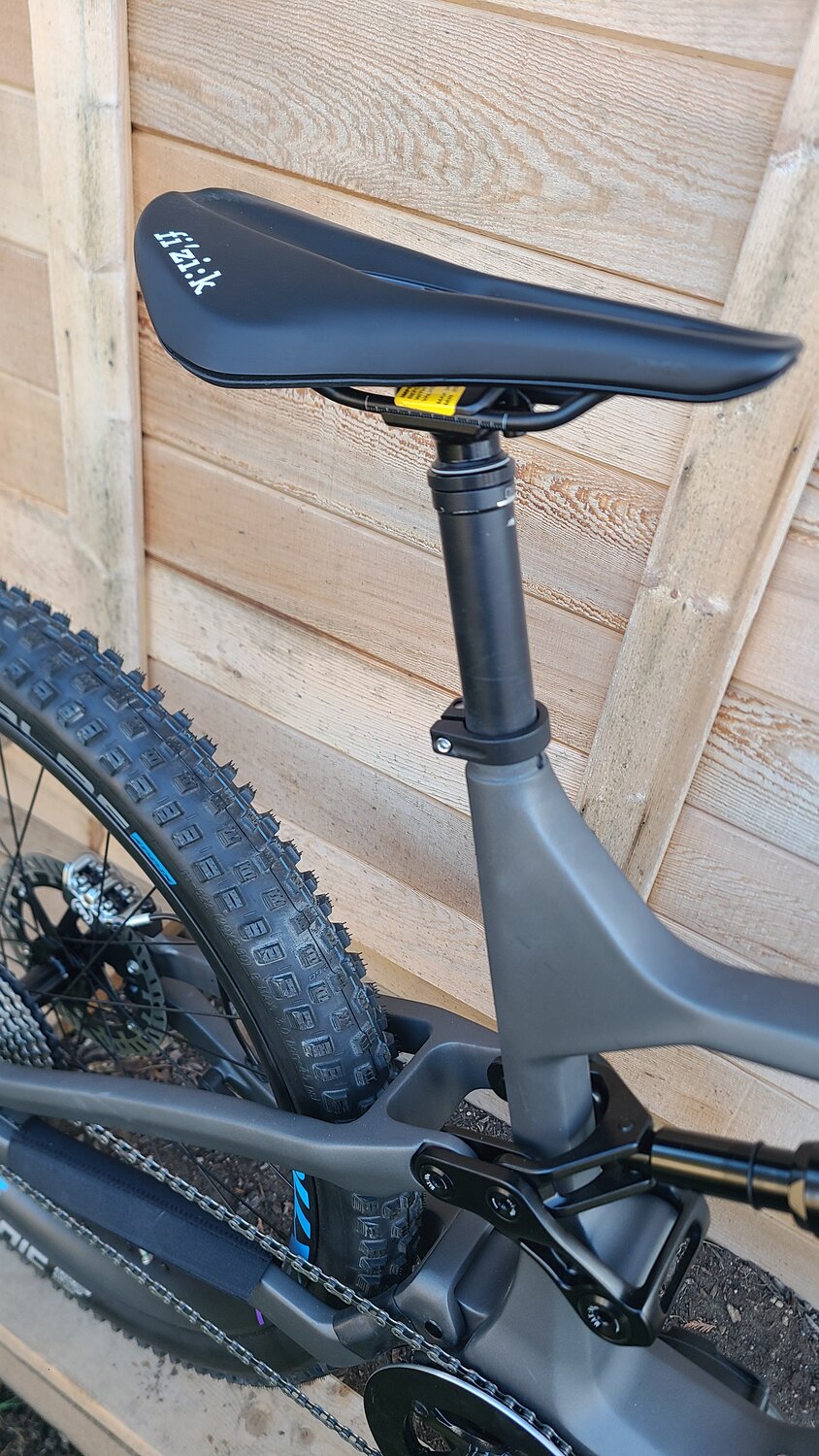

Saddle: Fizik Tempo Argo R5

Pedals: Crankbros Stamp 1 Black

Lights: MagicShine Monteer 6500S/SeeMee 200

Charger: 3A
Not typically. Mine had to be shipped across the continent. I told them I can finish putting it together the way I want it done. Cable lengths etc.
Weather is still horrible in the Pacific Northwest. The bike is finally good to go. I had an issue where the HMI would only read the fully charged battery (48V 17 Ah) as 10%. Took a while, but it turns out the factory that sent the motor, loaded a 60V firmware onto it! WW was awesome at helping me diagnose, and rectify the problem. Another week or 2 of rain forecast. then it`s go time. Might upgrade the shifter and derailleur from S-Ride to a Shimano XT. Probably a Deore 50-11 Cassette as the Deore is all steel and no aluminum
