LimboJim
Well-Known Member
- Region
- USA
Axiom Streamliner Disk DLX
Might be hard to find one for under $50 anymore, at least not including shipping...
My First DIY - Gravel Bike w/TSDZ2
- Thread starter LimboJim
- Start date
Might be hard to find one for under $50 anymore, at least not including shipping...

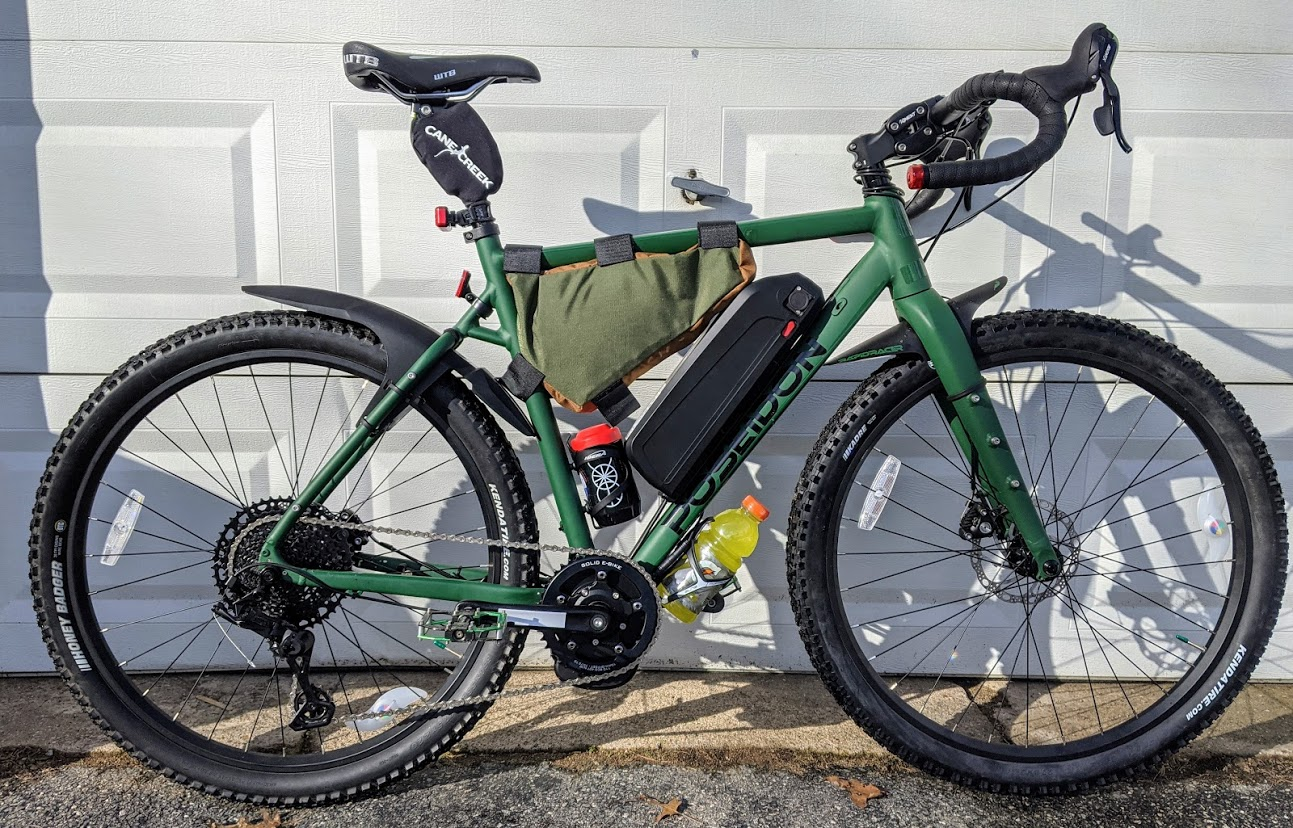

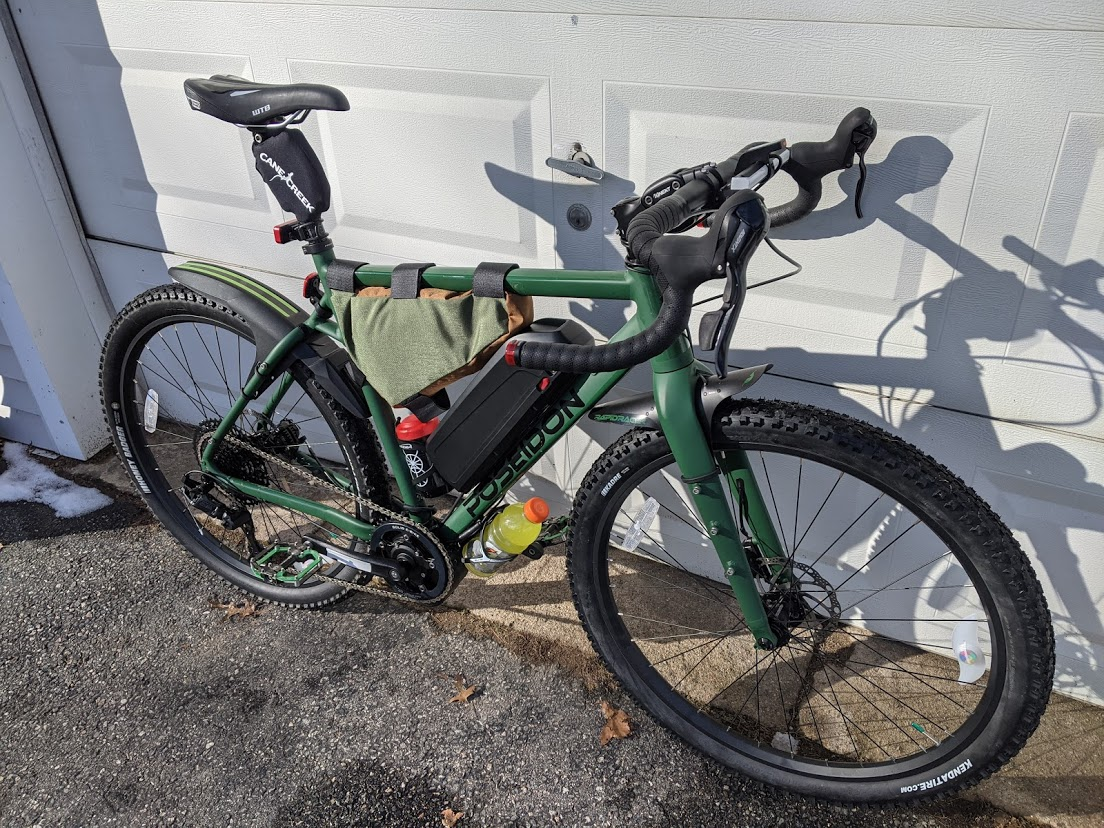

Beautiful.For once I'll let the pictures do the talkin'... View attachment 74985
Links to bike and kit below
View attachment 74984
View attachment 74983
Dropbar Green Redwood
We took the geometry of our Poseidon X and amped it up so you can eat up gravel with enough tire to absorb the vibrations of a rutted-rocky trail. Redwood wheels have 27.5" thru-axle/tubeless compatible rims. Allowing a 2.8" tire to clear this frame without issues. Whether you are on trails most...www.poseidonbike.com
Eco Cycles – Opening Soon
www.eco-ebike.com
How do you like that suspension stem? I am torn on that one and the Redshift.
LimboJim
Well-Known Member
- Region
- USA
Thanks, it's fun to ride.
I can't say either stem is significantly better than the other, though I prefer Kinekt's spring system for absorbing faster vibrations (like gravel creates). I also ended up swapping the seat post for Kinekt's BodyFloat for the same reason.
I am in the planning stages now and thinking hard about mimicking you set up on a 2021 Kona Dew. I am toying with the idea of the 48v water bottle battery though for a lighter weight build with no throttle or brake cutoffs.
so you have been happy with this kit overall?
Deacon Blues
Well-Known Member
I've never done a DIY install on a regular bike before, but reading this thread has me thinking about completing one.
I went to the Eco Cycles website and picked out he kit, voltage, chain ring, and gear, but I don't see where I choose the wattage of motor.
What am I missing here?
I went to the Eco Cycles website and picked out he kit, voltage, chain ring, and gear, but I don't see where I choose the wattage of motor.
What am I missing here?
PedalUma
Well-Known Member
- Region
- USA
- City
- Petaluma, CA
Which voltage are you considering and which motor package? I just looked at the 36V with the VLCD-6 mini display. I see what you mean.. Looks like that is 250W but they do not explicitly say. I can deduce that by matching. I did not see a 350W which is Goldilocks, just right. Try it without the speed sensor attached and put the wheel circumference at 100cm. You do this by holding both arrow buttons for about six-seconds. Remember that a lower nominal Watt bleed-out rate will give longer range. A three-fifty can go more than twice as far as a 750W. And 80 or 85Nm is more powerful than the high-end bikes from stores. You will out run and out last them. Speeds higher than 24Mph also drain batteries quickly because of much higher rates of wind resistance. For example, it takes 300W to go 22Mph, 400W to go 24, and 500W to go 25.5 Mph. That is your pedal power plus the motor on a road bike. At 20Mph it only burns up 85-90W. Check the attached charts.
Bicycle Drag Force Formulas
Formulas to calculate drag as applies to racing cyclists as well as everyday cyclists and enclosed human-powered vehicles
www.sheldonbrown.com
TSDZ2 w/ VLCD-6 (Km/h Only) - Torque Sensing Pedal Assist (36-52v / 10-18a / 250-750w)
Tongsheng TSDZ2 w/ VLCD-6 Display - Torque Sensing Pedal Assist Mid Drive E-bike Conversion Kit The TSDZ2 Mid Drive Motor - Torque Sensing Pedal Assist: The harder you pedal - the harder the motor works with you. 4 levels of assist provide smoothly integrated power ranging from +36-300%...
www.eco-ebike.com
Another display option is the C3 which is pretty nice, has 5 levels of assist and more programmable than the xh18 twist control display and not oversized like the VLCD5.
Trip odometer and residual voltage reading is from a single charge on a cheap 48v 15ah battery including ~7500 ft climbing that occurred over ~20 miles of this total (4 rides over a span of 5 days, not a single ride - I wish). Range depends on a lot of factors but since I ride ebikes I'm obviously not a super fit rider so the 48v 750w version must be very efficient.
Trip odometer and residual voltage reading is from a single charge on a cheap 48v 15ah battery including ~7500 ft climbing that occurred over ~20 miles of this total (4 rides over a span of 5 days, not a single ride - I wish). Range depends on a lot of factors but since I ride ebikes I'm obviously not a super fit rider so the 48v 750w version must be very efficient.
Deacon Blues
Well-Known Member
I was thinking of this model:
www.eco-ebike.com
What would be the difference between a 36v 350W setup and a 48v 500W setup?
Depending on the bike I end up putting it on I'll probably go with the 48v bottle battery:
www.eco-ebike.com
TSDZ2 w/ VLCD-6 (Km/h Only) - Torque Sensing Pedal Assist (36-52v / 10-18a / 250-750w)
Tongsheng TSDZ2 w/ VLCD-6 Display - Torque Sensing Pedal Assist Mid Drive E-bike Conversion Kit The TSDZ2 Mid Drive Motor - Torque Sensing Pedal Assist: The harder you pedal - the harder the motor works with you. 4 levels of assist provide smoothly integrated power ranging from +36-300%...
www.eco-ebike.com
What would be the difference between a 36v 350W setup and a 48v 500W setup?
Depending on the bike I end up putting it on I'll probably go with the 48v bottle battery:
48v 9ah Bottle Battery w/ Cradle (18a Discharge)
This Bottle Battery is great for making lightweight conversions, and fitting into tight spots that other larger batteries cannot. Featuring an on/off power button, USB port (for charging your mobile device etc.), and a locking cradle, these are typically installed on your downtube, but some...
PedalUma
Well-Known Member
- Region
- USA
- City
- Petaluma, CA
The battery looks nice. Find out what cells are inside. Cheap cells will sag and do not hold up. Also find out about shipping charges. That is a great deal!!! - too good to be true?I was thinking of this model:
TSDZ2 w/ VLCD-6 (Km/h Only) - Torque Sensing Pedal Assist (36-52v / 10-18a / 250-750w)
Tongsheng TSDZ2 w/ VLCD-6 Display - Torque Sensing Pedal Assist Mid Drive E-bike Conversion Kit The TSDZ2 Mid Drive Motor - Torque Sensing Pedal Assist: The harder you pedal - the harder the motor works with you. 4 levels of assist provide smoothly integrated power ranging from +36-300%...
What would be the difference between a 36v 350W setup and a 48v 500W setup?
Depending on the bike I end up putting it on I'll probably go with the 48v bottle battery:
48v 9ah Bottle Battery w/ Cradle (18a Discharge)
This Bottle Battery is great for making lightweight conversions, and fitting into tight spots that other larger batteries cannot. Featuring an on/off power button, USB port (for charging your mobile device etc.), and a locking cradle, these are typically installed on your downtube, but some...
48x500 sounds nice. Keep the power level as low as you can and cadence up.
This has nothing to do with the topic, but I saw this $999.99 bike today. Check out the groupset. Now that is a clean build. All internal.
I have purchased two TSDZ2 from them. Both were $415 but there were shipping charges added for the second one, something like in the $20-$30 range. Ask them directly but, based on 15a max draw for the 36v and 18a draw for the 48v, I suspect the 36v is 500w while the 48v is 750w. That's what mine are anyway. For the first one I chose the 34t chainring - they supplied the motor with the stock 42t dished spoke and a 34t flat chainring in the box at no additional charge. I was lucky that they included the dished chainring which was needed for all of the bikes I tried these motors on. I did buy one of their 34t 5mm dished n/w chainrings as well as a 42t 10mm dished n/w chainring. The biggest issue with these add on mid drives is getting a good chainline.I was thinking of this model:
TSDZ2 w/ VLCD-6 (Km/h Only) - Torque Sensing Pedal Assist (36-52v / 10-18a / 250-750w)
Tongsheng TSDZ2 w/ VLCD-6 Display - Torque Sensing Pedal Assist Mid Drive E-bike Conversion Kit The TSDZ2 Mid Drive Motor - Torque Sensing Pedal Assist: The harder you pedal - the harder the motor works with you. 4 levels of assist provide smoothly integrated power ranging from +36-300%...
What would be the difference between a 36v 350W setup and a 48v 500W setup?
Depending on the bike I end up putting it on I'll probably go with the 48v bottle battery:
48v 9ah Bottle Battery w/ Cradle (18a Discharge)
This Bottle Battery is great for making lightweight conversions, and fitting into tight spots that other larger batteries cannot. Featuring an on/off power button, USB port (for charging your mobile device etc.), and a locking cradle, these are typically installed on your downtube, but some...
I don't see them list the C3 display but that is what they supplied for my 48v version and I'm glad they did.
That battery looks like a decent deal if you want a bottle type battery.
LimboJim
Well-Known Member
- Region
- USA
I went with 48V 500W with the SW102 mini display, no throttle or brake sensor. When I bought it, EcoCycles had ample battery supply - I went with their 14Ah offering. Yeah, it's heavy, but at some point I'll probably take this for a nice long bikepack trek...
I'm super pleased overall after several hundred miles (half trail, half road). IMO, the TSDZ2 has similarities to both Bosch's Performance Line (Gen2) and Yamaha's PW in its performance. It accelerates kinda like the Gen 2, but prefers a lower cadence like the PW. I have thousands of miles of experience on those two "mainstream" motors, mostly from 2015-2018 but I still have a 2017 Haibike with PW.
One suggestion I have is not to try the 52T chainring on the Tongsheng unless you've got all of the supplied braces in place - the so-called fixing block wouldn't fit the Redwood's frame and this probably contributed to the following problem.
My TSDZ2 casing broke. Are shell replacements worth it or should I consider other options?
My TSDZ2 cracked down the center while climbing a steep hill. This caused the gears to separate enough that they could no longer grip each other. If you're wondering how on earth this happened, I have some guesses but I'm no engineer. For one, I left it out the "fixing block" since it didn't...
electricbikereview.com
I am planning on the 42t since the Dew has a 36t now. Will be commuting mostly with some joy rides on the weekends and I plan on doing a second build on a similar bike so that I can still ride if one needs some maintenance. Metal of stock plastic gear? That is my next decision.I went with 48V 500W with the SW102 mini display, no throttle or brake sensor. When I bought it, EcoCycles had ample battery supply - I went with their 14Ah offering. Yeah, it's heavy, but at some point I'll probably take this for a nice long bikepack trek...
I'm super pleased overall after several hundred miles (half trail, half road). IMO, the TSDZ2 has similarities to both Bosch's Performance Line (Gen2) and Yamaha's PW in its performance. It accelerates kinda like the Gen 2, but prefers a lower cadence like the PW. I have thousands of miles of experience on those two "mainstream" motors, mostly from 2015-2018 but I still have a 2017 Haibike with PW.
One suggestion I have is not to try the 52T chainring on the Tongsheng unless you've got all of the supplied braces in place - the so-called fixing block wouldn't fit the Redwood's frame and this probably contributed to the following problem.
My TSDZ2 casing broke. Are shell replacements worth it or should I consider other options?
My TSDZ2 cracked down the center while climbing a steep hill. This caused the gears to separate enough that they could no longer grip each other. If you're wondering how on earth this happened, I have some guesses but I'm no engineer. For one, I left it out the "fixing block" since it didn't...
PedalUma
Well-Known Member
- Region
- USA
- City
- Petaluma, CA

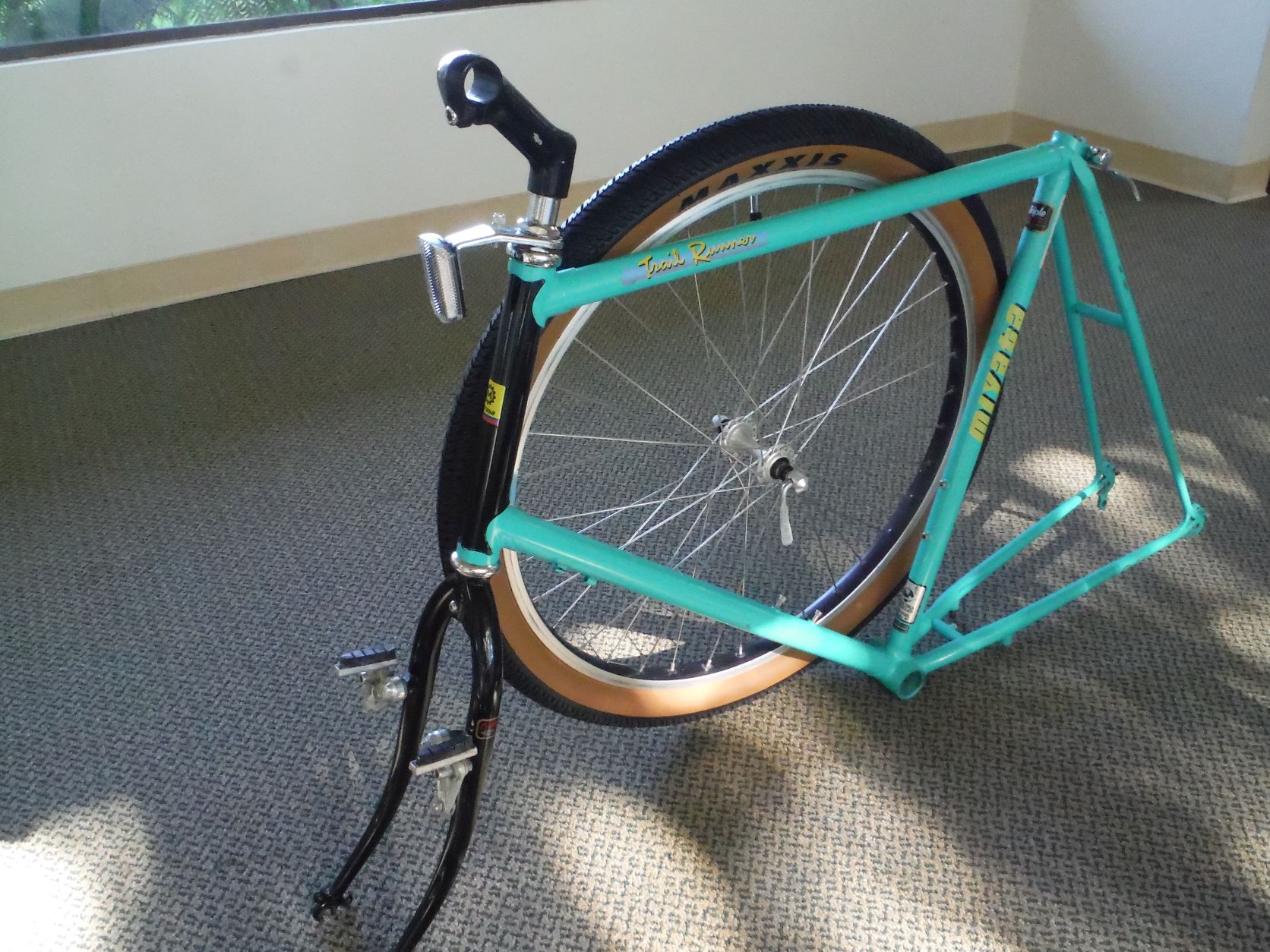

The metal gear sounds like a suffering coffee grinder. The blue gear is much better. This is one of the ones I am working on now. It is a 1983 triple butted, lugged, Japan, chromoly frame, X-L. It will do mostly roads, paths and trails in The Sea Ranch. The area is on the San Andreas Fault on the coast here in Sonoma, so the terrain is dramatic with big climbs.
Attachments
I have the nylon/plastic gears in both of mine. Overall they are pretty quiet, sometimes hard to hear at all, more of a high pitched whine spinning at higher cadences. Initially the 48v 750w version was louder but that improved a lot after 100 or so miles of riding. I bought a spare blue nylon gear when they were going for $8 on walmart.com. Replacement doesn't look difficult if/when needed.
LimboJim
Well-Known Member
- Region
- USA
Assuming you're referring to my OP bike, the front fender's a typical face-saver mudguard. The rear is Zefal's Deflector FM-30.

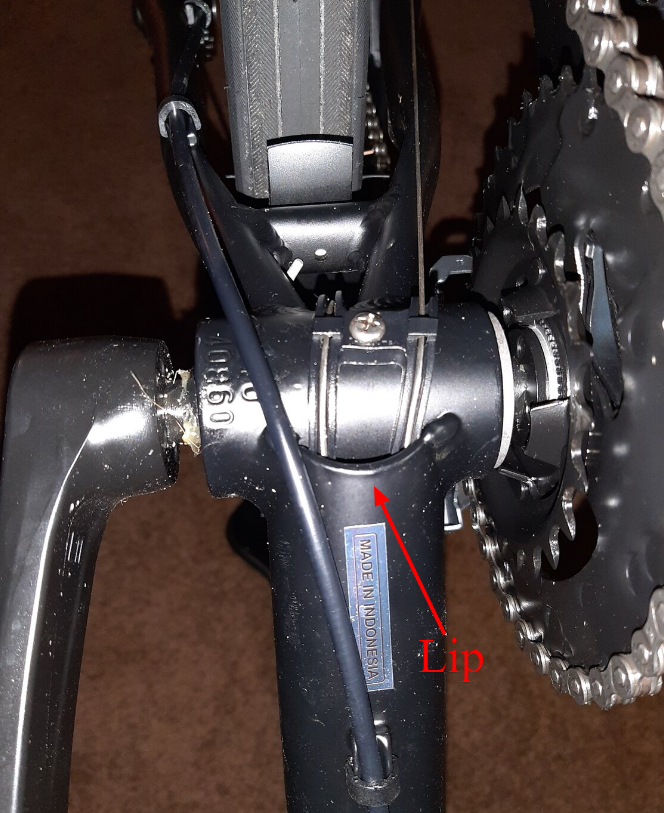

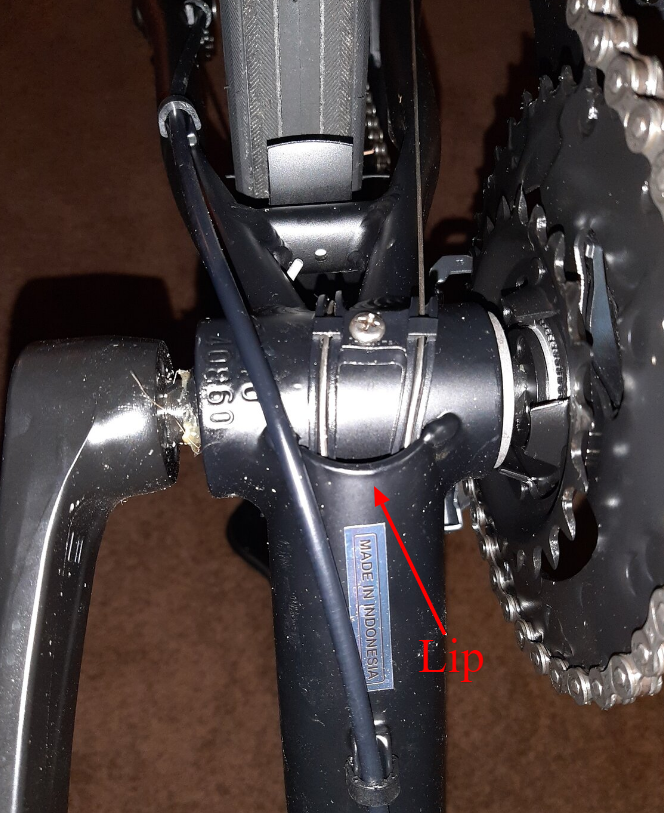

I doubt it - and it's not just the cabling. It appears that the downtube attaches to the bottom bracket shell with a protruding lip that allows room for the cables (pic below).

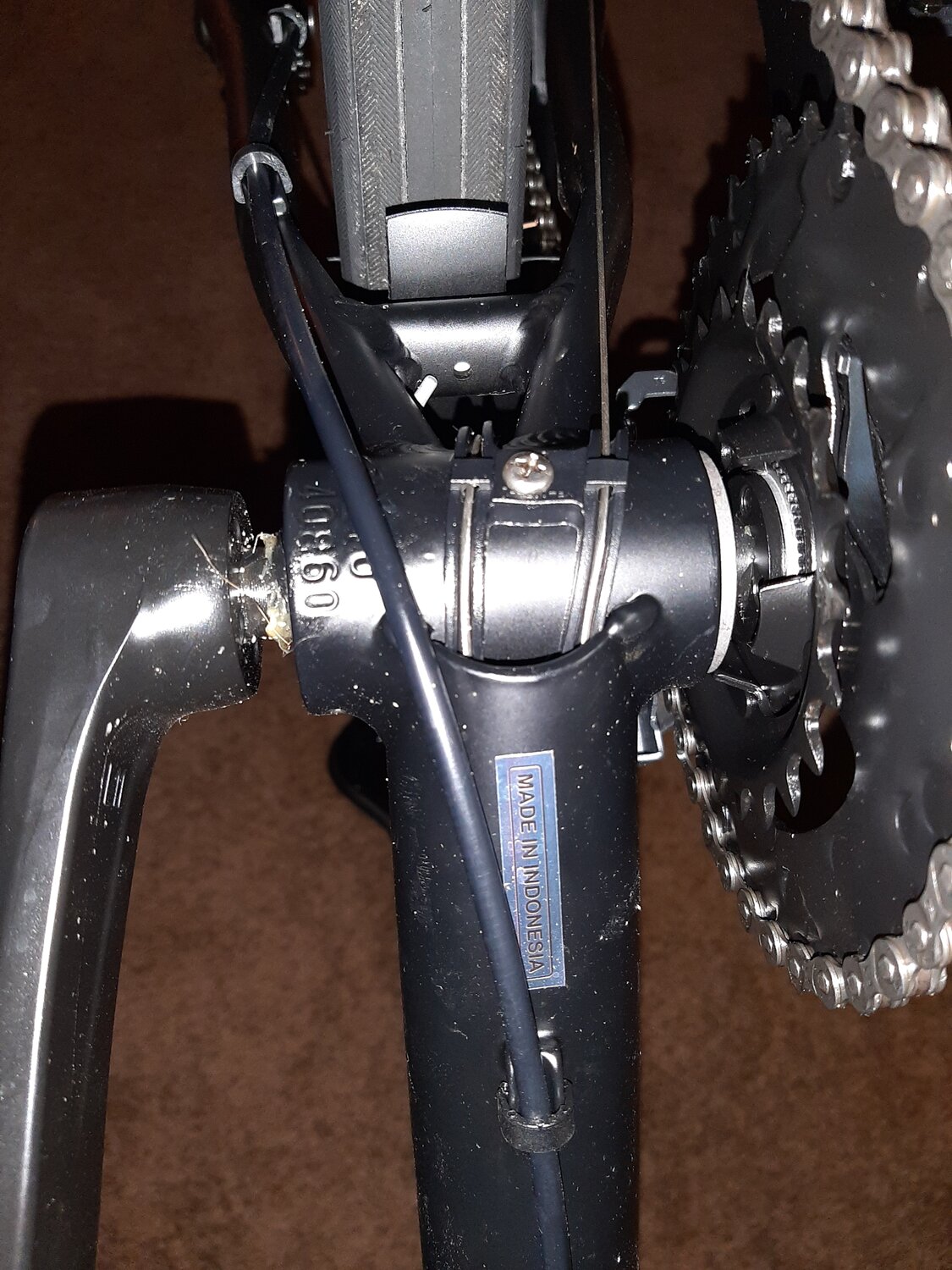

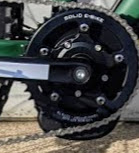

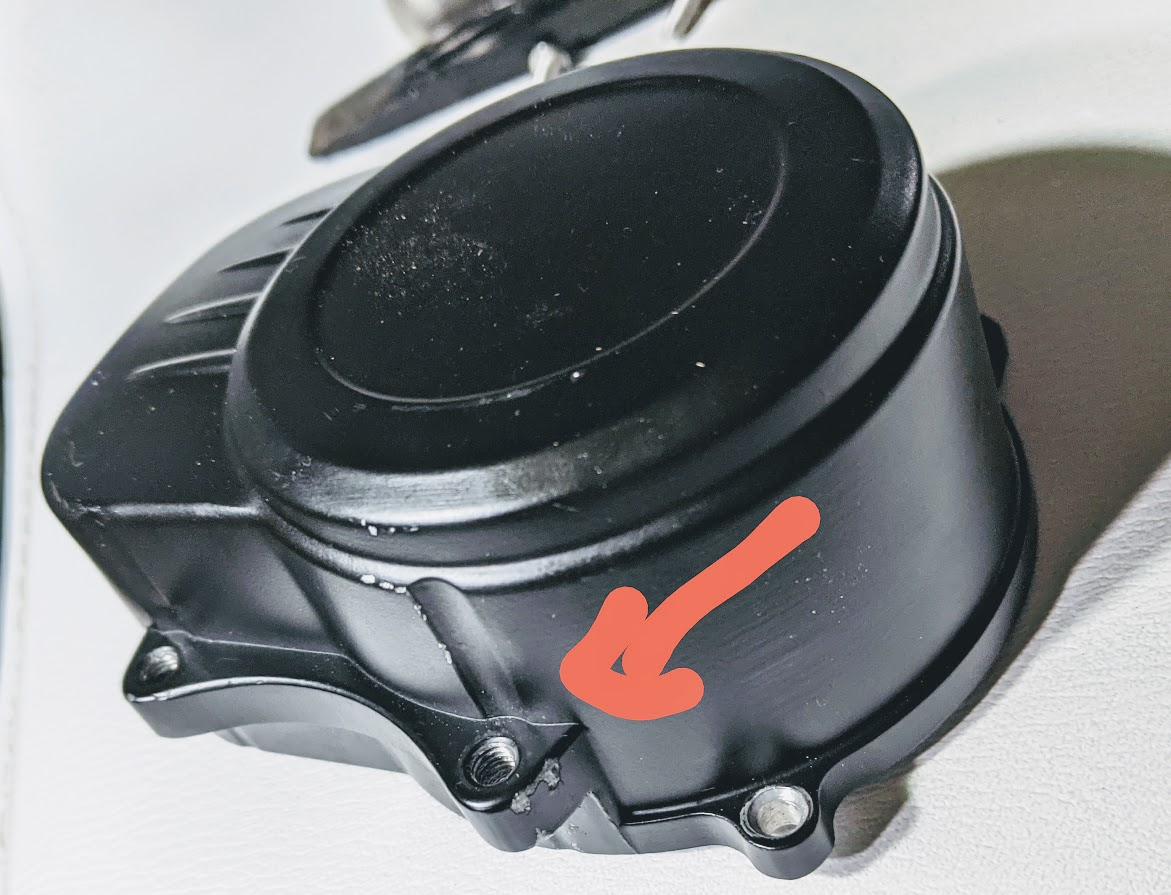

The TSDZ2 has an attachment bracket (2d pic) that wraps tightly around the BB shell, which makes it difficult-to-impossible to fit properly with any such shell protrusions.
The Poseidon Redwood also has such a lip, but the cable and weld placements allowed me to round it out just barely enough to fit (wish I took pics of it before installation).

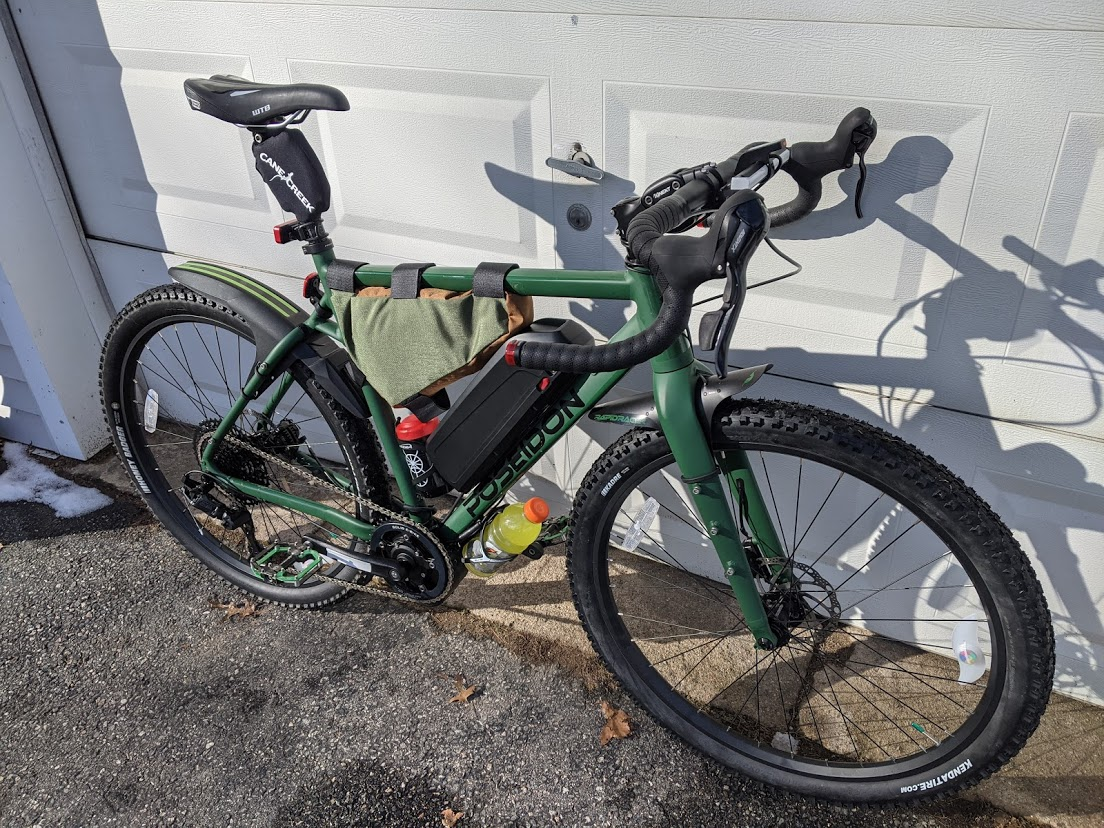

I couldn't get the motor as far forward on the BB as I'd have liked - it's directly below the BB (3d pic) - but it works.
Send your BB pic to EcoCycles and see what they think?
I will email Eco. It would suck since I really wanted to put the Tsdz2 on this particular bike.

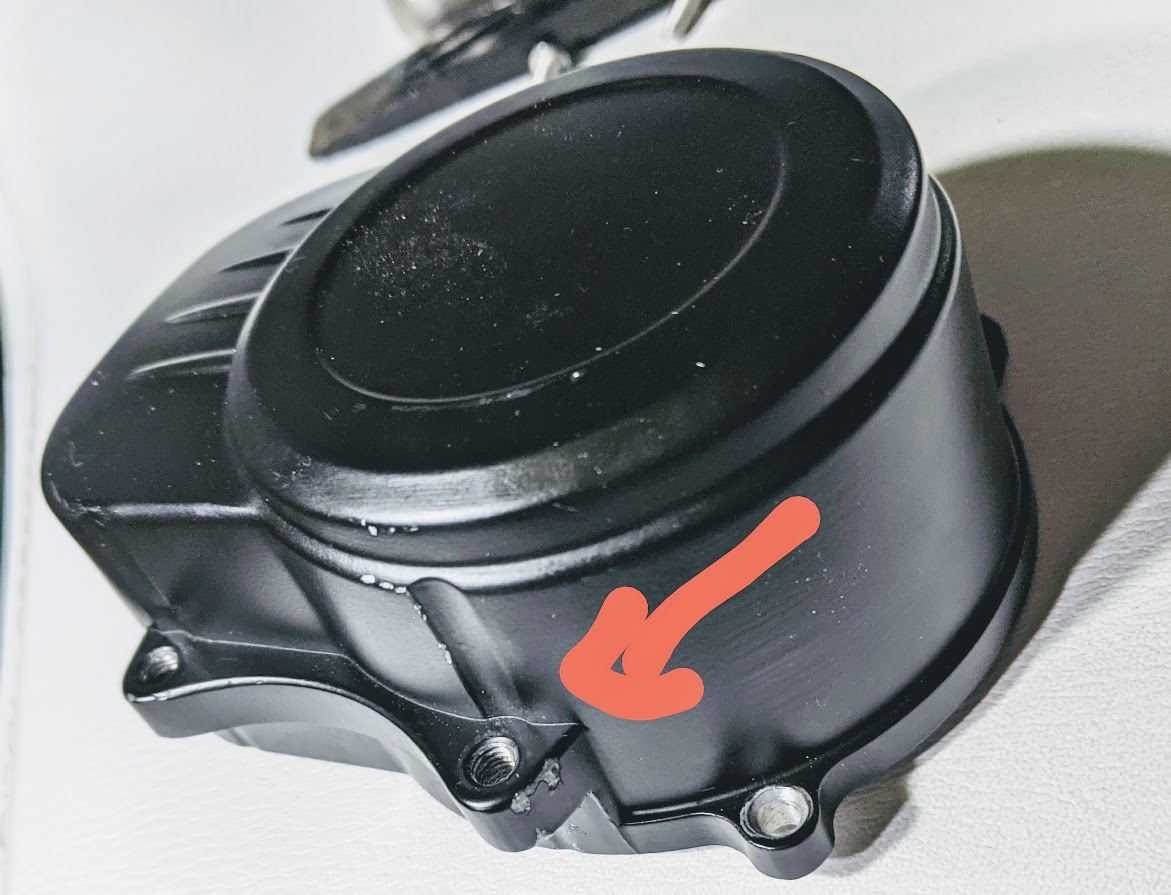

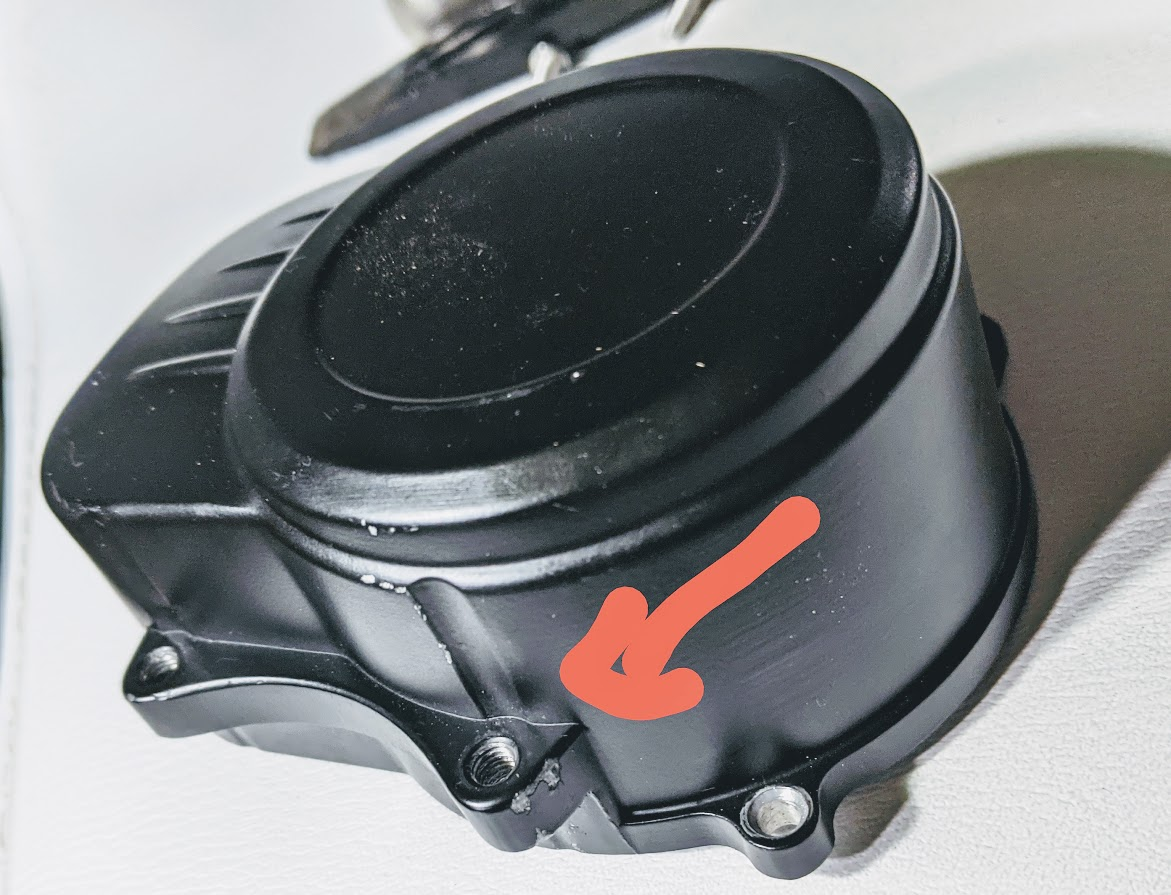

I'm not saying that a TSDZ2 will fit on your frame but that flange on the motor cover didn't deter me from installing on on my wife's Dahon Briza. Besides doing work on the frame I just removed the left cover of the motor, slid the motor in the bottom bracket then replaced the motor cover that has the flange on it. There is a sticker/seal on the motor where the cover comes off stating the warranty is void if seal is broken but eco-ebike indicated to me that they wouldn't void the warranty if the seal was broken in this instance just to be able to fit the motor.
