I don't know the proper name??

[Nvreloader]

He doesn't like how Americans travel around on their ebikes with guns and 50 pounds of ammo.

I'll wait for his replies.....



[Nvreloader]

PC

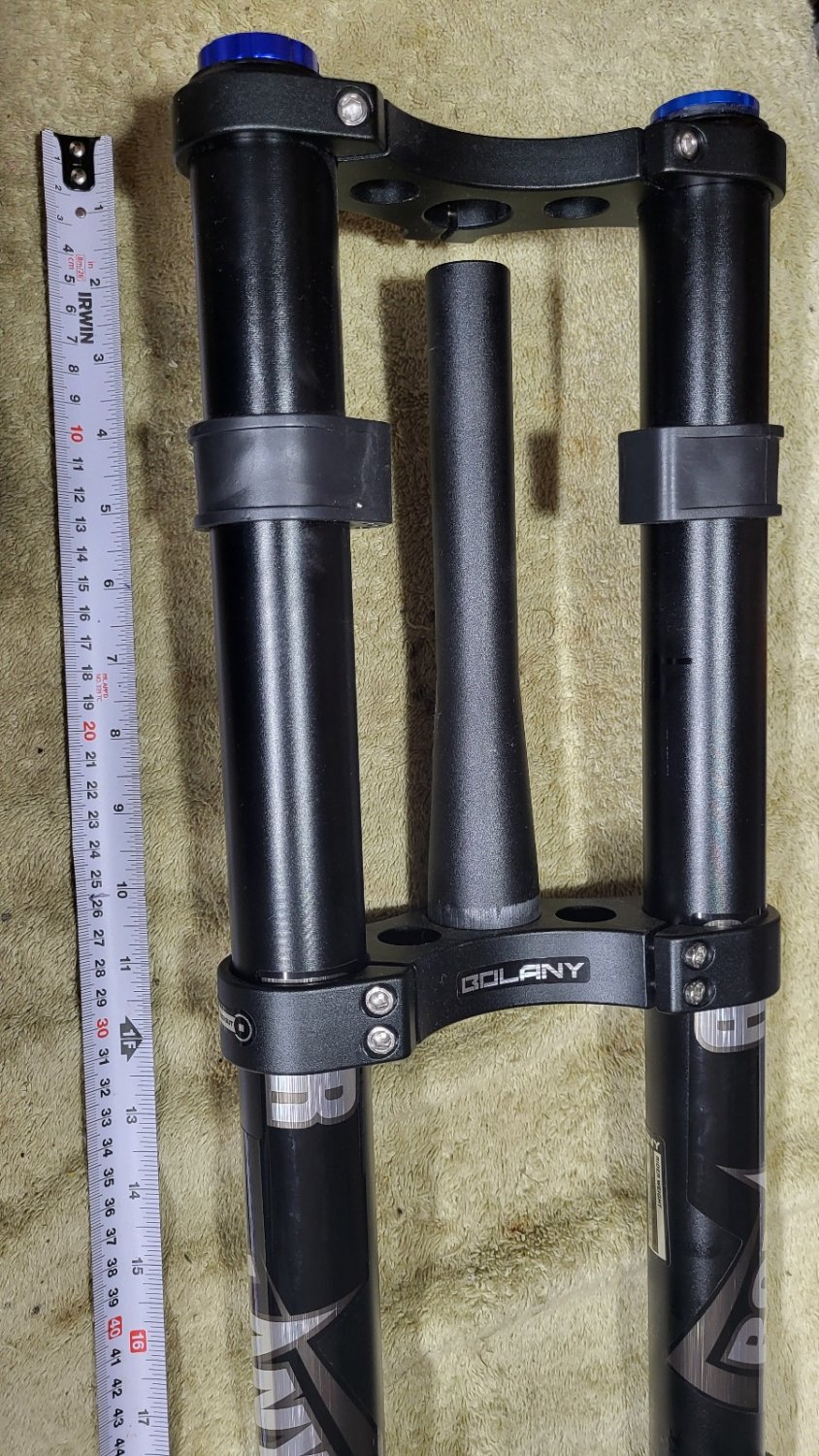

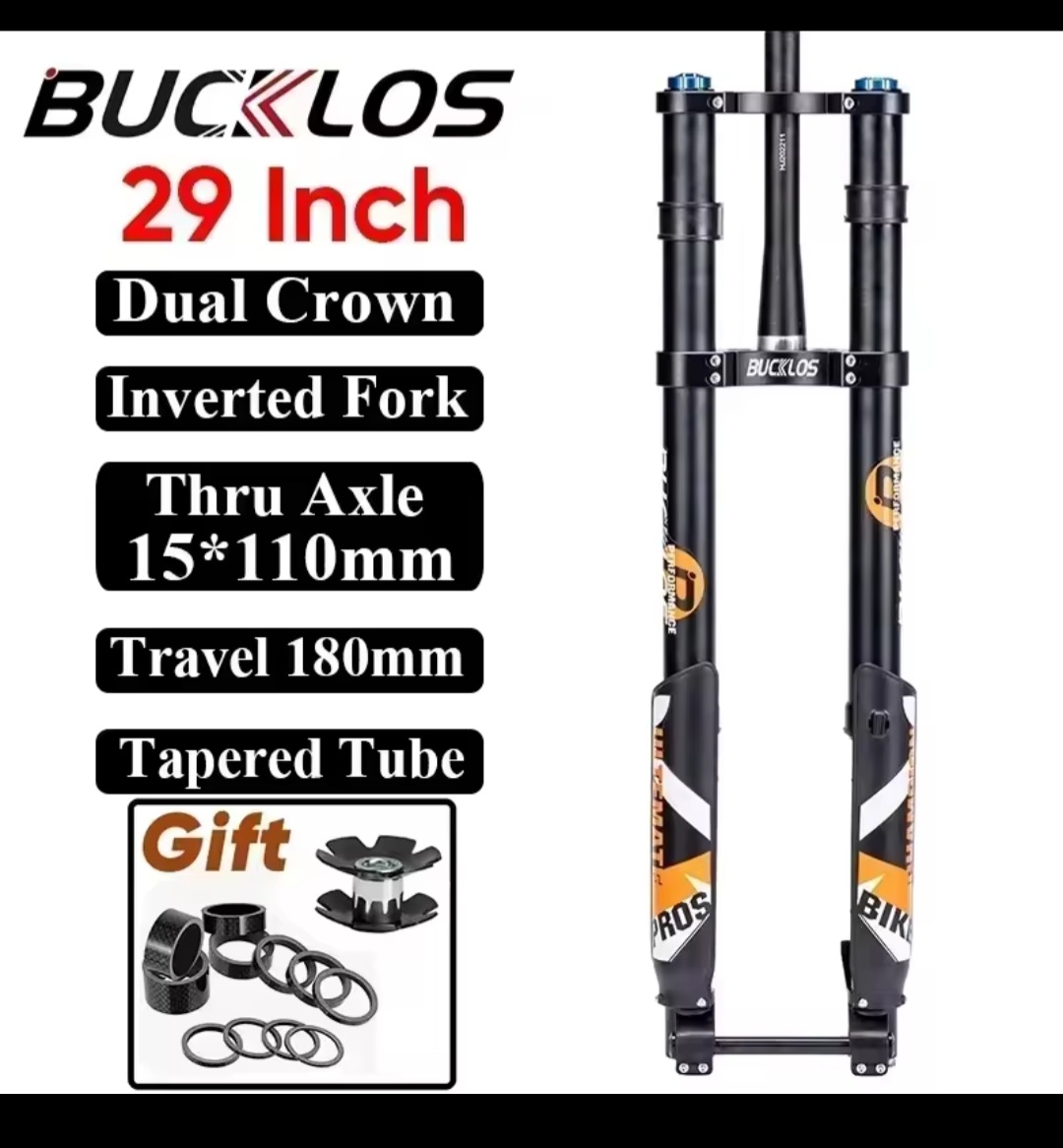

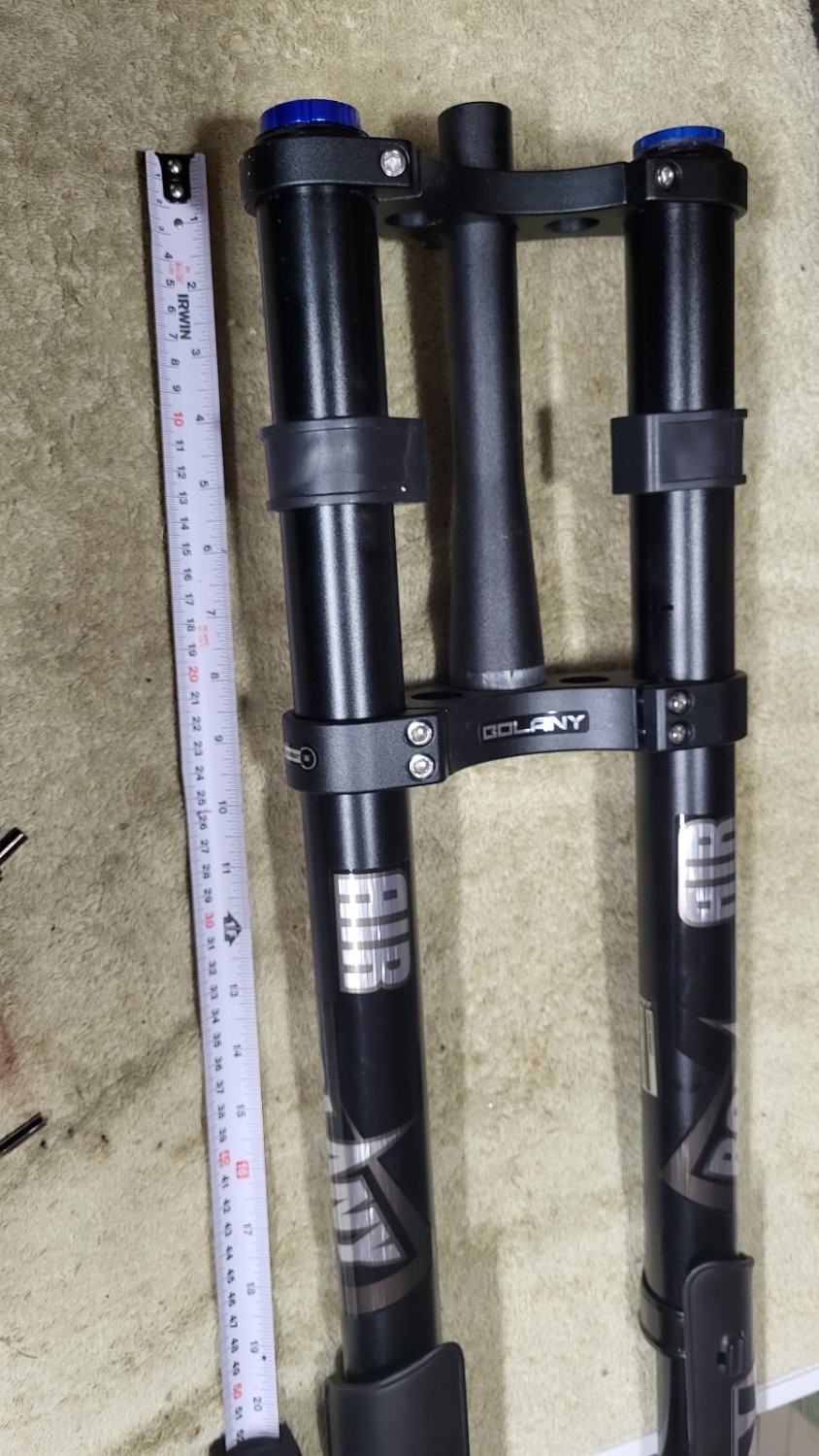

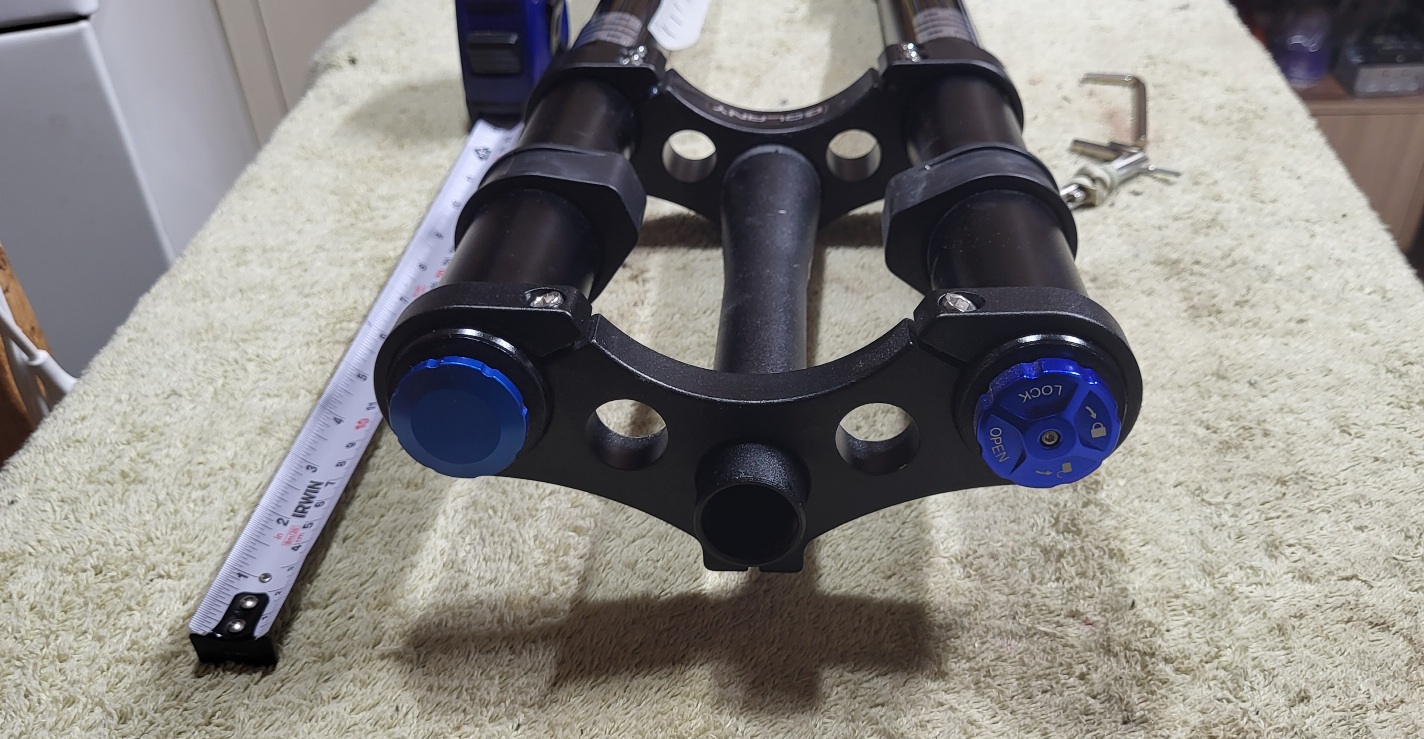

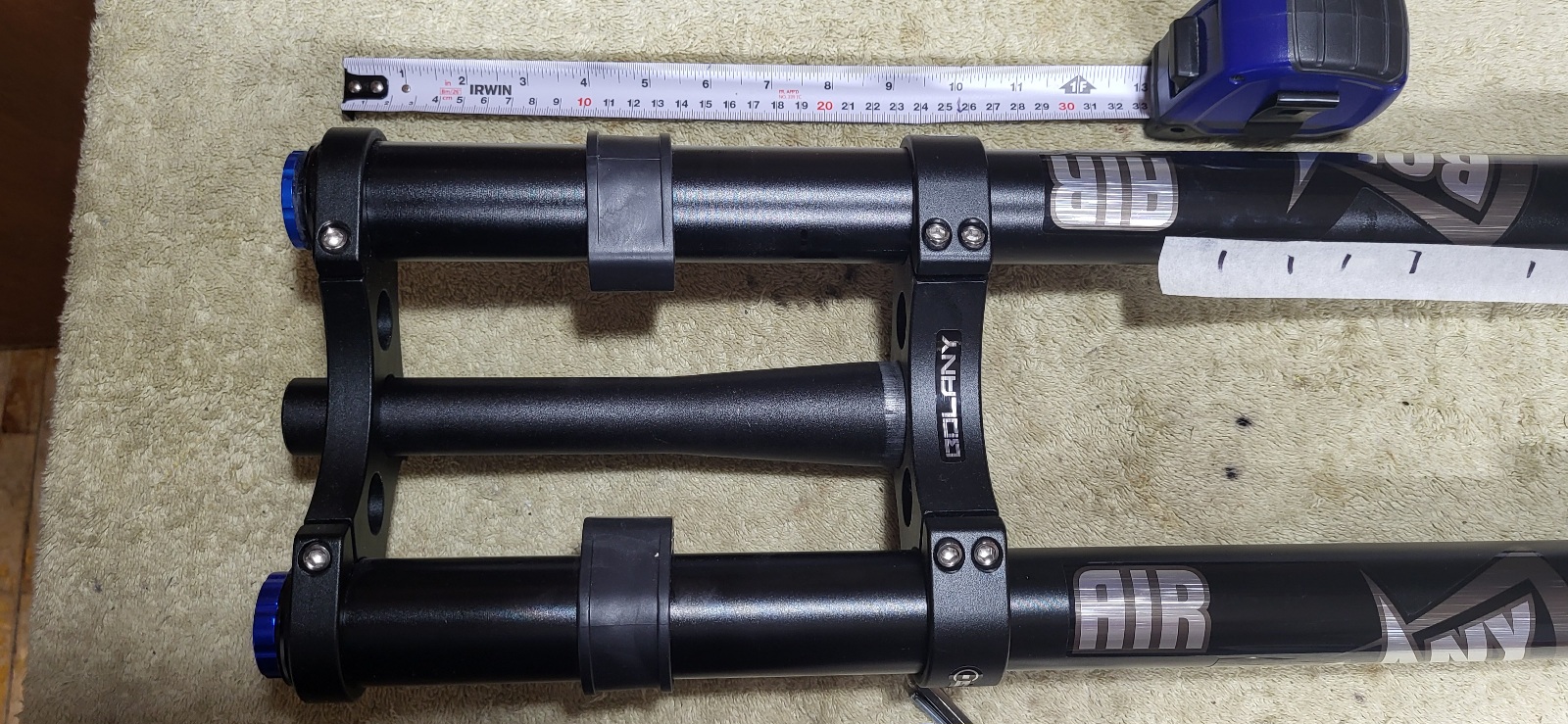

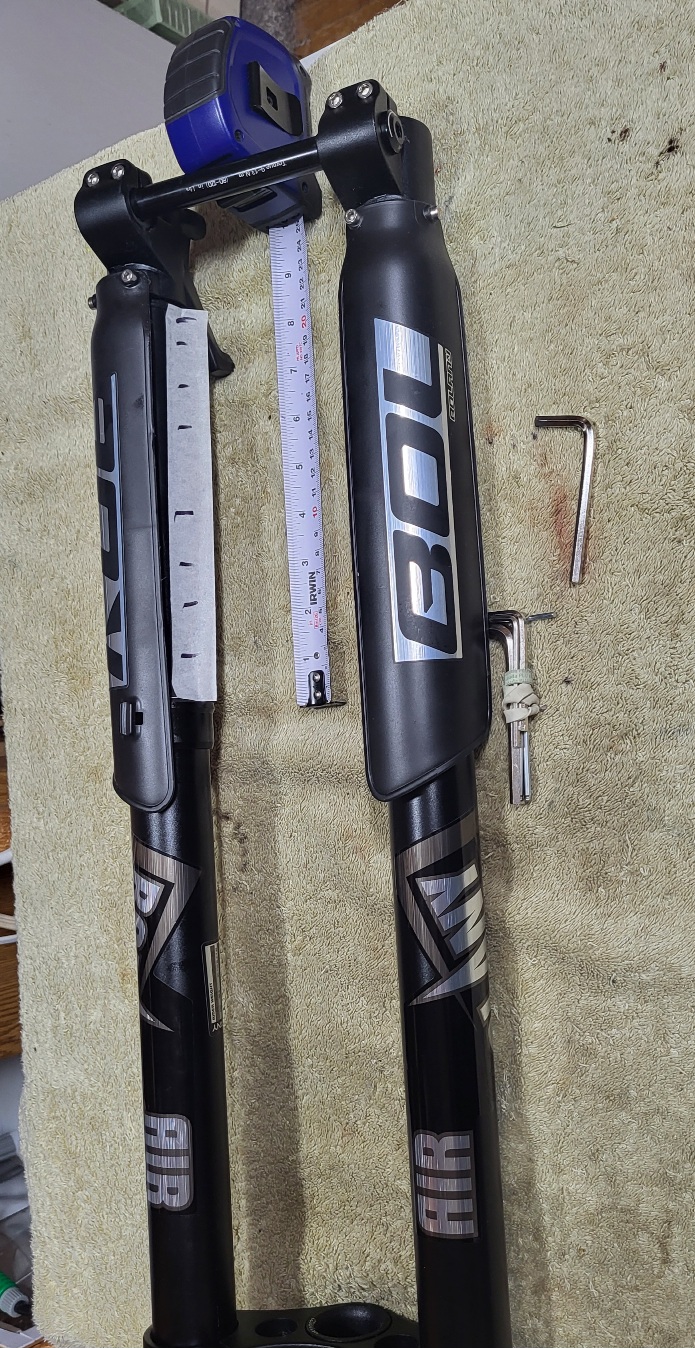

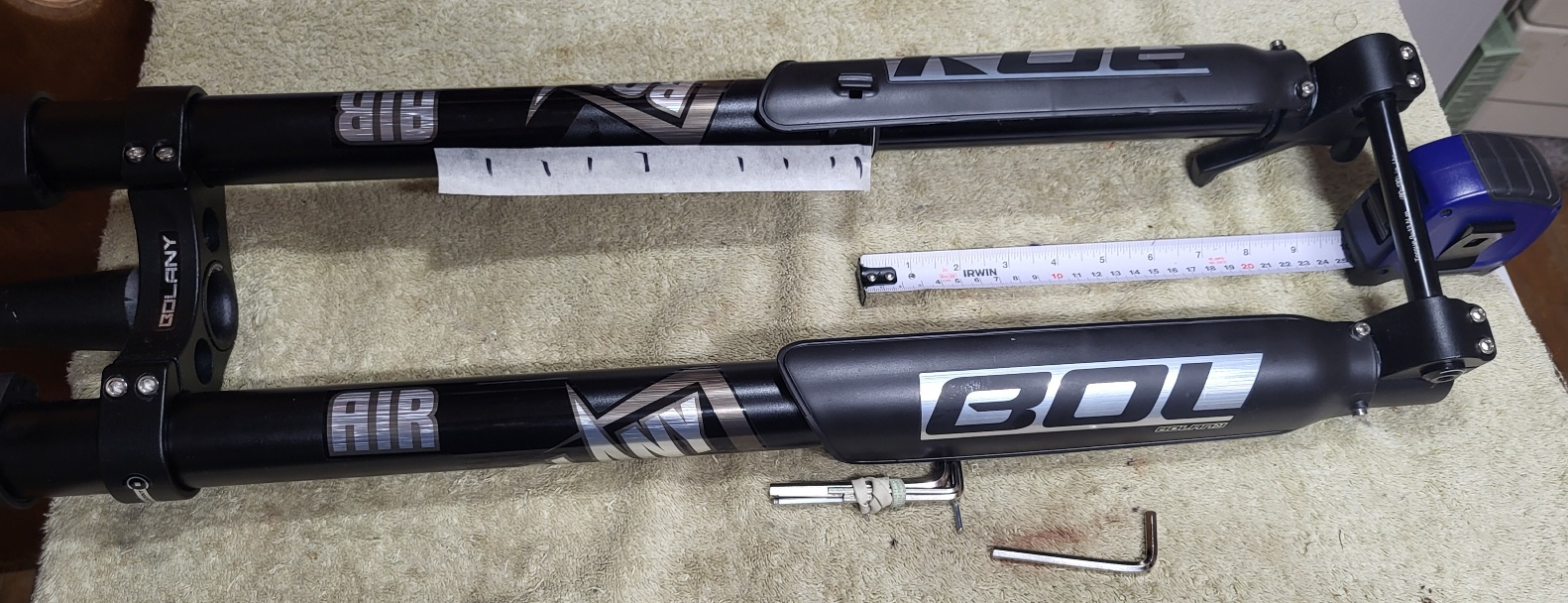

What is the length from the top of the double shoulder to the start of the bottom of the inverted leg?
I need between 12 to 24", for proper mounting of the 2 brackets...
I have found out that I can change a 135mm QR hub to a 150mm spacing, with a solid axle.
Still reading...



[PCeBiker]

I have found out that I can change a 135mm QR hub to a 150mm spacing, with a solid axle.
Still reading...

You're going to have to add 12.5mm to each side of your axle to keep things centered.
Then you're going to have to extend your brake rotor, and/or your caliper by 12.5mm, or meet in the middle with 6.25mm on each.

An offset brake rotor/caliper combination will kick your wheel sideways unless you have dual calipers.

You've just found a 🕳 that's 12.5mm wide and 6.25mm wide at the skinny spot.

Jump In.
I did.
I have no regrets.



[Nvreloader]

Ah PC,
When I went to school in the very early 60's, 135mm from 150mm was 15mm/.590" difference, divided by 2 = 7.5mm/.283" + or - approximately.

How did you come up with 12.5mm per side?

The brake side will be less than the non brake side...at least from my quick measurements, to keep the brake centered between the hydro brakes.

Or are we talking about something else/different ???

JJOYC = Just jerkin on your chain...lol
