GuruUno
Well-Known Member

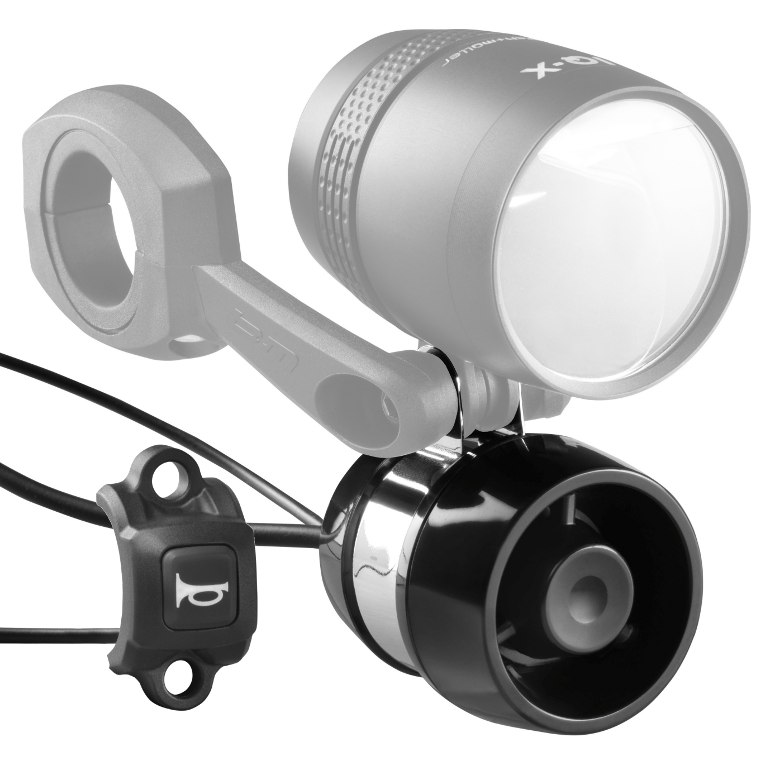

I installed this on my Vado, tied it into the front light (soldered it), it's "ok", but sure would be nicer if louder.
E-Horn?
- Thread starter Mtl_Biker
- Start date
Mine should arrive soon (also from bike 24 international shipping), and I have no idea how to hook it up, but I do know I will be opening up my Yamaha anyway to install the supernova light I also ordered, so I will see what I can do then. I couldn't find any installation manual online, but I assume there will be something in the box. (even if it's in German, that's okay...). I see two issues :
A. How to physically connect it.
B. How to route the cables.
GuruUno
Well-Known Member
Wrapped the wire from the button to the physical horn around the handlebar, opened the Supernova light, and soldered the wires to the back of the PCB. Light always-on, the horn is always on. If you turn the light off, you got no horn. I always ride with lights so it's a no-brainer. I routed the wire with the same wire going to the light and wrapped them with a wire cover (SPIRAL)
(see below)
https://www.ebay.com/itm/E-Loom-Ele...554372?hash=item3daa437bc4:g:hBMAAOSwhqVbBepn
https://www.amazon.com/dp/B07YYW28M...-pcomp-feature-rscomp-wm-5&ref=aa_rscomp&th=1
(see below)
https://www.ebay.com/itm/E-Loom-Ele...554372?hash=item3daa437bc4:g:hBMAAOSwhqVbBepn
 | E-Loom Electric Bicycle Spiral Loom Wire Wrap - High Quality eBike Accessory | eBay Give your DIY Ebike the clean and slick look it deserves. E-Loom is thick, full, and stiff to ensure smooth elegant wire runs. What's more, our Ebike Spiral Loom is much stiffer, with molded with curved edges, instead of cheap slit types. www.ebay.com |
https://www.amazon.com/dp/B07YYW28M...-pcomp-feature-rscomp-wm-5&ref=aa_rscomp&th=1
| Amazon.com: DGZZI Spiral Cable Wrap 4mm 25m Black Spiral Wrap Cable Binding Tidy Leads for TV PC Home Cinema CCTV Wires: Home Audio & Theater Buy DGZZI Spiral Cable Wrap 4mm 25m Black Spiral Wrap Cable Binding Tidy Leads for TV PC Home Cinema CCTV Wires: Cable Sleeves - Amazon.com ✓ FREE DELIVERY possible on eligible purchases www.amazon.com |
GuruUno
Well-Known Member
This one seems like it would be the best but no USA shipping: https://www.bike24.com/p2238313.html
That one looks like just the cheap moped horn (the same as you'll find inside the juiced alarm horn), but with a special mounting bracket. You can get the base horn super cheap - it's just that it needs 12v with a large amount of current.
Example https://www.amazon.co.jp/dp/B01LM9D94Q/ref=cm_sw_r_apan_glt_i_9EG4JCPKP8S7GXE21BPZ
I am sure you can find similar on Amazon us if you like.
The real point of the juiced alarm horn is just that most ebikes aren't set up to provide 12v at a high amperage, so the juiced horn has an internal battery and conversion circuitry to allow the user of a cheap motorcycle horn on a bike which normally couldn't power out. If you open it up, you'll see the actual horn is the same as in the links above from you and me.
Example https://www.amazon.co.jp/dp/B01LM9D94Q/ref=cm_sw_r_apan_glt_i_9EG4JCPKP8S7GXE21BPZ
I am sure you can find similar on Amazon us if you like.
The real point of the juiced alarm horn is just that most ebikes aren't set up to provide 12v at a high amperage, so the juiced horn has an internal battery and conversion circuitry to allow the user of a cheap motorcycle horn on a bike which normally couldn't power out. If you open it up, you'll see the actual horn is the same as in the links above from you and me.
Last edited:
ki11a
Well-Known Member
Yeah I've got the Juiced electronic horn/alarm and it is legit. An actual motorcycle/moped horn that can be heard in cars and grabs peoples attention quick. Love that it can be doubled as a motion detected alarm which can be activated with the included key FOB. Comes with a horn button to strap on the handlebars.
Before the Juiced horn I had one of those cheapo Amazon alarm/horns, and yeah, that thing sucked...was loud enough for pedestrians but cars? No way. It claimed to be waterproof but it was made out of cheap plastic with a lot of places water could go in, very meh.
Before the Juiced horn I had one of those cheapo Amazon alarm/horns, and yeah, that thing sucked...was loud enough for pedestrians but cars? No way. It claimed to be waterproof but it was made out of cheap plastic with a lot of places water could go in, very meh.
Deacon Blues
Well-Known Member
I recently mounted two horns (my wife's bike and mine) similar to the Juiced horn, which I purchased from Ali Express. They look identical.
So far I'm impressed, considering the price. The only thing I wish this horn/alarm had was a 'mild' beep sound when I come up behind walkers.
I had to mount mine to the handlebars of both bikes, because the clamp would not fit over the frame tubing.
So far I'm impressed, considering the price. The only thing I wish this horn/alarm had was a 'mild' beep sound when I come up behind walkers.
I had to mount mine to the handlebars of both bikes, because the clamp would not fit over the frame tubing.
Gionnirocket
Well-Known Member
- Region
- USA
- City
- Y. O.
I use a separate typical bike bell for walkers as they recognize the sound instantly
tomjasz
Well-Known Member
- Region
- USA
- City
- Minnesnowta
Airzound or a 48V horn fro aliexpress. I'm thinking i'll use a buck converter and https://www.amazon.com/FARBIN-Train...cphy=9019860&hvtargid=pla-1159656329955&psc=1
Gionnirocket
Well-Known Member
- Region
- USA
- City
- Y. O.
If you want to be heard... Put 4 in series!
tomjasz
Well-Known Member
- Region
- USA
- City
- Minnesnowta
I tapped into my 36v battery lead and installed a 36v horn from AliExpress. It’s LOUD!
ava1ar
Well-Known Member
- Region
- USA
- City
- North NJ
Did you do this on Bosch-powered bike? Where exactly did you connect it?
I think technically it is possible to just connect it in parallel to the front light, but I know Bosch doesn't like used-level modifications. Checking with my LBS if they can help me wiring Busch + Müller E-Bike Horn or something similar to the ebike battery.
tomjasz
Well-Known Member
- Region
- USA
- City
- Minnesnowta
i know very little about Bosch systems. I suggest doing a quick search or posting in one of the Bosch threads.
all the best, T
ava1ar
Well-Known Member
- Region
- USA
- City
- North NJ
Got it, thanks! I am trying not to touch the electrical part of my bike because Bosch generally don't like this. Hoping my LBS will do the wiring - waiting the confirmation from them.
P.S. Confirmed with LBS that Busch + Müller E-Bike Horn should work fine with Bosch motor if connected to the "3rd party accessory" port on the motor. Ordered one from bike24.com (last one
) and going to try set it up with eBike battery.
Last edited:
Pine_marten
Active Member
- Region
- USA
Traditional bike bells seem to work well on paths with inattentive pedestrians or over taking slower cyclists. If i were a serious urban commuter i might want more decibels.
JES2020
Well-Known Member
- Region
- Other
The thing is, The scooter horns can be "chirped" significantly reducing the DBs and of course you can signal from greater distance, with full power.
I often beep from 20 feet away and the whole path 40 feet deep responds. Very efficient !
