sed6
Active Member
I'm glad I could be of help!
Lectric XP
- Thread starter konea420
- Start date
I'm glad I could be of help!
sed6
Active Member
Not very. Lots. Too long and it'll never get tight. Too short doesn't matter much. Even 1/8-1/4 inch short is okay.
Us too, ordered 2 for taking to campgrounds. I researched for a month or so, and these looked like the best bang for the buck on what we were looking for. Just sucks paying up front, and having to wait this long.
Reformvette
Active Member
Sed6 and Bob, what I mean is this. When I hit a bump, I can feel in the handlebars a slight jolt, a feeling like something is hitting against something. It's not a big jolt, but it is enough to notice. It doesn't happen often. The original fork did the same thing. I don't think there is a problem with the bike though. I don't think there is nothing wrong with my assembly. There is no play in the assembly fork assembly so it should be okay.
Last edited:
Reformvette
Active Member
If it is too short, you'll end up having to find a longer screw to secure the folding stem to the star nut. Sed6, I am thinking correctly, right? Thanks.
Reformvette
Active Member
If you are installing a threadless folding stem to your XP with the air suspension fork, you just have to assemble your headset parts (cones, bearings, compression ring, etc.), air fork, and cap all together to the bike frame and then make a mark on the tube of the air fork. Then, you add approximately 7/8" to 1" of extra length to the tube and make the second mark. The second mark is where you cut the tube. If your star nut doesn't come with a screw, you'll have to purchase an M6 threaded screw to secure the threadless folding stem to the star nut in the final assembly.
Note: when you assemble all the parts together, you want to make sure the whole assembly is mating together properly to ensure that there is no play in the assembly of the parts when you make the 1st mark on the air fork tube. This is very important or you'll end up cutting the tube a second time like I had to do.
Last edited:
sed6
Active Member
Correct
azraelnite
Member
Hello again,
General question about the conversion. Does the race part come with the headset or do you need to reuse the old one?
bobn4burton
Member
I believe most headsets come with crown race. The H185 did...
You could also re-use your old one if you wanted too...but no point if you get a new one
sed6
Active Member
The old fork has the crown race molded in. The new headset will come with a crown race which you hammer on your new fork with a PVC or metal pipe about 2" in diameter.
azraelnite
Member
I know the headset seems a bit of a mystery but it really is very simple pretty much any 44 mm semi integrated headset will work. Here are some links to a few sellers on eBay with USA stock.

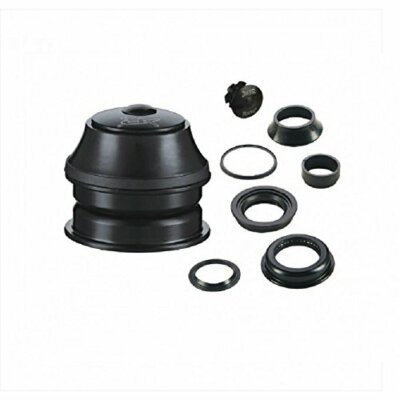

1x Headset 44mm 1-1/8" 28.6 Straight Tube Fork Semi-integrated Tool For MTB Bike | eBay
Head tube suitable for caliber: 44MM. Suitable for fork pipe installation caliber: 28.6mm. A necessary accessary for bikers.www.ebay.com

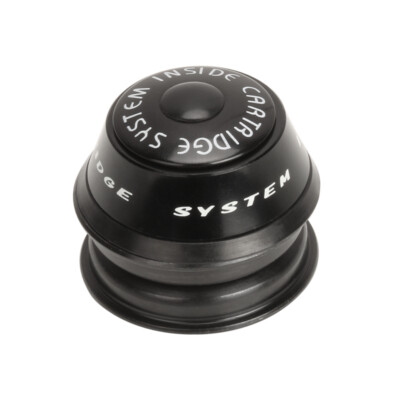

1 1/8" Threadless Semi-Integrated Bicycle Headset with 44mm Cups-(Black) | eBay
For 44mm Head Tube and 28.6mm Fork;. For 44mm Head Tube and 28.6mm Fork. - 1 1/8" Bicycle Headsets. We stand behind our products.www.ebay.com
CDHPOWER 1-1/8" Threadless Semi-Integrated Bicycle Headset with 44mm Cups-Black | eBay
For 44mm Head Tube and 28.6mm Fork;. - 1 1/8" Bicycle Headsets.www.ebay.com
Just do a search for semi integrated 44 mm and you'll find all kind of results. About the only real difference is the top cap some of them are flat and some of them are angled some of them are cone-shaped, they all will match up to the bottom of the new threadless stem quite nicely.
Hello again,

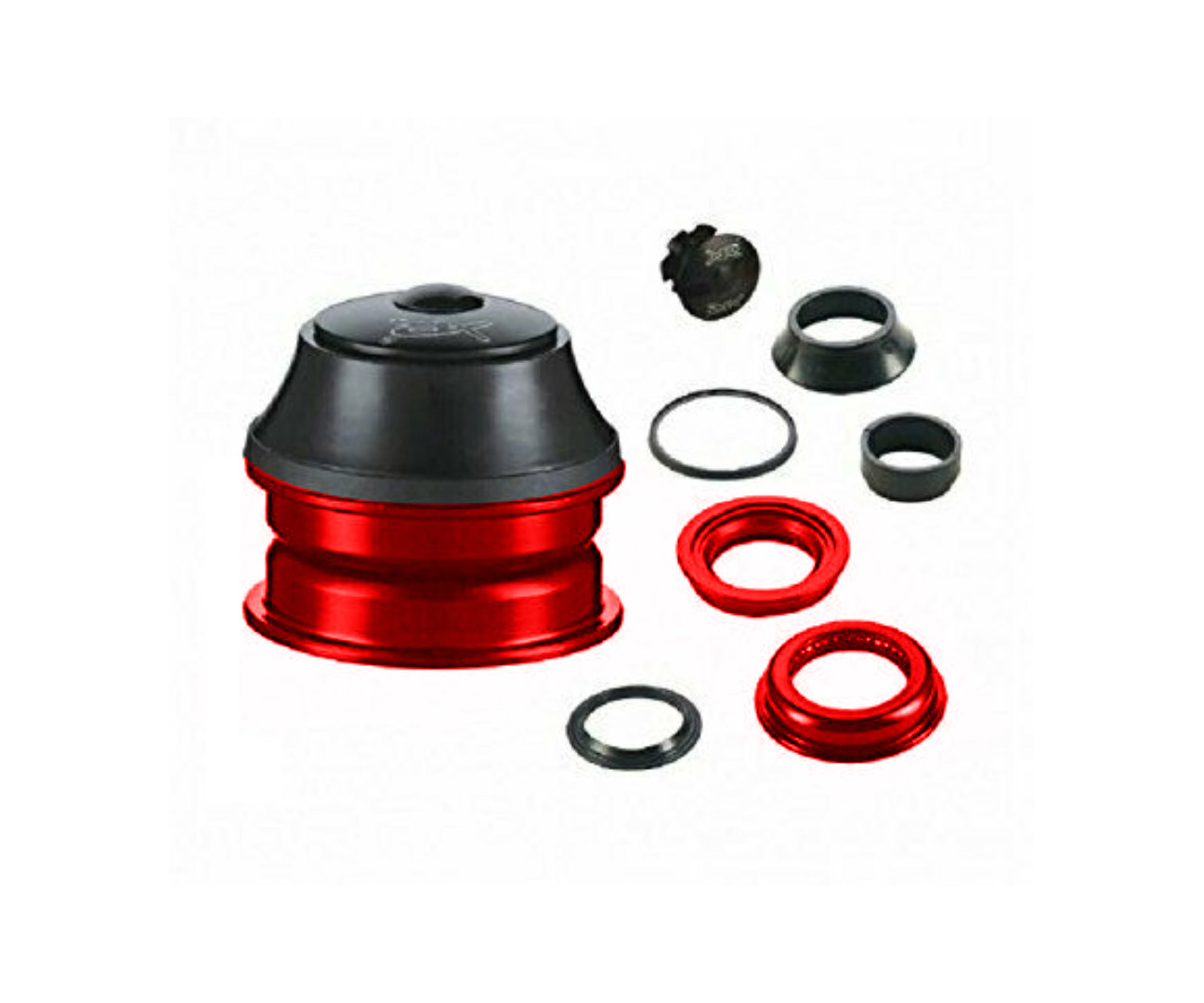

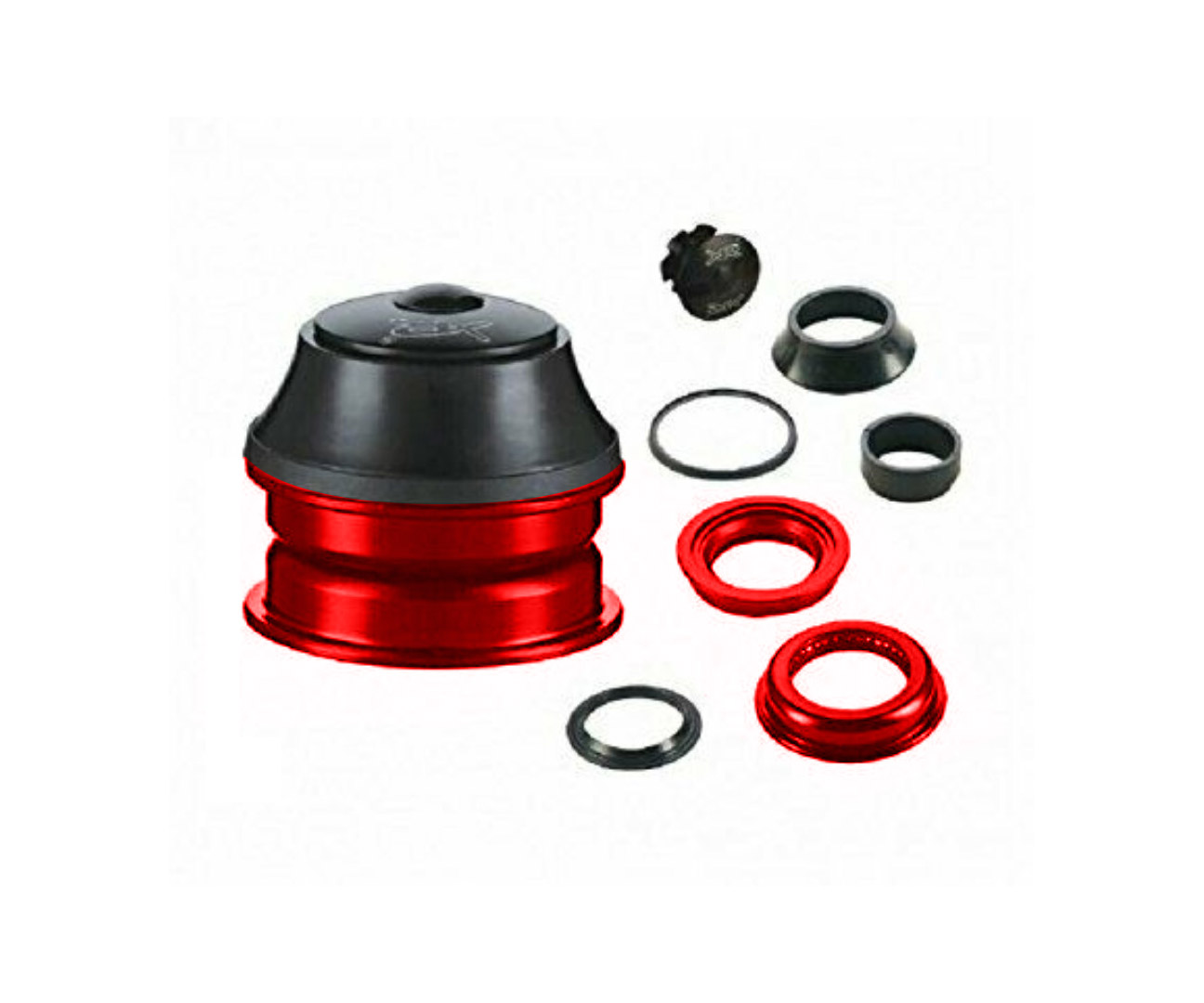

I bought the 2nd one and have a general question, Are you supposed to use the bearings / cups on this set? They are integrated together and it doesn't look right. The video that shows the installation of the h185 Neco headset looks like it uses only bearings top and bottom with spacer's to fine tune. It does not look like they are using any additional cups. Are we supposed to re use the original bearing / spacers? I have attached an image regarding the parts in question. They are the pieces in red. Thanks,
Charlie Horse
New Member
Has anyone had shipping issues with Alliexpress and these forks? Every time I order they make it to customs and they refuses package , happened 3 times now 2 different stores .. I live in California , and have ordered products in past from Alliexpress with no problem , Anyone have any idea? Maybe my china social buying score is too low ? =) seems odd
azraelnite
Member
I ordered from this store on Aliexpress:
115.88US $ 30% OFF|Fat Fork 20*4.0 Inch Fat Bike Forks Snowtruck And Sandy Oil Air Gas Locking Suspension Forks For 4.0"tire 135mm - Bicycle Fork - AliExpress
Smarter Shopping, Better Living! Aliexpress.com
www.aliexpress.com
I ordered the oil shock and I'm also located in California. Shipping was the usual and nothing wrong on my end. Were you able to find a headset?
bobn4burton
Member
I can't quite tell from the picture what type of bearings that headset uses. Can you send a better picture of the bearings?
sed6
Active Member
Looks good. You won't use those two red cups, they are extra. Your frame has a top and bottom bearing cup already installed that you're going to reuse. The new bearings match the old cups perfect, that's why we went thru the hassle to find just the right headset.
IF you want to remove the headset cups (not hard to do) then your options become much greater as there is a wider variety of headsets choose from.
Reformvette
Active Member
I used the Rubin Store and the person shipped it a different way the 2nd attempt for that store (I think the person shipping it at a higher cost, but they didn't charge me extra for shipping - I'm guessing they wanted to make a sell). I didn't have a problem receiving it the 2nd time around. I bought the air suspension fork.
azraelnite
Member

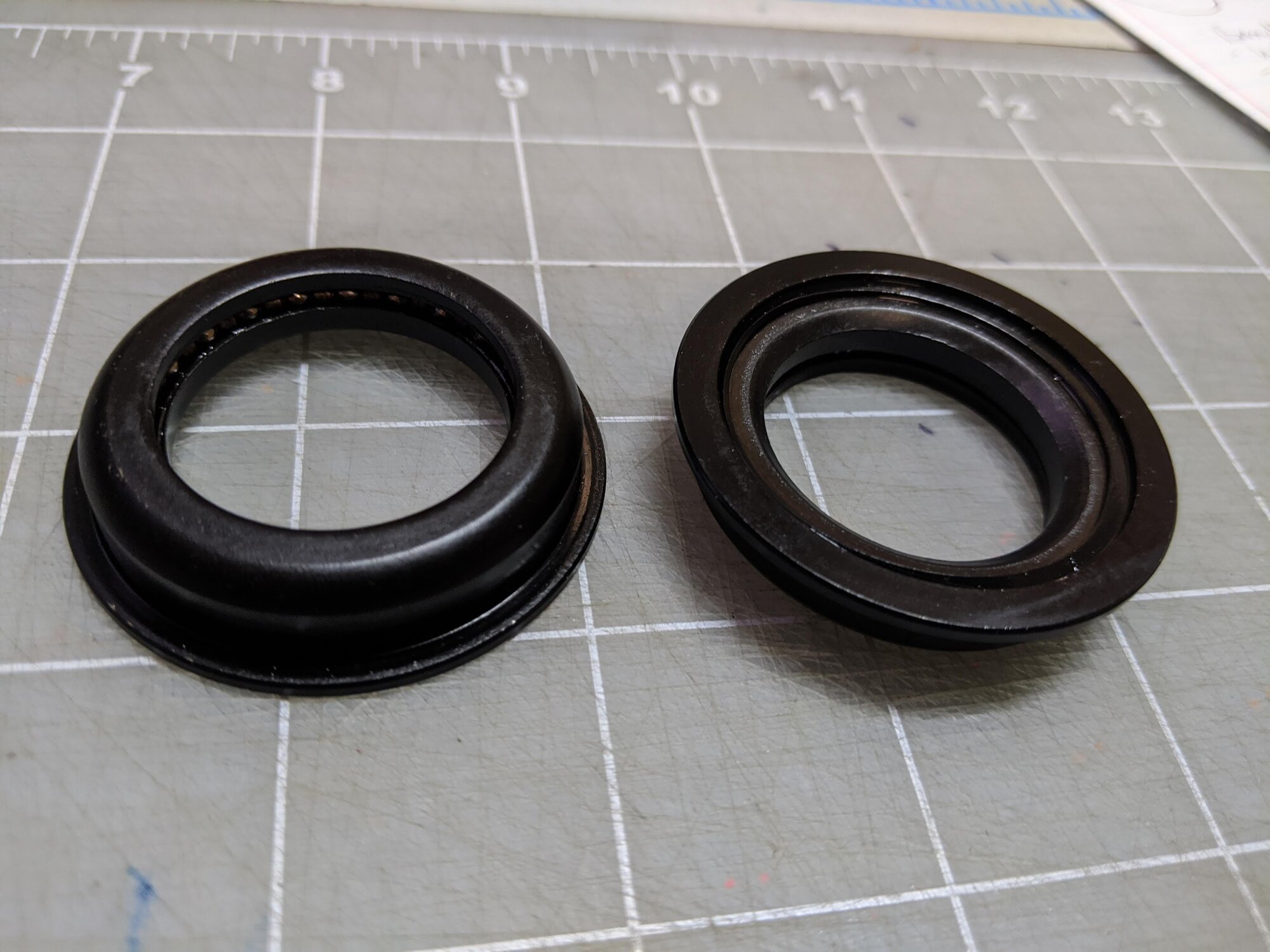

Here's the best I can do. It appears that the bearing and cup are integrated? not sure. I did not want to try and force the bearings out due to fear of ruining them.
Charlie Horse
New Member
That's the 2nd store I tried from , still can't figure out why .. o well just wait and see , thanks for reply
I just received my Lectric XP (white) yesterday. So far, so good. It came completely assembled, just air up the tires and top off the battery and you're on the road. What fun! $955 with tax and free shipping.
sed6
Active Member
Have you done anything with these? They should work, if you pound out the old cups first. What do you plan to do?
