Bosch Connect Module on Gazelle bike?

Simon-k

New Member
Region
Europe
Hi

I have a Gazelle Ultimate C380 with the Bosch Performance Line, Smart System, 75 Nm engine.

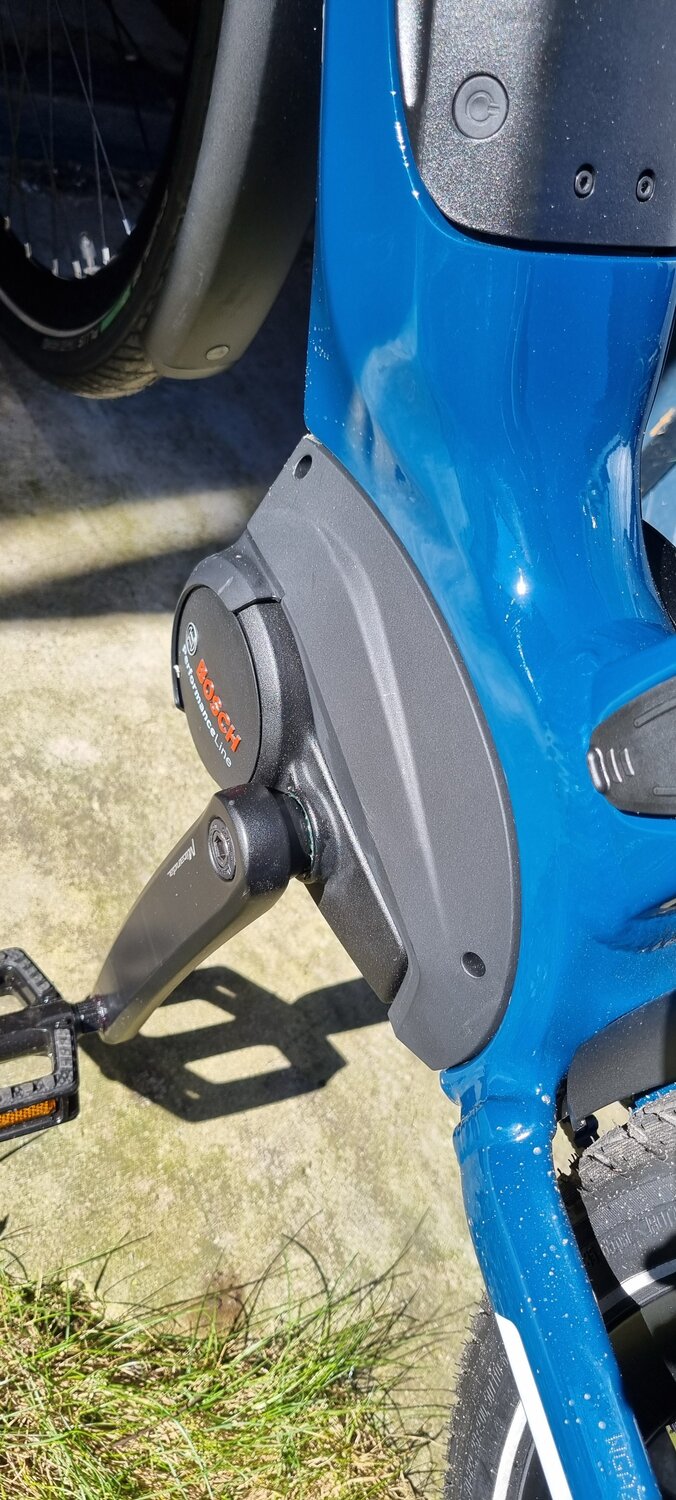

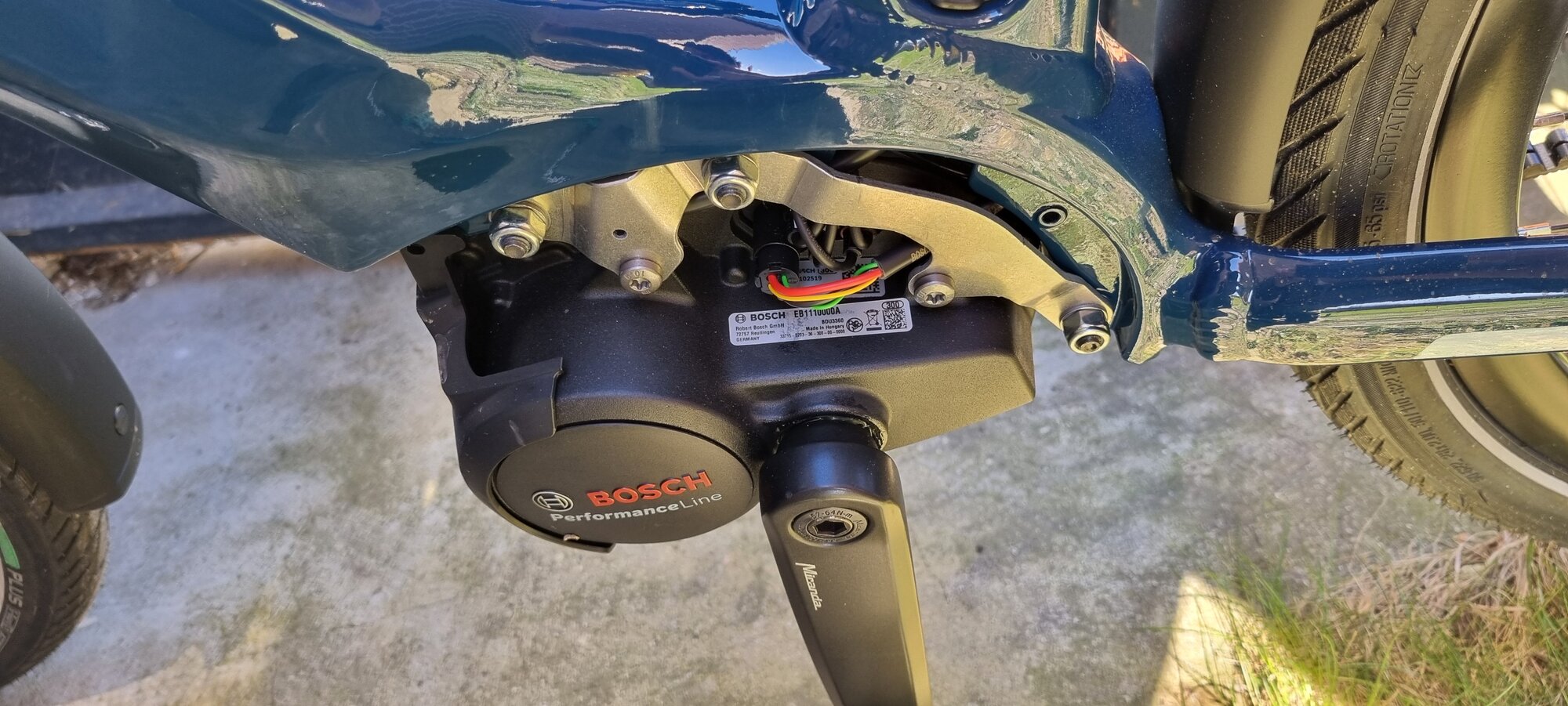

I would really like to install the Bosch Connect Module, and as far as I can tell it should be the BDU33YY version. Have any of you tried to install it? When I look at the bike I’m really in doubt if there is room for the module because of the slim engine cover that my bike has. I’ve attached some photos of the engine cover to give you an idea of what I am talking about.

The installation video I found on youtube is with an engine cover that looks bigger than the one my bike has. This is the video:

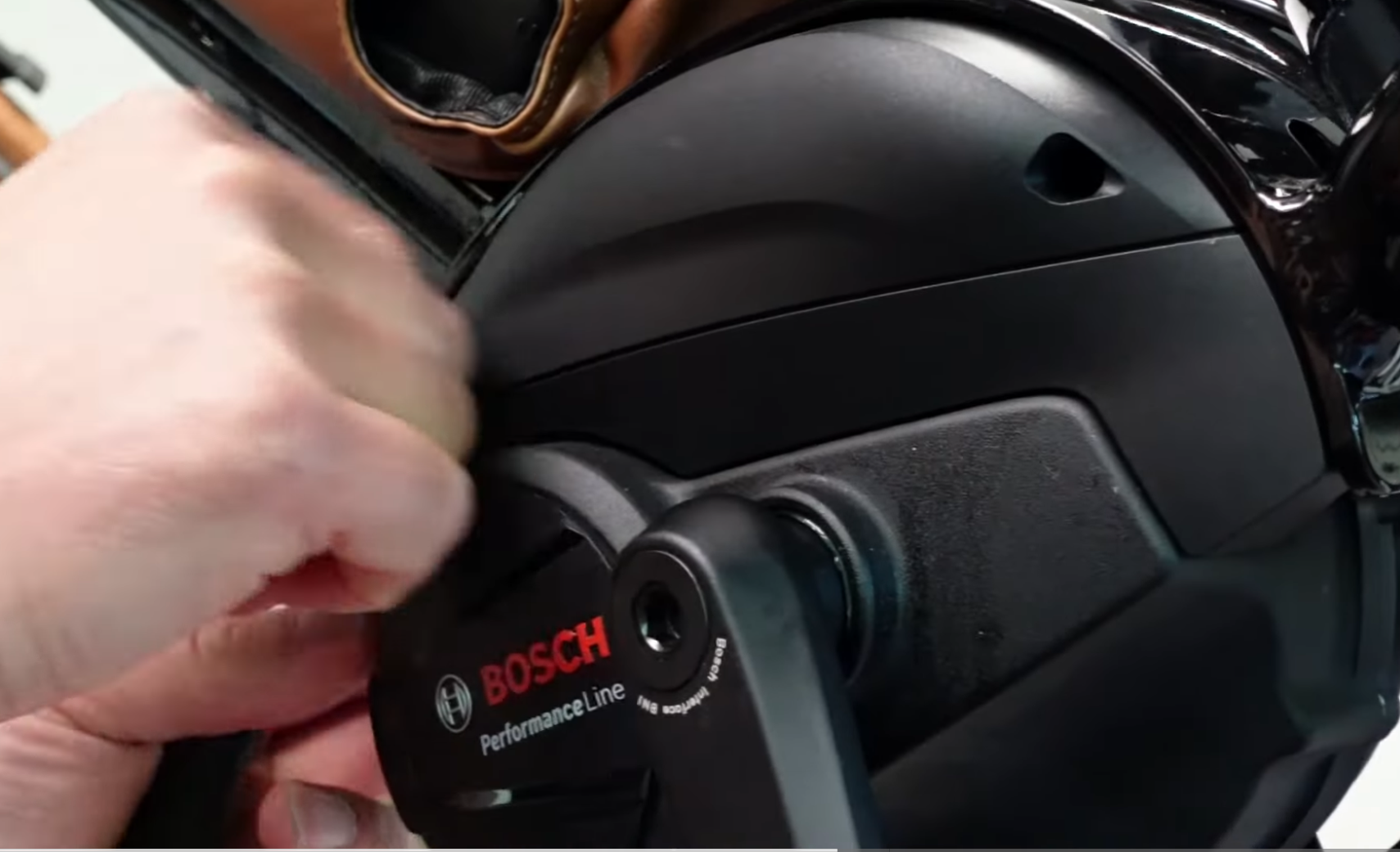

and I’ve attached a screenshot from the video that shows the bigger cover.

What do you think?


Attachments

  • 20240317_130205_Original.jpeg
    237.4 KB · Views: 44
  • 20240317_130310_Original.jpeg
    341.7 KB · Views: 48
  • Skærmbillede 2024-03-18 kl. 21.34.06.jpeg.png
    Skærmbillede 2024-03-18 kl. 21.34.06.jpeg.png
    2 MB · Views: 48
Thanks. How did I miss that? I really tried to see if there was something about the topic here before I made this thread.
