My WW Custom Design / Build Diary
- Thread starter mradel
- Start date
pushkar
Well-Known Member
duuuuuuuude... why you do this to me ?
basically all packs on hydra and helios are made in US. every single one of them.
We will limit onboard charging to 5A (battery inside the down tube) just for thermal reasons.
External charging will be up to 10A. The battery itself has a high amp charge port for that.
UPDATE 2 - Component List (Draft)
Edit: Fixed Errors 4/3/21
Building the list took longer than I expected especially since I chose Kindernay over Rohloff. Feedback is welcome.
More to Follow.
Michael
Edit: Fixed Errors 4/3/21
Building the list took longer than I expected especially since I chose Kindernay over Rohloff. Feedback is welcome.
| Grouping | Component | Manufacturer | Notes | |

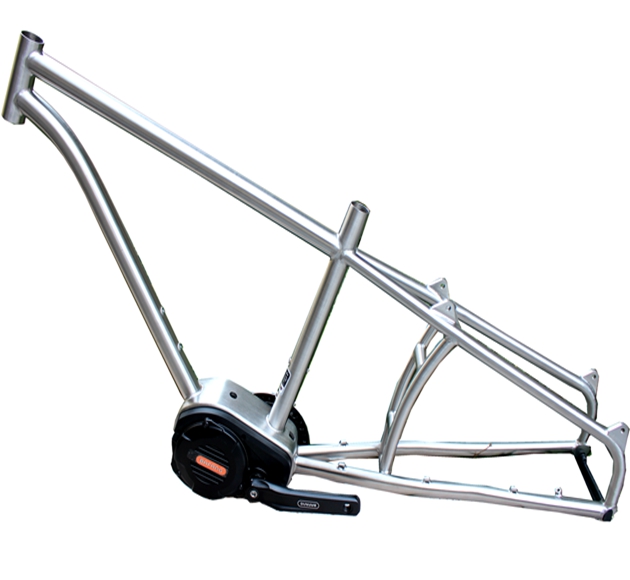

| Frameset | Frame | WW Custom TI Frame Based on Salsa Blackborow GX Eagle Geometry | ||
| Fork | Manitou Mastodon Pro Ext 100mm (15mm x 150mm axle) | Accommodate 26'x4' to 26'x5' tires | ||
| Front / Rear Fenders | WW Custom Fenders | Accommodate 26'x4' to 26'x5' tires | ||
| Trailer Mount | Research Hitch Type to Carrier | |||
| Seat | Saddle | Ergon ST Core Prime S/M | ||
| Seat Post | Kinekt 3.1 Carbon Fiber Seat Post | |||
| Seat Collar | Review Options | Goal is Theft Prevention and Easy Adjust | ||
| Headset | Handlebar | Cruiser Handlebar - Review Options | Upright Position / Pedal Forward | |
| Stem | Kinekt Suspension Stem | Overkill??? | ||
| Headset | Integrated Headset - Review Options | 1 1/8" Head Tube | ||
| Grips | Ergon GP 1 to 5 - Review Options | Leaning GP2 | ||
| Misc. | Bar Plugs, Top Cap, Spacers | |||
| Drivetrain | Motor | Bafang Ultra with Archon X1 controller 1000W | ||
| Display | WW Custom Large Display | |||
| Battery | Custom 52V 29ah Battery Case and Samsung 21700 50e v2 Cell Pack | |||
| 2nd Battery | Ability to Add a Rack Battery in the Future | Overkill??? | ||
| Belt | Gates Belt Drive Black - Belt Length? | |||
| Rear Sprocket | Gates CDX EXP - Size? | |||
| Rear Hub | Kindernay XIV Fatbike 197/12 CL (216mm/203mm) (32h) (16t) | Issue Using 197/12 with Gates Drive? | ||
| Shifter | Review Options | Goal Single Shifter on Drive Side | ||
| Throttle | Mount Drive Side | |||
| Crankset | Crank Sprocket | Gates CDX EXP - Size? | ||
| Crank | WW Carbon 165mm | |||
| Pedals | Crankbrothers Stamp 2 or Shimano PD-M8040 | Leaning Shimano | ||
| Brakes | Brakes | Dominion A4, Quad Piston | Regular / SFL Lever Differences? | |
| Rear Disc | Magura MDR-C CL 203mm or 180mm | |||
| Front Disc | Magura MDR-C CL 203mm | |||
| Wheelset | Rear Hub & Sprocket | See Drivetrain | ||
| Rear Rim |
| |||
| Spokes | Berd Black PolyLight Spokes | |||
| Tire | 26"x4" Dillinger 4 or Kenda Juggernaut Pro 26"x4.5" | |||
| Front Hub | Onyx FAT ISO-150/15mm CL Thru-Bolt (32h) | Powder Coat - Black Aura, Clear or Black Widget? | ||
| Front Rim | 26" H.E.D Cycling B.A.D (15x150mm) (85mm) (32h) | |||
| Spokes | Berd Black PolyLight Spokes | |||
| Tire | 26x4 Dillinger 4 or Kenda Juggernaut Pro 26x4.5 | |||
| Misc. | Reflectors, Tubes, Stems, Nipples | |||
| Lights | Front Light | Wired in Addition with Lezyne 1800i | Review Options - Wired | |
| Rear Light | Wired Rack Mounted in Addition with Lezyne KTV | Review Options - Rear Light with Braking | ||
| Aux Power | (2) 5w 3-Pin Auxiliary Power, Future Expansion (i.e. Horn) | |||
| USB Power | Cockpit Phone Charging | |||
| Accessories | Horn / Bell | Locate on Non-Drive Side | ||
| Lock(s) and/or Alarm? | Review Options | Location Seat Tube | ||
| GPS Tracker | WW - Research Details | |||
| Charger | WW 10A Charger | |||
| Chain Guard | Belt Guard | Only for Aesthetics | ||
| Kickstand | Center Stand - Review Options | |||

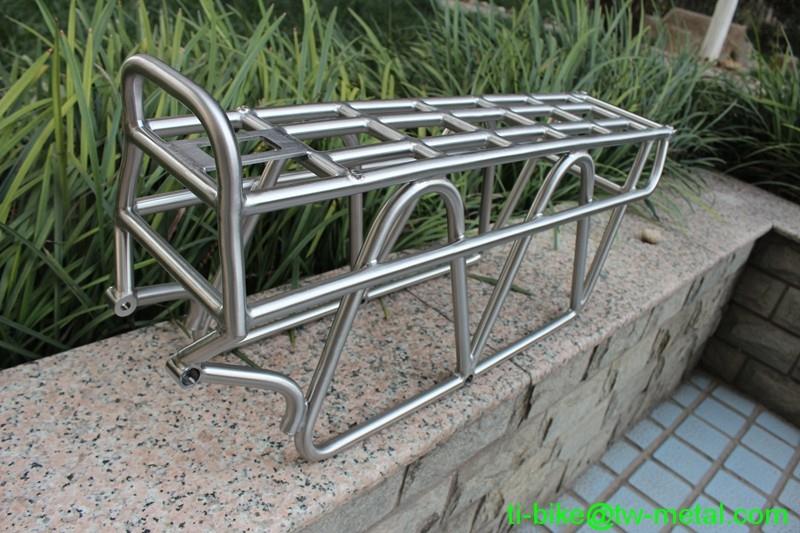

| Rear Rack | WW Custom TI Rear Rack, Bolt | |||
| Front Rack | Review Options, Bolt | |||
| Rear Rack Pannier Bag | Review Options | |||
| Helmet | Review Options | |||
| Bottle Cage | Review Options | Location Down Tube | ||
| Cables/Housing | Cables/Housing | Brakes, Display, Kindernay, Lights, Power, Throttle, Misc. | ||
| Misc. | Cable Guides/Clamps |
More to Follow.
Michael
Last edited:
That is a big reason for choosing this frame style.
jbortega
New Member
- Region
- Canada
This is an awesome build. Will you be posting how much everything will cost?
reed scott
Well-Known Member
None of my bizness and I won't ask but you gotta have over $10k ... possibly well above ... in this project.
Yes - I have a budget and once Pushkar provides a cost I'll share on the thread.
Tough build choices may be in my future.None of my bizness and I won't ask but you gotta have over $10k ... possibly well above ... in this project.
reed scott
Well-Known Member
Ah what the heck. It's an investment.Tough build choices may be in my future.
reed scott
Well-Known Member
'They' say that many times a good investment is one where you get your principal back.
You could ride this bike for a couple years and probably sell it for what it cost you ... so free ride and experience for two years. Then you could build another one with improvements from what you learned. Why did you plant that seed???'They' say that many times a good investment is one where you get your principal back.
I take your point and agree or at least hope it will hold value.I would buy this bike!
reed scott
Well-Known Member
It occurs to my not enough coffee yet brain that this sort of bike could be quite useful to the 'hunting bike' crowd with the appropriate drive train. As well as the bike camping folks. Or touring as well. There's definitely a market. You might have to ship it however to get one sold.
I don’t hunt but I'm curious your opinion on the appropriate drive train for this activity?
reed scott
Well-Known Member
Well .... it depends. Depends if you are willing to spend the big bucks for the IGH. Depends if you think one drive train or another would affect resale if reselling is anything to you. Depends on how you think regarding repair and upkeep. Me, I'm not a fan of IGHs just because I know I can't work on them and I don't really know much about them and I'm cheap that way. And of course it depends on how you are going to use the bike. If I WAS all hot for an IGH bike ... Pushkar is the only one I'd buy such from.
reed scott
Well-Known Member
I just finished degreasing, cleaning and lubing my chain and cassette. Maybe I should rethink my position on IGHs.
This will be my first IGH. After endless research on them, I selected this route with the Gates Drive for the easy cleaning and I can just hose off the mud, never adjust a derailleur again, and how they look is a plus. So far, my only wishy-washy decision was on the Kindernay. Pushkar did a good pro / con comparison to Rohloff for me but I really love the Rohloff looks. The Kindernay dual shifters is a downer too. I really want my shifting on the drive side only.
