Help !!! Cant get my rear wheel back on
- Thread starter Jtac15
- Start date
Solarcabin
Well-Known Member
- Region
- USA
I do not see the torque washer or torque clip in your pics?

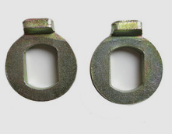

You should have a torque washer on both sides of the axle between the frame like these:
If your ebike is similar to the Ariel X you will also have some form of torque arm or torque clip that goes over the axle post and has a nub or bolt hole that fits in to a hole on the frame. That goes on under the axle bolt.

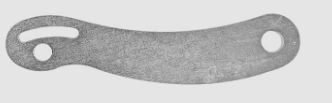

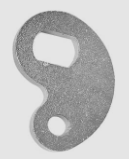

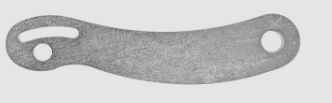

That torque arm will look like one of these:
Those are what keeps your rear axle from coming off the frame when you apply power to the motor because that torque is very powerful.
Last edited:
Solarcabin
Well-Known Member
- Region
- USA
Look at the pictures in the post above. Do you have a torque washer on both sides and do you have them facing the same direction with that raised piece at the top?
They have to face the same direction. The raised piece goes to the outside and that slides in to the fork slot.
Also make sure the motor cable is not hanging up under the axle and is loose.
Jtac15
Member
I have the washers.maybe i have them in the wrong spot. Where should they be. ? Should it be on the inside of the the wheel then the washer then frame then nut ?or is that washer between frame and nut ?
Solarcabin
Well-Known Member
- Region
- USA
Those torque washers go next to the hub inside the frame.
J.R.
Well-Known Member
- Region
- USA
- City
- Piedmont Highlands
You shouldnt have 2 torque washers and you won't have torque arms. Go to the video I posted and turn all this noise off.
From your picture it looks like the dropout has been enlarged (rounded off) by running the bike without that torque washer. You should contact the manufacturer. I don't know if your bike was missing the torque washer since new or if you lost it. You might have to take the bike to a welder to add some metal to the dropout. Get a new torque washer.
Solarcabin
Well-Known Member
- Region
- USA
You can also get some help here:
electricbikereview.com
www.facebook.com
Aventon Ramblas EMTB Review, 2024 | ElectricBikeReview.com
Price: $2699.00 | Model Year: 2024 | Aventon has just added a new e-bike to their lineup. It’s called the Ramblas and it is an electric mountain bike. We’ve loved the off-road abilities of Aventon’s fat-tire e-bikes, like the Aventure 2, but the Ramblas marks a new chapter in Aventon’s growth as...
electricbikereview.com
Aventon
www.facebook.com
fooferdoggie
Well-Known Member
I was thinking the same thing but was not sure if it was just bunged up.
J.R.
Well-Known Member
- Region
- USA
- City
- Piedmont Highlands
I have seen others over the years damage dropouts by riding without a torque washer. If you lost yours when you repaired a flat, it wouldn't be the first time I've seen that here either. From that angle, it's tough to determine. If the axle is completely seated in the dropout, then yes its damaged. Find a welder that does TIG welding. They can add material. I own a MIG welder and a MIG is not good enough.
Jtac15
Member
Thx appreciate it
harryS
Well-Known Member

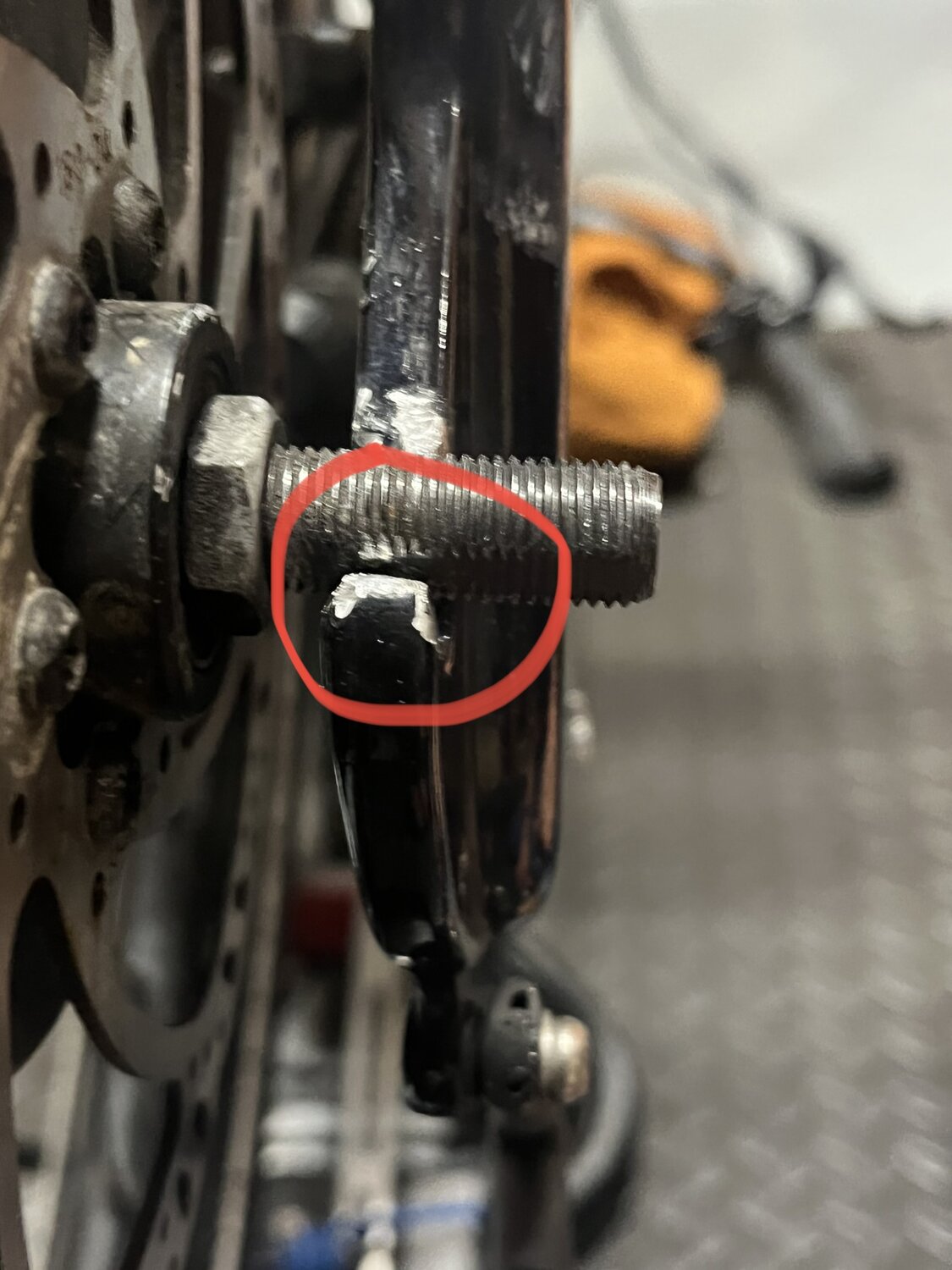

Your own picture shows it. The axle on the brake side isn't sitting in the bottom of the notch. You're also missing a prrtty thick washer. The torque washer is about 3/16" so that forces you to really squeeze the frame to get the axle but tight.

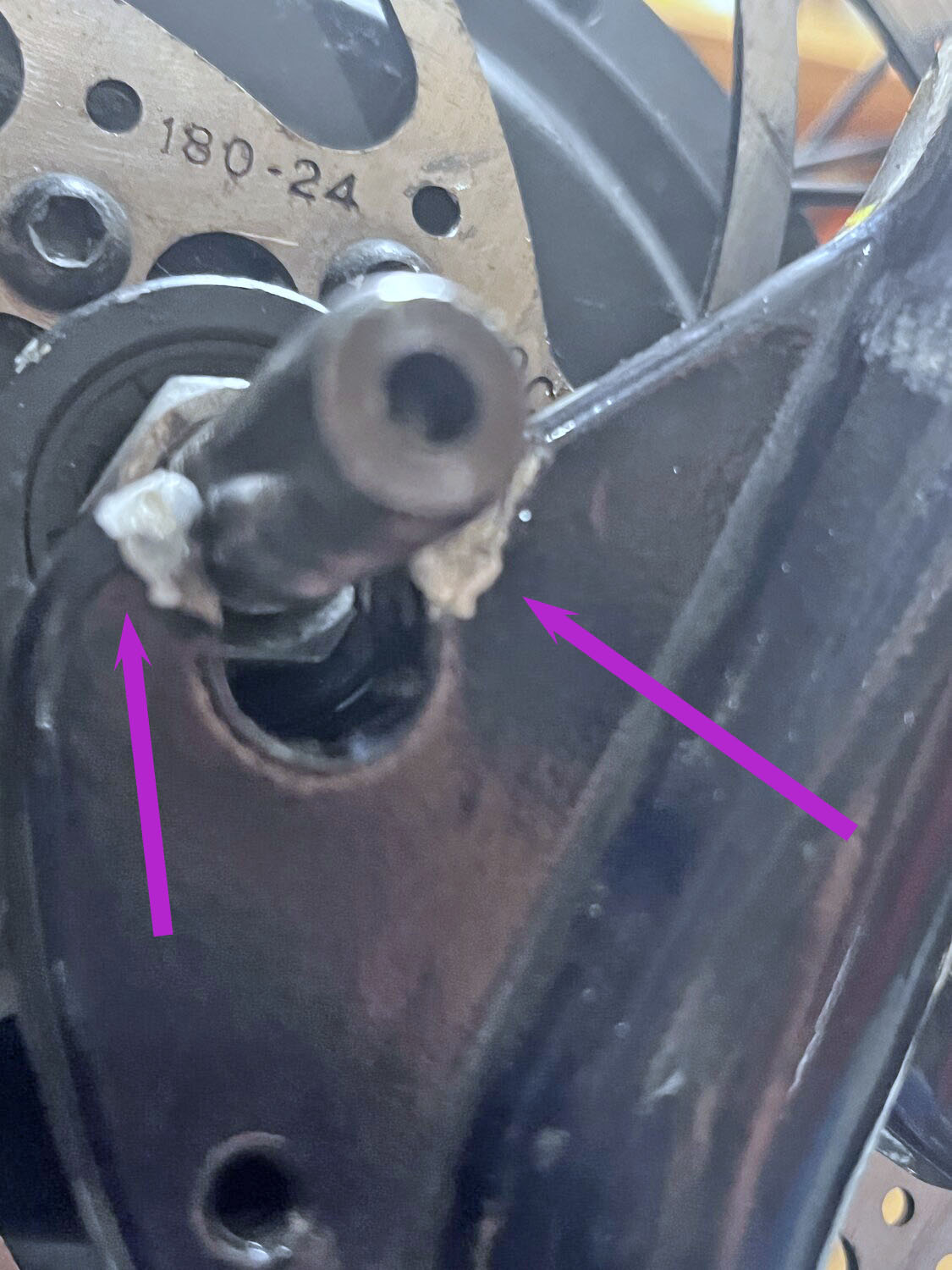

OK. Let's look at your picture. Yikes. If you tightened the nut like that, of course it's going to roll out. Yeah, you're about 8mm off the bottom. What are the arrows pointing at? Is that paper? Probably gouges in the frame.
I do not think it's too badly damaged. I have plenty of bikes which will look like yours when the axle is resting at the bottom. I'd like to see a picture of your frame without the wheel in it to really assess whether it's damaged. It's common in many ebikes to have some slop in the notch. Most aren't that powerful that they can overcome a 12mm nut torqued down to 25 ft-lbs.
Take the wheel out. If there are any burrs in the notch, smooth them down. Axle should slide in. People like me will spin a nut onto the axle and tap on it with a hammer to seat the axle.
If you have to get to work on Monday, you'll never get a torque washer in time from amazon. Is there one on the other side?
If you got some 12mm washers from the hardware store and placed them between the wheel and frame so there's no slack. , when you tighten the axle nut, most of the force will be holding the axle tight instead of trying to squeeze the frame. I think It would hold for a while, but the safe thing is to order a torque washer, and perhaps even go the the extreme of a secondary torque arm.
OK. Let's look at your picture. Yikes. If you tightened the nut like that, of course it's going to roll out. Yeah, you're about 8mm off the bottom. What are the arrows pointing at? Is that paper? Probably gouges in the frame.
I do not think it's too badly damaged. I have plenty of bikes which will look like yours when the axle is resting at the bottom. I'd like to see a picture of your frame without the wheel in it to really assess whether it's damaged. It's common in many ebikes to have some slop in the notch. Most aren't that powerful that they can overcome a 12mm nut torqued down to 25 ft-lbs.
Take the wheel out. If there are any burrs in the notch, smooth them down. Axle should slide in. People like me will spin a nut onto the axle and tap on it with a hammer to seat the axle.
If you have to get to work on Monday, you'll never get a torque washer in time from amazon. Is there one on the other side?
If you got some 12mm washers from the hardware store and placed them between the wheel and frame so there's no slack. , when you tighten the axle nut, most of the force will be holding the axle tight instead of trying to squeeze the frame. I think It would hold for a while, but the safe thing is to order a torque washer, and perhaps even go the the extreme of a secondary torque arm.
tomjasz
Well-Known Member
- Region
- USA
- City
- Minnesnowta
I’d really consider a high quality torque arm, like those from eBikes.ca.
Solarcabin
Well-Known Member
- Region
- USA
It does look damaged in the picture and what is the white stuff around the opening?
Jtac15
Member
Thats the dropout it self paint is scratched off
Jtac15
Member
Thanks for all your help. Since the axle rolls in the drop out it is probably damaged to badly. I will try a torque arm as suggested. If that doesnt work ill bring her in to a bike shop to see if it can be repaired or if its ready for the scrap heap. Thanks again for everyones help.
Solarcabin
Well-Known Member
- Region
- USA
I think it is salvageable and looks like someone rode it without the torque washer and that torque will tear up an ebike.Thanks for all your help. Since the axle rolls in the drop out it is probably damaged to badly. I will try a torque arm as suggested. If that doesnt work ill bring her in to a bike shop to see if it can be repaired or if its ready for the scrap heap. Thanks again for everyones help.
A bike shop with a welder can fix that frame slot and put on a torque arm for you.
Nice ebike so don't scrap it away and it can be repaired.
Have a good one!
Jtac15
Member
Thank you. Its been a great bike. Got 3000 miles on her and want 3000 more. Determined to get her fixed
Jtac15
Member
Not yet. I ordered a torque arm. Waiting for delivery
norcalflat
New Member
- Region
- USA

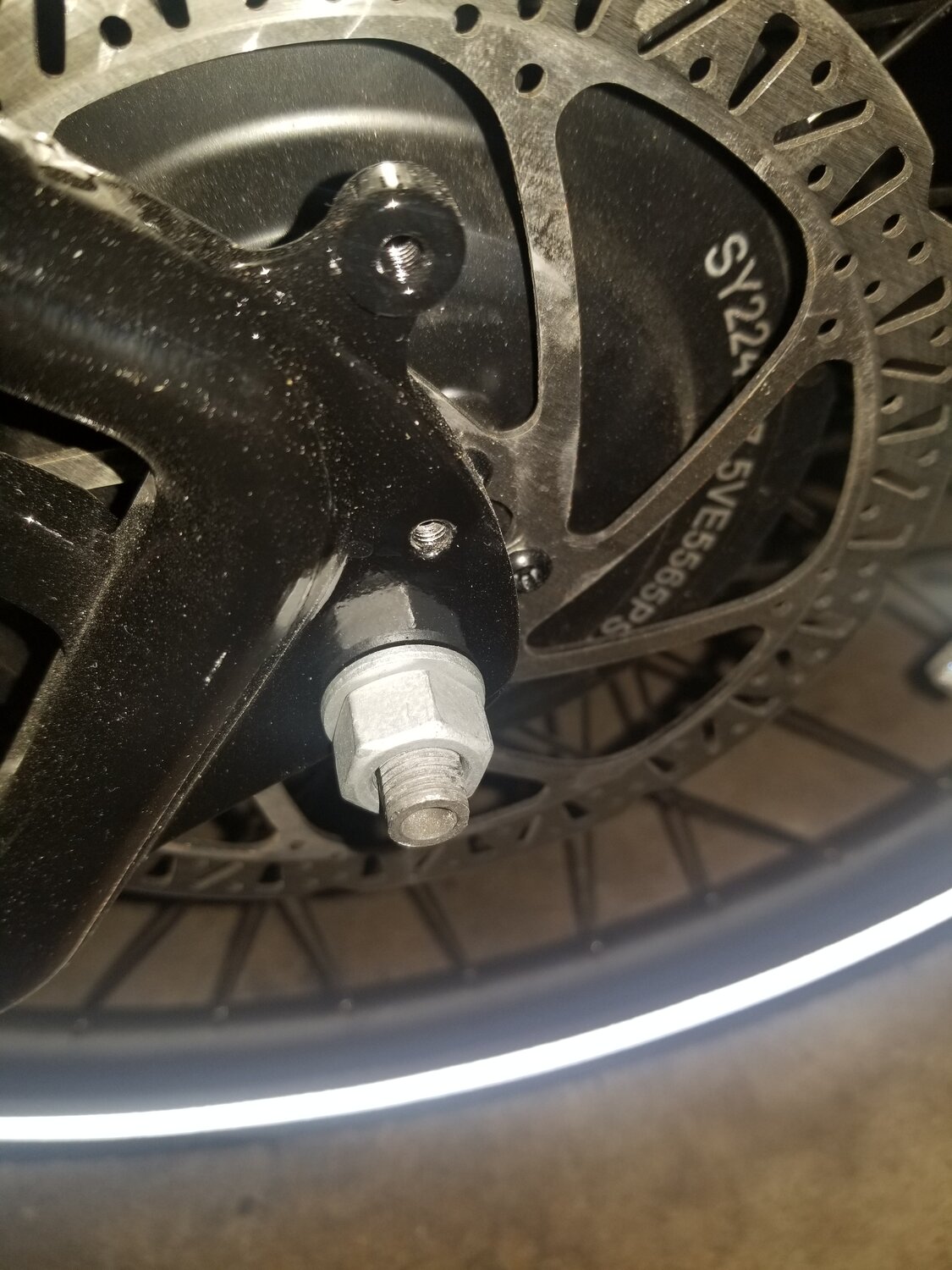

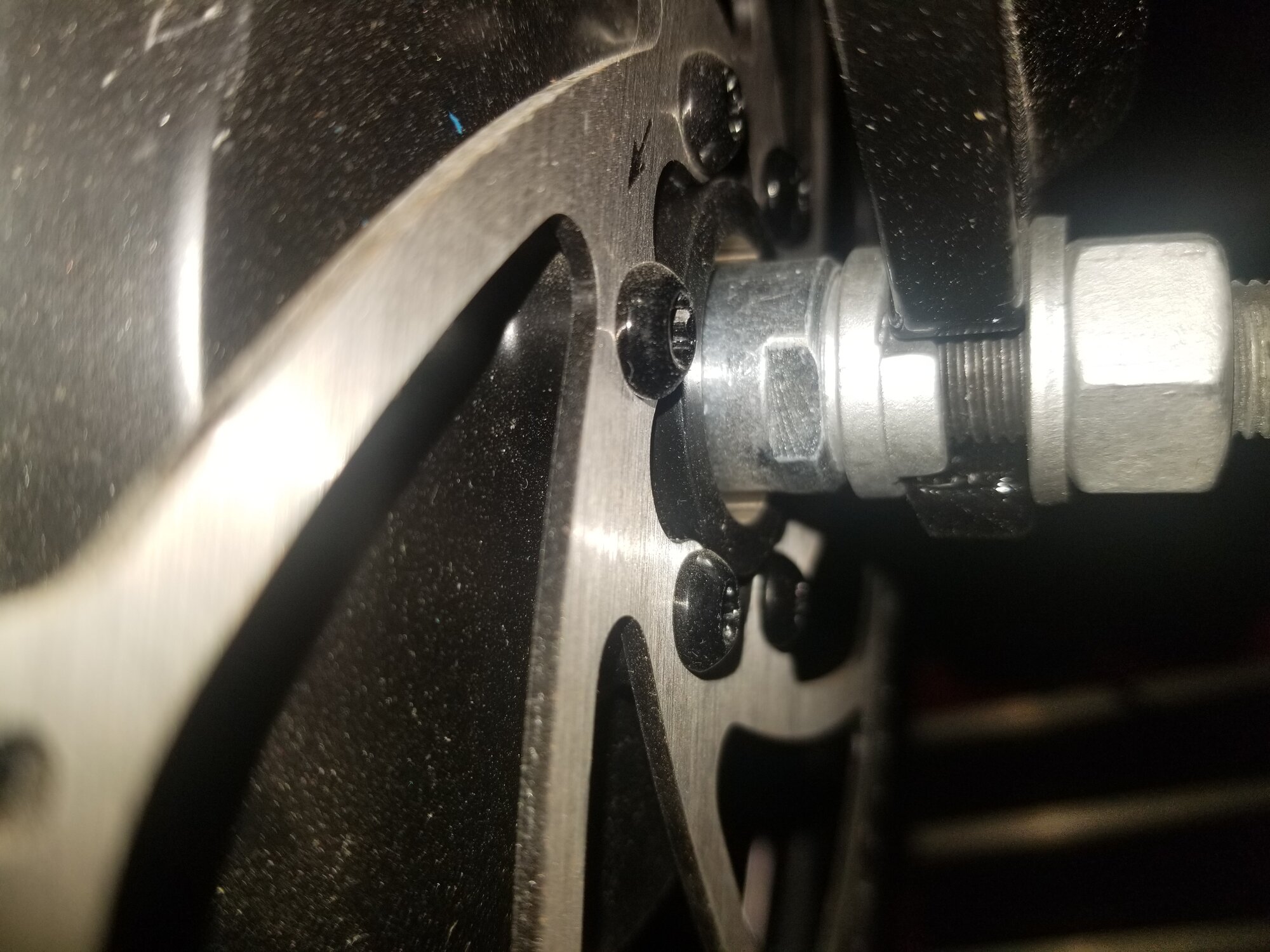

Any luck? If you can't get the axle to seat all the way check if there are any burs in the axle slot blocking it. If there are, use a file to smooth them out. Once you can get the axle seated all the way in the dropout, put the tabbed washers on with the tabs facing away from the hub, then the flat washer, then the nut. The tabbed washers should look like the pic below when in proper position. I'm surprised noone has made a torque arm that picks up the M5 fender mount hole on the dropout(hole just above the axle nut in the second pic).
