Floor jack lift under Bafang Ultra motor?

[PCeBiker]

I need another u-bolt or two in my ceiling.
Then my bike won't be dangling from a single point.



[Gionnirocket]

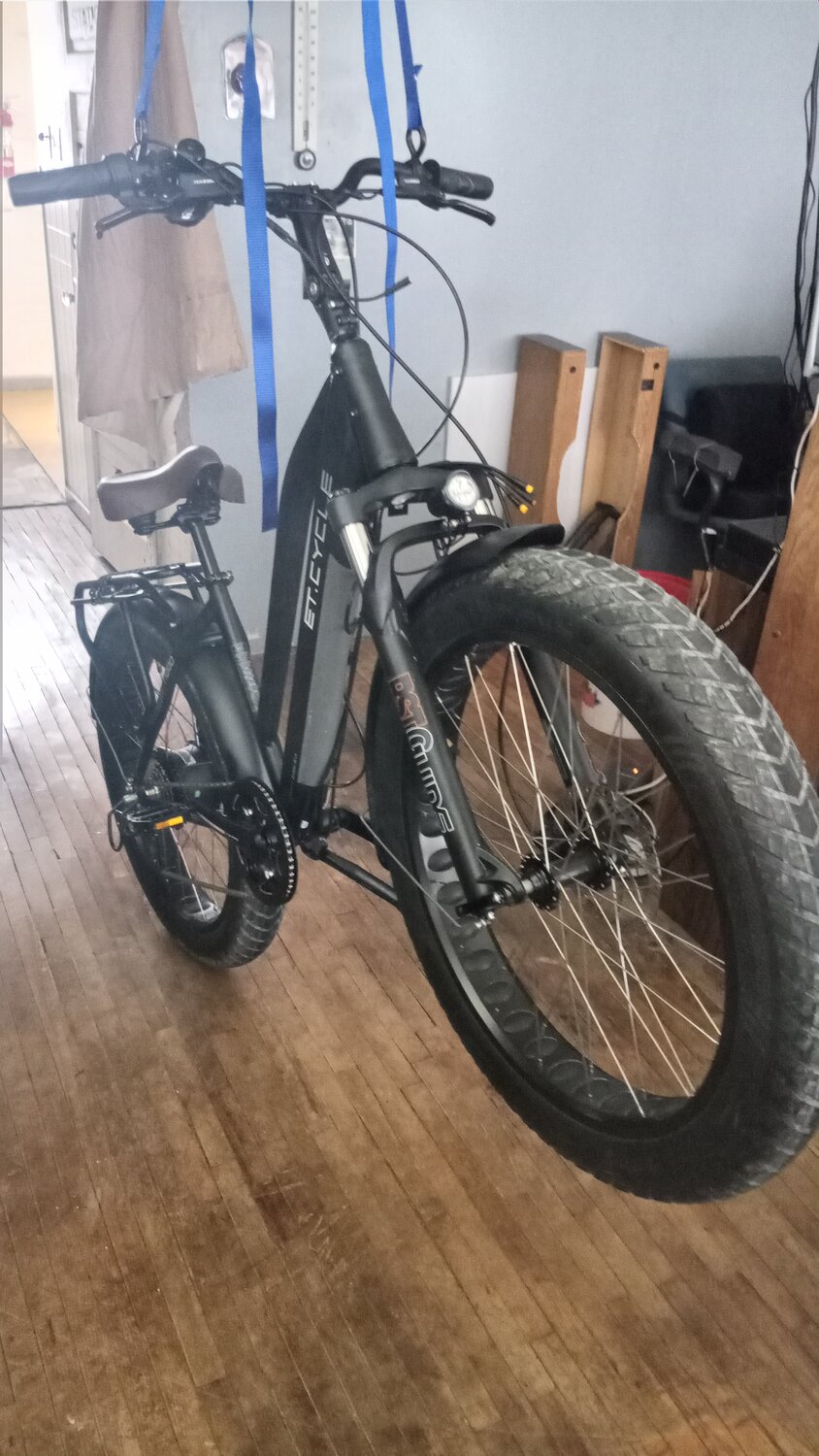

I bolted a U-bolt to the rafters above my ceiling.
A pair of tie-down straps are plenty strong enough to support my entire 70-80 pound ebike.

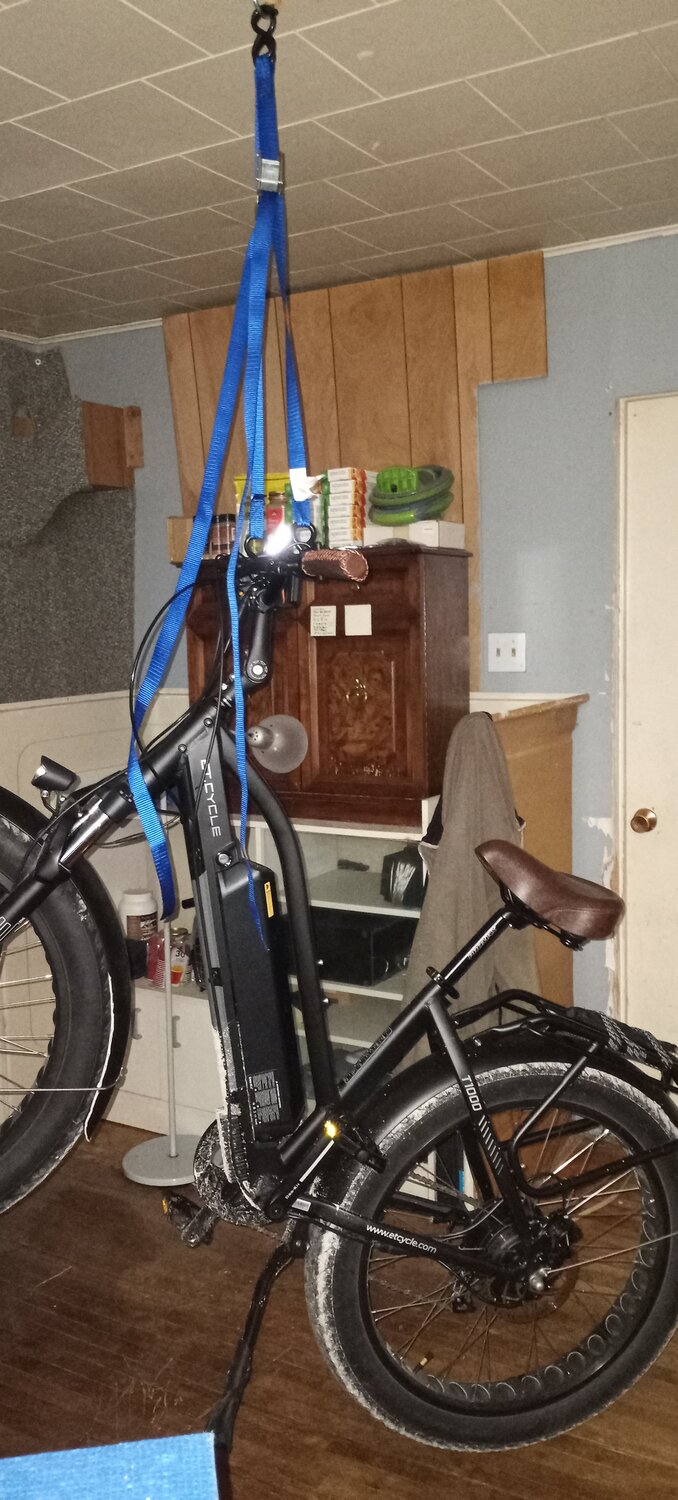

A strap at either end gets the whole ebike in the air
I use the "lift" mostly to get either end at a more comfortable working level, so that I don't have to bend over.

View attachment 149600View attachment 149601

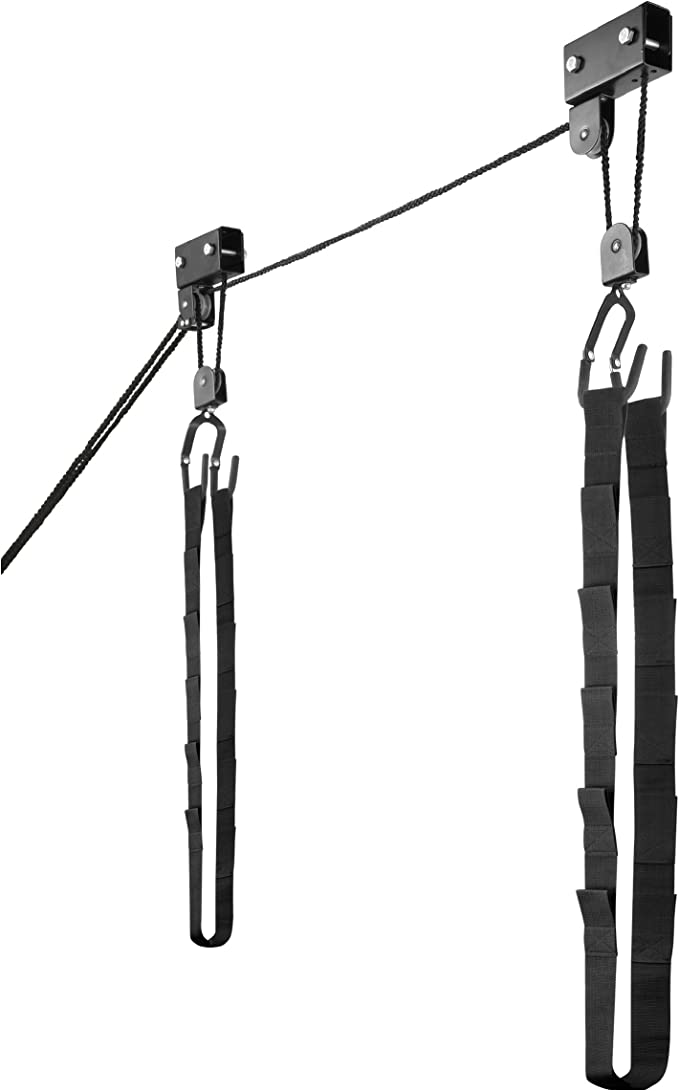

I ended up with this.
https://www.amazon.com/gp/product/B001EUL2DO/ref=ppx_od_dt_b_asin_title_s02?ie=UTF8&th=1

As your setup.. I much prefer the straps over just hooks it gives you many more attachment points especially to the frame without worrying about the display, suspension or cables.
I laced it with just one rope as most bike lifts so it's easier to lift evenly. Nice having the drive train near eyelevel when standing



[PCeBiker]

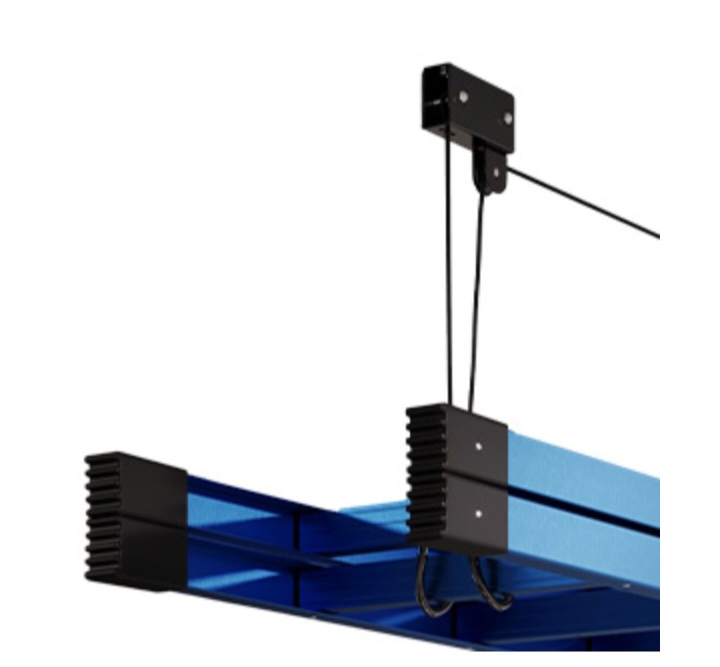

If you set up this bracket,..



Like this,..



You would get more leverage and the rope will be easier to pull.

Your pulley is static now and not helping you lift.



[Gionnirocket]

Happy Easter.

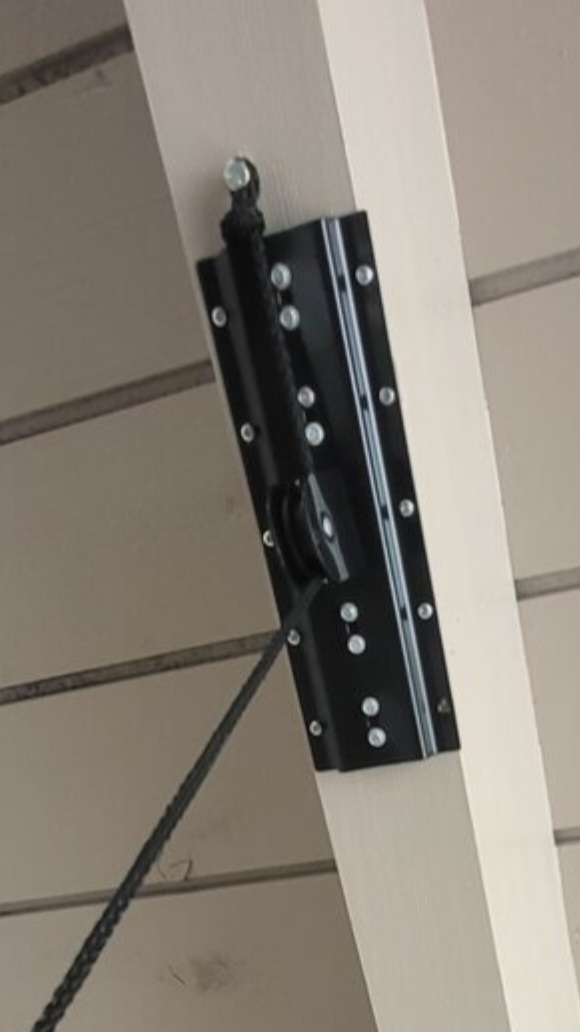

I have set up like that is glued screwed and lag bolted in my garage. Mine is Manuel lift tho. I plan on putting hand crank or motorized it with a makita screw gun that I rarely use. I use military grade paracord. It's not cheap anymore with all the stainless steel hardware.

I had a custom steel plate made up, welded the bracket to it then screwed and glued before encasing it in concrete.... I hope it holds



[Wm Landry]

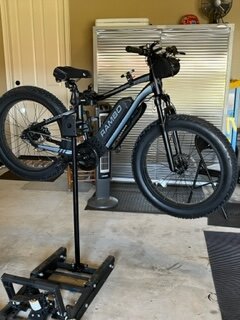

Here's my setup
