Battery wiring issue

denfox

New Member
Region
Canada

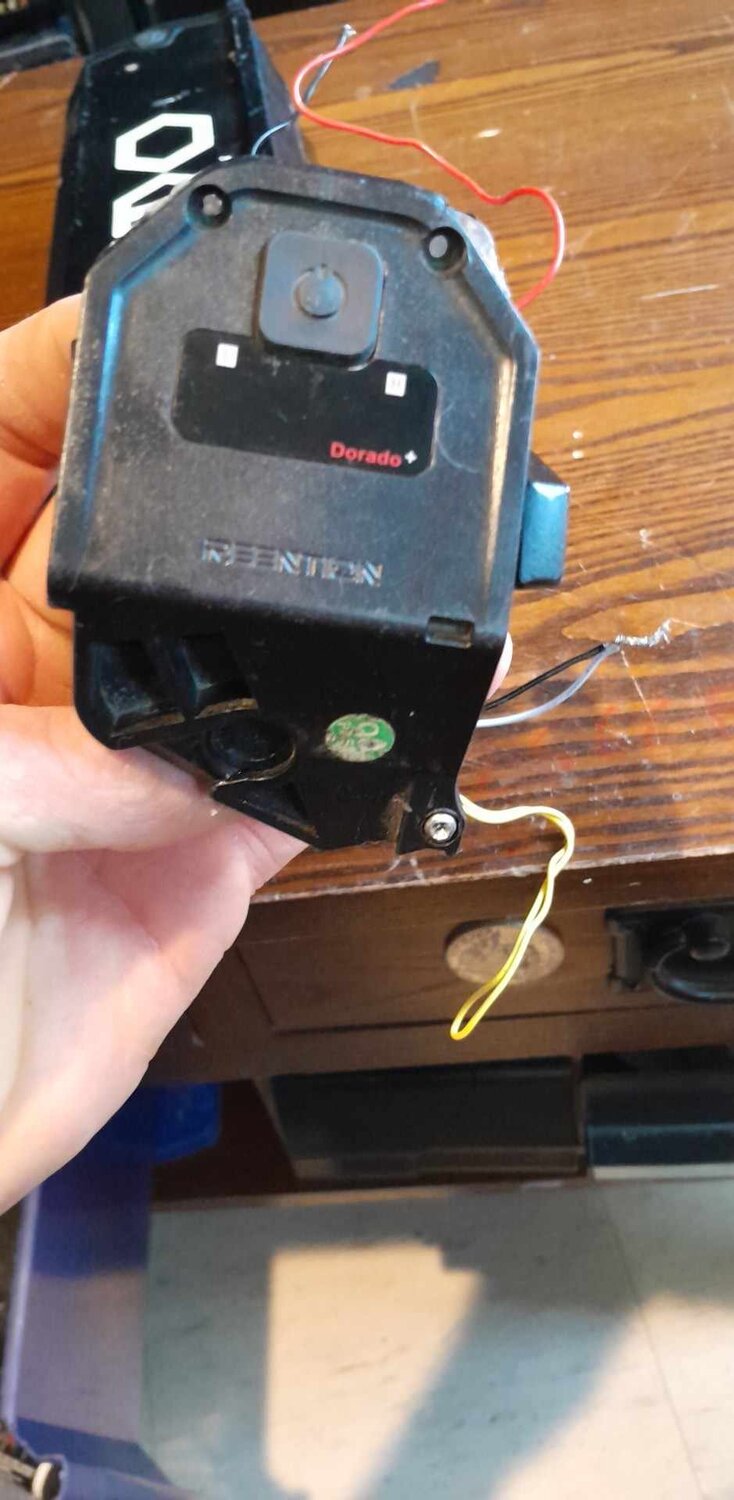

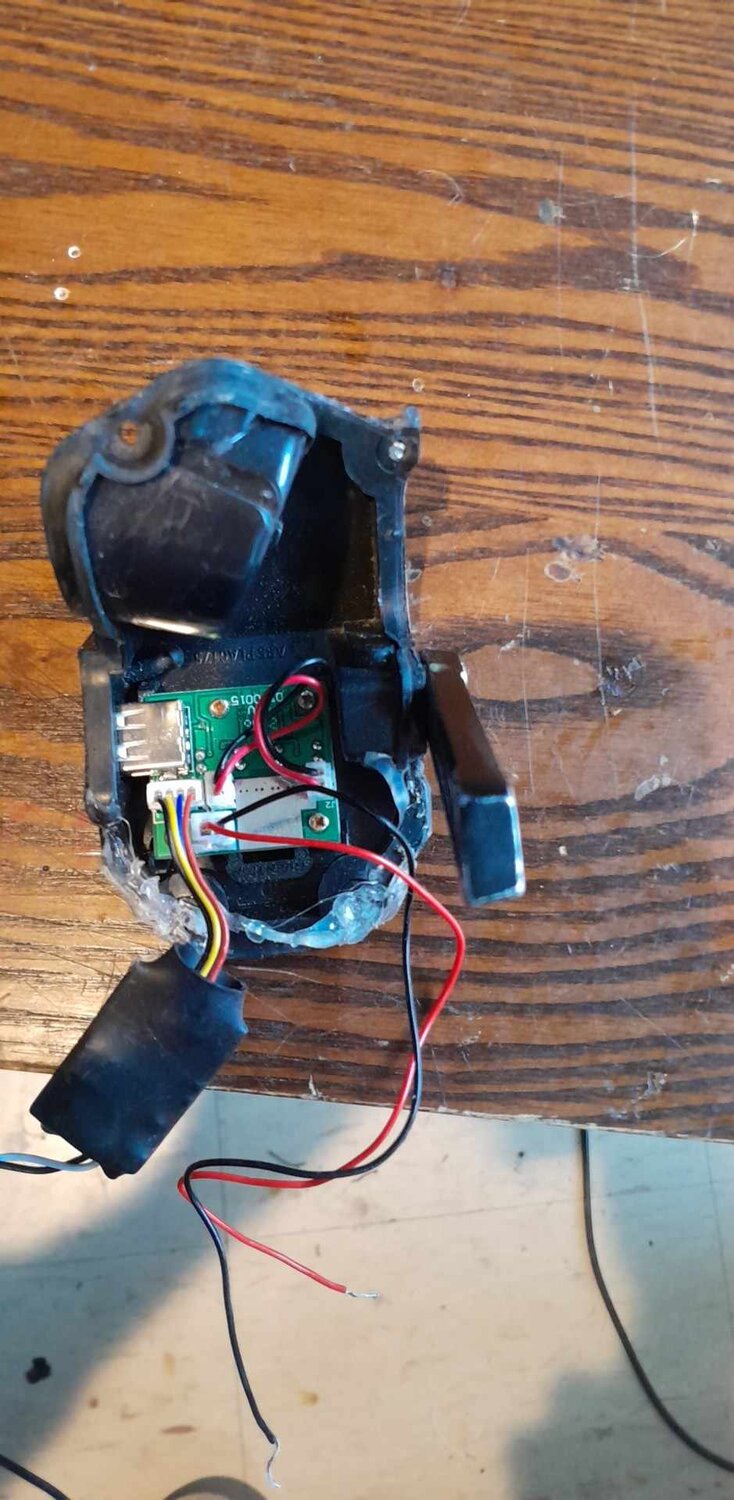

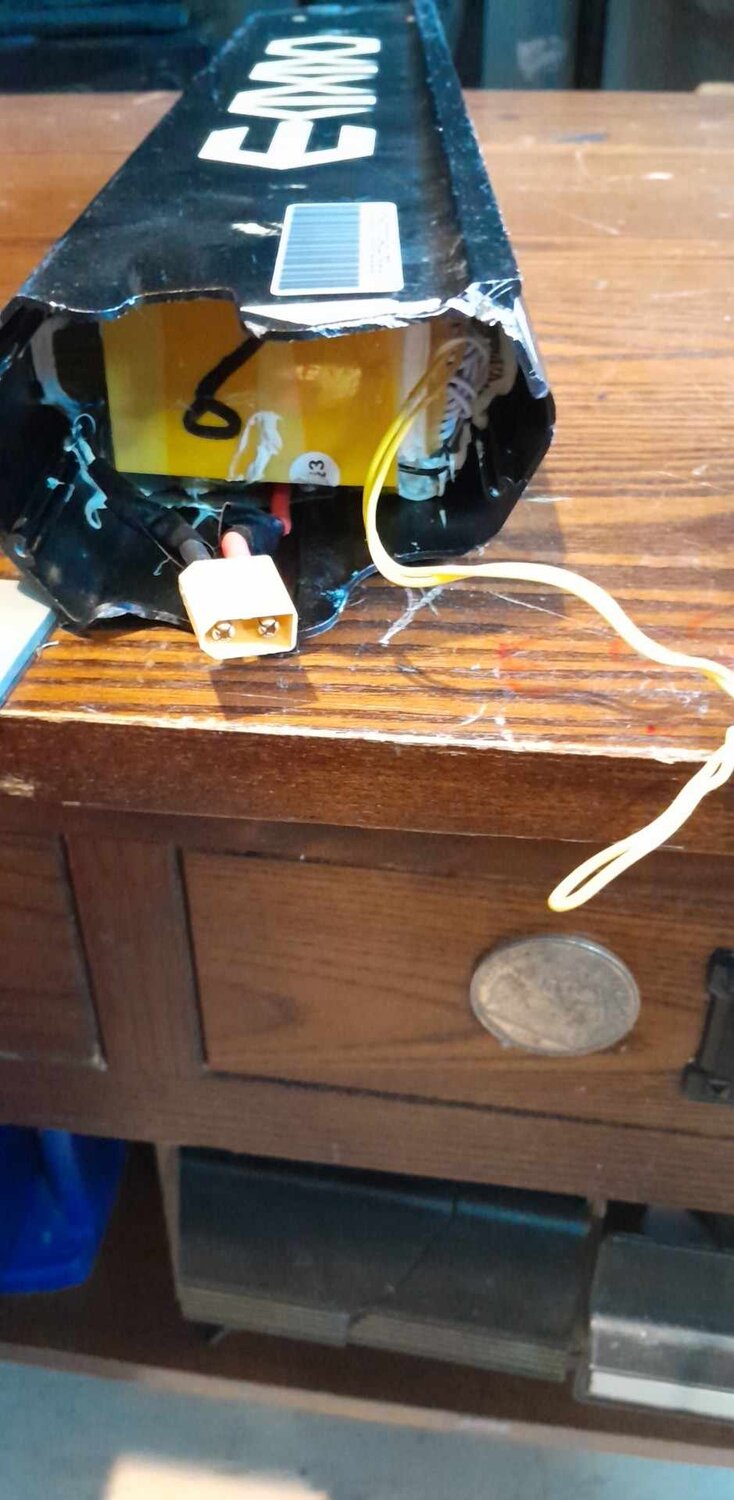

I have a 48 volt 10 amp hour lithium down tube battery pack. I took it apart to change the connector to the controller i thought I could bypass the other wires but the battery is not working and I wasn't paying attention when taking it apart to where the other wires went to the red and black and black and white thin wires any help would be greatly appreciated or advice on way of getting my battery up and running thank you


Attachments

  • received_335932962390534.jpeg
    154 KB · Views: 93
  • received_1034602851201865.jpeg
    137.4 KB · Views: 89
  • received_267080792648205.jpeg
    192.7 KB · Views: 94
Is there anywhere I can get some attention to get some assistance here going forward?
