1000W Bafang hub motor chirping/squealing sound

jamesm113

New Member
Region
USA
When I first got the bike ~1500 miles ago, I pulled the motor apart and greased it with Mobilith SHC 100.

The past few weeks, it's been making almost a chirping/dragging sound, usually in "lugging" situations with light throttle, or right as I roll on the throttle. Almost like a squealing brake rotor

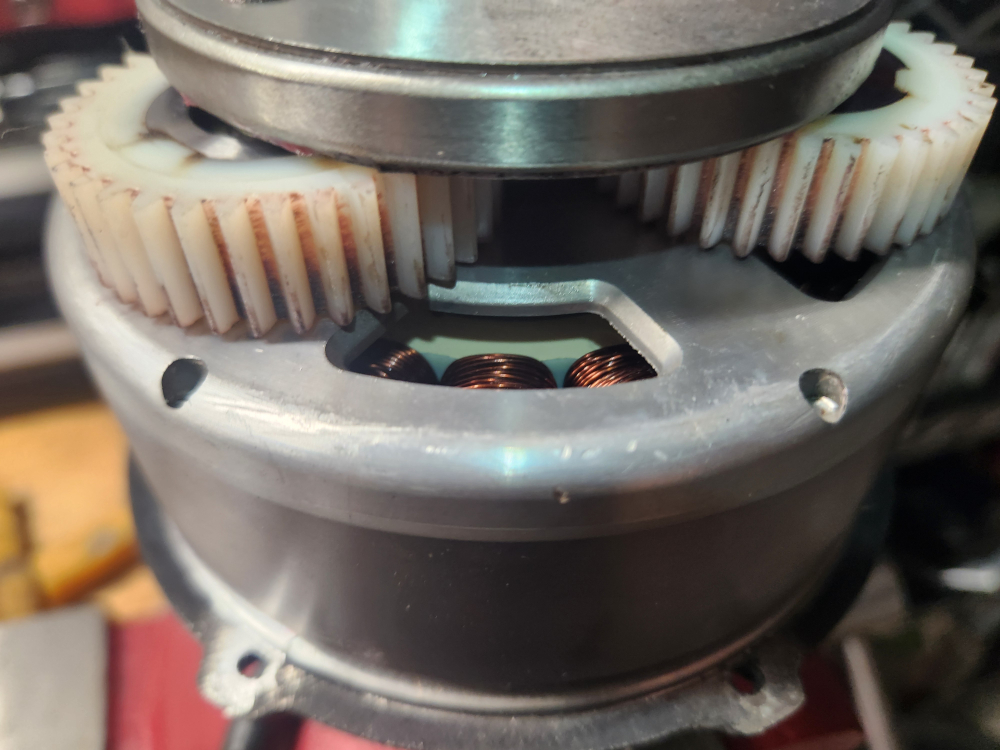

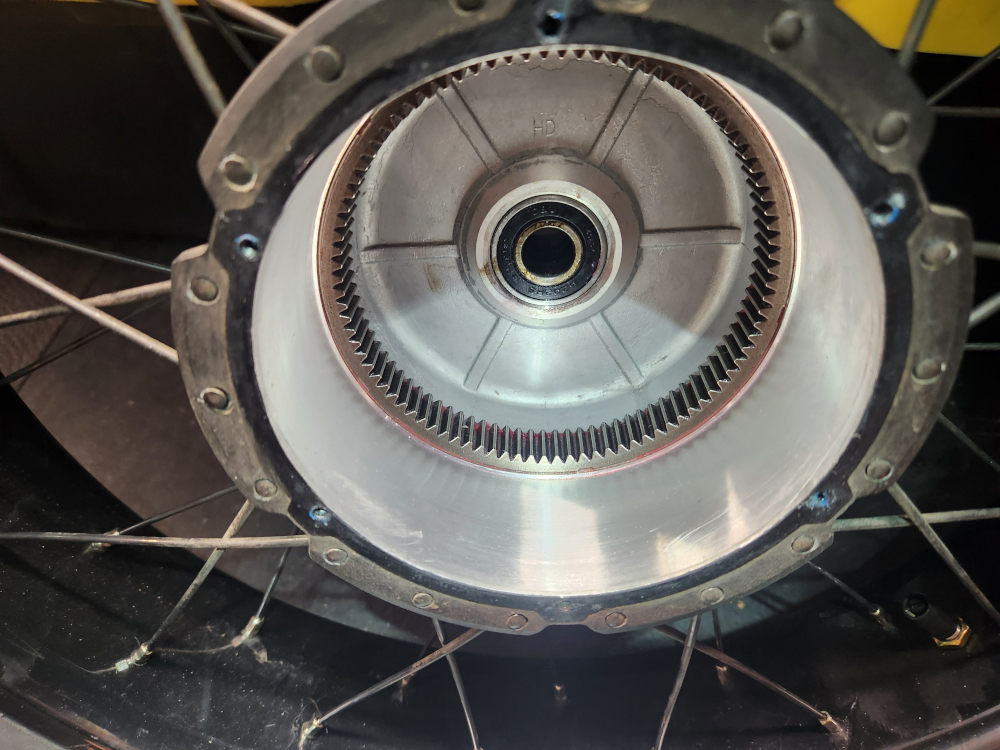

Tonight, I pulled the motor to service it. Everything seemed to be in good shape, but a little bit dry (pics were taken before adding more grease). I pushed all the magnets with a screwdriver, none seemed loose. Gears moved smoothly.

I cleaned the gears and applied a lot of SHC 100 grease (more than I thought it would need), and the noise is definitely improved, but not eliminated.

Video of the noise: https://photos.app.goo.gl/sRadtXcVr1HgCkMm7

Any ideas?


Attachments

  • safe_20260915_215556.jpg
    492.1 KB · Views: 4
  • safe_20260915_215617.jpg
    570.6 KB · Views: 4
