Will 700x28c tires fit on Vado SL?

[Nubnub]

5.0 rims are 22 mm internal width, 23 mm depth. 4.0 rims are 21mm width, 22mm depth. How to determine tire/rim compatability.

Going the other way, what would be the widest tires? I guess frame and fender (if eq) would be considerations as well. Any good 700c tires for off road use?



[ofcounsel]

Not sure on how wide you can go, but 28c wheels will fit the rims.



[FlatSix911]

5.0 rims are 22 mm internal width, 23 mm depth. 4.0 rims are 21mm width, 22mm depth. How to determine tire/rim compatability.

Going the other way, what would be the widest tires? I guess frame and fender (if eq) would be considerations as well. Any good 700c tires for off road use?

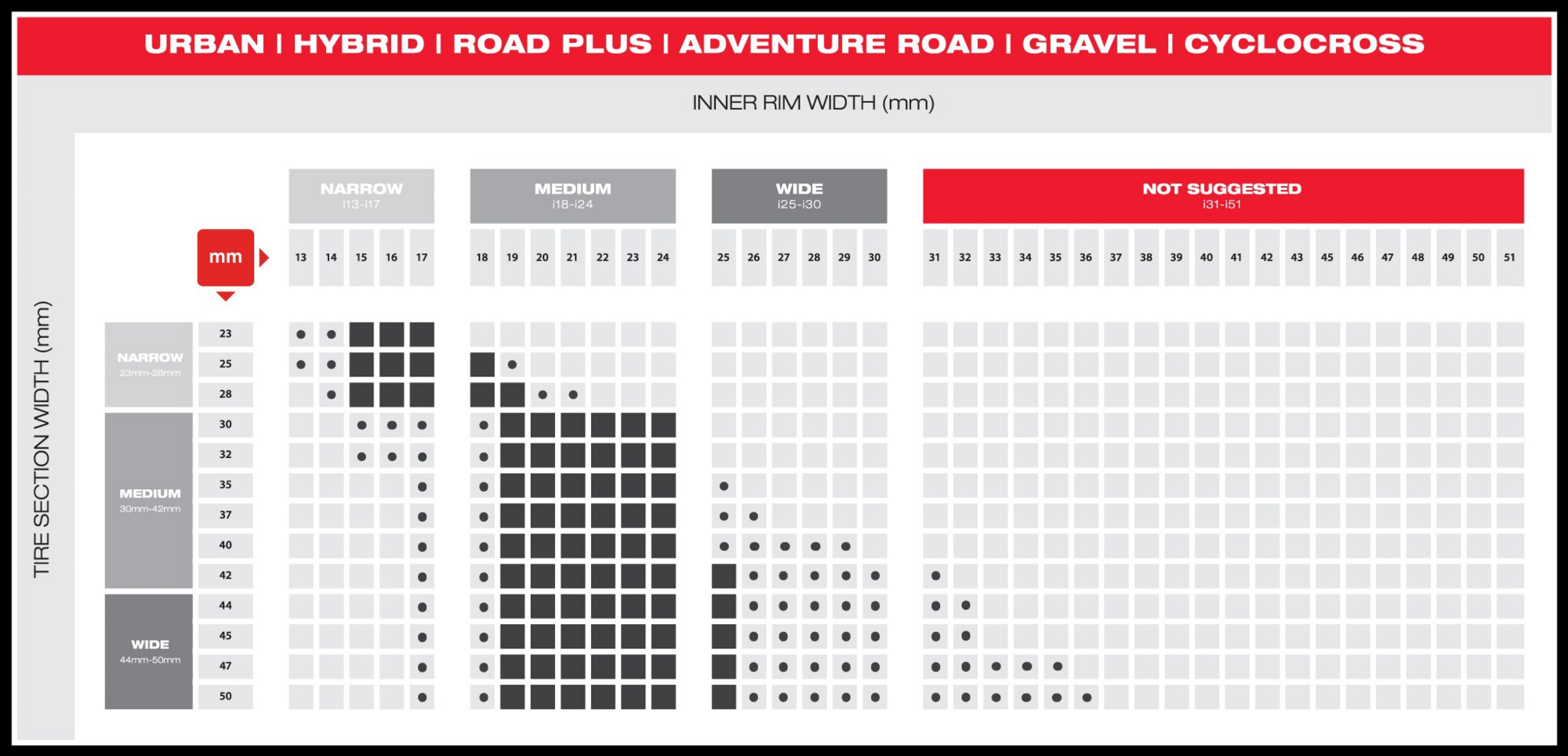

You should be fine with the 28mm tire on the 21mm rim width, not the 22mm rim width ... see the attached chart for tire/rim fit guidelines.



[Brendon@OEB]

You should be fine with the 28mm tire on the 21mm rim width, not the 22mm rim width ... see the attached chart for tire/rim fit guidelines.

View attachment 59374

Should be fine, same frame as the Creo which comes in the Evo model. I believe you can fit 35c tires no prob without fenders.
