Specialized e.g. Turbo Vado: Tap 36 volt from battery cable for lightning possible?

[PeterNY]

Hi,
I would like to connect a 36 volt 35W light directly to the battery cable, running to the motor of a Specialized Turbo Vado.
Actually, the motor is supplied with this voltage. The current consumption of which will of course be increased due to the branching to the lamp.
I don't know how capable it is of controlling the current.
I am unsure if this could cause warning messages or at worst a defect.
Does anybody have experience with this?
(Model 5.0 IGH 2023)

Thanks



[fooferdoggie]

I sure the motor has light connections you dont want to run directly from the battery. Plus you would have no way to turn the light on and off.



[PeterNY]

Yes, you are right. There is an output connector for light. But it is limited to 24W (12V, 2A)
I know that I would have to switch the light off manually or have to use a relay for that, driven by the light port.
I am just worried, if the battery checks the current consumption of the 36V, some kind of security check to detect a leaking.
I want to be sure, before I buy the lamp, which costs 460$.



[fooferdoggie]

Yes, you are right. There is an output connector for light. But it is limited to 24W (12V, 2A)
I know that I would have to switch the light off manually or have to use a relay for that, driven by the light port.
I am just worried, if the battery checks the current consumption of the 36V, some kind of security check to detect a leaking.
I want to be sure, before I buy the lamp, which costs 460$.

do you need that much light? thats a lot of light unless your riding off-road but then you want. helmet mounted light. I use this guy and now I can go 19mph in the complete dark and not blind others. far better than any more normal light even one that did 1200 lumins. https://www.trekbikes.com/us/en_US/...ion-bes3-front-light/p/41377/?colorCode=black



[PeterNY]

You are right- luxury problems
I have found a report from somebod, who tried the same. The engine switched off, as soon as he switched the light on.
Damn! ;-)



[Stefan Mikes]

Yes, you are right. There is an output connector for light. But it is limited to 24W (12V, 2A)
I know that I would have to switch the light off manually or have to use a relay for that, driven by the light port.
I am just worried, if the battery checks the current consumption of the 36V, some kind of security check to detect a leaking.
I want to be sure, before I buy the lamp, which costs 460$.

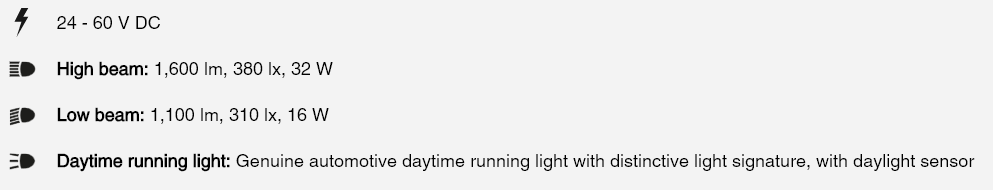

Be careful. There is only one Vado 6.0 model that supports high power light output. The light is Supernova M99 Pro (€464,09) that provides:

However, that light must be served by a compatible motor:

• Specialized 1.2s or Brose TF, or
• Bosch Performance Line Speed

I am afraid that tapping into the battery is just asking for trouble and a straight way to invalidate your warranty or even fire. If you must have a strong headlight, just buy a rechargeable battery external headlight such as CatEye Volt 1700.



[PeterNY]

You are right- pro and con is quite clear against the idea.
… and additionally I would have bought a 460€ 36V lamp, which I could not use.
Thanks for your option.



[fooferdoggie]

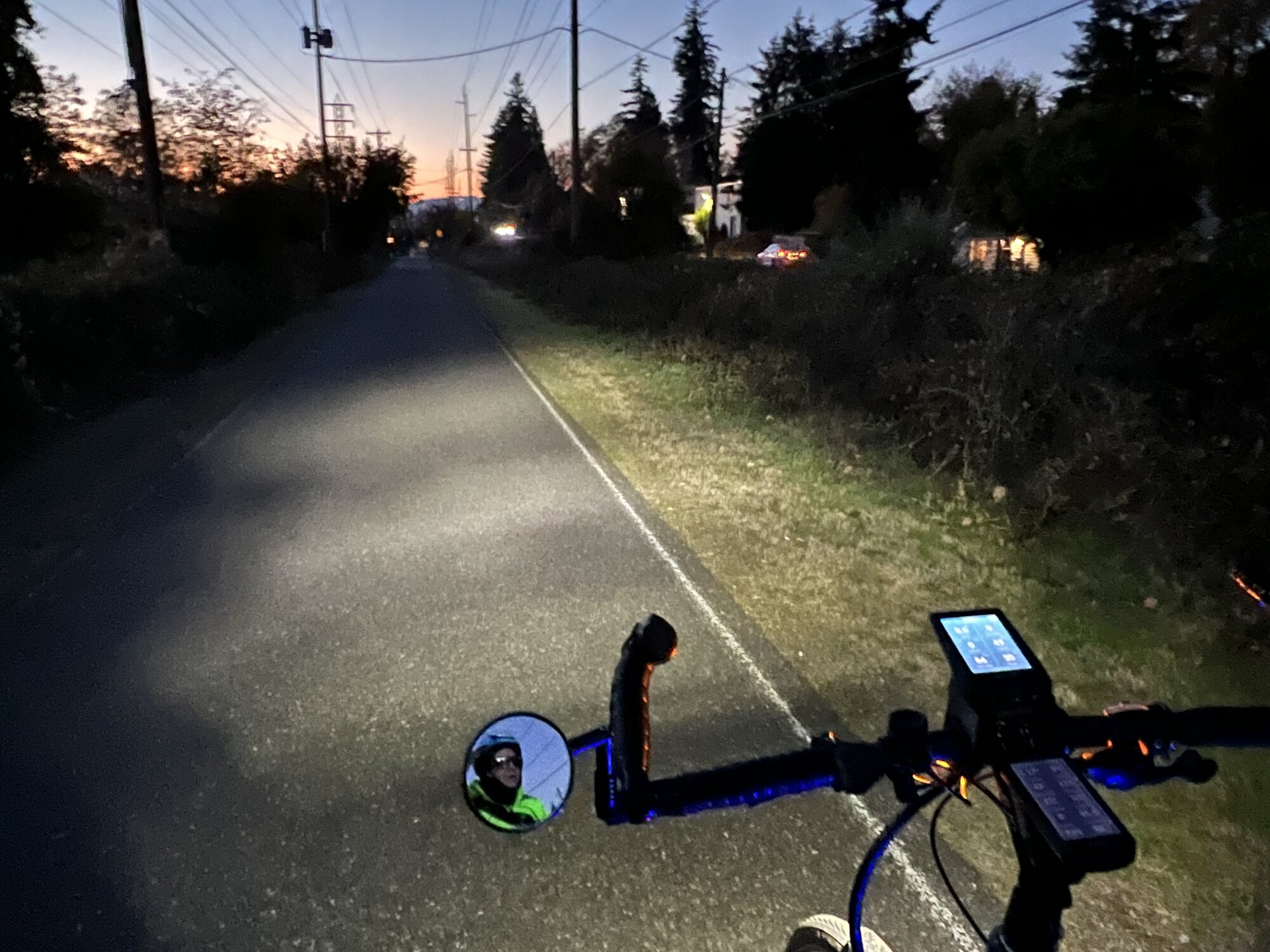

this is what 1000 lumens does when it is beamed right I can go 20mph infill dark.
