Red Blue flashing

[ispookie666]

Have had this error come up again. The motor cut off mid ride and the red and blue flashing led (they are close together) come on. The lights stay on. Turning off and on, the motor engages but disconnects with the above error again.
It was cold today - -2 to 0C
I have had this error once and it cleared itself and it was a cold morning aswell.

Bike - Turbo Vado SL 4 with range extender



[kahn]

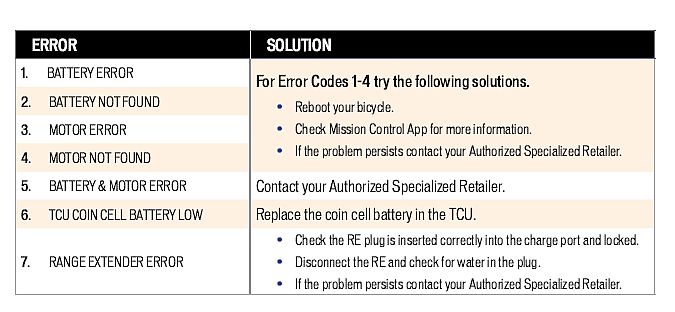

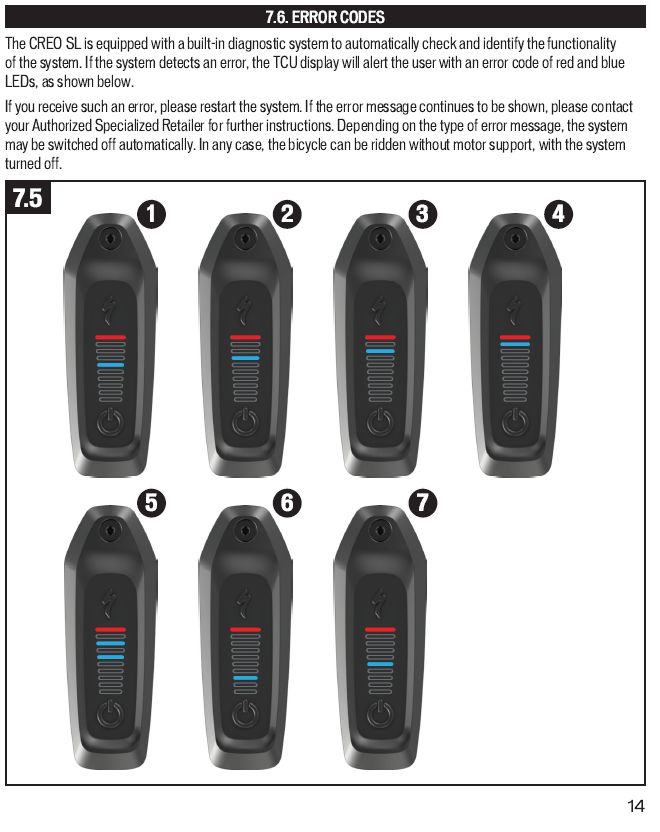

Here's the CODES for my Creo. Probably the same for your bike. Check with dealer but it might be the cold, depending on which sequence is yours.



[ispookie666]

Thank you.
Will check how this is when cycling back home.



[ispookie666]

I think it was either Error 3 or 4
I cleaned the speed sensor and restarted the bike. The error seems to have gone away, no problems with the 10mi back home. The temperature was hovering around 0C
Will see if this recurs



[JustRiding]

Here's the CODES for my Creo. Probably the same for your bike. Check with dealer but it might be the cold, depending on which sequence is yours.


View attachment 145062
View attachment 145063

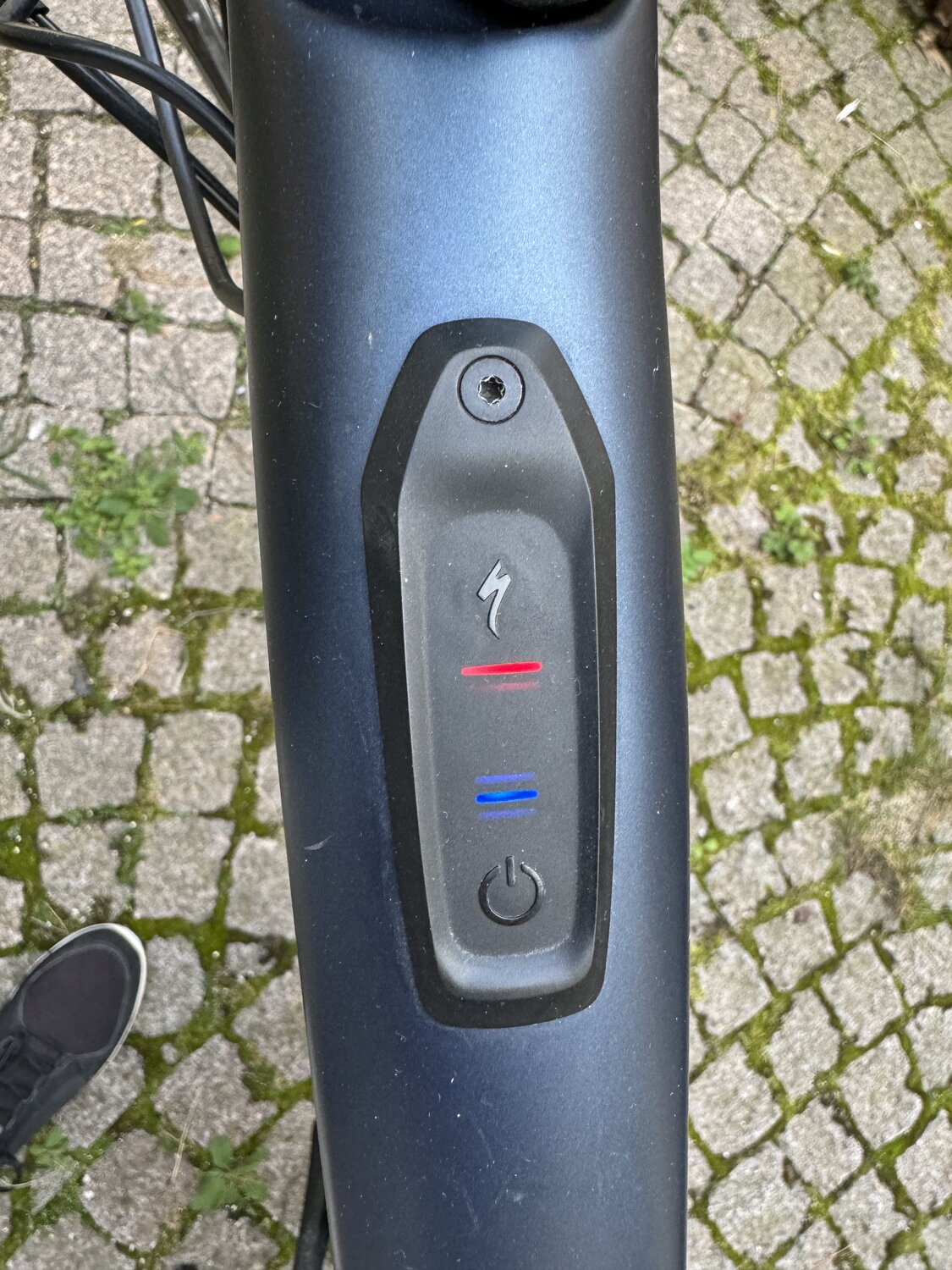

Guess my Vado SL suffers number 6 right now . How do I change the coin battery on the TCU / how do I open the TCU?



[Allan47.7339]

The support page linked below has the error codes and has a picture of the TCU battery and instructions of how to remove it. The screw is a Torx T-10. Once you have the TCU accessed, I find the easiest method to remove the CR 1620 coin cell battery if you don't have three hands and a helper, is to use a small screw driver or razor knife to very gently slide the lip that hold the battery down and let the battery slide out with a shake. I have not had any success with tweezers. The battery is not the most common size so it may not be as available as other coin cells.

https://support.specialized.com/kb/sp_en-us/content/ECV3-4771/Vado-SL-Turbo-SL-System



[Stefan Mikes]

Also

Replacing The Coin Battery In the Specialized SL TCU Gen 1

Whenever you get this error message on your SL TCU Gen 1: (The blue and red bars far apart, the red LED flashing) then you need to replace the CR1620 coin battery. Which is not the easiest task. Prepare: A fresh CR1620 battery The T10 Torx key Tweezers A thin, long and sharp object such as...

forums.electricbikereview.com



[JustRiding]

The support page linked below has the error codes and has a picture of the TCU battery and instructions of how to remove it. The screw is a Torx T-10. Once you have the TCU accessed, I find the easiest method to remove the CR 1620 coin cell battery if you don't have three hands and a helper, is to use a small screw driver or razor knife to very gently slide the lip that hold the battery down and let the battery slide out with a shake. I have not had any success with tweezers. The battery is not the most common size so it may not be as available as other coin cells.

https://support.specialized.com/kb/sp_en-us/content/ECV3-4771/Vado-SL-Turbo-SL-System

Thanks a lot for your tip. That’s exactly how we got it out too . The tweezers method didn’t work but this did the trick .
