Need Controller Wiring Information

[joeindiana]

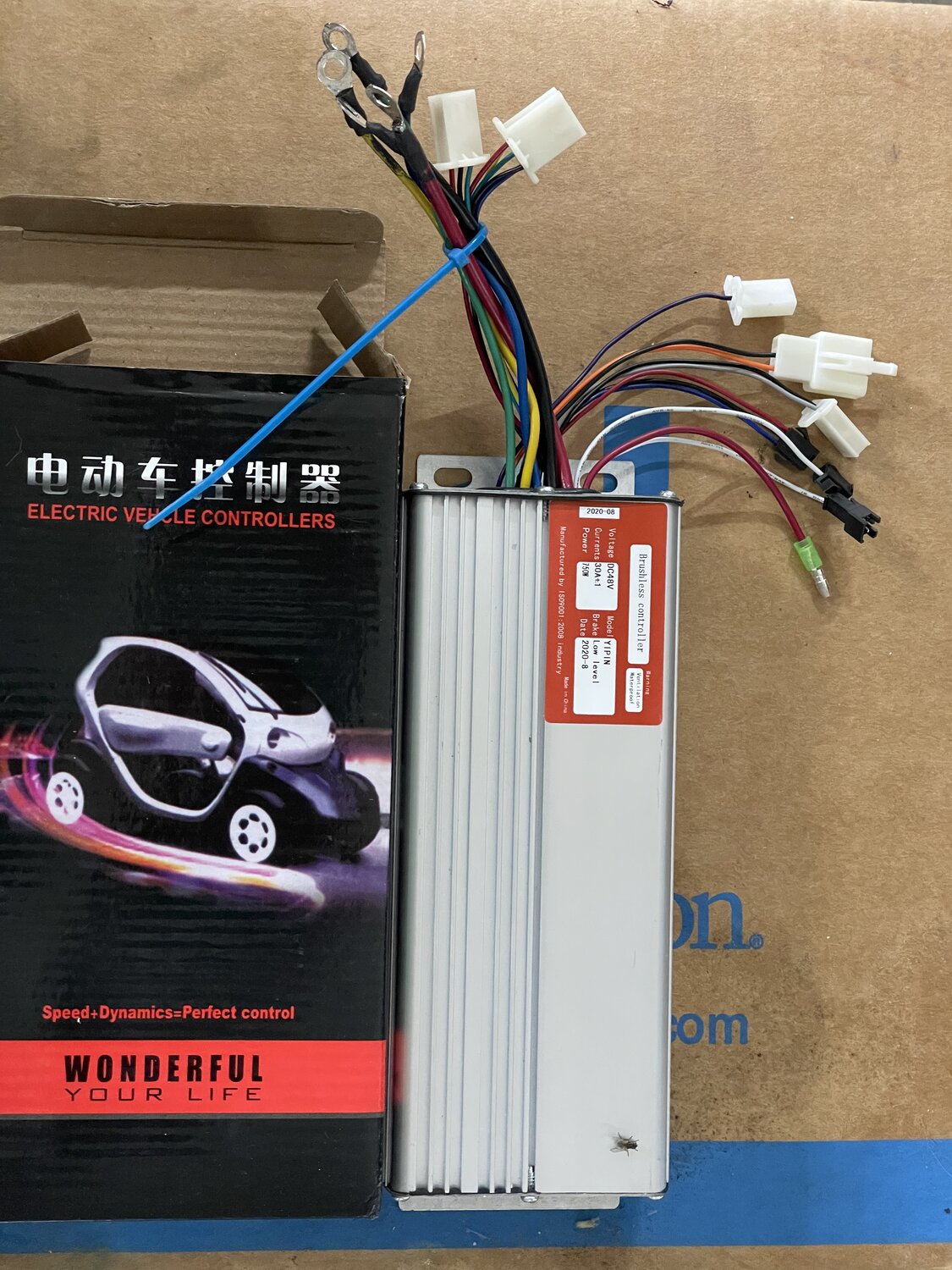

I have not been able to find a wiring diagram or wire list for this controller. The wires on the left with the blue tie were straightforward, but the remaining wires on the right are a mystery. I can not get power to the motor with the battery, throttle, and motor connected. The eBay seller was not able to provide any technical assistance.

Does anyone recognize this controller or have any knowledge about the wiring? I have searched the forums and the web, but I came up empty.



[harryS]

Did you look on your ebay listing? They usually put a wiring diagram on there.



[indianajo]

Yeah, but ebay prohibits downloading the picture.
I'd guess the 3 pin red black blue is the PAS pickup. The green .157" bullet connector is everhot to an ignition switch. Black/white may be brake handle switch. Doesn't say active high or low. One state may inhibit output. Orange/black may be a headlight feed. See if it goes to +48 & gnd when the ignition switch is on.



[harryS]

The original poster needs to look at it, but a screen capture works. And how does the OP know what the three wire plug in the left bundle does?



[tomjasz]

Yeah, but ebay prohibits downloading the picture.

Do a screenshot. Easy peasy.



[joeindiana]

The eBay listing didn’t have any information about wiring. None of the other photos identify the connectors. The label on the controller states “Brake Low Level”. I assumed the three wire red/black/green was throttle. Should the red wire with the green bullet connector be connected to the +48v from the battery? Thanks for the help.



[RunForTheHills]

This is from a similar kit. Maybe it can help you sort it out.



[joeindiana]

This helps. I will try +48v to the red wire and a jumper in the brake switch. Thank you.



[joeindiana]

+48v to the red wire did not make a difference. I also added a jumper across the black and gray wires in the two position connector while doing this, and it did not make a difference. At this point, I am waiting until after the holiday for a response from China.



[indianajo]

My ebikeling 2018 controller won't work without a PAS pickup plugged in. Error 7. You should try one in the 3 pin small black connector.
As I said previously, the green bullet female connector is sometimes a power feed for a lock switch. The ASI controller from Luna came with one and a key lock; also a DVM built into the throttle/lock switch device.
Chinese New Year is in February. What holiday?



[joeindiana]

This is what I received from the seller. After Chinese National Day, I hope to get something in English.
