Display and Battery compatibility

[Andy1865]

Hi all, does anybody know if the S900 lcd display will work correctly with a 52v battery?. The motor is a Bafang 1000w geared hub.
Thanks.
Andy.



[tomjasz]

S900

Google is your friend. I searched your question and got this EBR post.

Bafang 500W with S900 display - works great but two questions

I have just assembled my first ebike kit - 500W Bafang front hub, 48 V battery and S900 display (not SW900) and Jueshuair JSM422A controller. I have a couple of questions. 1) Everything seems to be working great except that the S900 doesn't display watts. Instead it shows Error 000 all the...

electricbikereview.com



[Andy1865]

Google is your friend. I searched your question and got this EBR post.

Bafang 500W with S900 display - works great but two questions

I have just assembled my first ebike kit - 500W Bafang front hub, 48 V battery and S900 display (not SW900) and Jueshuair JSM422A controller. I have a couple of questions. 1) Everything seems to be working great except that the S900 doesn't display watts. Instead it shows Error 000 all the...

electricbikereview.com

Thank you for that Tomjasz



[Andy1865]

Thank you for that Tomjasz



[Andy1865]

So does that mean it will work with a 52v battery also then?



[tomjasz]

So does that mean it will work with a 52v battery also then?

Check the manual!



[Andy1865]

Only says 36v or 48v, but the controller is rated 48v, so it could work???



[Slaphappygamer]

I want to say yes, but I found this.

Issues with S900 LCD - Electricbike.com Ebike Forum

Help needed. I recently changed my battery from a 36v to a 52v on my Ecotric Fat Tire bike. This bike has a s900 LCD and a controller that can handle 24v/36v/48v. When I put the 52v battery on I get Error Code 09. On all of the documentation I have found online it says that it is a problem with...

electricbike.com



[tomjasz]

That’s not a rare error code. Sadly that may be a controller issue AND a display issue.

Bafang shipped a bunch of controllers that posted error code 07 or over voltage. AND the early displays wouldn’t show accurate battery levels.

I’ve personally run large 52V triangles in 52v and 48v. A BBSHD was really quick with both voltages. 52v was slightly faster @ 33MPH. 48V 31MPH. But with two different cells. The 48v used cells not best suited for a BBSHD. There’s a difference of about 300mah per cell in the 48V.



[tomjasz]

Oh, and that goofy post from Luna’s forum.. 36V to 52V. Makes no sense without knowing what motor that was tried on. Some controllers need a firmware change or to be programmed for the rated voltages.
My favorites are from Grin and they re easily programmed in OS X, Linux or windoze.



[Andy1865]

I want to say yes, but I found this.

Issues with S900 LCD - Electricbike.com Ebike Forum

Help needed. I recently changed my battery from a 36v to a 52v on my Ecotric Fat Tire bike. This bike has a s900 LCD and a controller that can handle 24v/36v/48v. When I put the 52v battery on I get Error Code 09. On all of the documentation I have found online it says that it is a problem with...

electricbike.com

My controller is rated 48v, but my battery is 52v. I current have a C961 display attached, but i do like the S900 as its more informative.



[tomjasz]

C961

Most reliable. I still run 961s from 2014. I go riding not watching pretty screens. Less is more for me.



[howhunter]

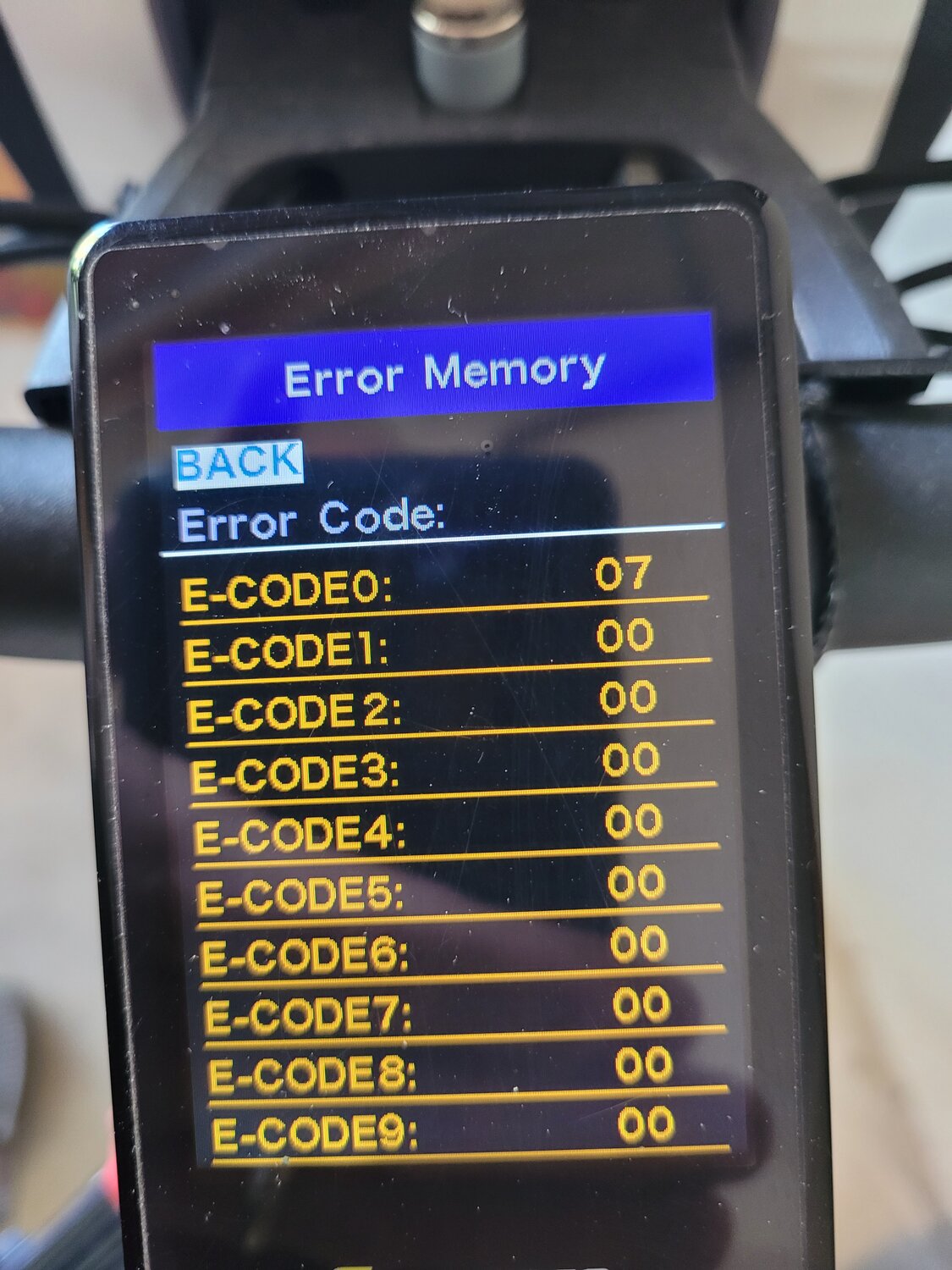

I have the error code 07 in my advance setting. What does that mean. I am disappointed in the pedal assist, even at level 5. I don't see anything in the setting that could bump it up. I did that on my Magnum and it is a 'beast'. But, that is what cadence drive seems to do. howard
