Bike charger question
- Thread starter Taylor57
- Start date
Gionnirocket
Well-Known Member
- Region
- USA
- City
- Y. O.
If the voltage output and the connector match, I'd say you are a go.
I doubt very much that any stock manufacturer charger is going to have an unreasonably high current output.
Anything under 5A I can't see being a problem in any case.
If you still have concerns... just don't do a full charge.
I doubt very much that any stock manufacturer charger is going to have an unreasonably high current output.
Anything under 5A I can't see being a problem in any case.
If you still have concerns... just don't do a full charge.
tomjasz
Well-Known Member
- Region
- USA
- City
- Minnesnowta
Post photos of the label and specs. For best answer. Two wire charge connectors?
tomjasz
Well-Known Member
- Region
- USA
- City
- Minnesnowta
If the labeled specifications are matching..
Taylor57
Well-Known Member
Yeah, I am having my son text a picture of the XP charger so I can compare it to my Sport. My guess is they are compatible. It would have saved me some battery anxiety yesterday when I limped home on 1 bar.
And it got me to thinking, why hasnt someone invented the Ebike Quickcharge (patent pending) that you can whip out of your Panniers and get an extra mile in case of emergency? We have the little quick chargers for our phones in case we run low. Why not a Quickcharge the size of a deck of cards?
Gionnirocket
Well-Known Member
- Region
- USA
- City
- Y. O.
The only other thing I would confirm is polarity on the connector. Most follow the established orientation but this is not set in stone anywhere.
As far as a quick charger that really doesn't make sense with a battery this large.
What I did to deal with the issue was to purchase a battery larger than my needs. I could have easily gotten away with 10ah or 14ah for my needs but decided to go with the 17.5ah for stability and built in extra capacity.
Having to monitor a second battery that will only be used for emergencies really is a lot of extra cost and something else to maintain.
As far as a quick charger that really doesn't make sense with a battery this large.
What I did to deal with the issue was to purchase a battery larger than my needs. I could have easily gotten away with 10ah or 14ah for my needs but decided to go with the 17.5ah for stability and built in extra capacity.
Having to monitor a second battery that will only be used for emergencies really is a lot of extra cost and something else to maintain.
Taylor57
Well-Known Member
I understand, but we used to think a desktop computer was small and efficient and now some of our phones have processors faster than most peoples home computers. It would seem the Quickcharge is right around the corner for Ebike users that just need that little extra boost to get to their destination and avoid the call to AAA...
Taylor57
Well-Known Member
So here are the 2 chargers for the XP and the Sport. Compatible? Also, I noticed after having my Sport plugged in for about 2 hours, the charger was super hot as in you could barely touch it. Thoughts?
Attachments
Taylor57
Well-Known Member
cheaper chargers do not come with a fan.. so it can get hot.
But anyways, your charger is 54.6V, 2A charging rate.
I have a 4A charger from AliExpress
33.24US $ 39% OFF|54.6v 4a Li-ion Battery Ouput Charger 48v 4alithium Charger For 13s 48v 10ah 12ah 15ah 20ah 30ah Lipo/limn2o4/licoo2 Battery - Chargers - AliExpress
Smarter Shopping, Better Living! Aliexpress.comwww.aliexpress.com
Timpo, will that Aliexpress charger fit my Sport and XP?
Gionnirocket
Well-Known Member
- Region
- USA
- City
- Y. O.
What I think (or thought) Taylor was referring to and what I was addressing was a battery powered quick charger that is currently available for phones and such. If you are talking about an AC powered (higher amperage output) quick charger... Go for it.
Taylor57
Well-Known Member
Yes, I was referring to something about the size of a deck of cards that would give you enough juice to go another couple of miles much like the gadgets I carry when I travel or in my emergency kit I would use if my phone ran out of juice...
Gionnirocket
Well-Known Member
- Region
- USA
- City
- Y. O.
Maybe that is around some future corner.. but the voltage and current required would be too expensive and cumbersome now.
Like I said... Much easier to just buy a larger capacity battery from the start
edit: A more probable solution would be to have a battery /BMS that can accept a high current charge that you can plug in and get 25% back in a very short period of time.
Gionnirocket
Well-Known Member
- Region
- USA
- City
- Y. O.
You should ask Lectric for fastest charging rate.
Also this is a good read.
Ebike Charging; Fast or Slow?
Everyone likes a fast charge…the idea of charging your battery pack quickly is an exciting concept and its actually very possible. However, as it is with all of ebiking…high performance…www.electricbike.com
0&btsid=0bb0624116019327507184304e4c45&ws_ab_test=searchweb0_0,searchweb201602_,searchweb201603_[/URL]
From that article... I'm a #3 man
legsofbeer
Active Member
I don't think the math (size and weight) works. I have a little brick battery for USB charging, half the size of a deck of cards and when new it delivered a legit 5200 milliAmpHour, enough to charge a big phone twice. At 5 volts, not 60 volts. So double the size for 10.4 AHr, then divide by 12 for (lossless, not) stepup to 60 volts, and I have a quickcharger that can add 0.87 Amphour to my 672 Amphour 48 volt battery.
ETA: what would be cool is a bridge cable charger, where if your battery is about to bonk, your buddy who's still got 20 miles of range left could give you a boost over an hour.
Last edited:
Taylor57
Well-Known Member
Yes, just make sure to pick the right connector.
There are different charging rate available. For DC 2.1mm x 5.5mm, you have an option to go from 2A to 5A.
Anything higher would require more heavy duty connectors like XLR connector.
Just be careful though, I am not familiar with Lectric bikes.
I don't know if going higher A rating would cause fire or battery explosion.
I don't know the C rating of your battery pack.
You should ask Lectric for fastest charging rate.
Also this is a good read.
Ebike Charging; Fast or Slow?
Everyone likes a fast charge…the idea of charging your battery pack quickly is an exciting concept and its actually very possible. However, as it is with all of ebiking…high performance…www.electricbike.com
According to Ravi " So, if your battery is 14Ah in capacity, a charger that charges at 2A to 5A is perfectly fine. "
But your battery is 10.4Ah, so it might be overkill.
E-Bike Battery Guide
This thread is dedicated for helping new E-bike owners to understand and maintain their batteries in the best possible way. There is a lot of confusion for any new E-bike owner as to how one should treat their batteries: Shop owners may say one thing, online resources may another thing, someone...electricbikereview.com
2A

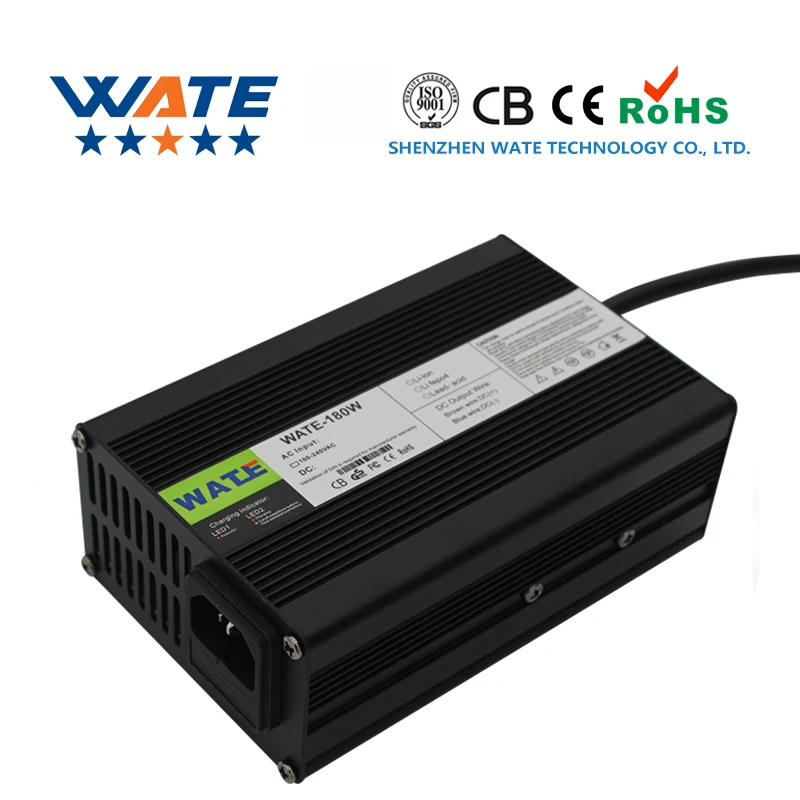

27.72US $ 34% OFF|WATE 54.6V 2A Charger 13S 48V Li ion Battery Charger Lipo/LiMn2O4/LiCoO2 Battery Charger Auto Stop Smart Tools|Chargers| - AliExpress
Smarter Shopping, Better Living! Aliexpress.com
3A
27.72US $ 34% OFF|54.6v 3a Charger 13s 48v Li-ion Battery Charger Output Dc 54.6v With Cooling Fan Black Aluminum Shell - Chargers - AliExpress
Smarter Shopping, Better Living! Aliexpress.com
4A
33.55US $ 39% OFF|54.6v 4a Smart Lithium Battery Charger For 48v Lipo Li-ion Electric Bike Power Tool With Cooling Fan - Chargers - AliExpress
Smarter Shopping, Better Living! Aliexpress.com
5A
38.32US $ 33% OFF|54.6v 5a Battery Charger Bike 48v Lithium 48 Volt Li-ion 54.6v 5a Smart Intelligent For 10ah 15ah 48v 20ah Battery Charger 13s - Chargers - AliExpress
Smarter Shopping, Better Living! Aliexpress.com
So I bought a charger with a fan from Aliexpress. (took forever to show up paid around 60) The connector looks exactly like the charger that came with my Espin Sport. The info on each charger seem almost the same with the difference being the new charger is a 4A output vs the 2A on the stock unit. Maybe I just answered my own question-will the Sport not work with a 4a charger? When I plug in the 4a and connect to Sport I get nothing. Supposedly the fan is supposed to kick in...
Attachments
tomjasz
Well-Known Member
- Region
- USA
- City
- Minnesnowta
Is the charger set to 110-120V?
Gionnirocket
Well-Known Member
- Region
- USA
- City
- Y. O.
Try turning your battery on to charge. Some chargers pulse on startup and wake the BMS so it will accept the charge. Others do not so you have to wake it up manually by turning the battery on. Once it starts charging you can turn the battery off.
Taylor57
Well-Known Member
Yeah, it was originally set to 220 so I switched it to 110 and tried again. The instructions say that when plugged in the fan will come on. I could not get the fan to come on at 110 or 220. I guess I should monkey with it a little more...
Taylor57
Well-Known Member
Ding, ding ding, we have a winner. Thanks Rocket. I plugged it back in with the battery on, the 2 red lights came on and the fan started working. I think it is charging. Many thanks to you and the guys above that chipped in with the info. It takes a village and sometimes my girlfriend hints I'm the village idiot!
