BAFANG RM-G062 1000W-D REAR HUB MOTORFreewheel

[dhealys]

hi this anybody know what freewheel sprocket will go on the BAFANG RM-G062 1000W-D REAR HUB MOTOR.
ive ordered two from amazon and none of them will fit. really frustrating. would be be if anybody got one that
is compatible.

​



[tomjasz]

Is the motor threaded for a freewheel, or slotted for a cassette?

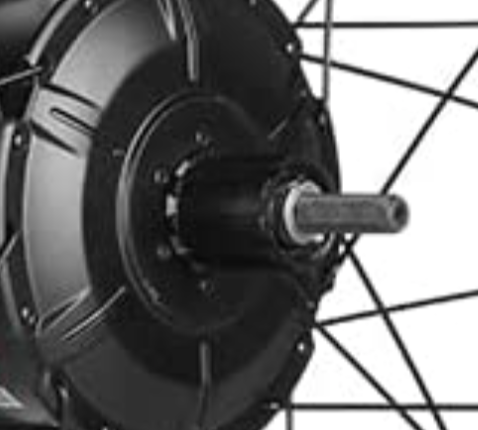

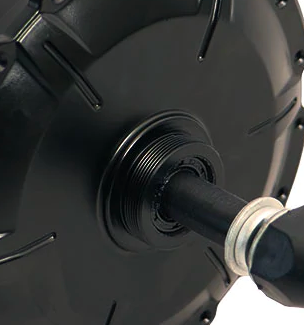

FREEWHEEL THREADED

CASSETTE SLOTED



[dhealys]

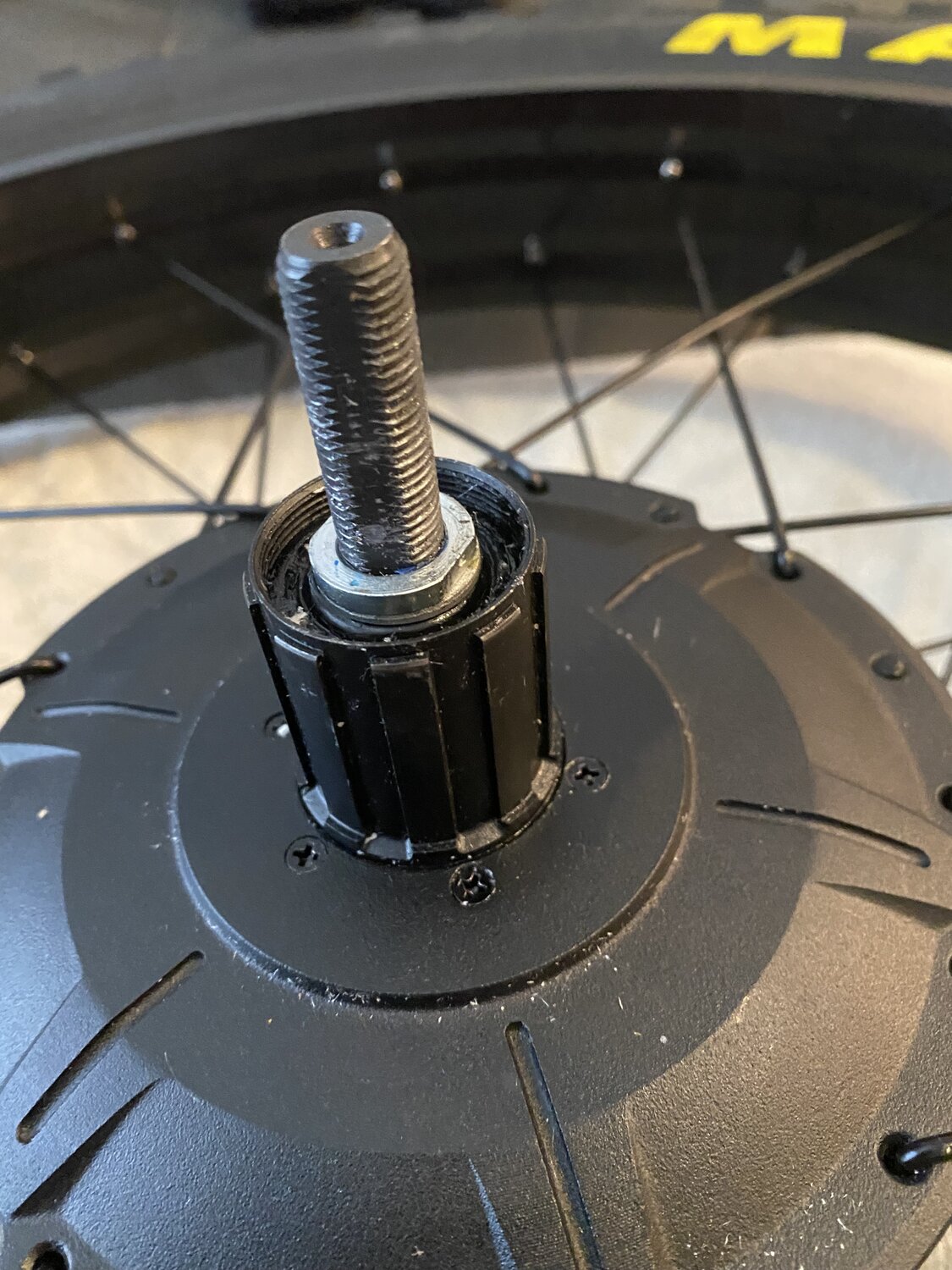

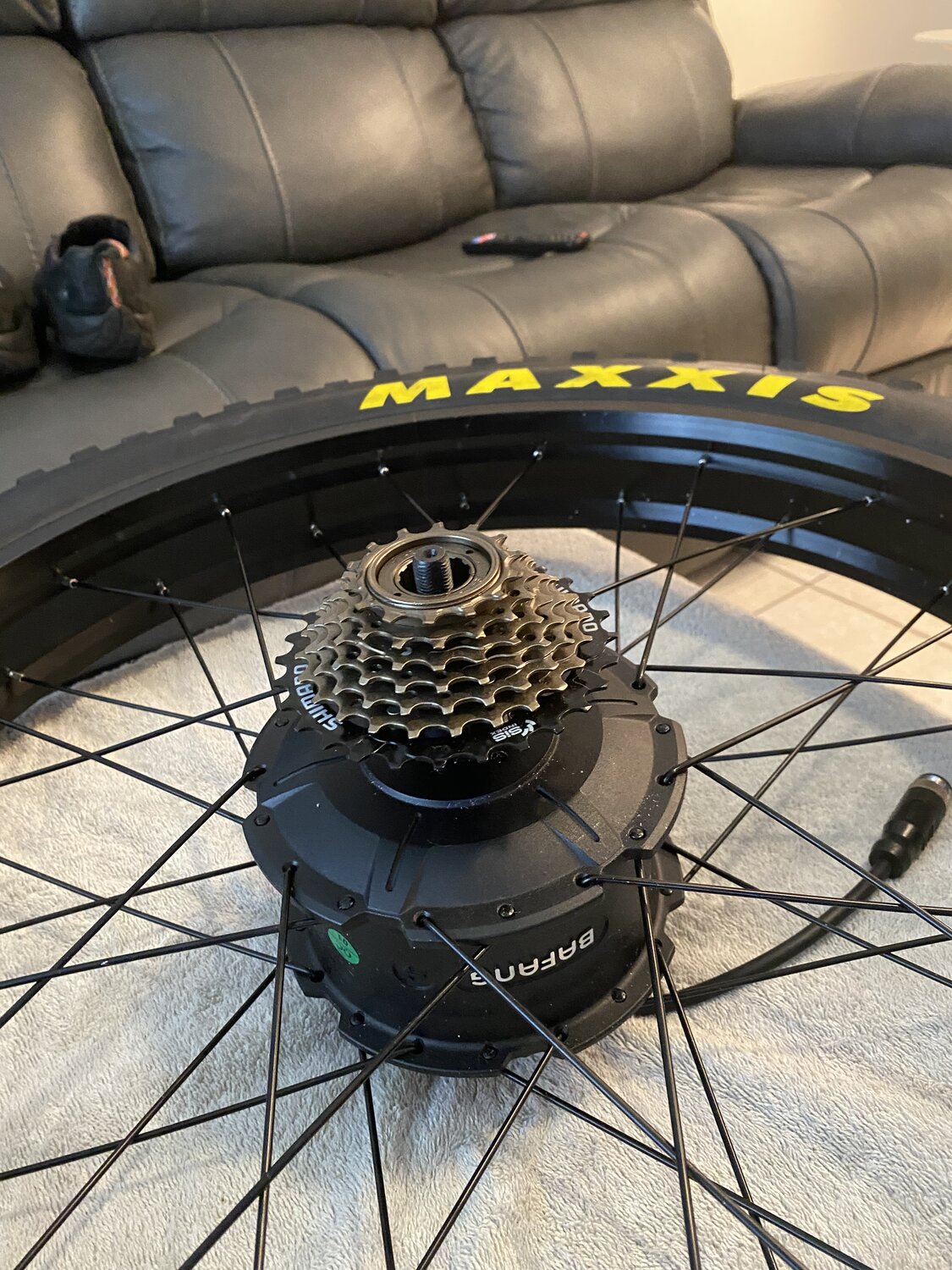

yes a lot of confusion from bafang, they told me rear wheel was for both cassette and freewheel, which really confused me. so my understanding is that i need a cassette not a freewheel. as you can see from my pics its clear i have a cassette sloted one. i got the Shimano TY MF-TZ500 7-Speed 14-28 Tooth, but as i can see from the picture it does not fit. im guessing i need this instead (Hycline Shimano 7/8 Speed Bike Cassette CS-HG200 Bike Sprocket,12-32 Teeth)

https://www.amazon.com/gp/product/B09727DH4X/ref=ox_sc_act_title_1?smid=AFH46LJ0GB87W&th=1

can you confirm. also i wanted a 7 speed one, as i dont want to change derailler or shifter. do i need an extra ring. appreciate the help. ive attached pics



[m@Robertson]

I used a standard Shimano 9-spd cassette on the one I have. Actually have two - one is held in reserve in case the primary fails. An example would be the Shimano HG400-9, which is the one I use. But any 9 spd cassette that has Shimano compatibility should do.

On the freewheel threading, they take standard threading (NOT metric BMX threading)... again standard Shimano will work. This is what I used on those motors. You cannot get any less than 16T on such a freewheel because of the size of the thread base, which is why BMX bikes use a smaller metric thread base.

https://amzn.to/3sooGpY

I said 'cannot' but really that means 'should never'. There is a 14T on the market but it is garbage. the topmost review is me. Which includes the pic of the destroyed-after-one-ride remnants of the thing.

https://amzn.to/3snujos

Here is a 7-speed cassette (simple amazon search on '7 speed cassette' will answer your question). I would think it highly likely you will need a cassette spacer

https://amzn.to/3M3cNgQ

https://amzn.to/3vZxd54



[m@Robertson]

If I remember correctly, the difference was only like 2mm or so.

If you use a spacer it will fix that. See link above.
