2018 Juiced Bikes RipCurrent S compatibility with Bafang H550

[jwhy]

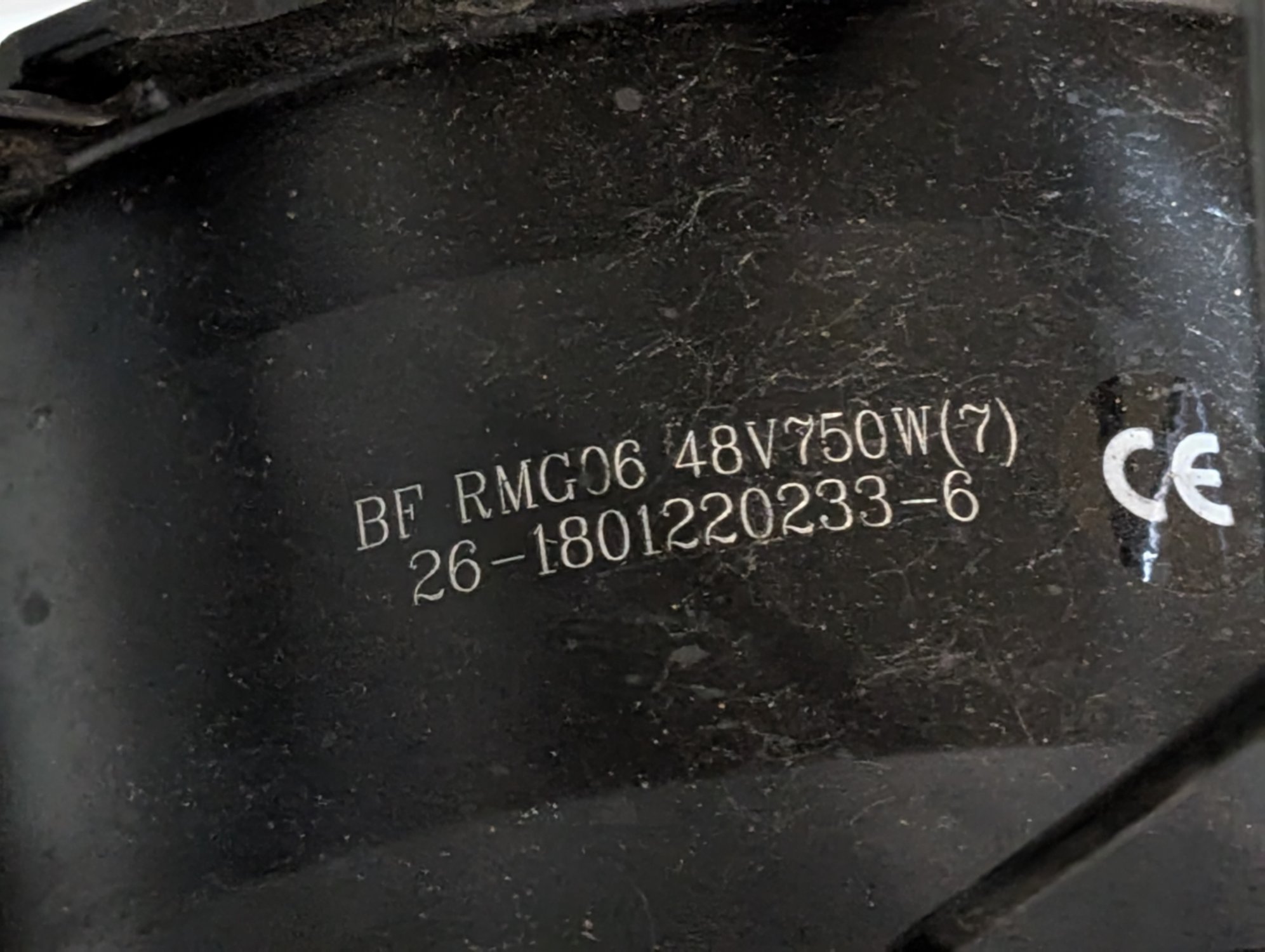

Picked up a 2018 RCS this year. It's the 52V model but hub says it's 48V750W. Previous owner kept pretty good care of it but now just wondering if I should preemptively get a backup rear motor just in case.

I saw here, Thread 'Leads on Juiced parts', there's an Ebay seller with a few Bafang H220 1000w motors. Anyone think there would be any issues swapping motors in the future?



[Chazmo]

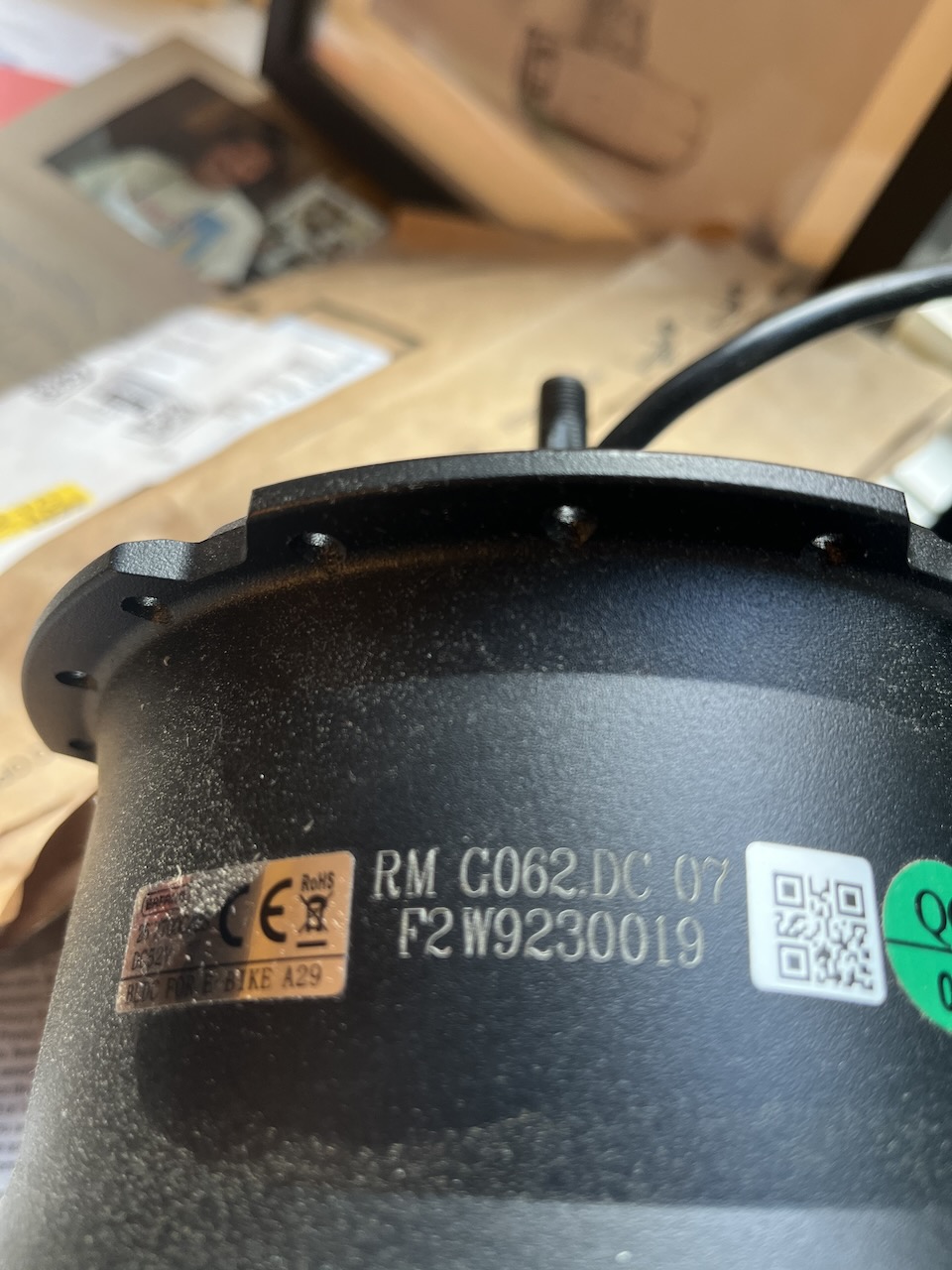

Tough call, jwhy. I bought a spare motor (H550, G062 1000W, 2000peak) that was intended for a Juiced RCS 2022 version. Below a picture of the etching on the motor for the RCS 2022… It doesn’t say 1000W, but it is. I suspect (but do NOT know for sure) that this motor will work with your 2018 bike controller.

There’s an eBay seller selling complete rear wheel assemblies for around $200 which is probably the best way to go. I believe I posted a link to that in the aforementioned thread. Those are meant fo the RCS 2022 version as well and have that motor on them. I don’t know anything about the seller, but that’s what I’d buy if I had this to do all over again. Does your bike have a 9-speed cassette? If not, you can probably take the cassette from your bike and put it on. Again, totally NOT sure if this will work.



[jwhy]

Tough call, jwhy. I bought a spare motor (H550, G062 1000W, 2000peak) that was intended for a Juiced RCS 2022 version. Below a picture of the etching on the motor for the RCS 2022… It doesn’t say 1000W, but it is. I suspect (but do NOT know for sure) that this motor will work with your 2018 bike controller.

There’s an eBay seller selling complete rear wheel assemblies for around $200 which is probably the best way to go. I believe I posted a link to that in the aforementioned thread. Those are meant fo the RCS 2022 version as well and have that motor on them. I don’t know anything about the seller, but that’s what I’d buy if I had this to do all over again. Does your bike have a 9-speed cassette? If not, you can probably take the cassette from your bike and put it on. Again, totally NOT sure if this will work.

View attachment 199856

I asked Chatgpt and it said the H550 probably won't fit but the G062 should be.

Thanks for sharing the photo — your RipCurrent S has a Bafang G062 (aka RMG06) rear hub motor, rated 48V 750W.

Here’s the breakdown between the G062 and H550:


---

Bafang G062

Rear geared hub motor.

Common in e-bikes like the Juiced RipCurrent S, Espin, Aventon, etc.

48V, available in 500W, 750W, and 1000W versions.

Uses a standard freewheel/cassette hub interface (varies depending on the version).

Dropout spacing: usually 175mm on fat bikes (like your RipCurrent S).

Torque: ~80 Nm (750W version).

Lighter than the H550.



---

Bafang H550

Rear direct-drive hub motor (not geared).

Much larger and heavier than the G062.

Supports higher power (up to 1000W–1500W, sometimes more).

Very high torque, better for cargo and high-speed builds.

Dropout spacing: often 190mm or wider (fat bike specific).

Because it’s direct-drive, it offers regen braking, but at the cost of added weight and slightly less efficiency at lower speeds.



---

Fitment on 2018 Juiced Bikes RipCurrent S

The 2018 RipCurrent S is designed around the Bafang G062 (48V 750W) with 175mm dropout spacing.

Swapping to an H550 would likely not fit without serious frame modifications:

The dropout spacing is wider (190mm+ vs. 175mm).

It’s heavier, which could stress the frame.

You’d also need to confirm compatibility with your existing controller and wiring (phase/hall sensor connectors differ).


Staying with the G062 (or its 1000W variant) is the direct replacement option.



---

Bottom line:

G062 is the stock motor for your RipCurrent S — it will fit directly.

H550 is physically larger, heavier, and likely won’t fit your frame’s dropout width without modification. It’s not a drop-in replacement.


Would you like me to help you find direct replacement G062 motors (750W or 1000W upgrade) that would bolt right into your RipCurrent S?



[Chazmo]

@jwhy , you have to be careful; ChatGPT is giving you nonsense. What a surprise. The H550 is the series of the Bafang motor, and the G062 is the specific version in that series that’s on the bike.



[jwhy]

@jwhy , you have to be careful; ChatGPT is giving you nonsense. What a surprise. The H550 is the series of the Bafang motor, and the G062 is the specific version in that series that’s on the bike.

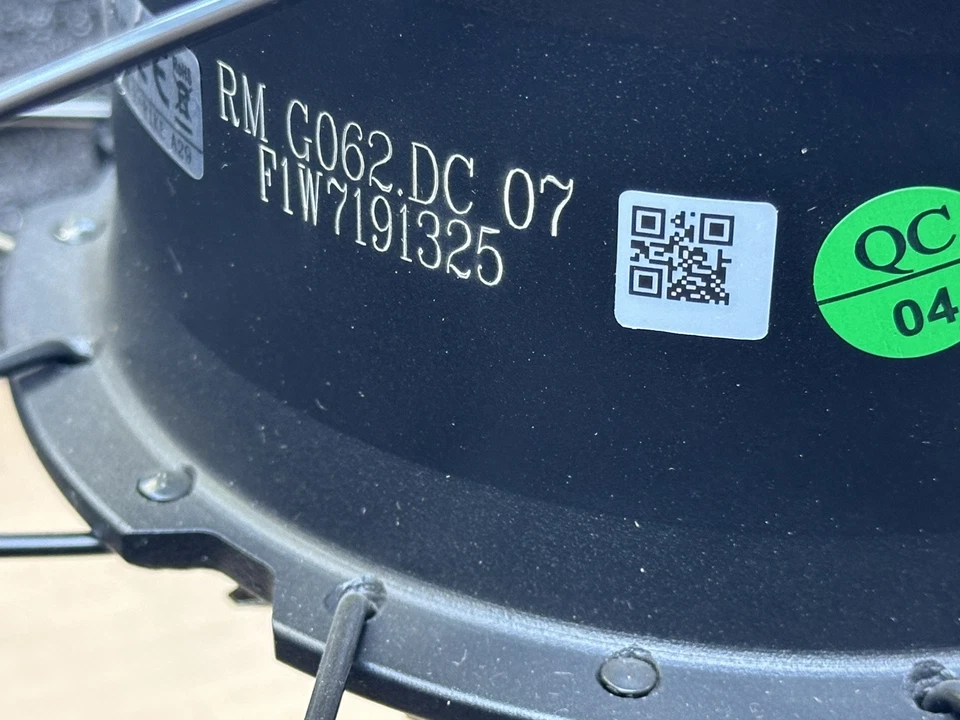

Oh, I see. So the H550 is the assembly part number but the actual motor is the G062 as in the ebay photo:



[jwhy]

Tough call, jwhy. I bought a spare motor (H550, G062 1000W, 2000peak) that was intended for a Juiced RCS 2022 version. Below a picture of the etching on the motor for the RCS 2022… It doesn’t say 1000W, but it is. I suspect (but do NOT know for sure) that this motor will work with your 2018 bike controller.

There’s an eBay seller selling complete rear wheel assemblies for around $200 which is probably the best way to go. I believe I posted a link to that in the aforementioned thread. Those are meant fo the RCS 2022 version as well and have that motor on them. I don’t know anything about the seller, but that’s what I’d buy if I had this to do all over again. Does your bike have a 9-speed cassette? If not, you can probably take the cassette from your bike and put it on. Again, totally NOT sure if this will work.

View attachment 199856

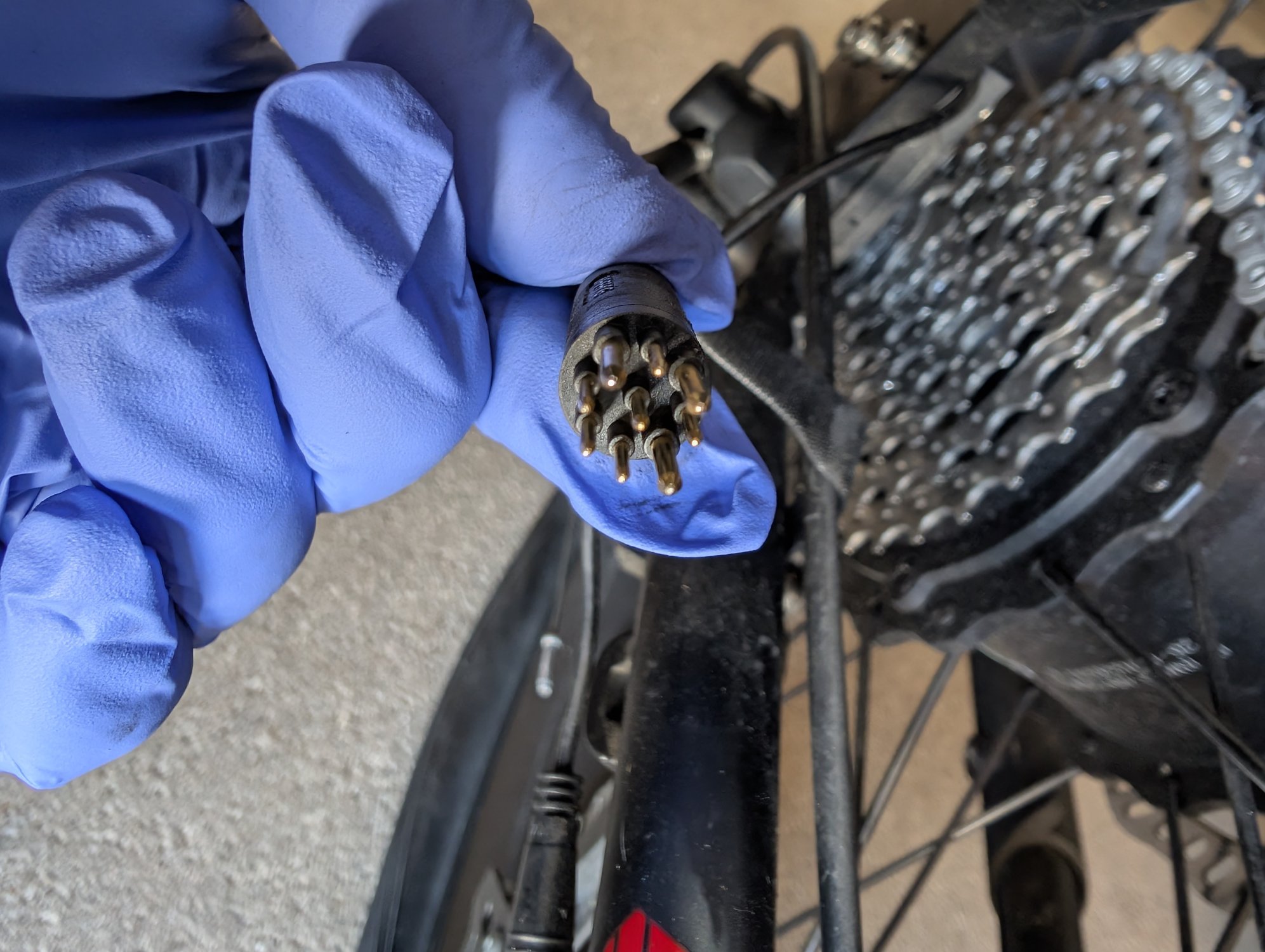

Mine is the 9-speed cassette. I'll check the motor connector later and see if it matches the same style connector as the ebay listing.



[Chazmo]

^^^ That’s a picture of the motor that’s in the 2022 (final version) RCS. It’s the same as the one I have sitting in my window that I showed you a picture of.

The seller on eBay is selling complete rear wheel RCS (2022) assemblies. I think this will work on your 2018 bike, but I cannot say for certain. Good luck.



[Chazmo]

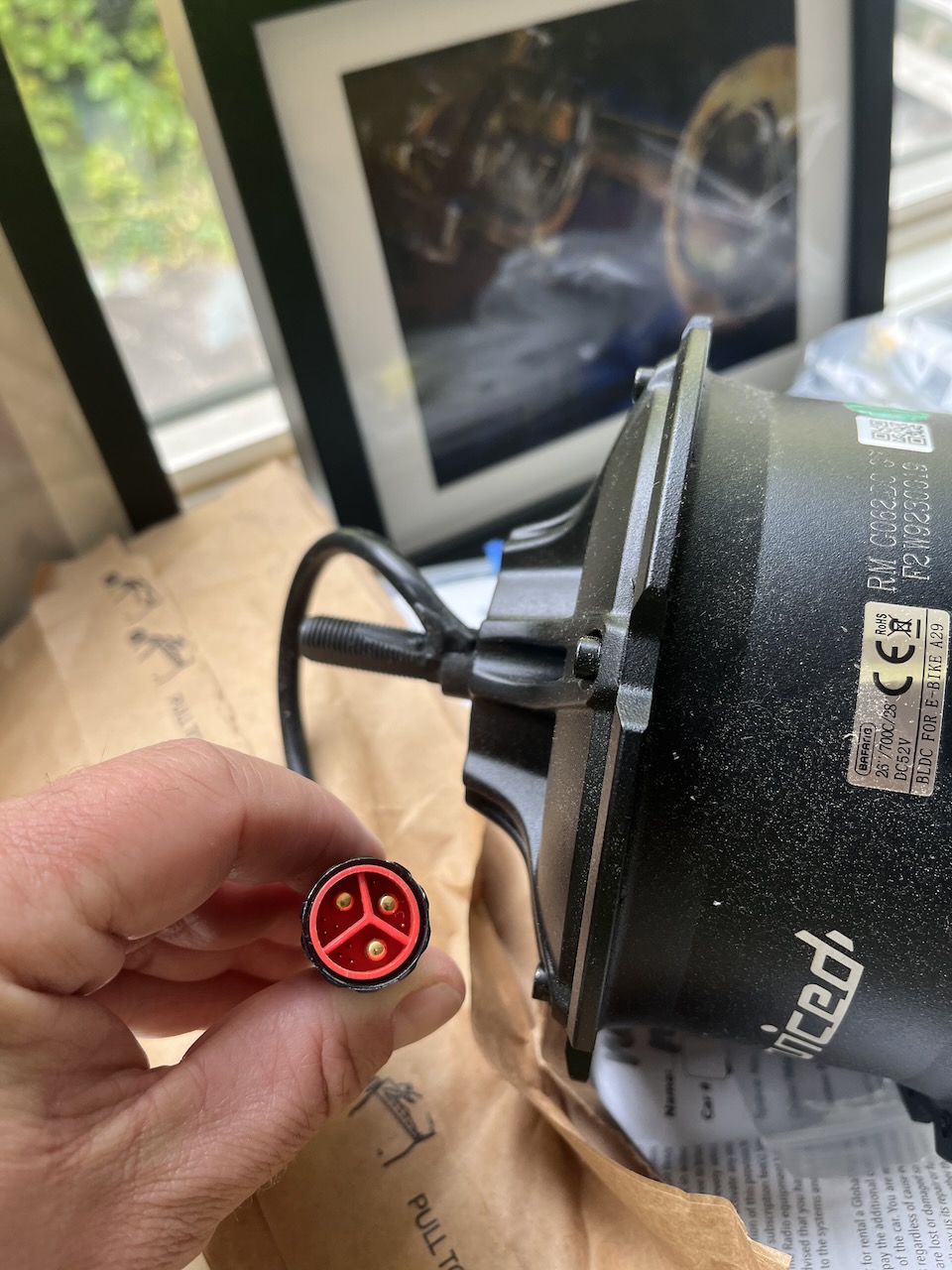

FYI, this is the connector on the 2022 motor. Again, no guarantees. Even if it fits, it’s possible that your 2018 controller may not entirely work with it. I’m guessing it will though.



[Chazmo]

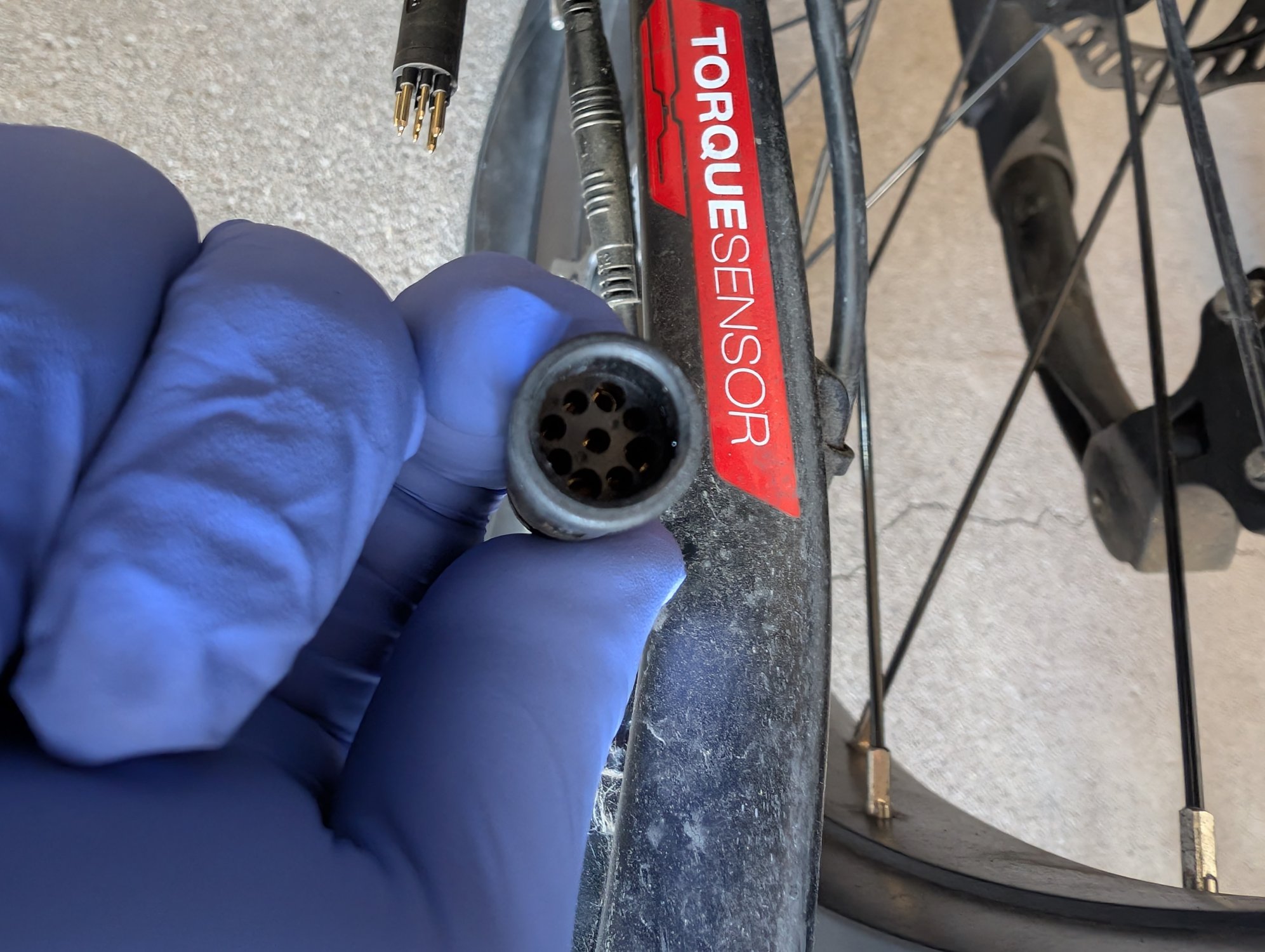

Also, @jwhy, I can’t get a good close-up, but there are three small pins in a triangle on either side of the the big pins in the big sectors. In the small sector there are two pins on either side of the big pin. The female side (from the controller) has holes for those, and I suspect they carry a variety of signals from the motor to the controller. The big pins are almost certainly for power. If the female side of your bike has all the holes for these pins, I give it good odds that it’ll work. Otherwise, the connectors will not mate and the motor won’t work.
