TSDZ2 C3 Display km to mph

[Sasquatch260]

I just installed my TSDZ2 kit and took it for the first ride. I really like it. Does anybody know if I can change the KM to MPH on the C3 display (and how I’d do so)?

Also, I’m not sure if I bumped the button or something, but it seems like the display turned off once by itself on my ride. I turned it back on and everything was fine. But I thought I’d mention it in case this is a common issue and somebody can tell me what I may have done wrong in setup.



[EMGX]

C3 is the way to go IMO
After turning on the display double click the power button. scroll to SYSTEM and choose IMPERIAL instead of METRIC. If you ever want to get into advanced settings the code is 1801.
What bike did you install it on, pictures?



[Sasquatch260]

C3 is the way to go IMO
After turning on the display double click the power button. scroll to SYSTEM and choose IMPERIAL instead of METRIC. If you ever want to get into advanced settings the code is 1801.
What bike did you install it on, pictures?

Perfect. Thank you
Installed on a Giant Revel 29er. I’ll post pics as soon as I can.



[EMGX]

Now I remember you posting that. Great bike for your conversion.
PS only thing that I was advised safe to change in advance settings would be the speed limit which can be set to 45km/hr (I think is the max).



[Sasquatch260]

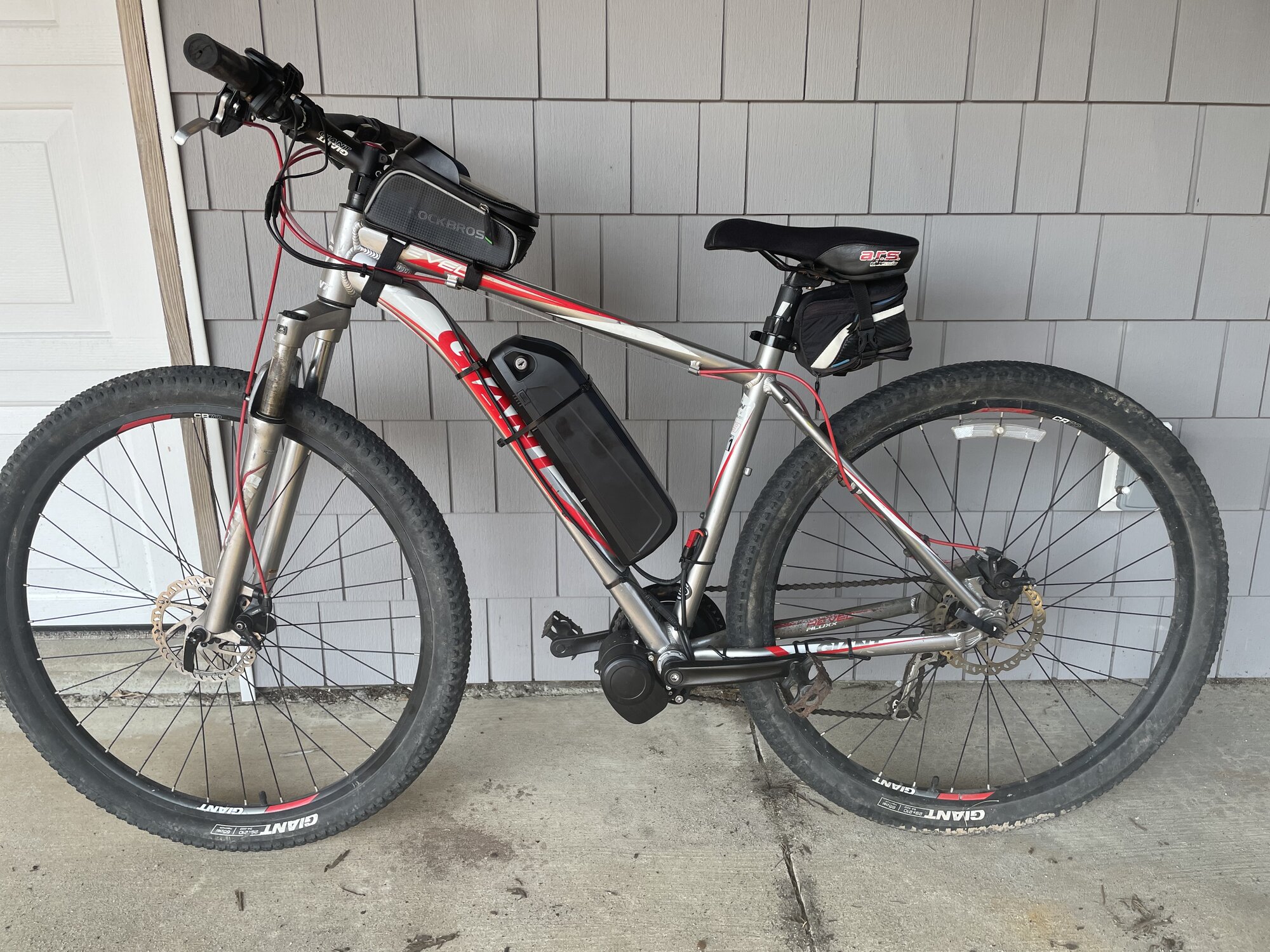

Here is a pic. I am really enjoying this on trails.



[EMGX]

If you get the chance see if your TRIP odometer reads normally above 100 miles. I've been doing a range test with a cheap 48v 15ah battery on my hybrid bike with a 48v 750w version of the tongsheng. Above 100 miles I noticed that the mileage display didn't increase in 0.1 mile increments like usual, instead it would display 1.1 mile increases. First noticed (I don't usually check the display frequently) at 105.5 miles that jumped to 106.6, then 107.7, 108.8, 109.9 then in over a mile additional riding it stopped increasing at 110 miles. the 1.1 mile increments were accurate but obviously the 109.9 to 110 miles was not. I'm wondering if 110 miles is the limit for the trip odometer or if there was a glitch in the function. The speedometer functioned as usual and the total distance would have been correct at ~111 miles

EDIT:
The trip odometer fails to register 1 mile out of every 10 for mileages above 100 miles. Above 100 miles it only changes display every 1.1 miles as noted above but at every X9.9 another 1.1 miles ridden is only counted as an additional 0.1 miles, after that it goes back to registering 1.1 mile increments (until the next X9.9).



[EMGX]

Here is a pic. I am really enjoying this on trails.

Nice.
I did some hilly gravel trails yesterday. The TS made steep grades almost too easy on assist level 4, level 5 would have been excessive.
