Specialised turbo-x with defect battery

[raedy07]

hello folks,
i bought a 2nd-hand turbo-x from 2015, battery has a problem. seems to be d motherboard (of BMS) if i understand it correctly. or is there another board in there? now d specialised-importer here in spain says only option is a new battery - price 1200$ !!!!!!
suffice to say i find this outrageous, for various reasons. so not an option for me. REPAIR is d answer, battery is still good.
question: where could i find another board, used or new, so i can exchange it for d broken one? or who knows how to repair it, probably it's a '50-cents-component' that needs replacing. but, needs to be identified; not my expertise, unfortunately
have a nice day,
Radek



[raedy07]

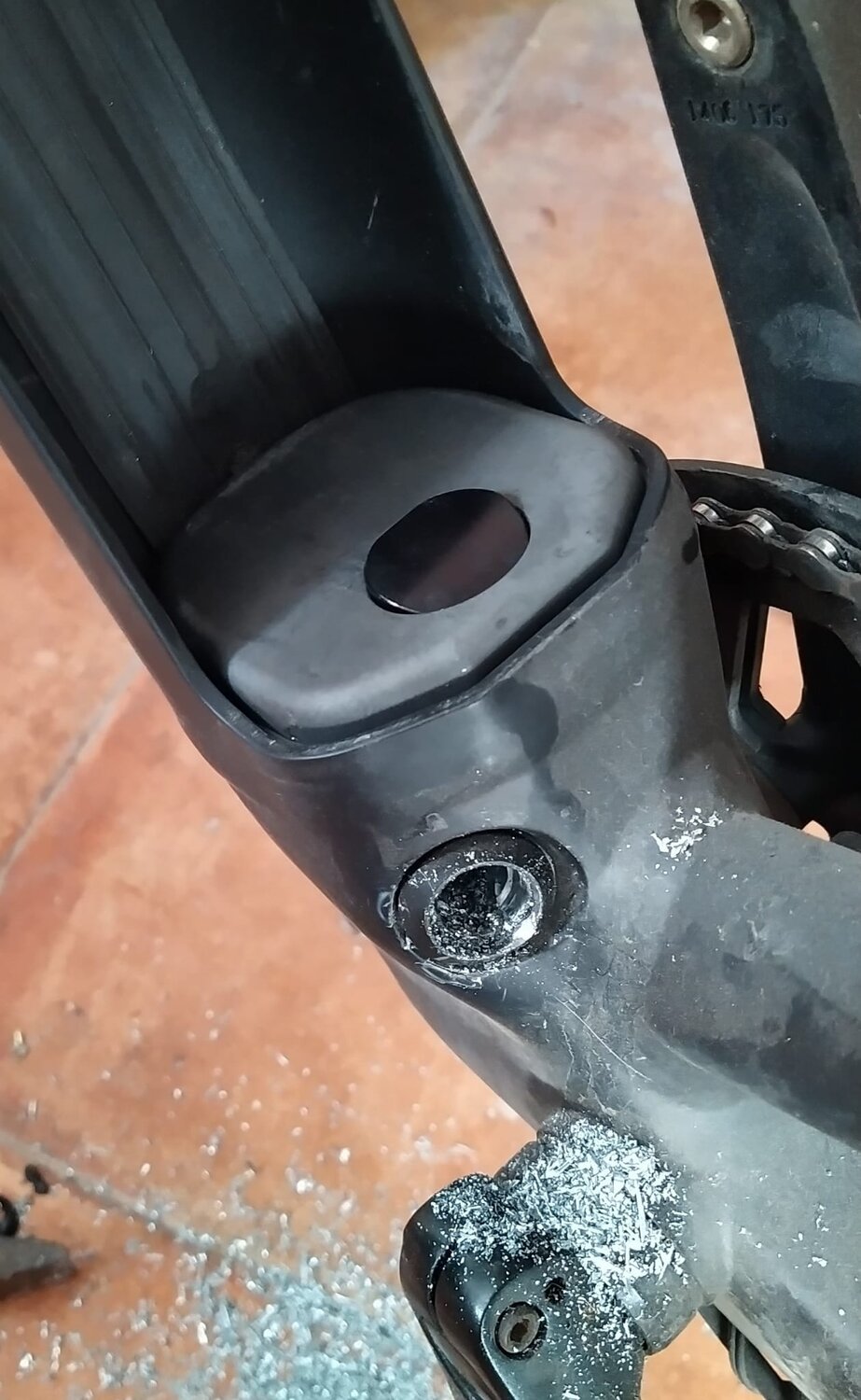

finally i gave up looking for d key and destroyed d lock; anybody knows how to lift this bottom-lid in order to install a new lock?



[raedy07]

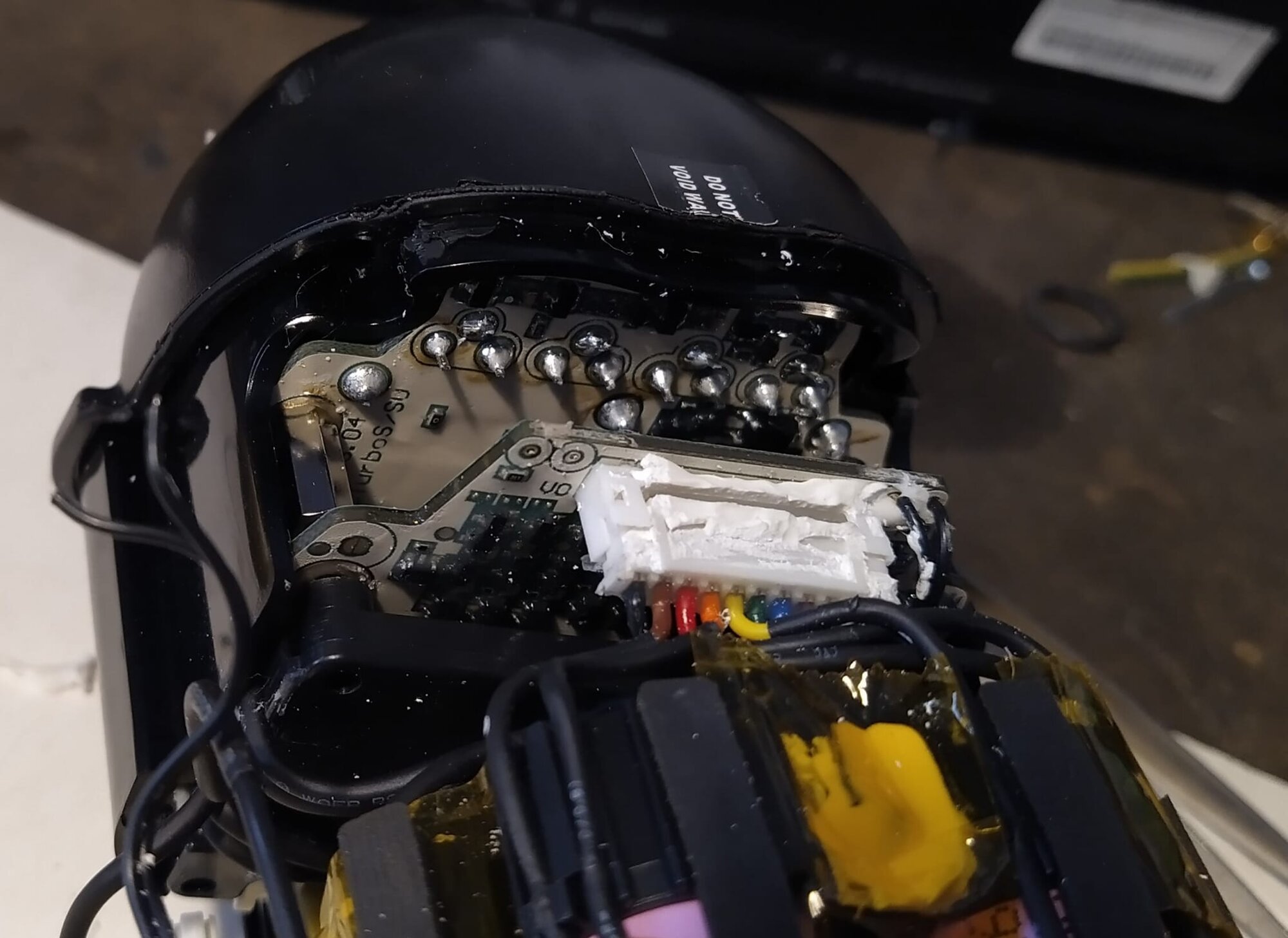

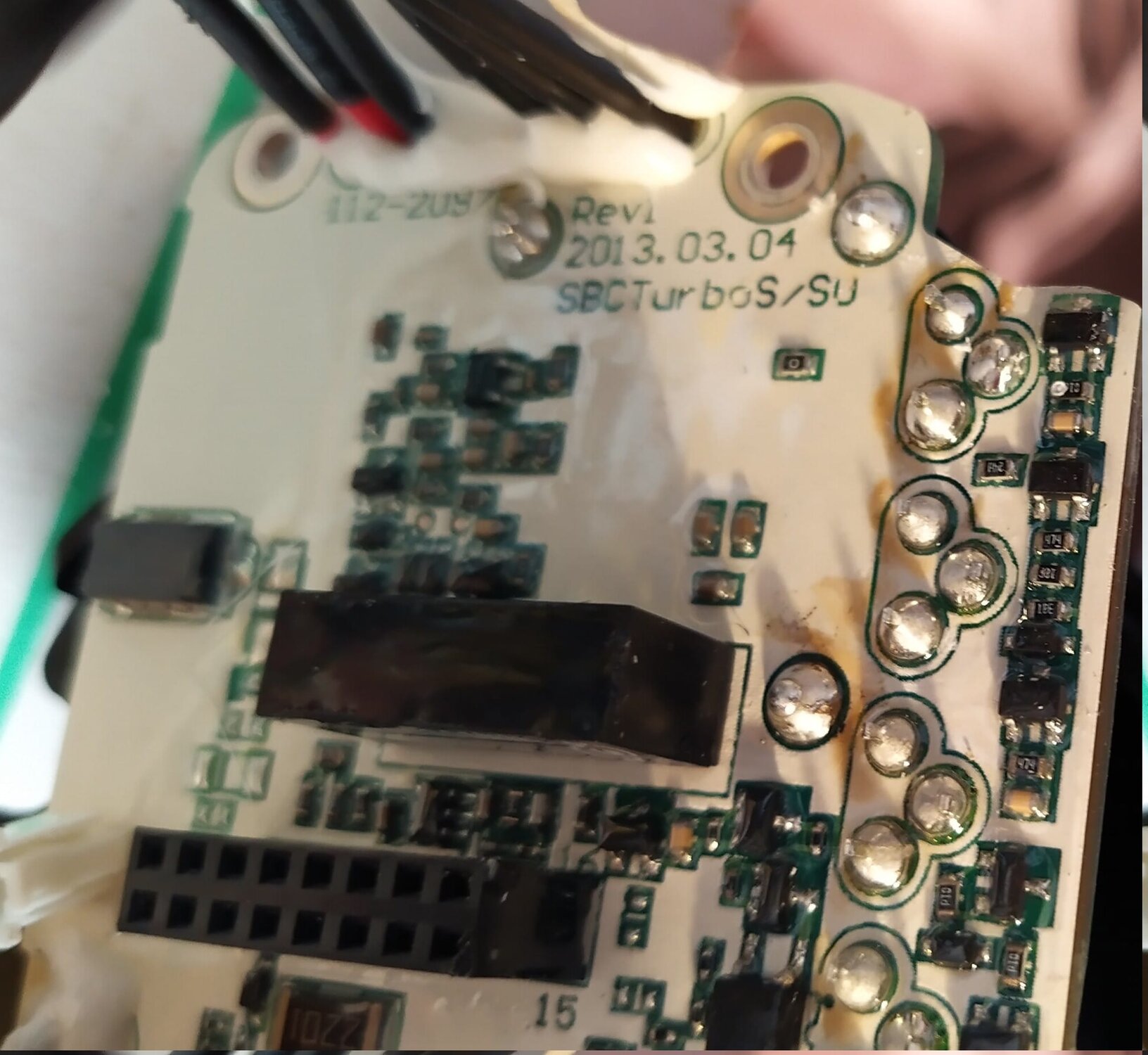

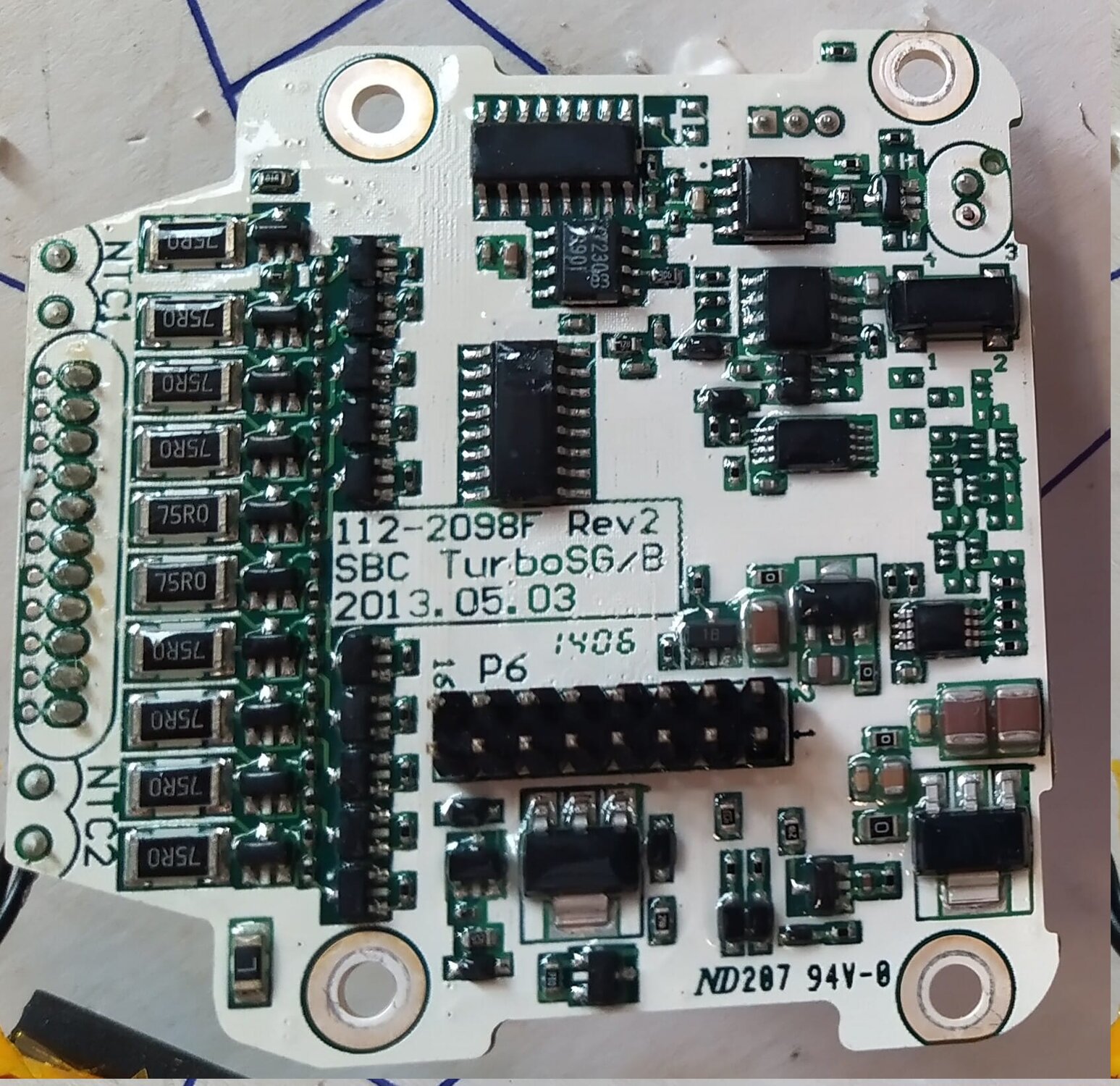

i opened d battery and discovered that if i separate d 1st board from d 2nd, and press d ON-button, battery-test runs and then stays ON. unlike before. i therefore think d 2nd board could have a defect. anybody has 1 in his junk-box? or knows where to find 1? 'specialized' don't have it



[raedy07]

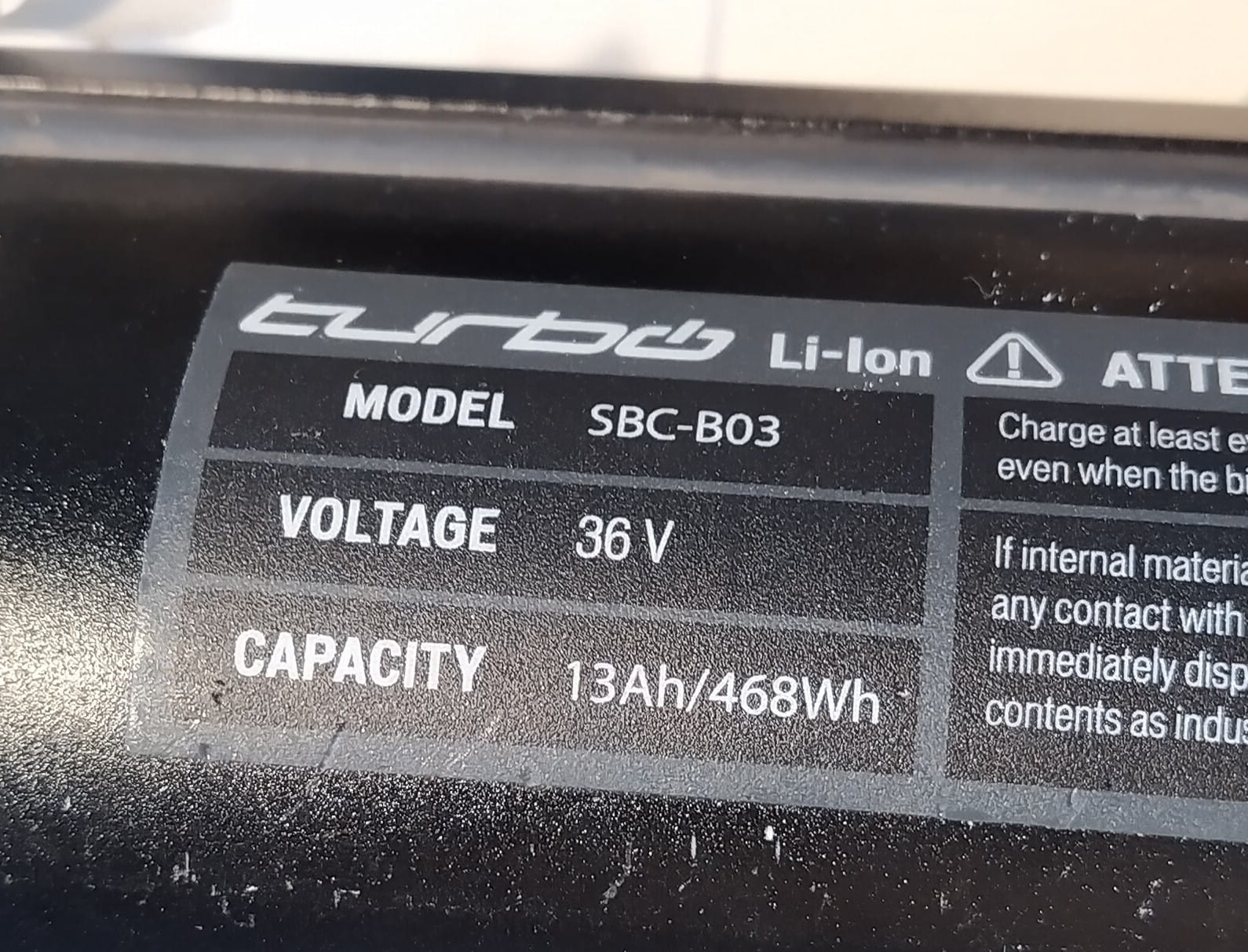

oh this is d battery by d way



[Joseph 1]

Hallo unfortunately i have the same problem have you found a solution



[raedy07]

have you got d same bike? looks like controller is inside d motor, so problem must be BMS. i'm now looking for a suitable external one, i don't have hope to find one that'll fit inside battery case.



[raedy07]

as foreseen my components don't want to communicate with each other after i replaced this original BMS with a simple one (DALY). charging battery is possible, lights are on but motor doesn't react. could a simple solution be to install a throttle directly to the motor-controller? establish a battery-throttle-motor connection somehow? (i haven't opened that one yet). i could still pedal assist but control motor-assistance with the thumb (instead of pedal-sensor)
any thoughts on this idea?



[raedy07]

.... and so it went on:

problem seems was the main board (of the BMS). the specialized importer here in Spain says that the only option is a new battery - price 1200$ !!!!!!
suffice it to say that i find that outrageous, no option for me, i find it unacceptable for a bike that is only 8 years old that such a component is no longer available! REPAIR is the answer, cells are still all good.

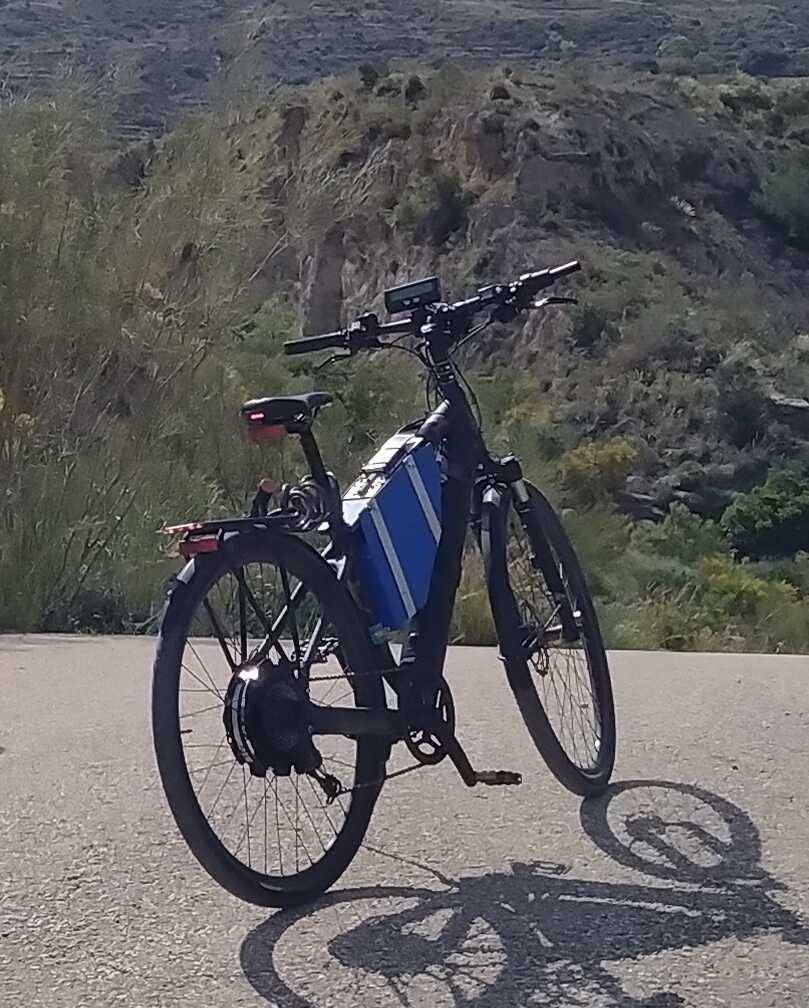

long story short: because no 'foreign' BMS would fit into the original battery box, I finally built a new, 3x larger battery (1.5kWh) and supplemented it with components from Grin and DALY-BMS. Bike now goes, with twist-throttle, 50km/h.
so far so good. a solid aluminum box will be built for the battery at some point. not a priority at the moment, more exciting projects are on the agenda.



[Stefan Mikes]

Looks like you dragged it from the skip, if you ask me



[raedy07]

Looks like you dragged it from the skip, if you ask me

must be referring to battery - well it's a prototype, if it passes d test of (some) time it will be replaced by aluminum. it's not even watertight yet. still thinking of where to better position BMS&controller, probably on either side. also sockets -USB, charging- will be installed, an easily accessible fuse. and probably a BMS bypass switch. lots of things to ponder

oh and i couldn't get regen to work yet, anybody knowledgeable about GRIN-equipment?
