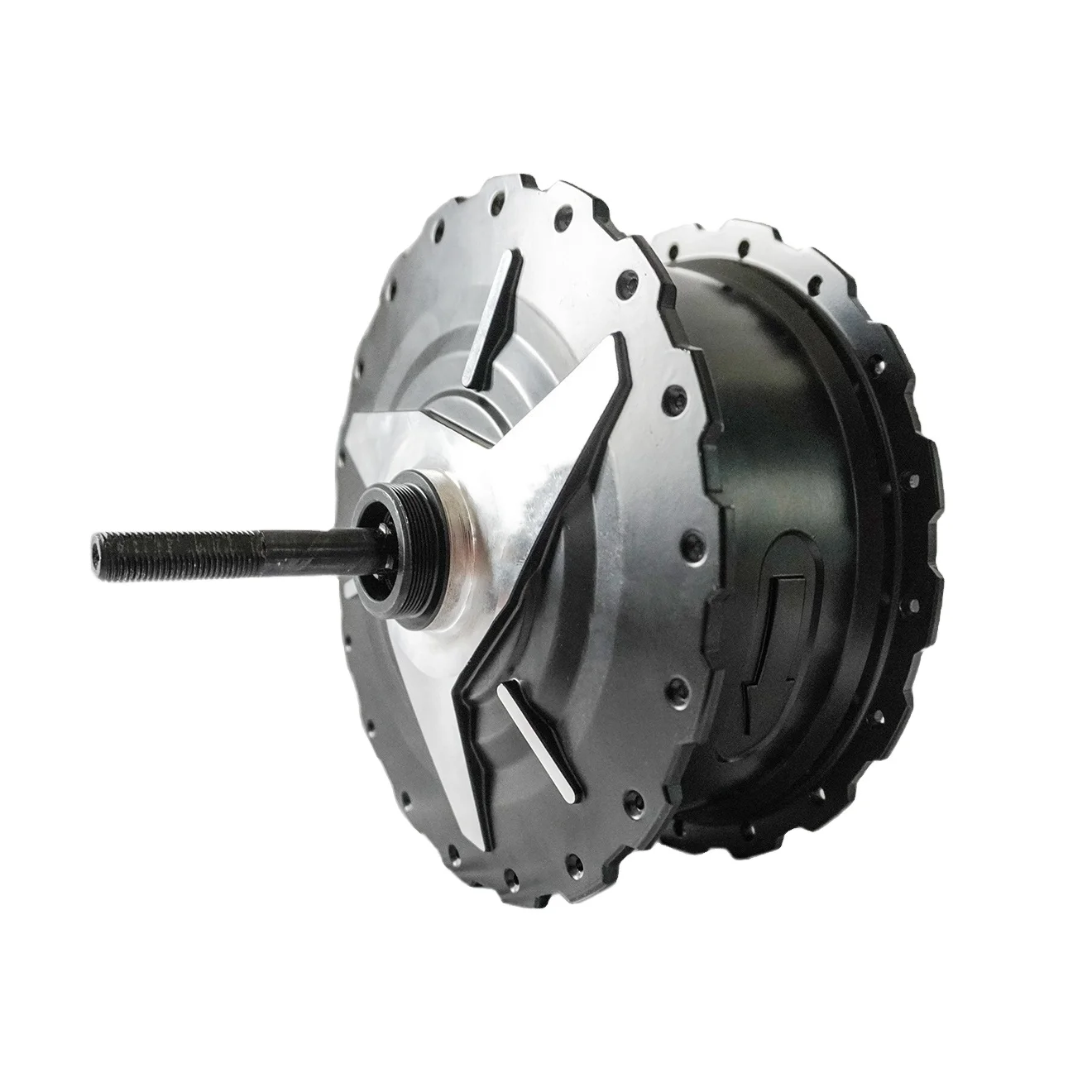

MXUS GDR19-FAT - Most powerful geared motor?

[Boosted]

@Boosted, how are things going?

I'm just getting started on a GDR19-FAT build, using a Phaserunner. Thanks for all you've shared here, it's a huge help!

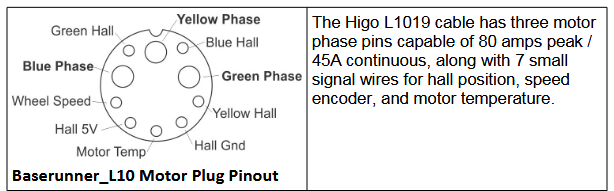

How is it!? The phaserunner should work good as a FOC controller for it, and has plenty of ERPM. My only concern would be the L1019 wiring of the OEM motor. Curious to see how it worked for ya?



[David Dye]

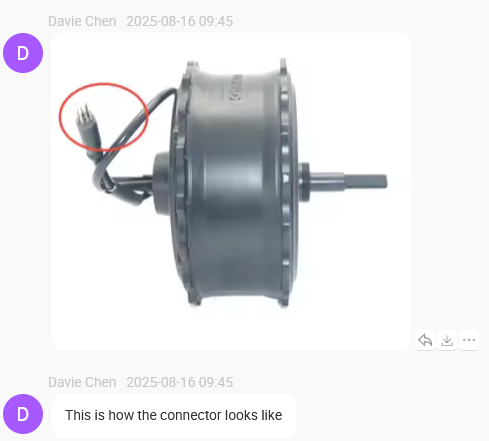

Mostly working well. I didn't bother with the stock connector and just ran MT60 at the hub as well. Starting torque is lower than I had hoped. I had run this motor with a generic 28A controller and the PR doesn't seem to improve on that at all, despite being set to 40A battery and 90A phase. Probably need to tune the PR further, but haven't chased it yet. With FOC set at 5A, I've picked up 2 mph at the top end, but haven't tested it with FOC off.
