Connectors for integrated lights

[Greatrex]

For anyone wanting to fit lights the connector types (at least on a 2021 Stance E+2) is a JST02R-JWPF-VSLE (2 pin but you may have to buy an assorted set) and you can buy them from various places including amazon

1 box of 19 Sets JST Type Automotive Connectors JST02R-JWPF-VSLE 2/3/4/6/8 Pin Waterproof Connectors Male and Female : Amazon.co.uk: Electronics & Photo

1 box of 19 Sets JST Type Automotive Connectors JST02R-JWPF-VSLE 2/3/4/6/8 Pin Waterproof Connectors Male and Female : Amazon.co.uk: Electronics & Photo

smile.amazon.co.uk

There is one connector on the bike, hidden above the battery lock. You have to make up a y-lead for the two lights and you will need the tiniest set of crimpers you can find, although I managed to get the pins centred in a standard small crimp tool.

I have fitted Lezyne lights, the Hecto Drive E65 LED Front Light and STVZO E12 Super Bright on the rear. With hindsight I would have gone for the handlebar mount rather than the fork mount as the wheel gets in the way a bit if you want to light the ground close up in front.



[shauno]

How did you route the cable for the rear light?



[EnduroDad]

Thanks for the connector info. As an alternative there are a couple Magicshine models that come with the correct connector, just make sure you specify Yamaha when ordering.

I’m happy with this one:

Giant Trance E+ Can Have Internally Powered Lighting?

My brother Jacek has owned (formerly mine) Giant Trance E+ 2 Pro (2020) since June last year. As this is his only e-bike (and he is an excellent bike mechanic himself), he really takes care of his Trance! Numerous mods, everything up to date, maintained perfectly: I can only talk about my...

electricbikereview.com



[Greatrex]

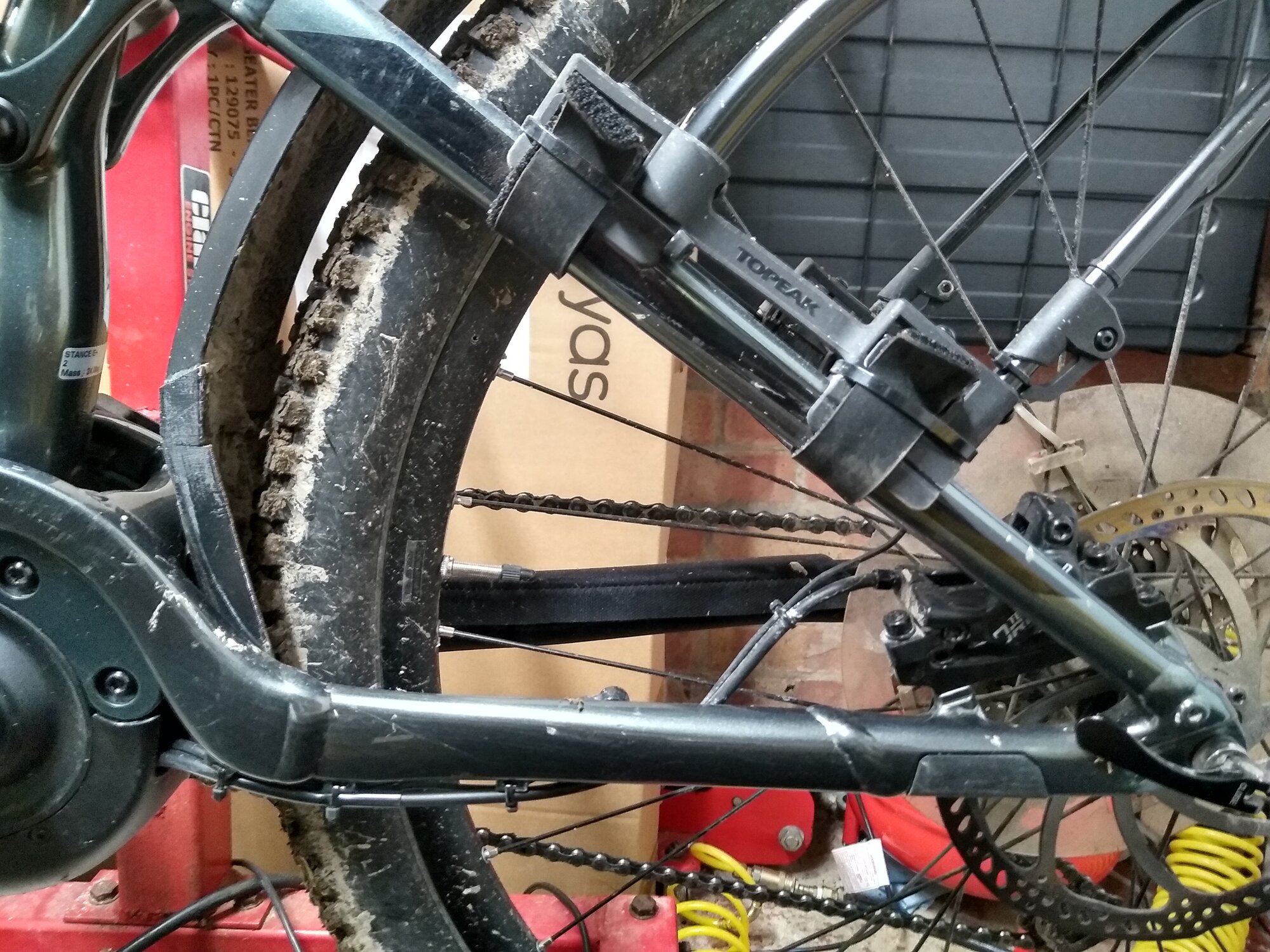

I fed it down the down tube behind the battery then under the motor (I removed the plastic cover under the motor). Then out the hole at the back with the rear brake pipe an up the a carrier onto the back
