Chinese 24v 280watt motor

[Four Foor Perch]

I need to reverse this for it to work on my bike. It says its reversible but if I simply reverse polarity it blows the fuse. Any ideas?



[ki11a]

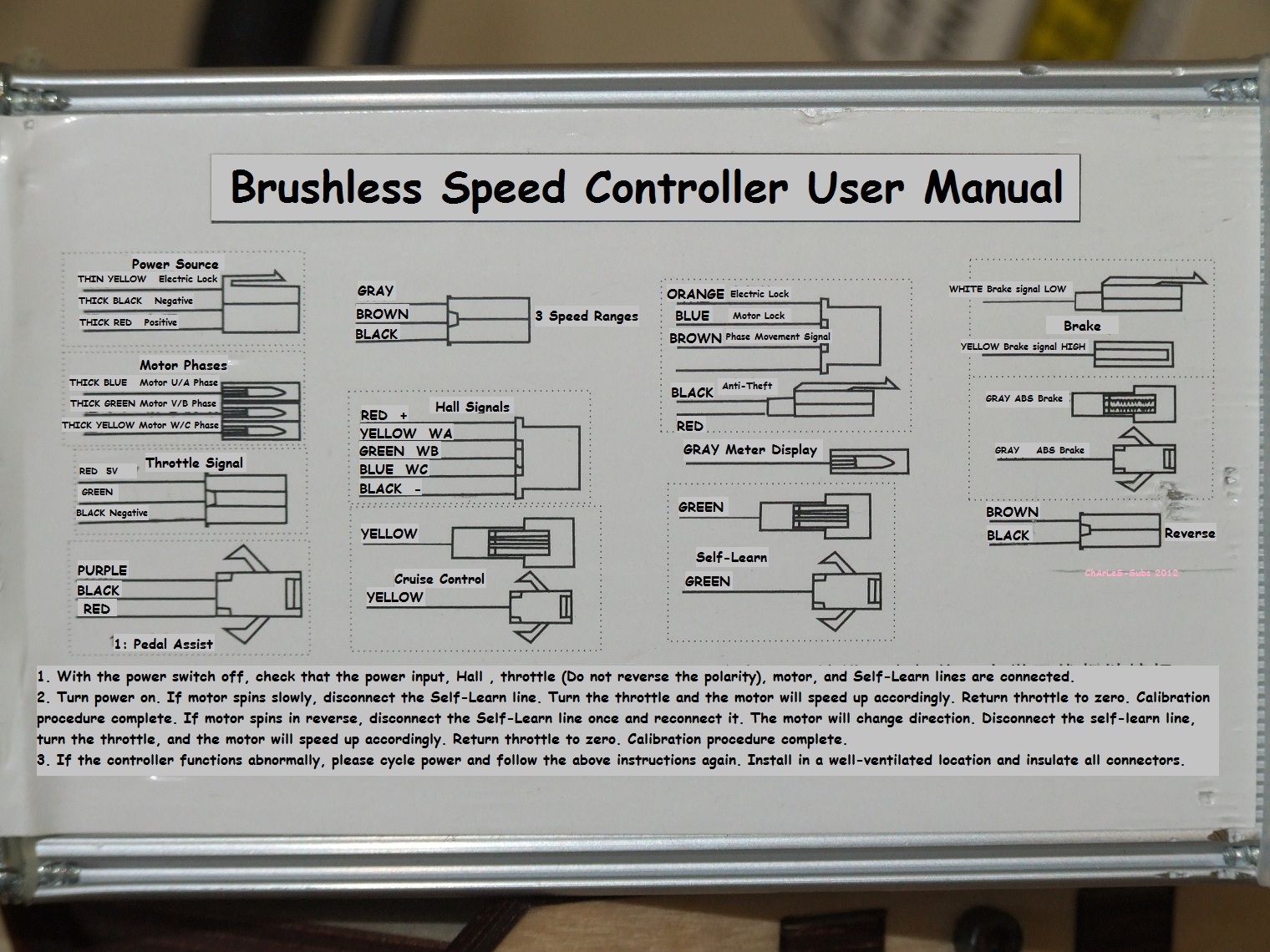

If you power up the 'learning' wire on the controller it should reverse the motor...its usually a green wire.

You can indicate that the motor is being learned in the wrong direction (by unplugging and reconnecting the self-learn wire once) and it will reverse the direction and record the states again, saving that and associating that direction with “forward”.



[harryS]

Is it one of these? You reverse the direction by switching the two wires at the motor You don't switch the wires coming out of the battery, because the controller box has circuits that need the +/- 24 V volt polarity.
.

e of these DC motor kits?



[Four Foor Perch]

Thanks for your kind replies. I bought two controllers but could not get them to work (or did not get th wiring correct) so I fitted this potentiometer which works good but the wrong way round for my layout. This is my motor.

ZY MY 1016 Electric Motor 24v 280w Brushed E Bike Scooter 24 Volt 280 Watt Chain | eBay

Find many great new & used options and get the best deals for ZY MY 1016 Electric Motor 24v 280w Brushed E Bike Scooter 24 Volt 280 Watt Chain at the best online prices at eBay! Free delivery for many products!

www.ebay.co.uk

This is the potentiometer

ZY MY 1016 Electric Motor 24v 280w Brushed E Bike Scooter 24 Volt 280 Watt Chain | eBay

Find many great new & used options and get the best deals for ZY MY 1016 Electric Motor 24v 280w Brushed E Bike Scooter 24 Volt 280 Watt Chain at the best online prices at eBay! Free delivery for many products!

www.ebay.co.uk



[Four Foor Perch]

If you power up the 'learning' wire on the controller it should reverse the motor...its usually a green wire.

You can indicate that the motor is being learned in the wrong direction (by unplugging and reconnecting the self-learn wire once) and it will reverse the direction and record the states again, saving that and associating that direction with “forward”.


View attachment 73190

Thanks for your kind replies. I bought two controllers but could not get them to work (or did not get th wiring correct) so I fitted this potentiometer which works good but the wrong way round for my layout. This is my motor.

ZY MY 1016 Electric Motor 24v 280w Brushed E Bike Scooter 24 Volt 280 Watt Chain​

DC 6-60V 12V 24V 36V 48V 30A Adjustable PWM Motor Speed Controller Digital Display DC Motor Control Governor Start Stop Switch​



[harryS]

Flip the two motor wires.



[Four Foor Perch]

Thanks, I'll ty that and report back.



[Four Foor Perch]

Re-wired and tested today. It's now running the correct way without blowing the fuse but oddly the on-off swith to the controller is permanently on and the thing blasts off at full speed with no change when I turn the potentiometer control. Any more clues? Great to see it going forward but it's too dangerous to ride as it is.



[harryS]

You had speed control when the motor wiring was reversed?



[Four Foor Perch]

Yes, perfect control, on-off and speed, thanks. I'm thinking I'll put it back just to check if that's still the case.



[Four Foor Perch]

Wires now back as were before, running the wrong way again and still no on-off and no speed control.



[harryS]

Sounds like the control is broken, and if you measure it, you get the full 24V. You only flipped the motor wires, not the power wires?



[Four Foor Perch]

Yes, only flipped motor wires as you suggested. Buy a new control?



[harryS]

You must have fried it somehow.

I wouldn't use a potentiometer to control a scooter. No spring action to shut off. Too unwieldy to mount, But it's your vehicle.



[Four Foor Perch]

Good point. It only came about because I bought two of the usual controllers, plus a twist control for the handle bars and could not get anything to work, probably because I could not figure out the wiring with so many wires and no clear instructions.



[harryS]

What's your controller look like? DId you buy it with the throttle, or did you buy them separately? Does the controller have a label in chinese showing the connectors?



[Four Foor Perch]

Thanks for your kind response. I'll find them out and post tomorow but I did buy them separate.



[Four Foor Perch]

Here's what I tried, I bought the second controller after I could not get the first one to work. So many wires. My set up is basic, just the motor and two10amph barreries wired for 24v.



[harryS]

Here's an online wiring diagram for a YiYun brushed motor controller. MAybe it matches your box.
#6 is for throttle
#2 is battery
#1 is motor
#5 is for your on/off switch or ignition lock.
#8 If the scooter has e-brakes, connect them.

Your throttle picture is hard to tell if it's 5 wires or six wires. Three of those wires will connect to the throttle connector above. The other two or three will depend on what you have. Does it have an on/off button? Does it have LED's to show power? You need a better pic.



[Four Foor Perch]

Yes, on-off, 6 wires and power display.
