Where are my hall sensors?

[andyflashwright]

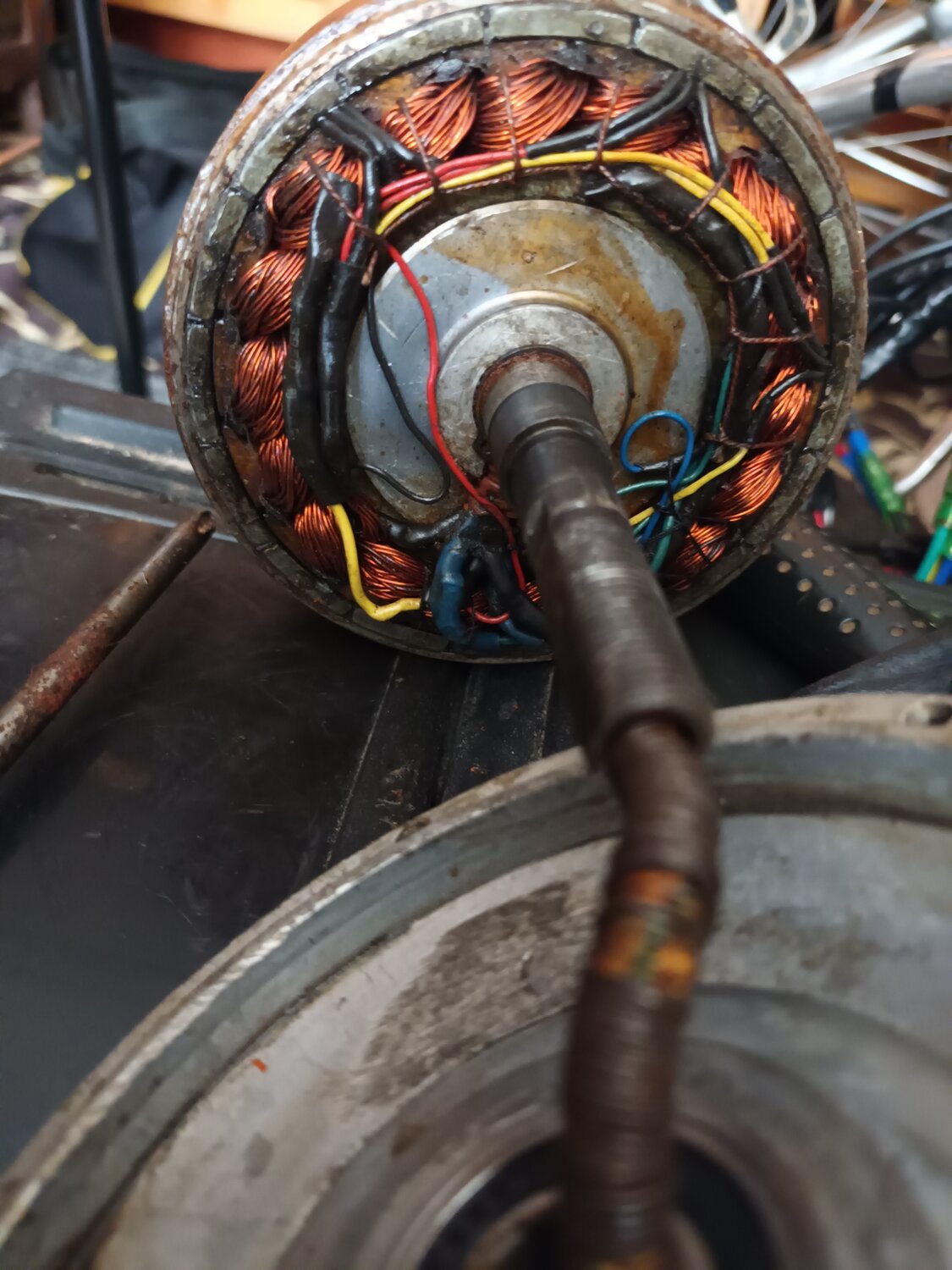

Where are my hall sensors?



[Chargeride]

I would say right on the end of those three black sheathed wires at three different points and glued in place just over the edge.



[andyflashwright]

Ha ha,thanks, I guess I would need to take it out of its casing with a gear puller?



[harryS]

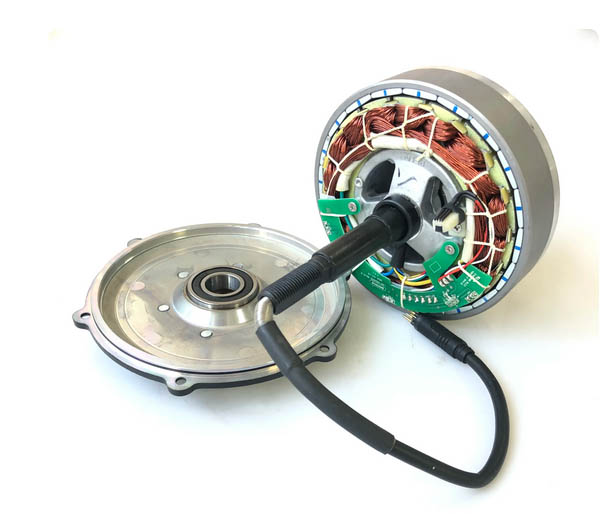

Hall sensors are small three pin components, almost always mounted on a circuit board like on this Bafang motor.

In your case, looks like they're in the back. Follow the red/black wires which are power for the Hall sensors..



[Chargeride]

yeah, I cant be sure now, its not obvious where they are, are we talking on the otherside of stator?



[andyflashwright]

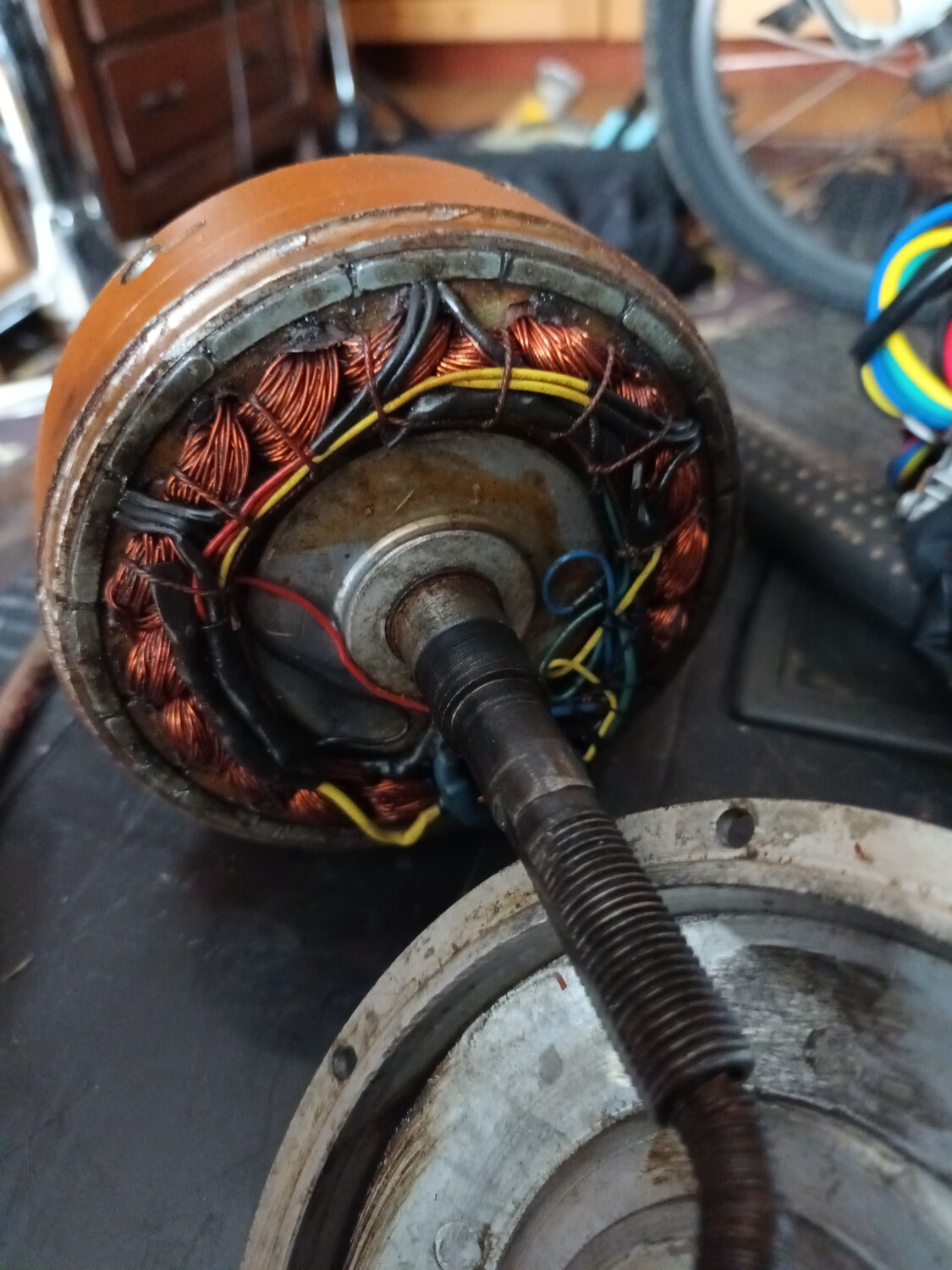

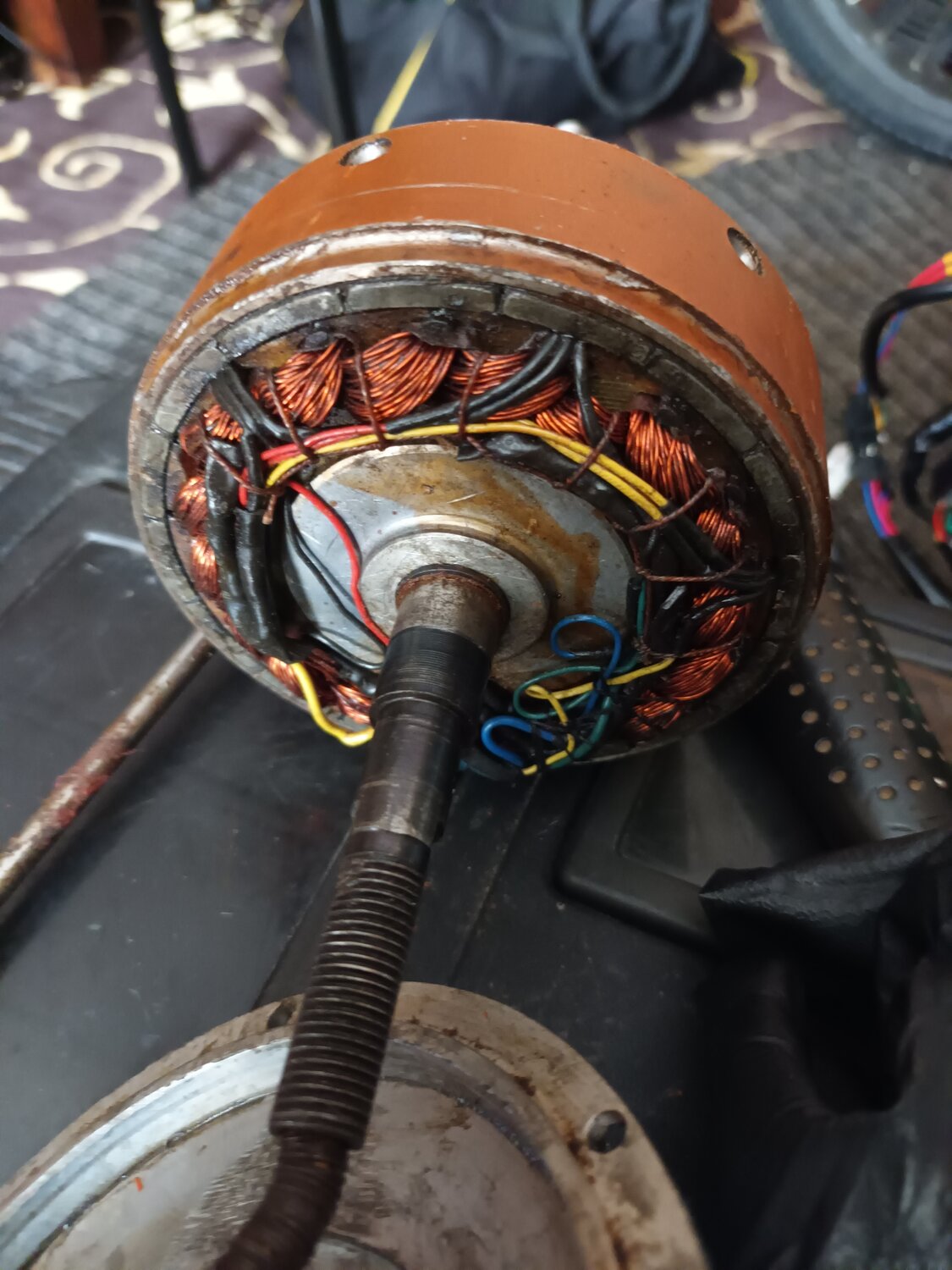

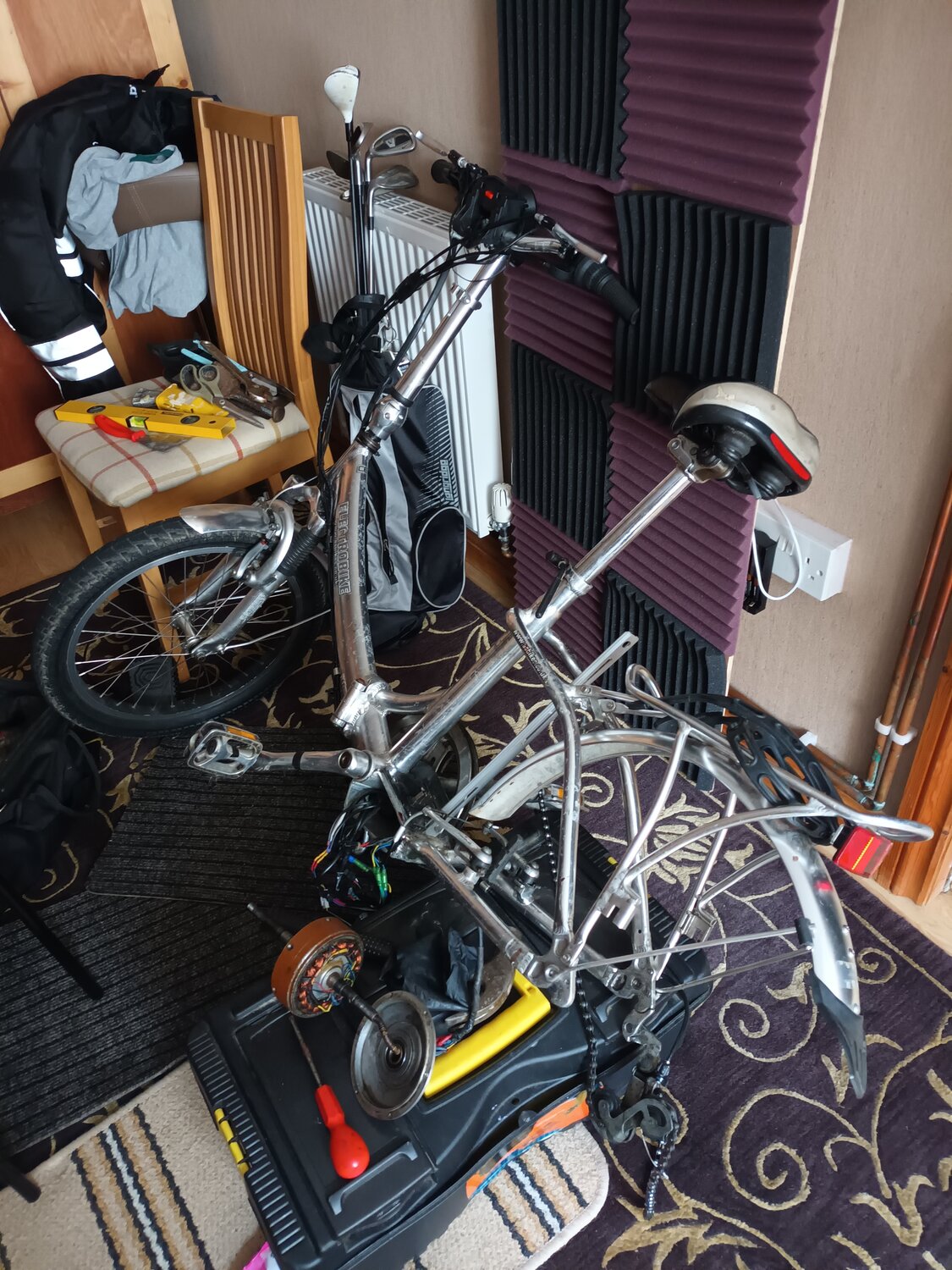

A couple more pictures,I guess I'll need to remove the brown casing, it's an old bike do think the hall sensors will be available?...also I have no way of disconnecting the hub from the frame, it has no 9 pin for quick and easy use.i also cannot use my new ebike tester because I have a different style connectors.The 6 pin,for the hall sensors is a flat style, can't remember the names of these different connectors, but I'm sure you know what I mean!!!.....shall I upgrade it all to a new ebike converter kit and put a puncture Proof tyre on it and have done with it??...future proof like!!!...thanks for all your help
