Nomad and bafang

[jstuller]

I bought some parts from Nomad Cycles in Portland Or: a

BAFANG 1000W BBSHD,​

52v 25Ah Whale Shark Battery

I am afraid i hooked the battery up with a direct short in the wiring. Is this battery salvageable? Thanks



[JRA]

If there is a fusable link in the battery case then that probably blew and could be replaced. Otherwise the BMS took the charge and would need to be replaced? I doubt it affected the cells however. Why not just ask Brad? And I bet that made you jump!



[jstuller]

Thanks, no nothing just doesn't come on. Who is Brad?



[JRA]

Thanks, no nothing just doesn't come on. Who is Brad?

Brad owns Nomad…..



[jstuller]

Duh, it's a great place.I took my battery up there and there's nothing wrong with it. It's very frustrating.I'm not being able to find a clear wiring diagramI have one extra bring five pin plug.I can't figure out where it goes



[Gionnirocket]

Do you have the UART or CANbus...
Wiring is the same... Shape of the connector changes.

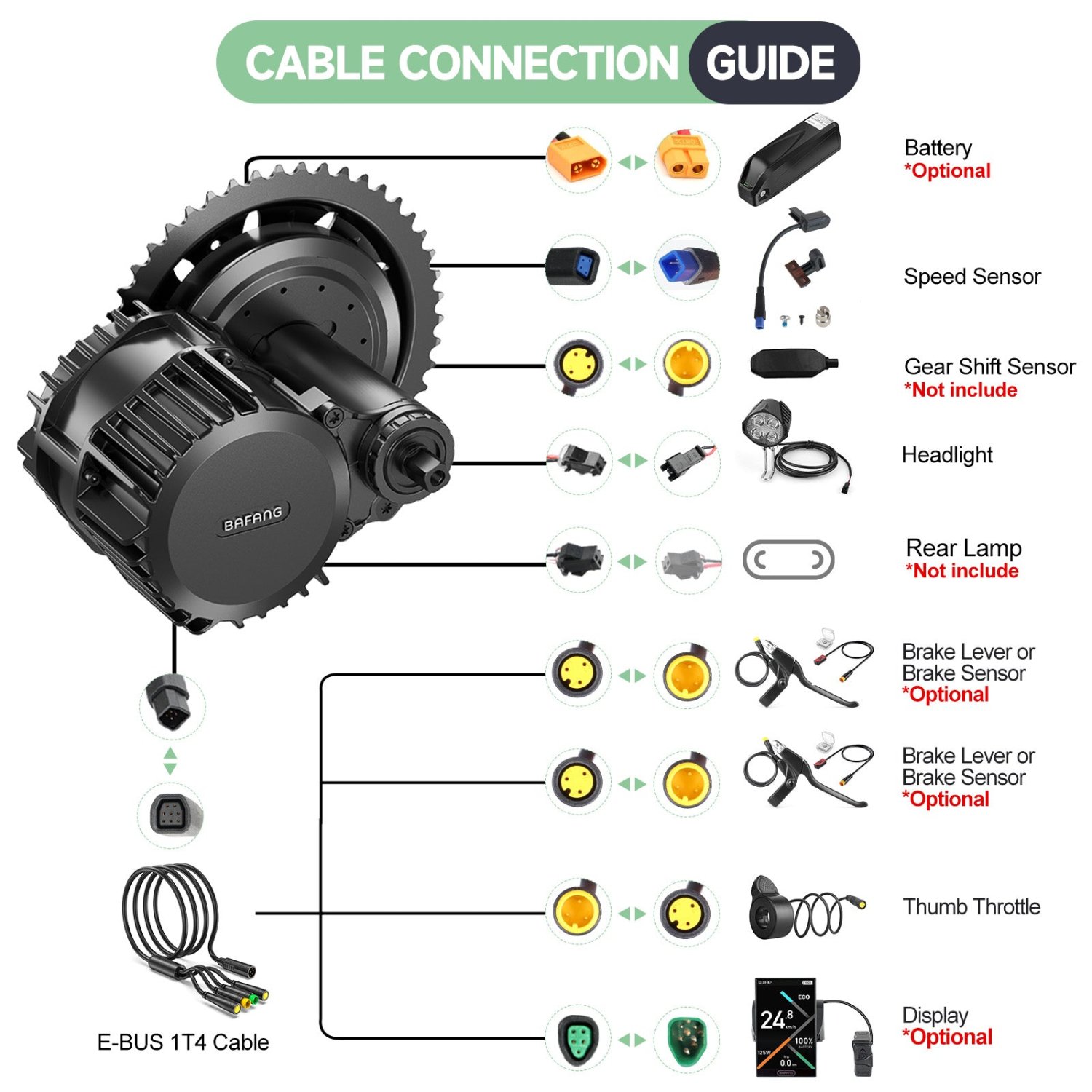

This is CANbus

The only 5 Pin is the display

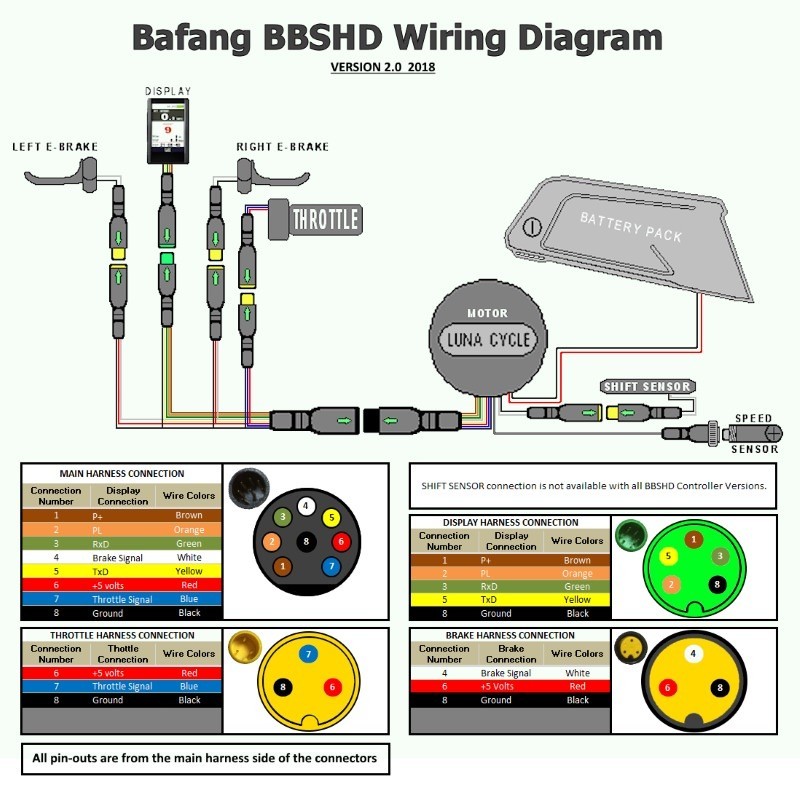

This is an older UART not showing the 2 light connections



[jstuller]

Thank you so much. The wires I ordered off of amazon, our different colored. I can't figure out why then it doesn't come on.I will take it up to nomad and let them work on it
