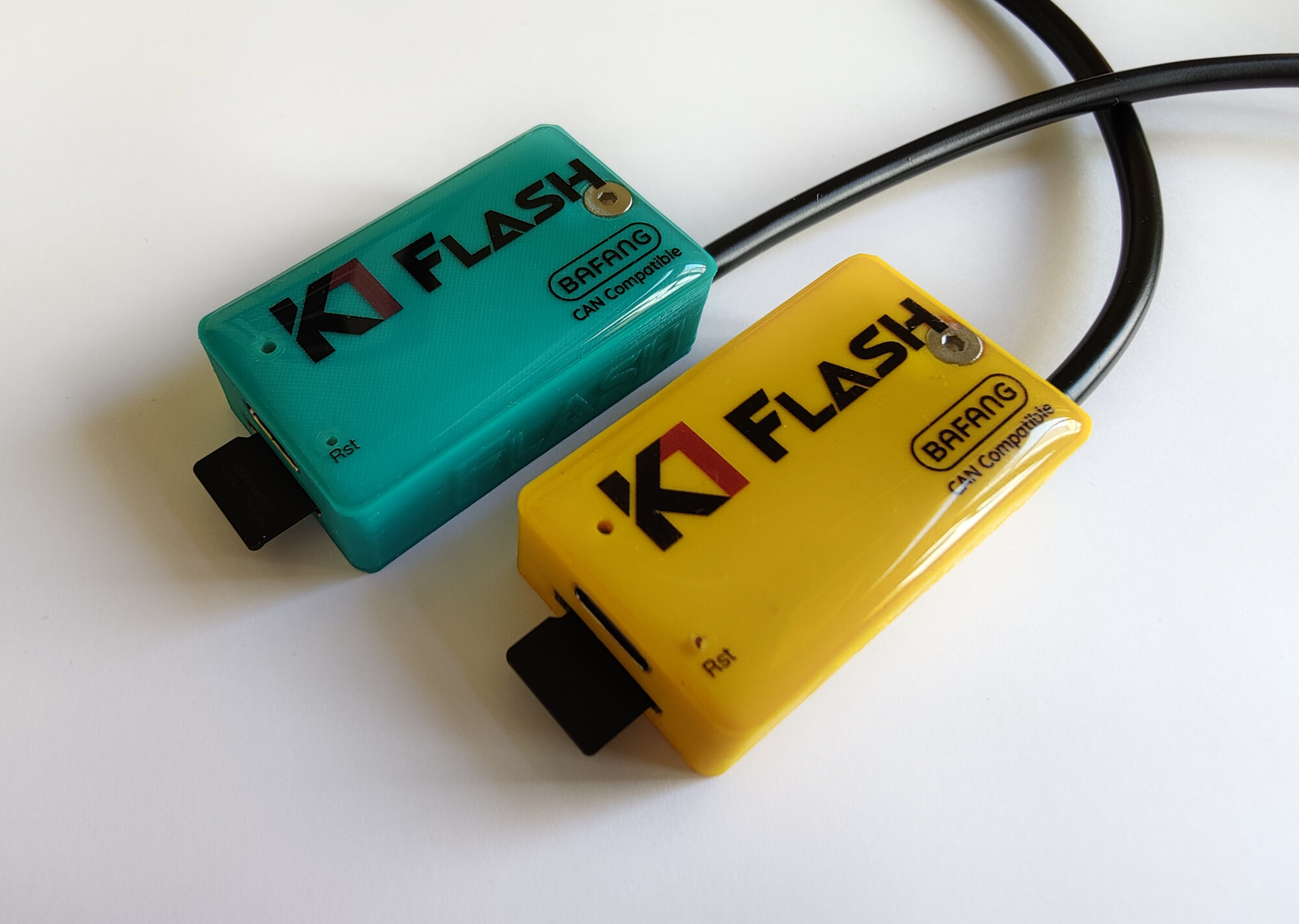

K1 Flash - set Bafang CAN motor parameters, Firmware update and Calibration - M600, M620, M560, M510, M820

[K1eBikes]

Dear Bafang fans

Would you like to set or tune motor controller parameters? K1 Flash is compatible with all Bafang CAN bus motors (5 pin connector with "house" shape).
Also can download motor firmware for M500, M510 and M600 motors and run Calibration.

Simple as 1, 2 ,3 ...

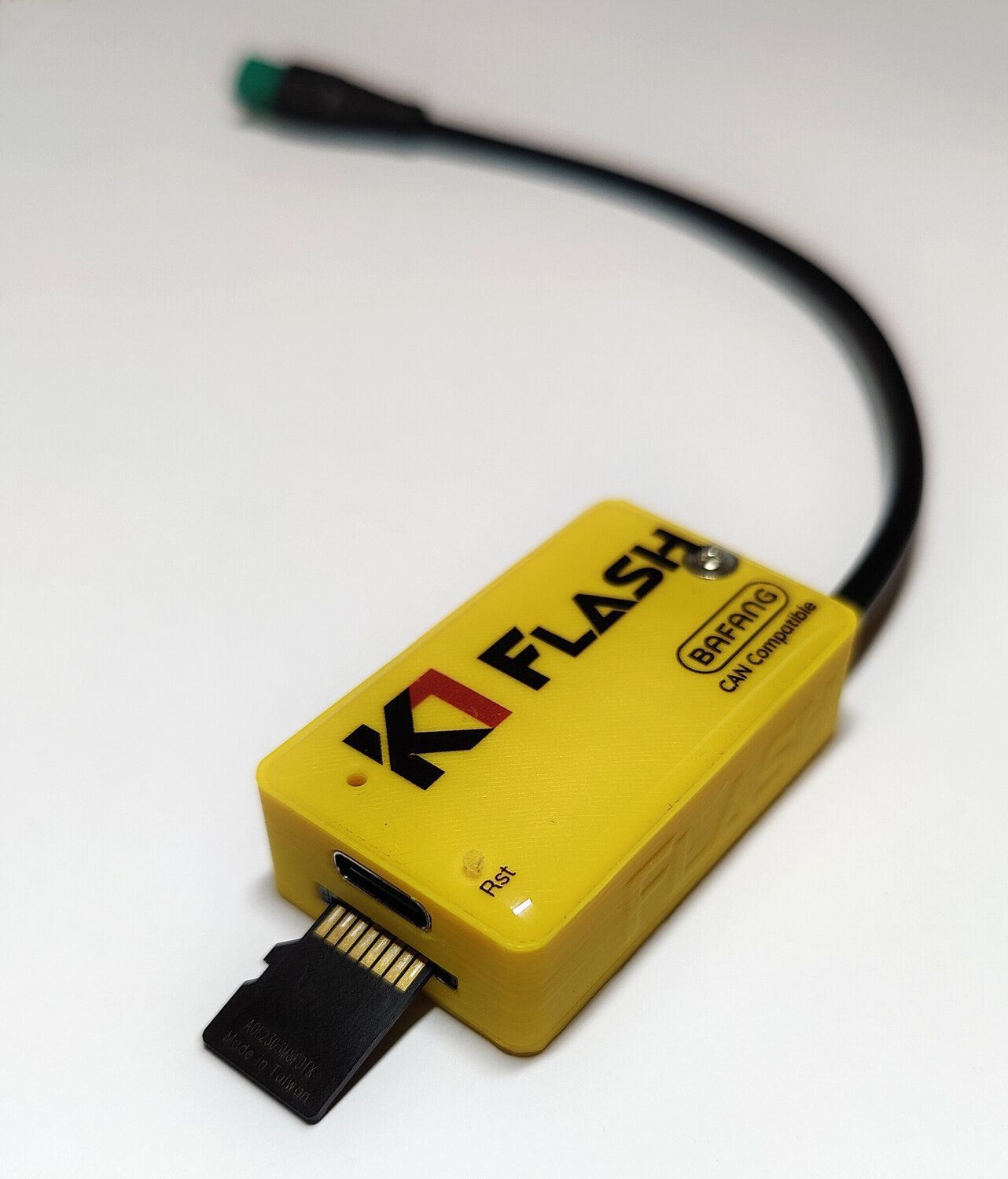

1. Insert included SD card (with set of firmwares - cca 50 firmwares)
2. Power up K1 Flash (over USB-C cable from your mobile, power bank, charger ...)
3. Connect to your CAN motor - steady green LED light means all set and you can unplug device
In a minute your motor is flashed and parameters set according setup text file on SD card.

More info, pictures, video and ordering info at:
K1 Flash page

Tested on M500, M600 rev.A and B, M510 FC1.0 and FC2.x, M620, M560,M820, M420, M300
Speed unlock, circumference, wheel supported by all Bafang CAN motors, including CAN hub motors.

K1 Flash Lite starting from 110 Eur including shipping in EU.



[Nvreloader]

So, it appears that no one has tried this out?
I have found no info so far, other than what is posted here.



[K1eBikes]

Are you not confident with power limitation at low battery SOC%?
Would you like to set lower discharge cut off voltage to get more range from your battery?
Would you like to remove throttle speed limitation?

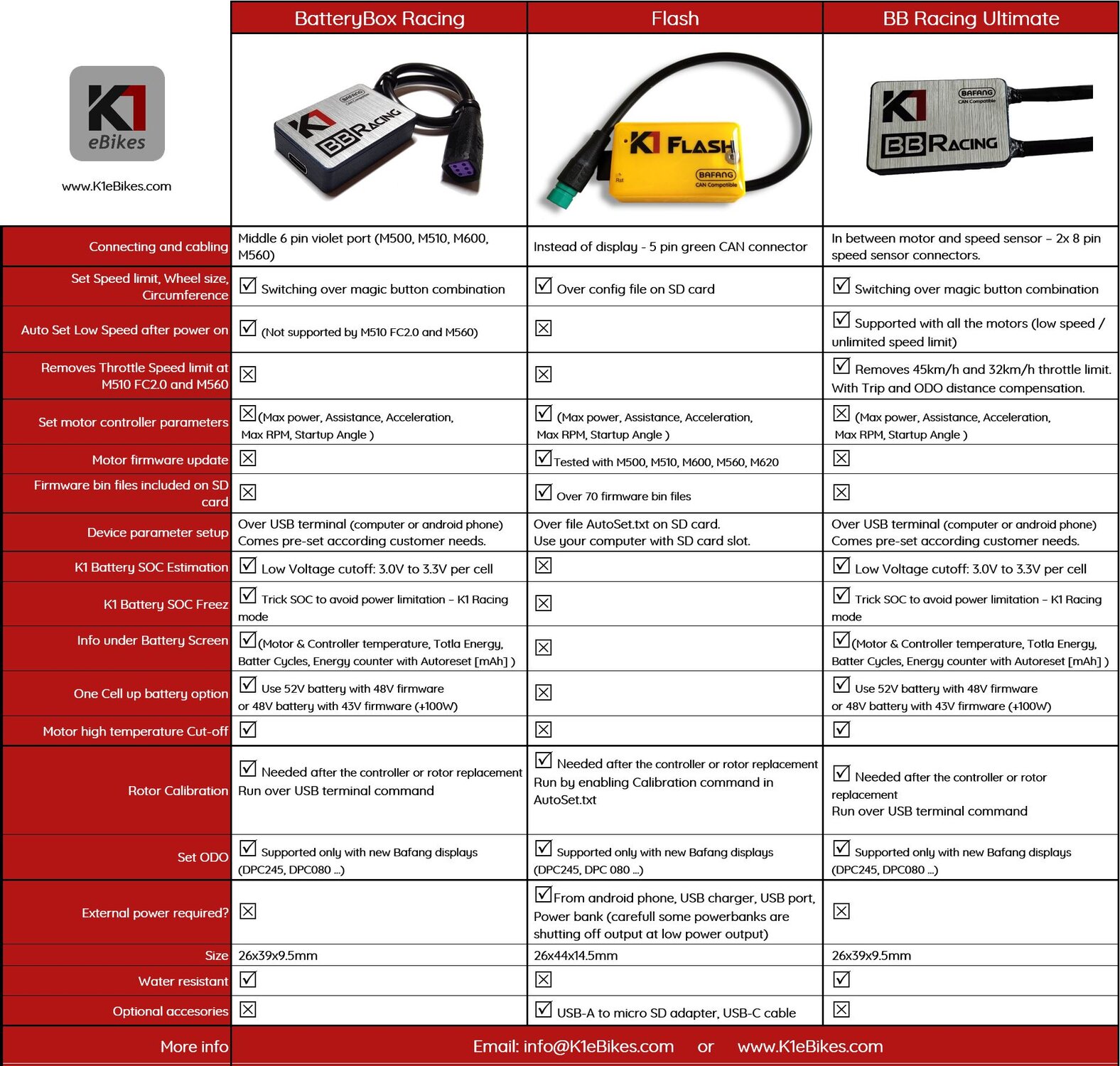

Theres a new device BB Racing, whit many new functions. You can set Low Voltage cut-off to 3.0V per cell or even lower. You can use 52V battery with 48V firmware and have accurate SOC % reading.

Or contact us with any question at [email protected]
www.k1ebikes.com
