I need help!!!

[chaz]

I have a dc48v controller I need a detailed wiring diagram for I'm building a custom electric offroad scooter



[Gionnirocket]

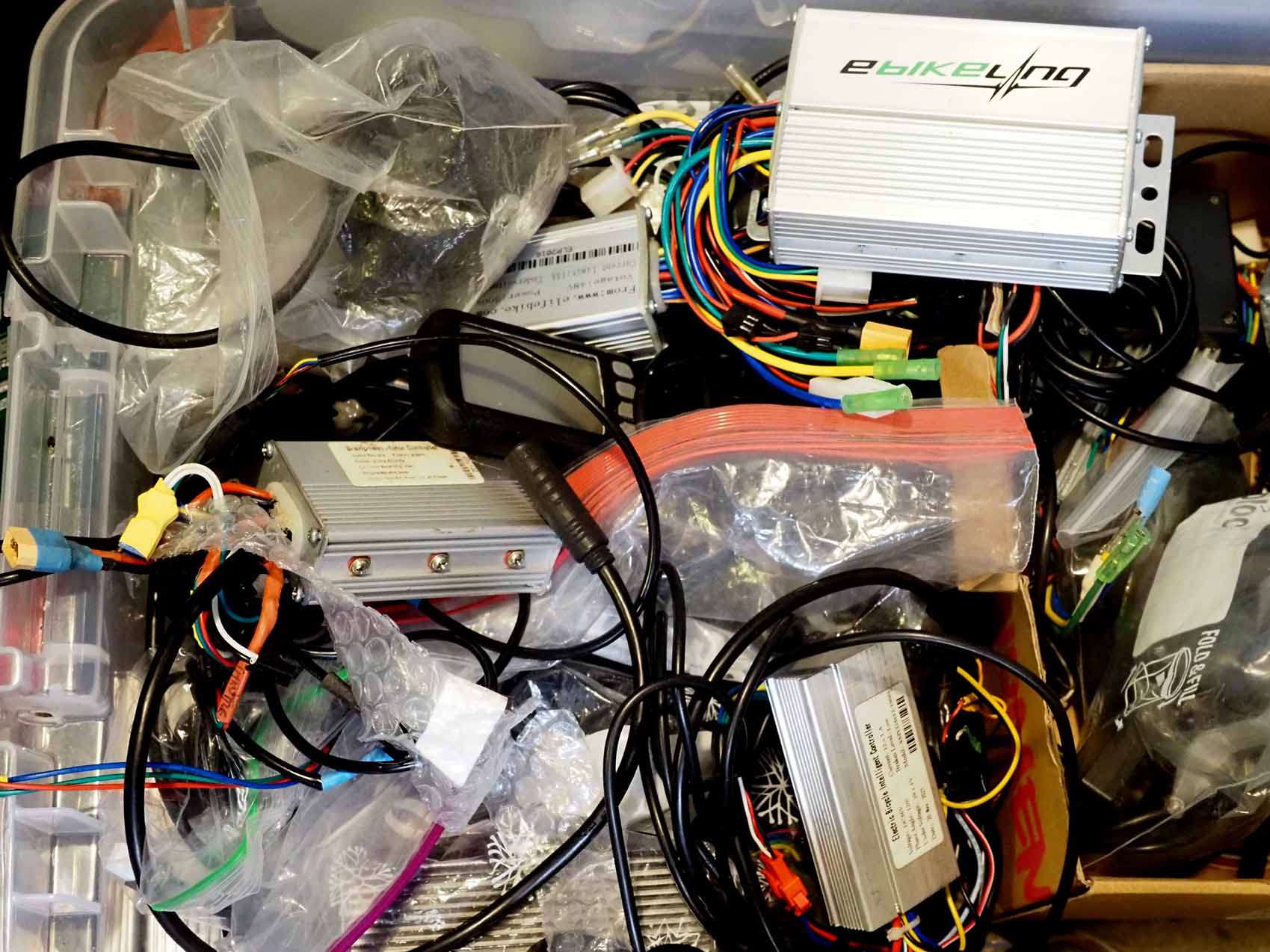

This is the last one I used. Just follow the color codes.



[chaz]

Hilarious!!!



[Gionnirocket]

You'll need a model number or at least a photo of the hardware in question



[chaz]

You'll need a model number or at least a photo of the hardware in question

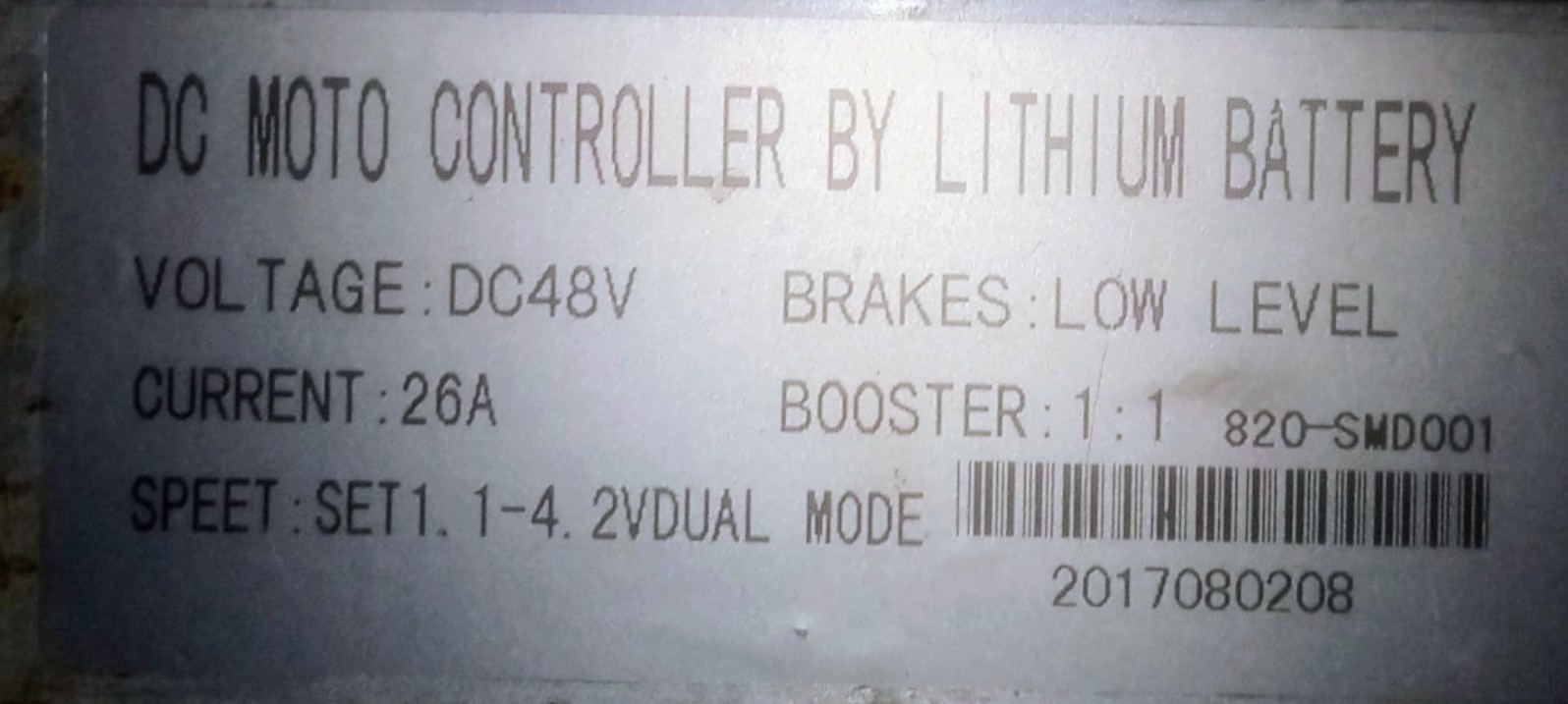

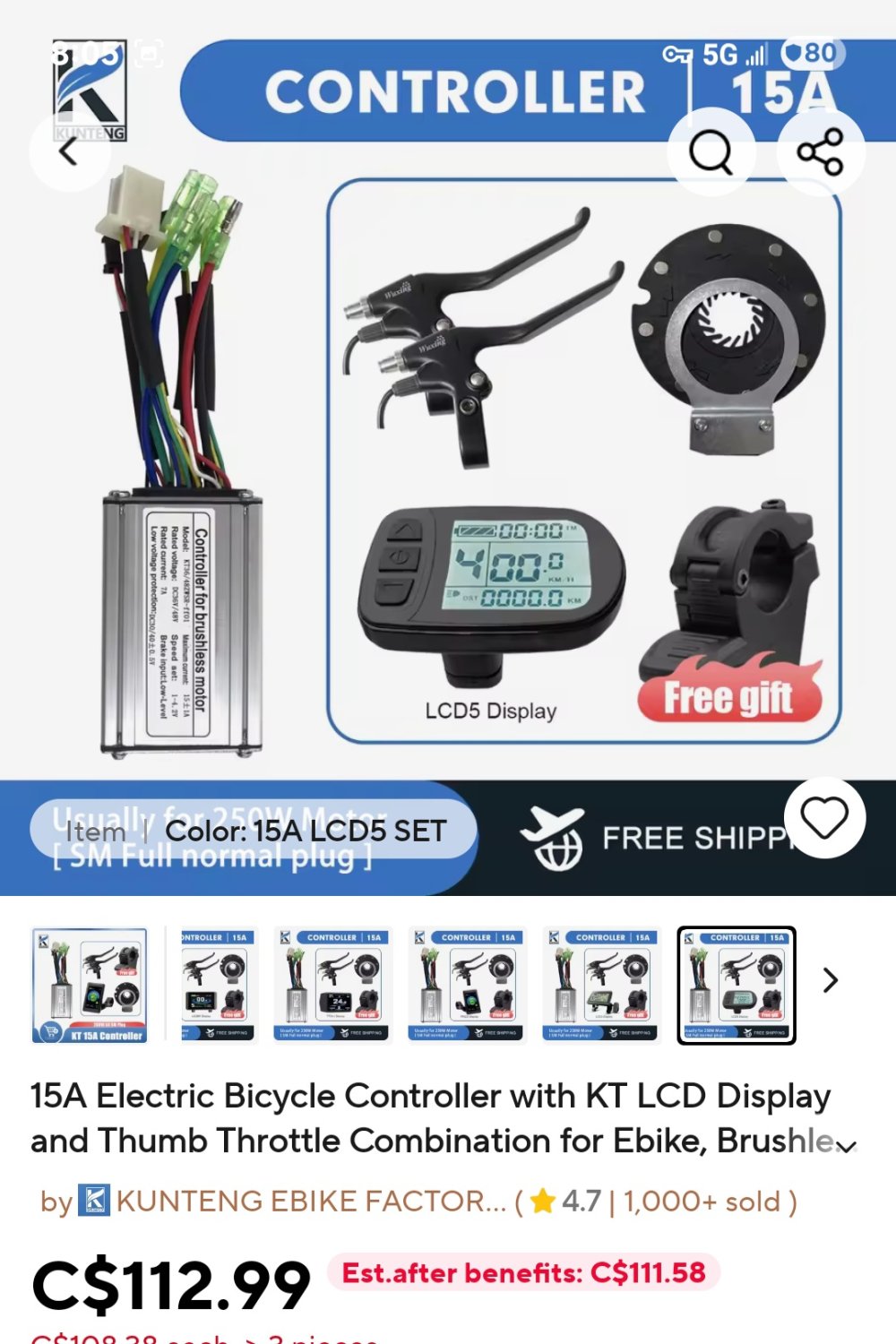

Ok hold on I got one
