5v USB outlet for Letric XP

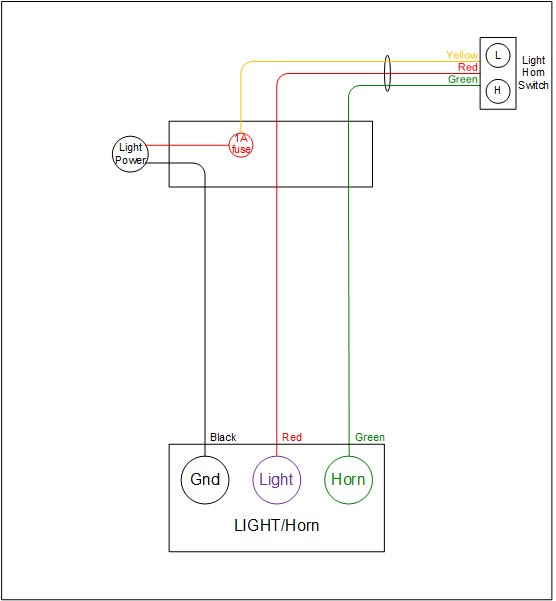

I finally got the new headlight and USB charger wired up, installed and tested. Here is the basic wiring diagram.

Light & switch from eBay. Phone holder USB charger from Ali Express.
