Juiced Dorado Case parts and breakdown may be helpful for all Dorado owners

[tomjasz]

Trying to help a fellow source a new switch, I came across this EXCELLENT pdf covering a Dorado case. A Juiced case, however, the pdf has some of the other pinouts used pictured. GOOD STUFF

Full and rotated versions.



[tomjasz]

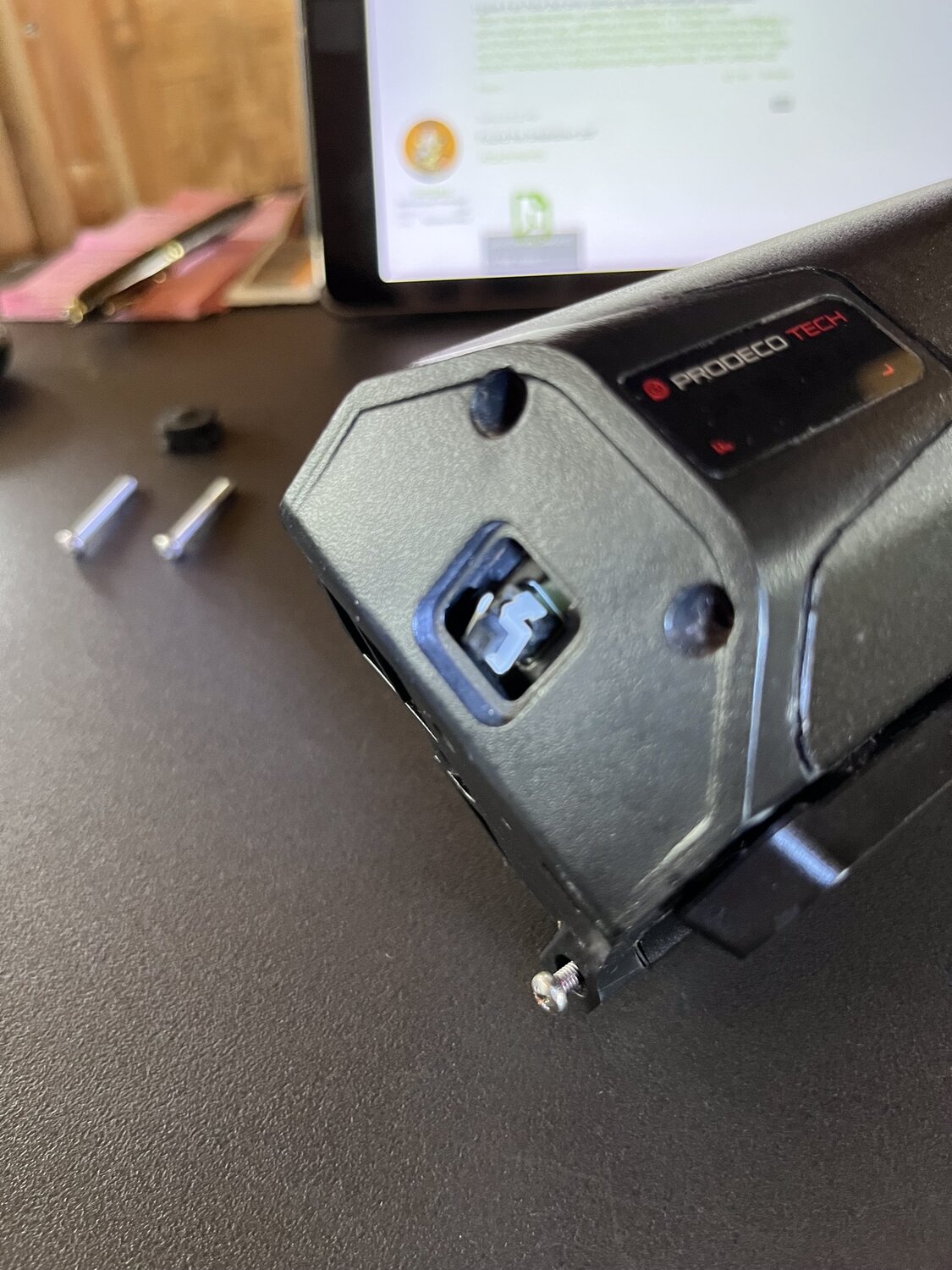

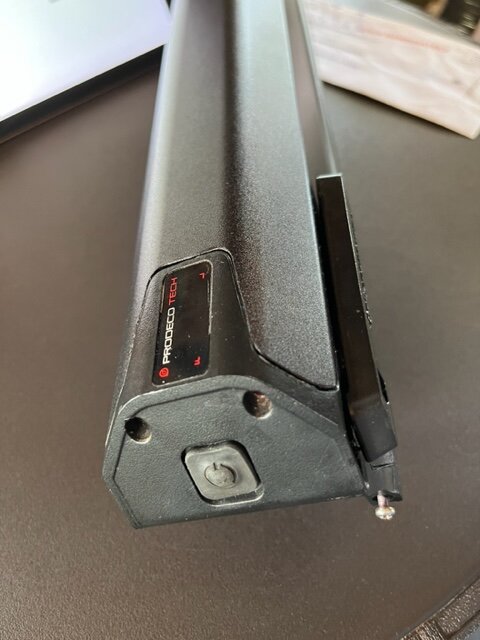

Reention Dorado replacement switch. The rubber button cover has the number PLA0095 molded on the inside but no switch matches. I believe I found the type of switch available most places, it’s a

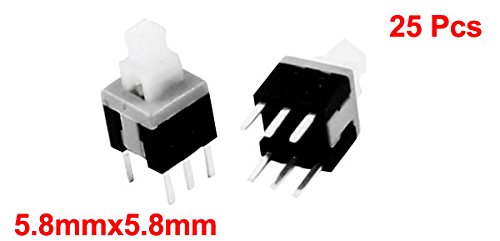

5.8mm x 5.8mm Self-Locking DPDT Mini Push Button Switch.​

Just google the above sentence.​
