Dorado Plus Battery with 6 pins

[sacox31s]

Hello,

I'm trying to find a 48v 20ah Dorado+ 505mm length battery with a 6 pin discharge port. This is for a QuietKat ebike with a BBSHD motor. QuietKat only sells an 11.6ah battery on their website, but I want more capacity.

Also, if 6 pin discharge ports are hard to find is there a downside to changing it to a 2 pin discharge port?

Thanks,

Stuart



[longlegs]

I don't think it's hard to switch to 6 pin.

Did you contact a battery builder?

Dorado MAX Battery 52V Version

This Battery sticks out a bit further with a total length of 56mm longer from the base of the frame. Battery Specifications 52V 14Ah to 17.5Ah Lithium Polymer Battery Pack in Frame Battery 1 year manufacturer warranty Specifications:Model: Bottle type Battery material: li-polymer Nominal...

ebikemarketplace.com

Sir, do you happen to know where to get this 6-pin discharge port?



[Jenny Mao]

Hello,

I'm trying to find a 48v 20ah Dorado+ 505mm length battery with a 6 pin discharge port. This is for a QuietKat ebike with a BBSHD motor. QuietKat only sells an 11.6ah battery on their website, but I want more capacity.

Also, if 6 pin discharge ports are hard to find is there a downside to changing it to a 2 pin discharge port?

Thanks,

Stuart

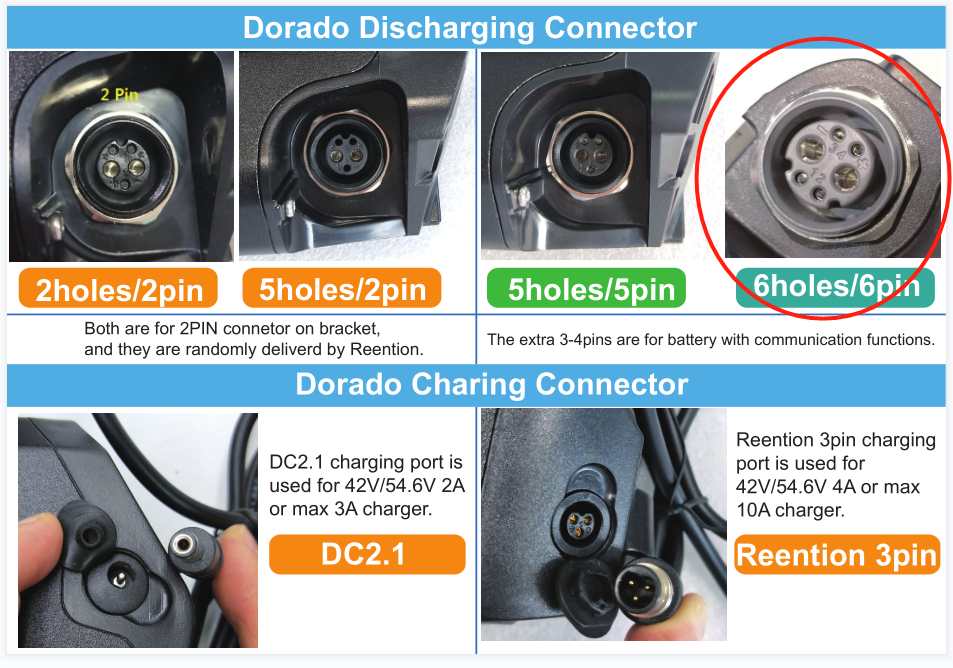

Hello, Dorado 48V 25Ah now is available upgrade for Dorado 505L frame. 2pin/5pin/6pin discharing port are all available for customization.

Reention 21700 Dorado Battery 48v 29ah 25ah 48v Ebike Battery High Capacity Lithium Ion 48v 52v Ebike Battery For 1000w Ebike - Buy 48v Ebike Battery 48v 30ah Battery dorado Battery 48v 48v Ebike Battery 48v 25ah Battery Product on Alibaba.com

Reention 21700 Dorado Battery 48v 29ah 25ah 48v Ebike Battery High Capacity Lithium Ion 48v 52v Ebike Battery For 1000w Ebike - Buy 48v Ebike Battery 48v 30ah Battery dorado Battery 48v 48v Ebike Battery 48v 25ah Battery Product on Alibaba.com

www.alibaba.com



[Jenny Mao]

Sir, do you happen to know where to get this 6-pin discharge port?

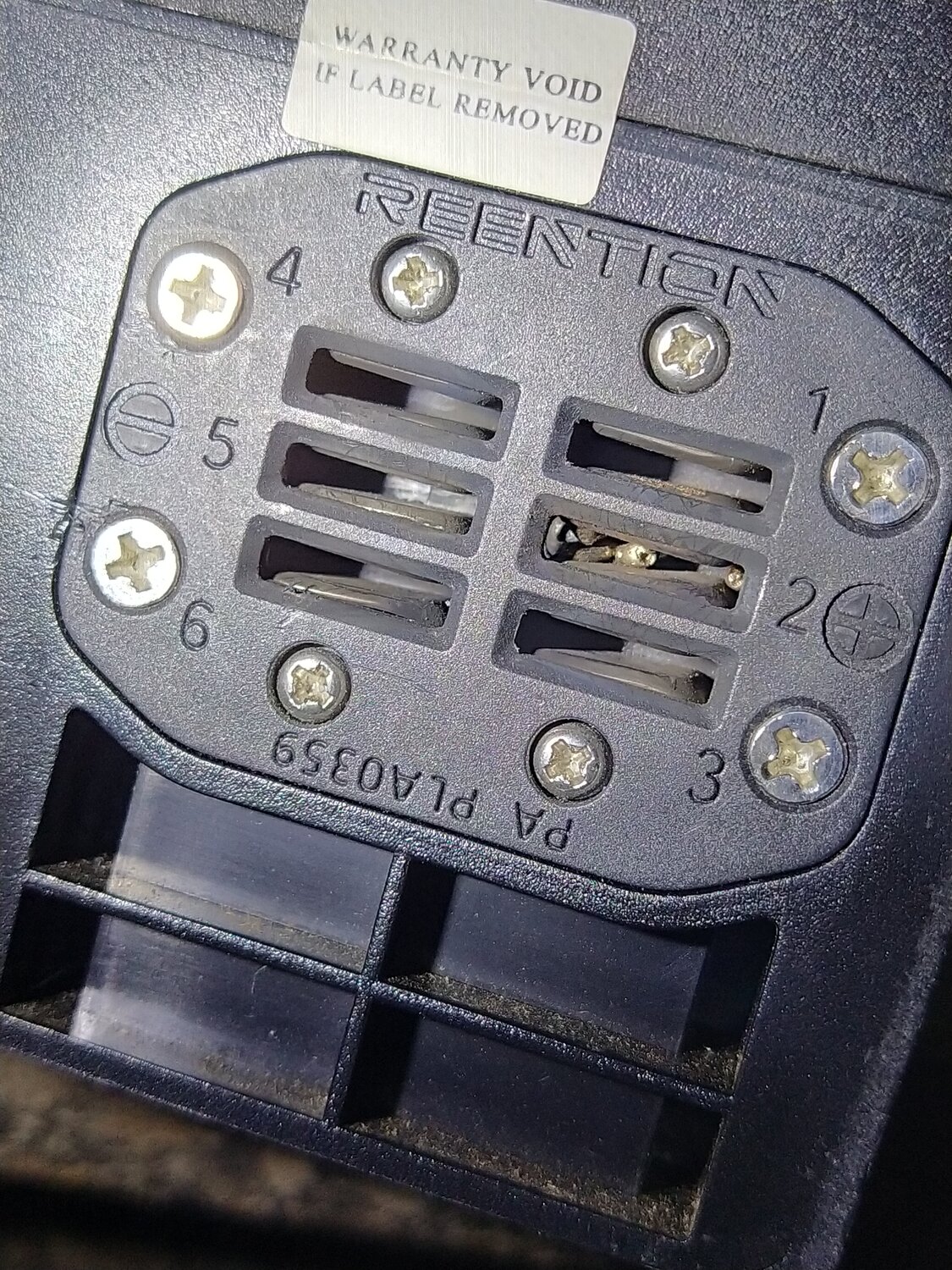

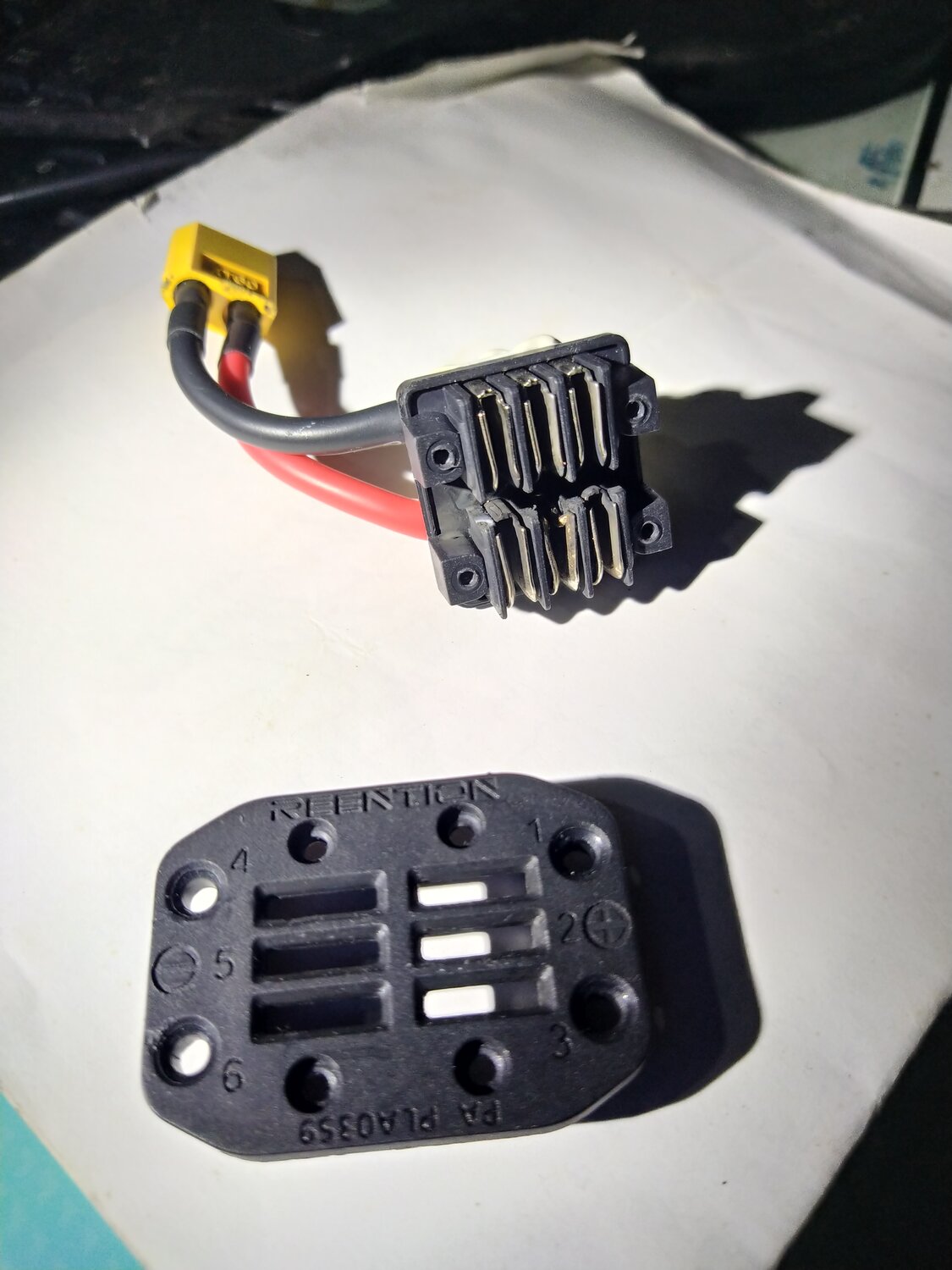

It is indeed Reention 6pin discharing port used on most their new designed intergrated case, like Kirin, Rhino,Hippo, Gerlon,Bee...
We can help source some parts from Reention and can be sent for free when ordering a battery.
