Bosch Intuvia Display Dual Battery Symbol

[Nothgiel]

What does the greyed out battery symbol mean on the Bosch Intuvia Display?


(Link Removed - No Longer Exists)



[AlanDB]

I just looked at my Intuvia and I don't see a second or greyed out battery symbol. Could you post a picture of it?

You aren't by chance talking about the assist mode symbol are you (shows stacked empty bars with "Off" at the bottom)?



[Nothgiel]

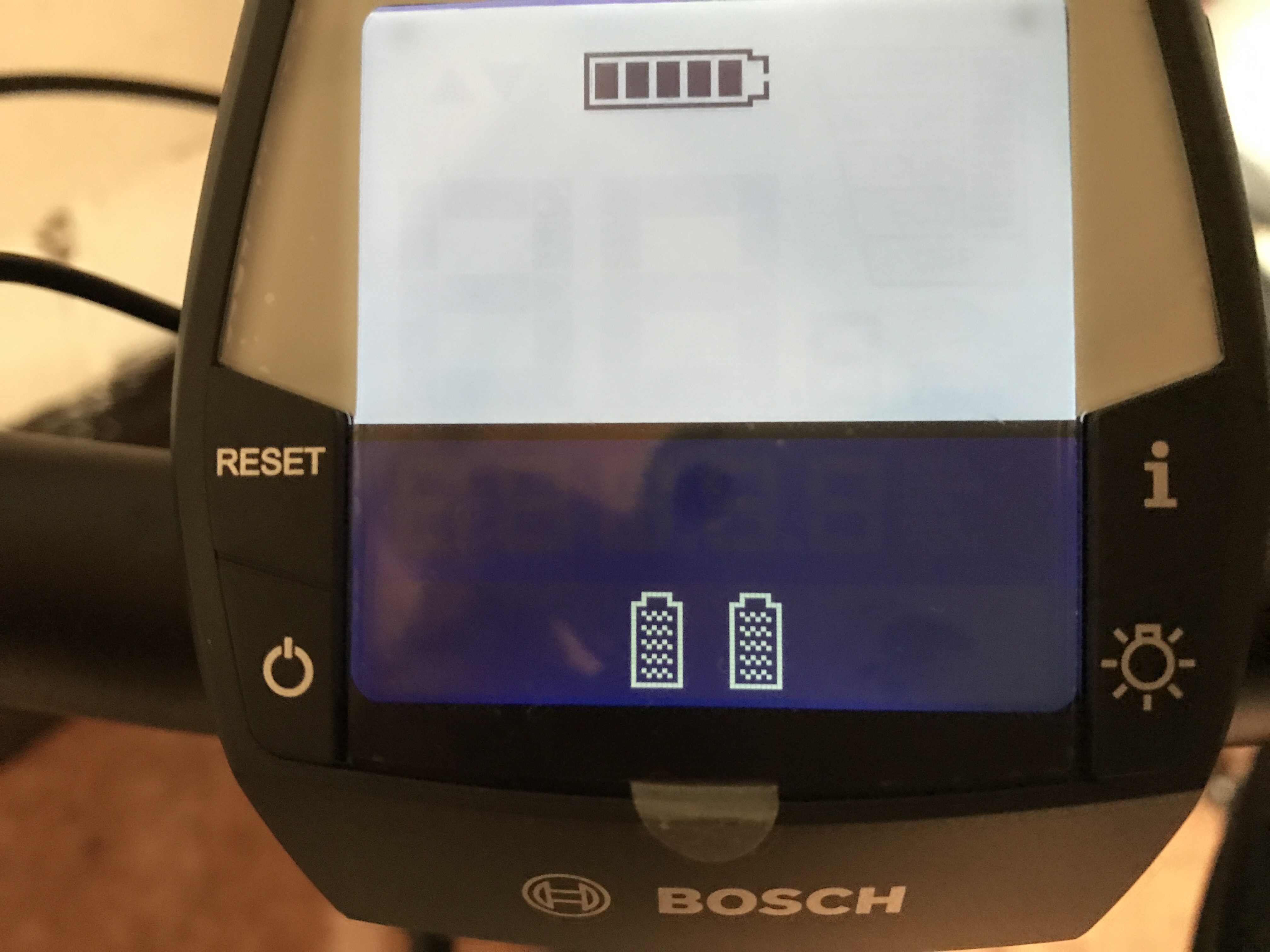

Picture of Intuvia with greyed out symbols



[Ravi Kempaiah]

Picture of Intuvia with greyed out symbols View attachment 33902

At any one point, one of the batteries are being used.
The greyed out battery is not in use.
Bosch software switches/toggles between two batteries every 5% to discharge them equally.



[AlanDB]

Ah...that explains it. I guess that doesn't show unless you have 2 batteries.



[RMSDivine]

So according to the previous messages, the dual display will show only what battery is being used, while the general battery status indicator (horizontal) is the average battery charge left?
