Torque Setting for BBS02 Chainring Bolts?

Ridetoglide

Active Member
Region
USA
Does anybody know what torque setting to use for the bolts to attach the chaining to the motor for the BBS02 on the Stunner X? I ended up using 110 inch pounds / 12.4 Nm. I am just curious if this is too much or too little. thanks

I Just replaced the stock 42T chainring with a 36T Lekkie BlingRing. The bike will climb Mt Saint Hellen now!!


Attachments

  • IMG_7331.JPG
    64.2 KB · Views: 275
  • IMG_7332.JPG
    58 KB · Views: 270
  • IMG_7333.JPG
    32 KB · Views: 305
For M5 bolts that would seem like a lot. I wouldn't have gone past 8. If those are 12.9's - probably they are - you're just over the max. Still I'd think 8 to be good. Maybe 9/10? and check it occasionally.

Curious myself as to what Lekkie would say.


Last edited:
For M5 bolts that would seem like a lot. I wouldn't have gone past 8. If those are 12.9's - probably they are - you're just over the max. Still I'd think 8 to be good. Maybe 9/10? and check it occasionally.

Curious myself as to what Lekkie would say.

Thank you.. good to know for next time.. hopefully i did not damage the threads on the motor. I ordered some new bolts on amazon, i will replace the old ones an torque them to 8 or 9 nm and use a dab of blue Locktite

Thank you.. good to know for next time.. hopefully i did not damage the threads on the motor. I ordered some new bolts on amazon, i will replace the old ones an torque them to 8 or 9 nm and use a dab of blue Locktite
I think you are correct in what you are worrying about. Bolts will likely just stretch a little unless you really go ape. But a motor's internal threads are a lot harder to fix.

I'll make a pitch for ZERO loctite regardless of the strength used. A properly applied, correct torque spec is almost always the solution to a bolt backing off on a bike. I've seen plenty of issues with even blue loctite on mission critical parts.

If you MUST use a threadlocker, consider Vibra Tite gel. Also blue. VT is a vibration-resistance product with roots in aviation. It never truly dries. It just goops up the threads sufficiently so they don't back off. I learned about it participating in shooting sports, where the old hands use it on extremely expensive - and delicate - optics that are subject to repeated, severe recoil impact.

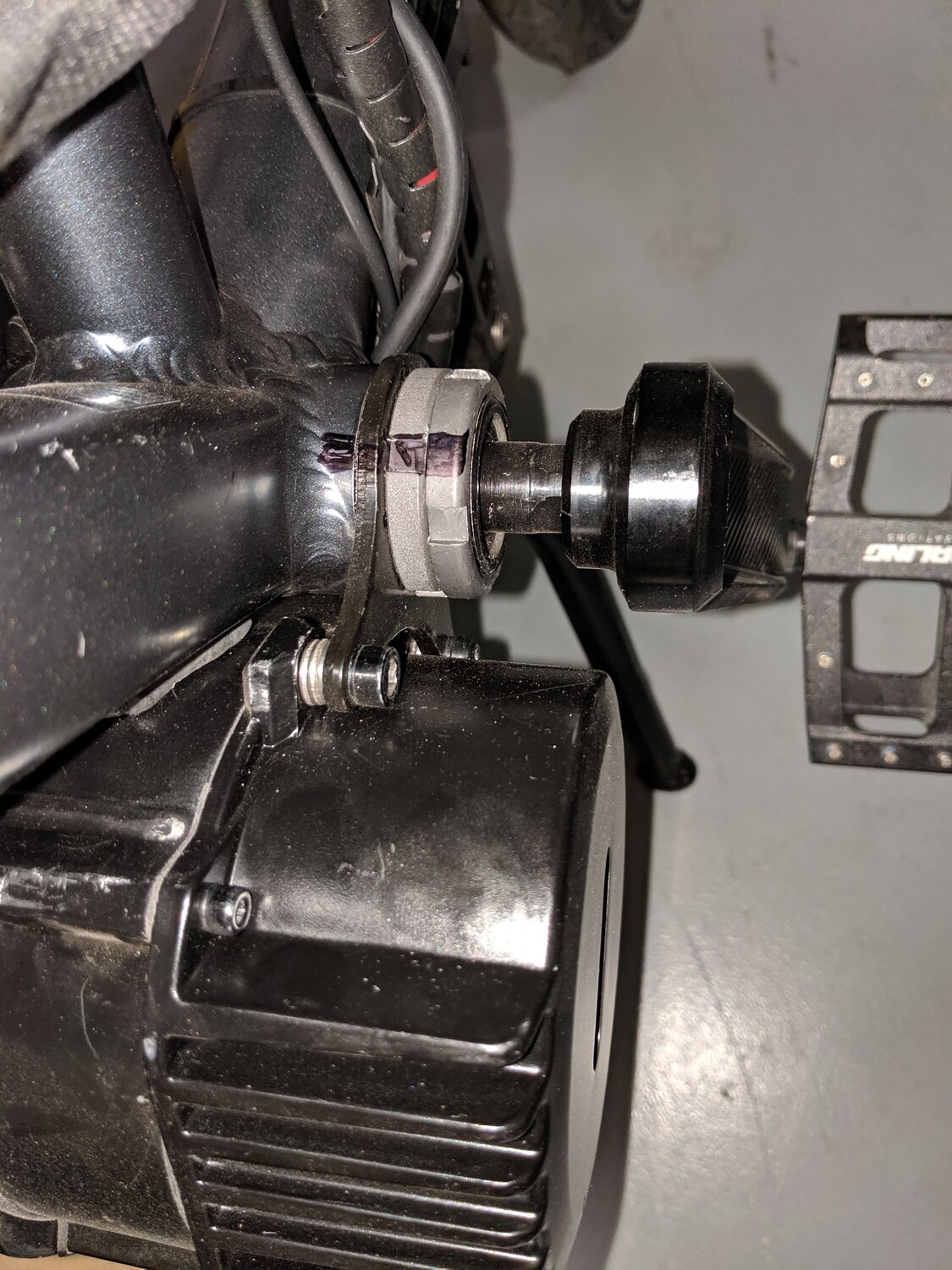

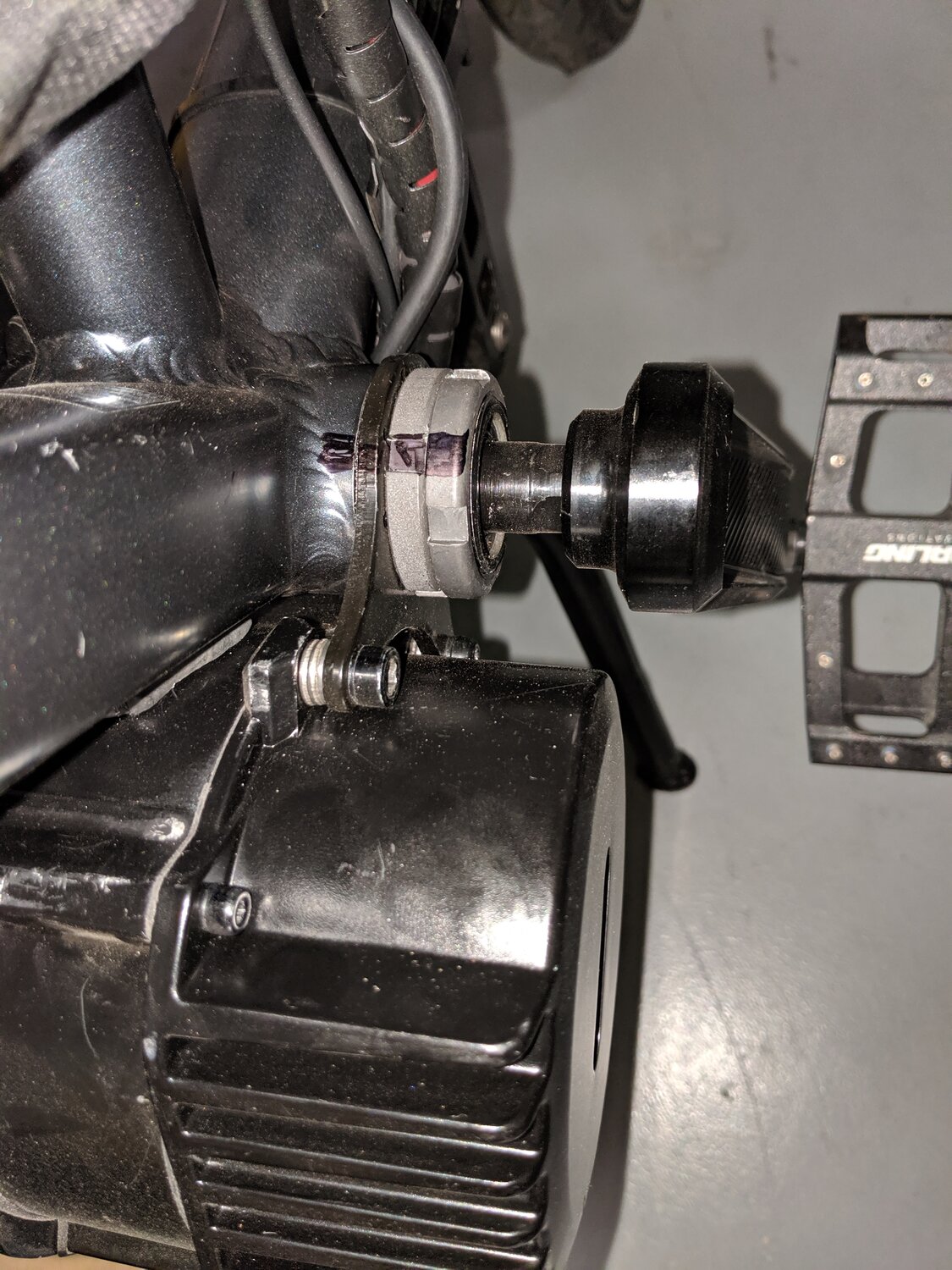

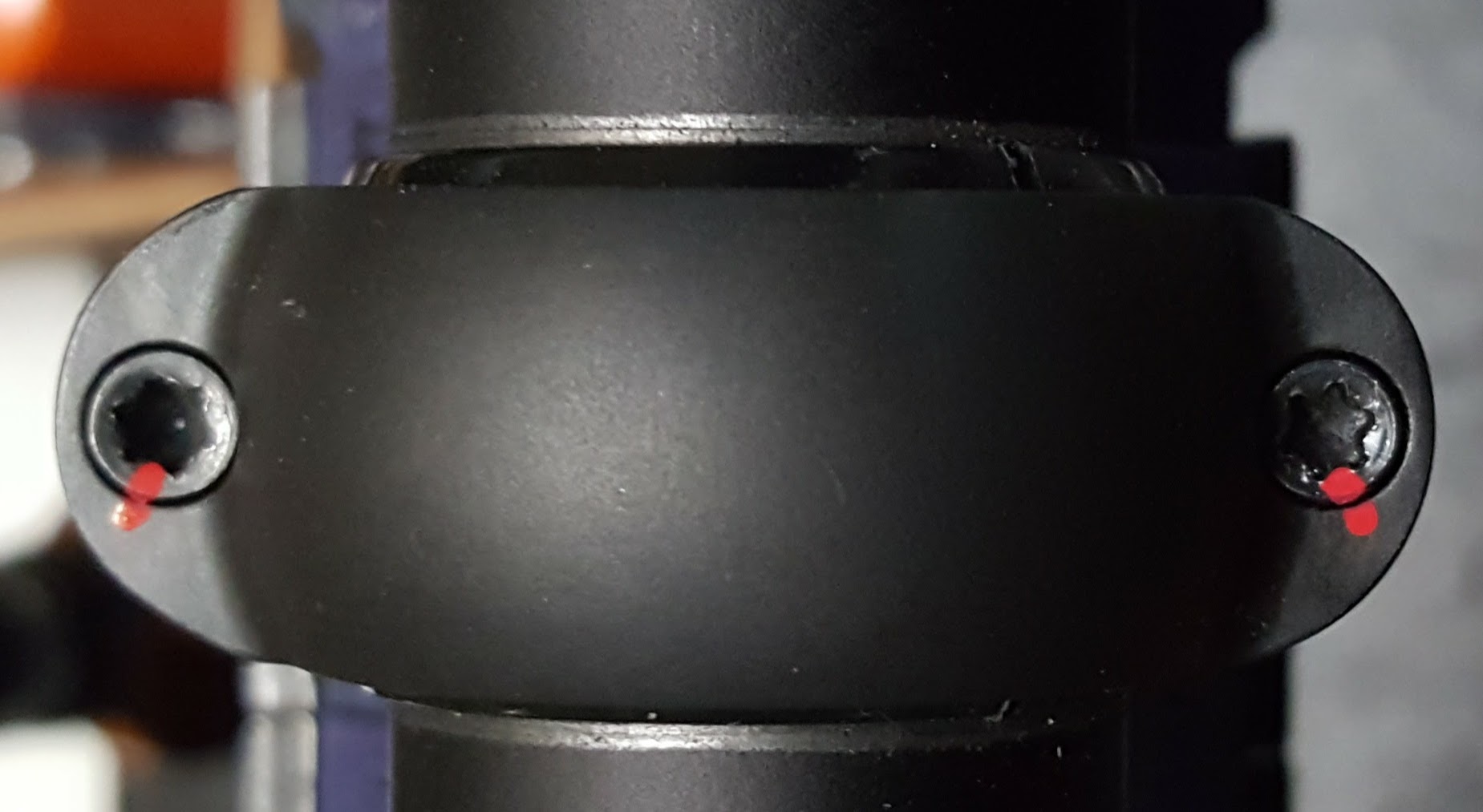

Another trick preferable to thread locker: Use registration marks. The first pic shows a big fat sharpie covering the two rings plus the bottom bracket of a BBSHD install. Its meant to be seen from a standing glance down so I made it obvious. In the second picture I used a thin red oil pencil from Amazon on much smaller parts (the pencil'd rings show if the tube is shifting back/forth).

Do marks like this and all you have to do is glance at them to see if they can be left alone.

I think you are correct in what you are worrying about. Bolts will likely just stretch a little unless you really go ape. But a motor's internal threads are a lot harder to fix.

I'll make a pitch for ZERO loctite regardless of the strength used. A properly applied, correct torque spec is almost always the solution to a bolt backing off on a bike. I've seen plenty of issues with even blue loctite on mission critical parts.

If you MUST use a threadlocker, consider Vibra Tite gel. Also blue. VT is a vibration-resistance product with roots in aviation. It never truly dries. It just goops up the threads sufficiently so they don't back off. I learned about it participating in shooting sports, where the old hands use it on extremely expensive - and delicate - optics that are subject to repeated, severe recoil impact.

Another trick preferable to thread locker: Use registration marks. The first pic shows a big fat sharpie covering the two rings plus the bottom bracket of a BBSHD install. Its meant to be seen from a standing glance down so I made it obvious. In the second picture I used a thin red oil pencil from Amazon on much smaller parts (the pencil'd rings show if the tube is shifting back/forth).
View attachment 85822View attachment 85824
Do marks like this and all you have to do is glance at them to see if they can be left alone.
The marks are a great idea, i used to put marks on my motorcycle axle bolts after installing the front and back wheel. I didnt even think about that for the bicycle. Thanks
