Source for Magura Motor Cutout Switch

6zfshdb

6zfshdb

Well-Known Member
Region
USA
City
Northeast Pennsylvania

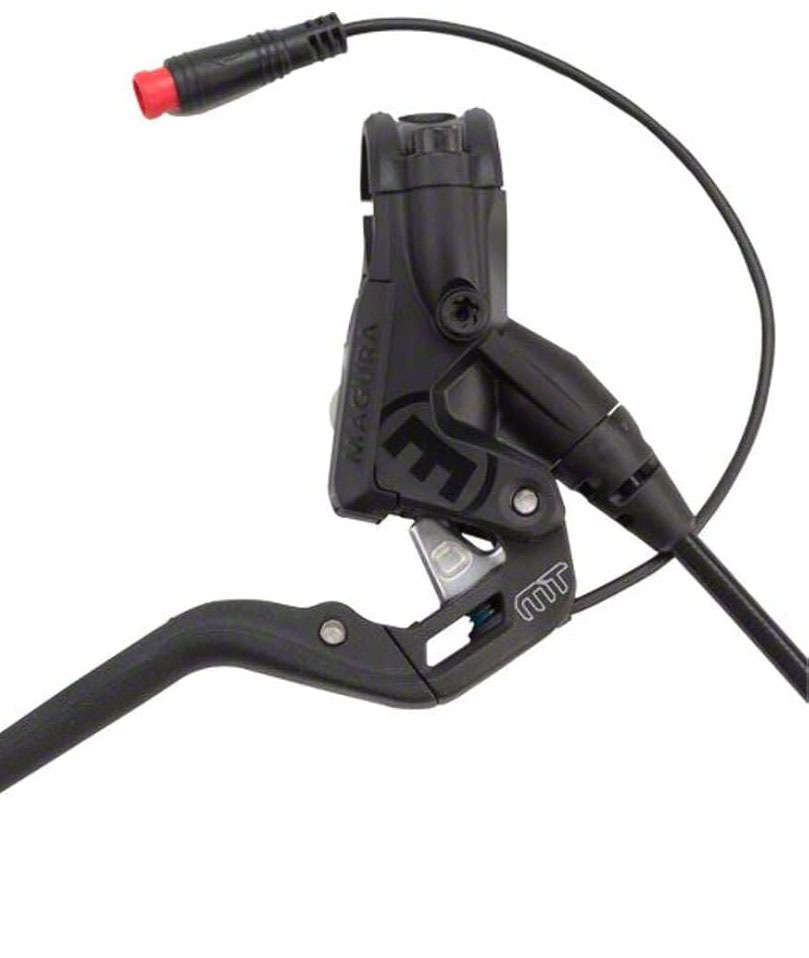

Anyone find a source for the motor cutout micro switch imbedded in a Magura brake handle? It's a replaceable part, but I have yet to find one. I can usually clean the buildup of road debris from the mechanism but I have two with bad contacts inside the sealed switch. So far, I've only been able to find the complete lever assembly and the $65 price tag is a big turnoff.

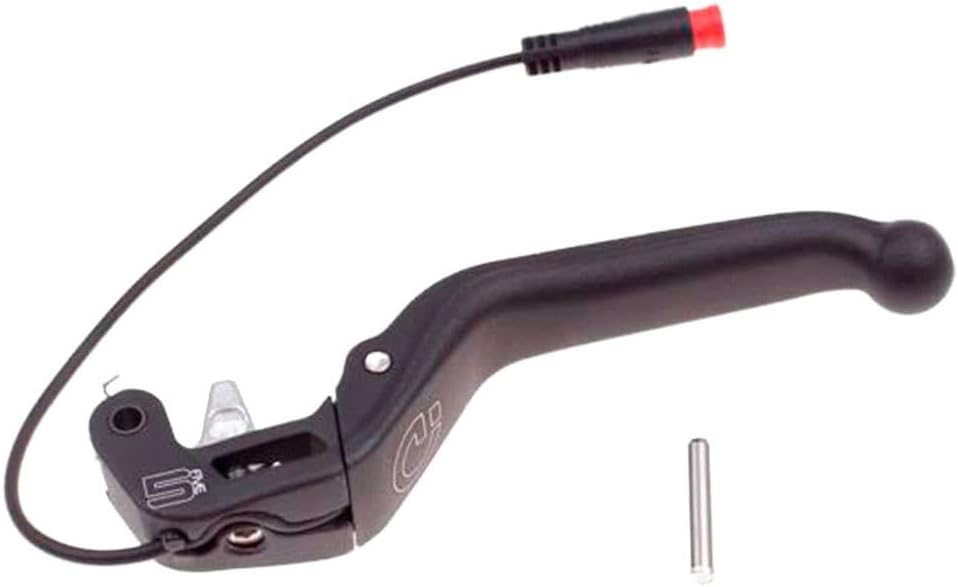

Amazon.com : Magura MT5e Disc Brake Lever Blade for E-Bike Aluminum : Sports & Outdoors

Amazon.com : Magura MT5e Disc Brake Lever Blade for E-Bike Aluminum : Sports & Outdoors
www.amazon.com

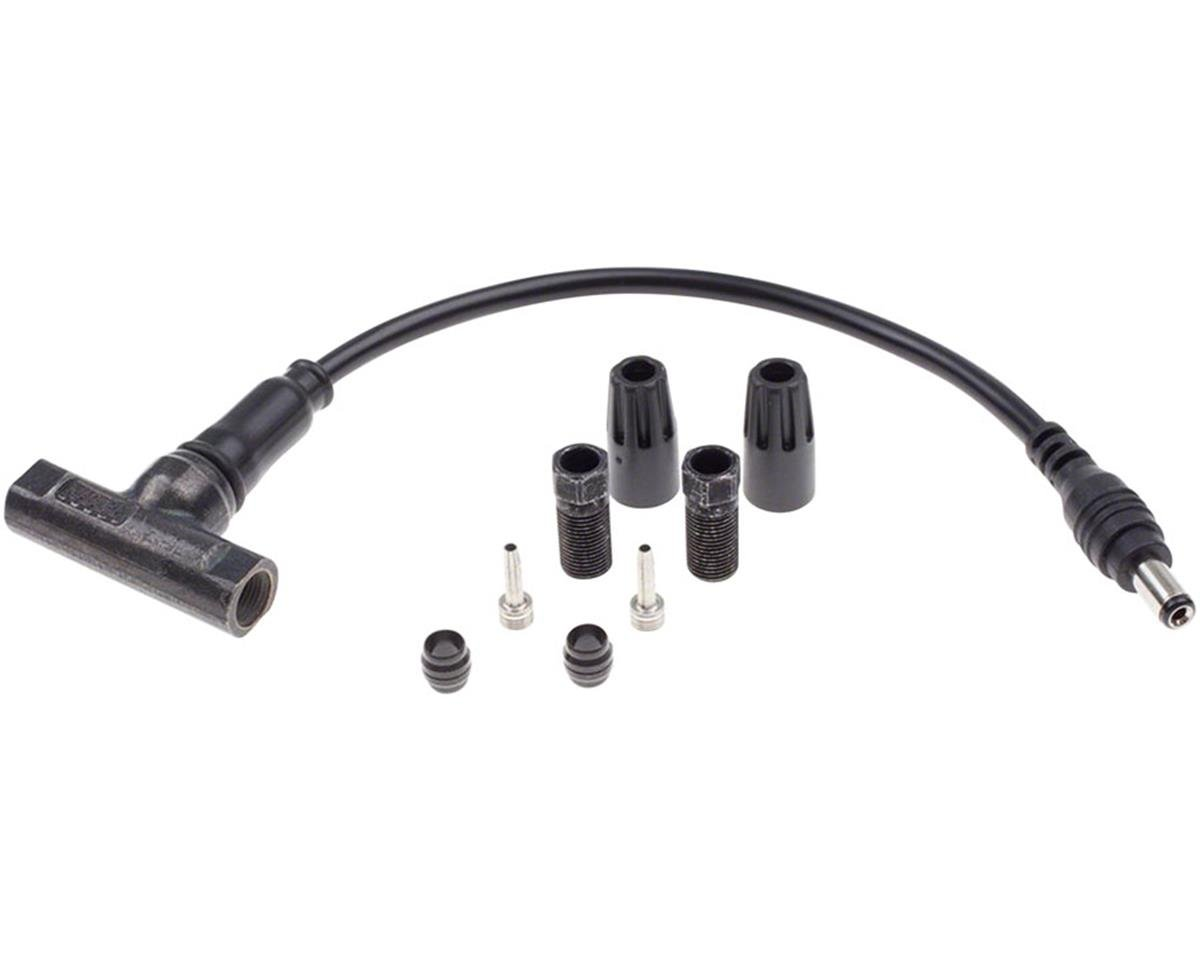

If I have to, I'll convert to the hyd. pressure switches used on newer brake systems:

www.performancebike.com

Magura eBike Brake Pressure Switch (For Magura Rim and MT Disc Brakes)

The Magura hydraulic brake pressure/motor cut-off switch is specifically designed to control functions such as the on/off features of the lights and... 0_724_344
www.performancebike.com www.performancebike.com

A bit cheaper but a lot more work than just replacing a switch.

Gionnirocket said:
Are the Magura mineral oil?
If so I wonder if you can use a Tektro lever... the brake sensors are easily found/replaced
Click to expand...
Yes, Magura uses "Royal Blood" mineral oil.
I'll look into the Tektro, but I doubt the parts are compatible.
Thanks for the tip though.

6zfshdb said:
Yes, Magura uses "Royal Blood" mineral oil.
I'll look into the Tektro, but I doubt the parts are compatible.
Thanks for the tip though.
Click to expand...
Yeah I don't know how you can know other than testing as those types of specs are not published. You might have a different line fitting but that's easily changed. More important is the operating pressure/fluid travel amount with a lever squeeze.
That said... How different can it be??

Curiosity got me and after doing a little reading consensus is that my suggestion isn't as plausible as I thought....basically for the reasons I stated.
That said I couldn't find any results from anyone that actually tried it. So maybe if I had the hardware lying around I might try it but I wouldn't spend any money to.
You find any source for the sensor itself? Does Magura have any helpful customer service?

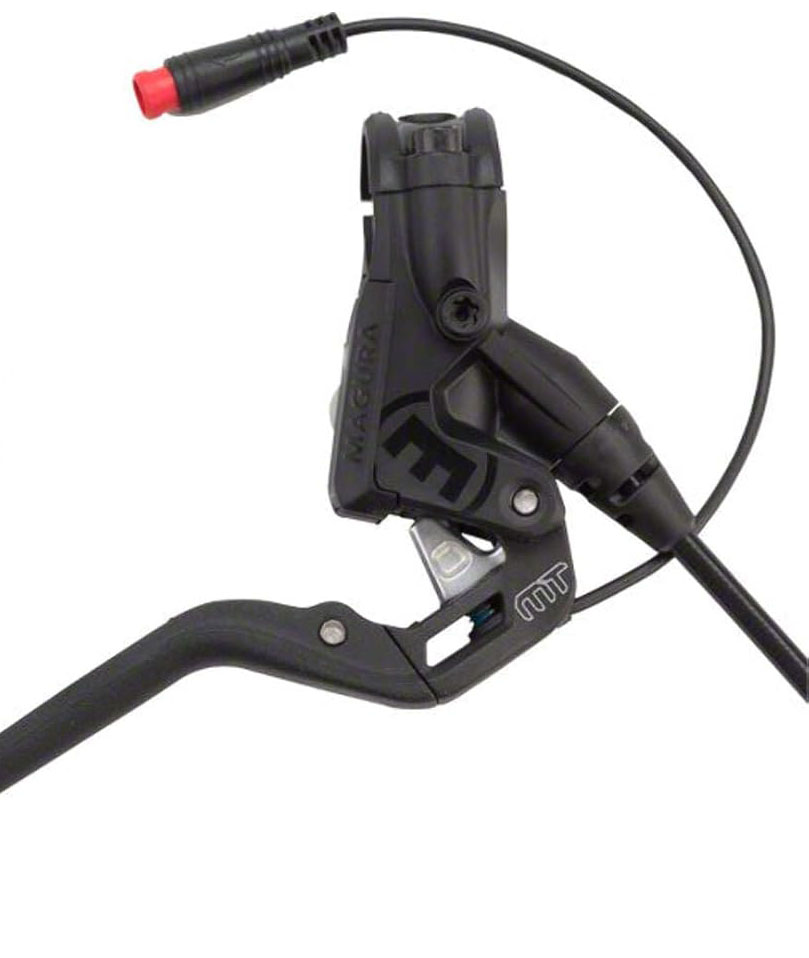

The switch wasn't the only problem. It turned out to be a much more expensive repair. After I disassembled the brake handle, I found the hydraulic reservoir had a fine crack that was slowly leaking oil. It was the reason I had to keep bleeding the system to restore good braking action. I had to replace the entire handlebar assembly. The replacement part came with a new handle and switch, so problem solved.
