Solid e-Scooter Tire Installation

PedalUma

Well-Known Member
Region
USA
City
Petaluma, CA
I know it is not an electric bike. But there is some overlap between bikes and scooters with many users owing both. Solid scooter tires have real advantages, such as no flats. They are very hard to get on a rim. I discovered an easy way. First get yourself a Park Tool PH-10. That is a foot long 10mm p-wrench. Heat the tire for 20 minutes at 200 F to soften and expand it. Cover the rim with dish soap and place down some card board in front of a chair. Put the tire on the card board while seated and put two feet on the rim pressing down. The PH-10 fits into the perimeter holes. Use it to lever the tire on. It takes 90 seconds with no sweat.

pictures, or it didn't happen
Hey, that is quoting me. The thing is that it takes all four limbs! You would need to set up a video camera or have a second person. I failed with motorcycle levers, and pry bars. Someone will post a video because it it so cool and works. I hate to admit, it took four hours to come up with the 90 second solution. I was covered in sweat and gave up three times. The lady wants me to make an electric bike for her so I couldn't just say __ it. She is testing a bike in the morning. What's the best is that you get the Chinese scooter-tire-tea to drink after!

I use the Lemmon/Lime slime. It adds a smooth texture to the Chinese Tire Tea.


i have heard using the Microwave for 3 minutes and then another 3 minuts or soacking in hot water
those 10' tires are very hard to take off and put on

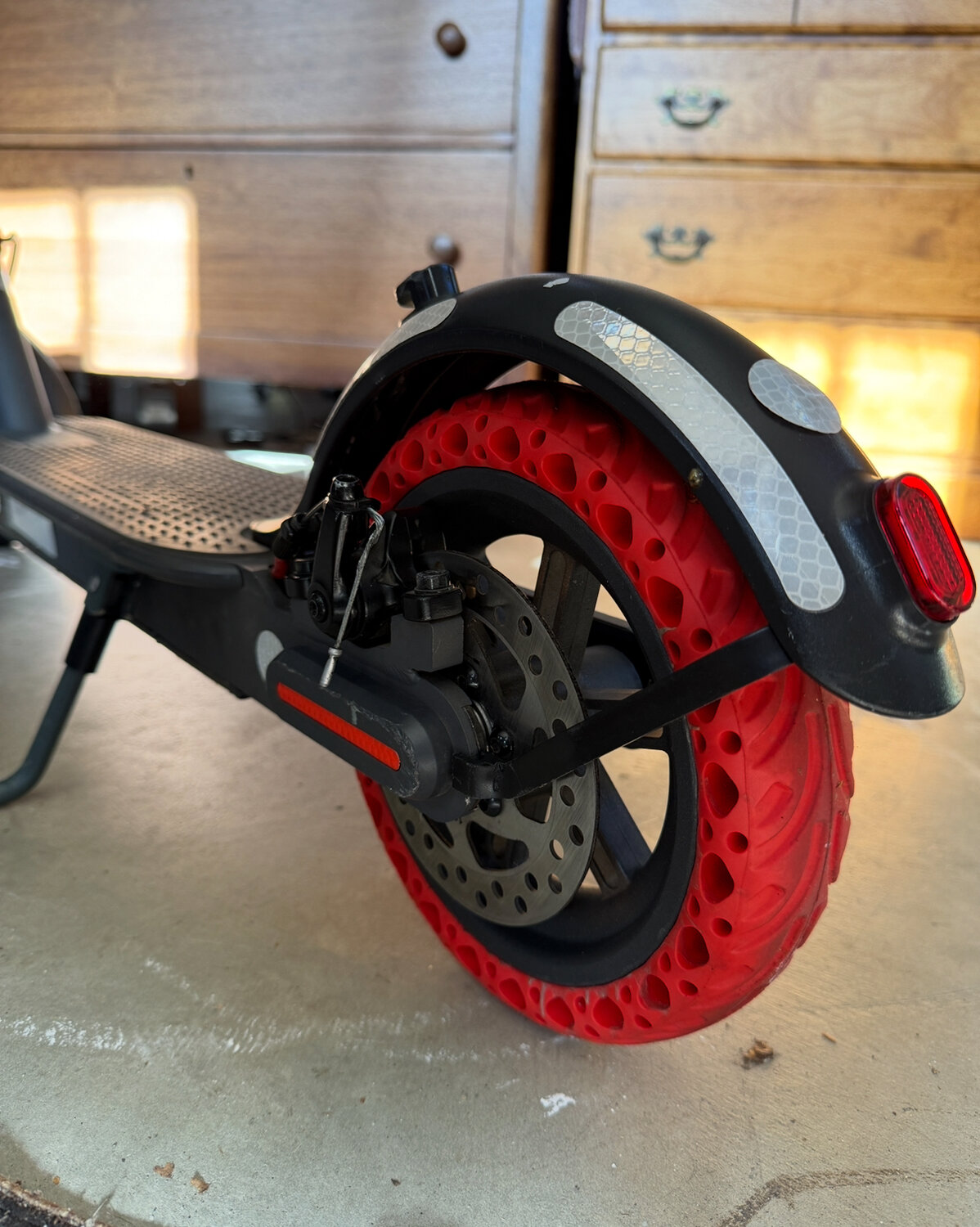

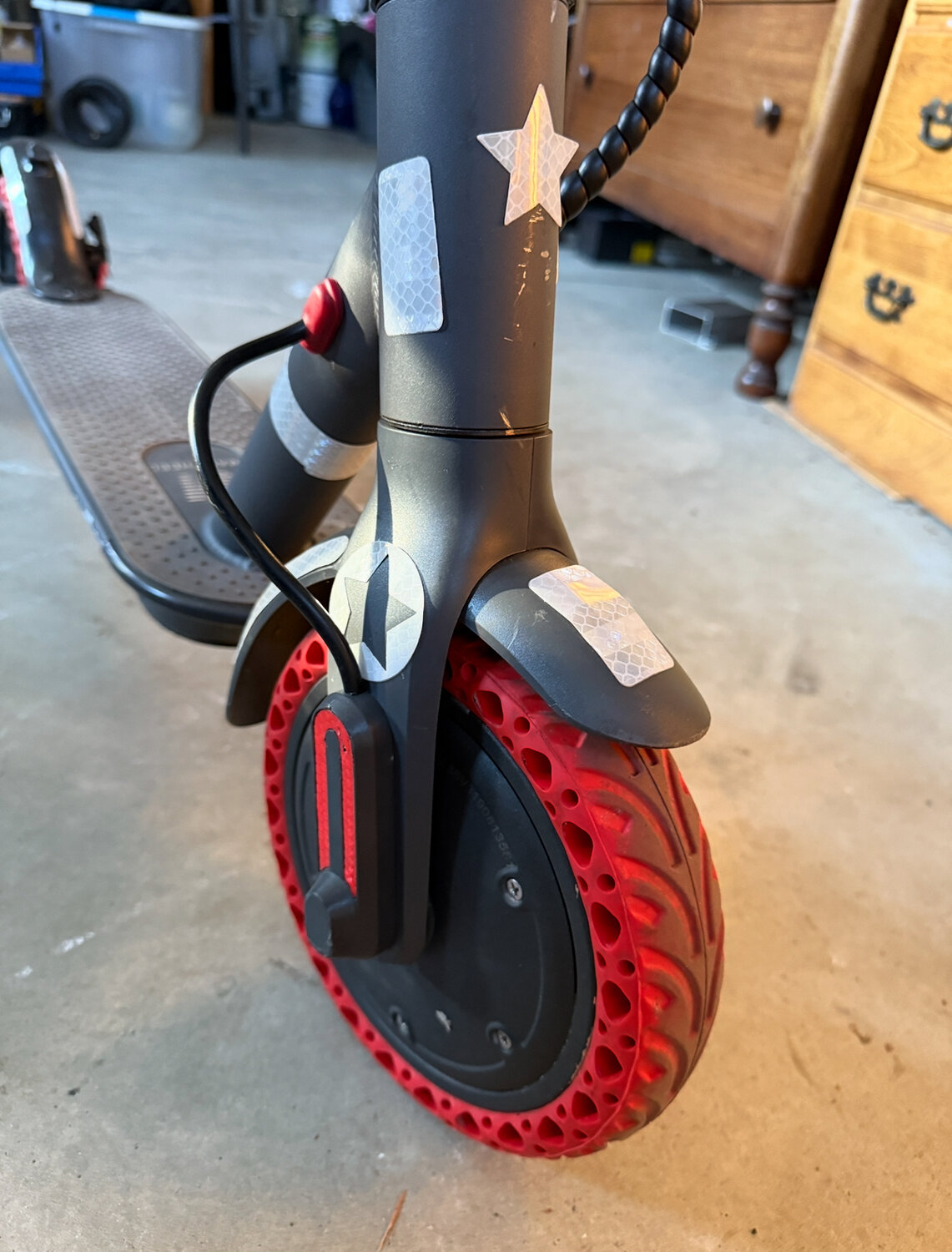

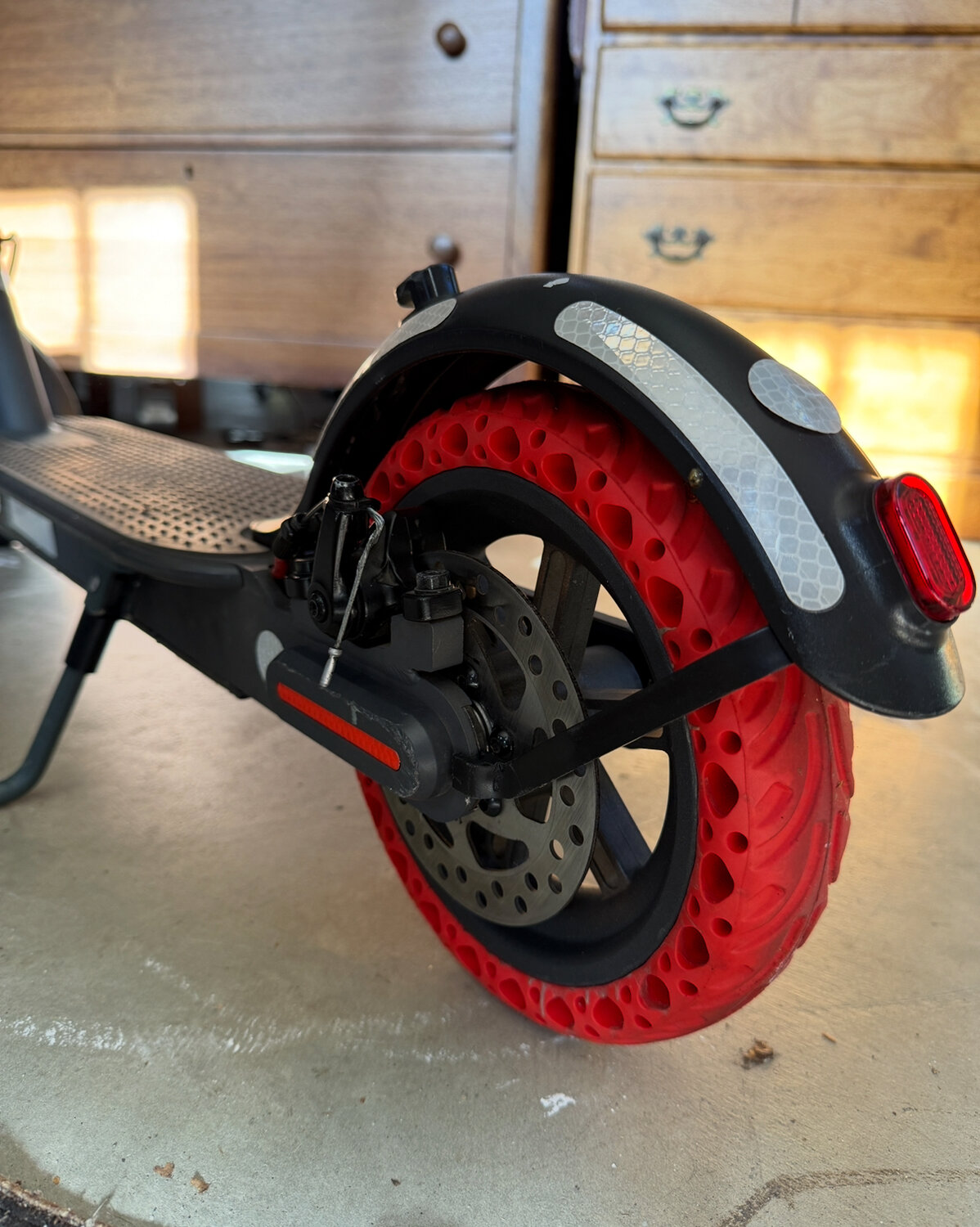

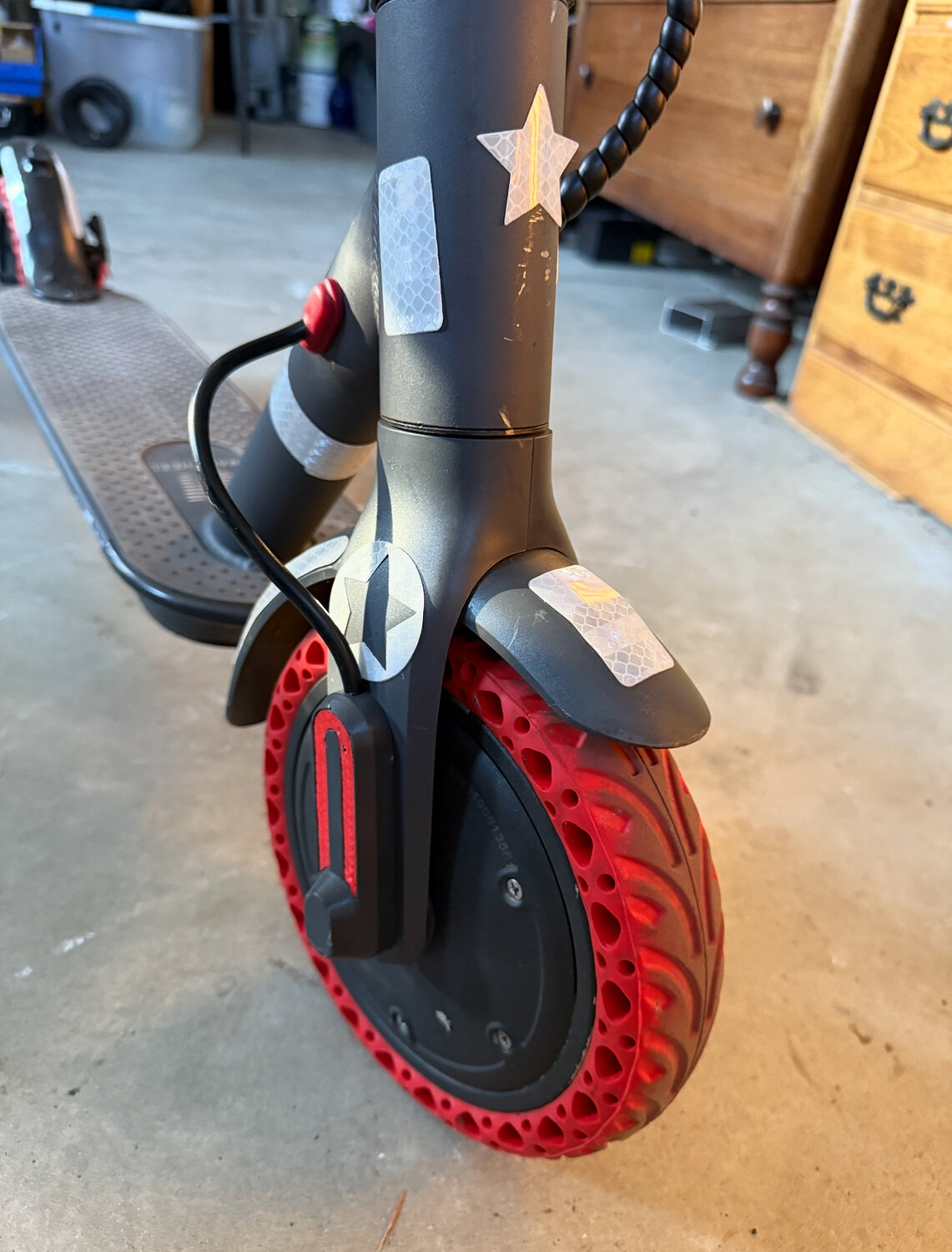

On a macwheel mx1, the wheel is solid. However it is really regular tire without the tube. The tire is filled with foam. It was a bitch getting the tire off the wheel. I ended up cutting the wheel off. I used a hacksaw (legit bike tool) to cut the meat of the tire. Then I used wire cutters to cut the steel off side the head of the tire. There were multiple steel strands. Tires were off in about 15-20 minutes. I then used a heat gun to eat the new solid tire. I was not changing the scooter wheel in the kitchen, so I used garage tools. I heated each tire for about 20-30 minutes. With the help of this and dish soap I was able to slip the new tires on. They went on crooked with only one side fitting in the rim. I then used a long, thick, screwdriver to pull newer into the honeycomb wheel and “pulled” the tire towards me. The tire was now popping into place. I was then able to insert the flat head of the tire lever and slid it around and the tire. This seated the tire in to place. I didn’t take pics because I like to focus on working rather than stopping to snap a shot, but this did happen. Here are some after photos.




On a macwheel mx1, the wheel is solid. However it is really regular tire without the tube. The tire is filled with foam. It was a bitch getting the tire off the wheel. I ended up cutting the wheel off. I used a hacksaw (legit bike tool) to cut the meat of the tire. Then I used wire cutters to cut the steel off side the head of the tire. There were multiple steel strands. Tires were off in about 15-20 minutes. I then used a heat gun to eat the new solid tire. I was not changing the scooter wheel in the kitchen, so I used garage tools. I heated each tire for about 20-30 minutes. With the help of this and dish soap I was able to slip the new tires on. They went on crooked with only one side fitting in the rim. I then used a long, thick, screwdriver to pull newer into the honeycomb wheel and “pulled” the tire towards me. The tire was now popping into place. I was then able to insert the flat head of the tire lever and slid it around and the tire. This seated the tire in to place. I didn’t take pics because I like to focus on working rather than stopping to snap a shot, but this did happen. Here are some after photos.

View attachment 186846

View attachment 186847
The shop were I work, Petaluma Motor Wheel, has started refusing scooters altogether. In those solid tires I use 10mm Allen keys in the holes after heating in the microwave and with Dawn on the rim.
