Pin-out(s), tie-in for 6-12VDC Vado/Como 5.0

[GuruUno]

On my previous Vado, I tied the electric horn into the front light.
I attempted to do so on the new 2022 Vado, but it's so tiny and minuscule, that I'd be better off either splicing it into the wire in the battery channel or dropping the wire directly to a pinout on the motor (it's long enough).
That means removing the crank arm and popping the side cover off.
Has anybody done this yet? Any photos? Any pinouts?
Just looking for options.



[GuruUno]

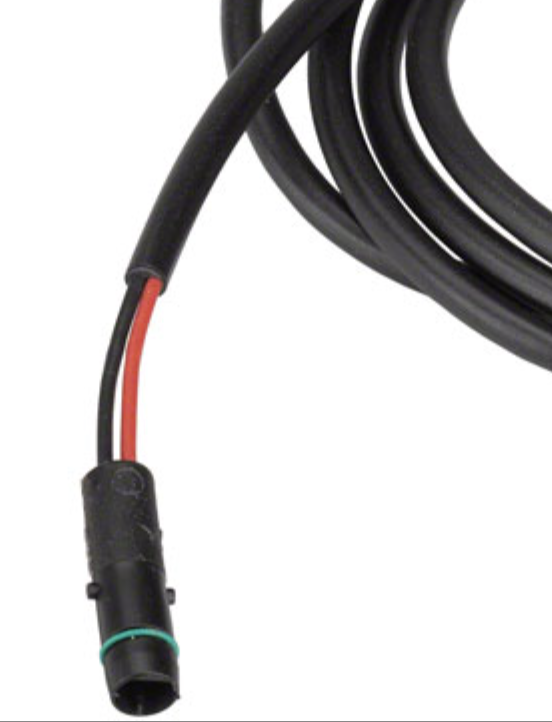

I think I got it. While having the battery removed, I followed the headlight wire inside the right side of the frame. There was a connector in there that looked just like this SuperNova plug with wire. I'll check it out tomorrow, but I think that's the ticket.

Supernova Headlight connection cable for Brose | Bikeparts.Com

Supernova Brose connection cable. ...

www.bikeparts.com



[GuruUno]

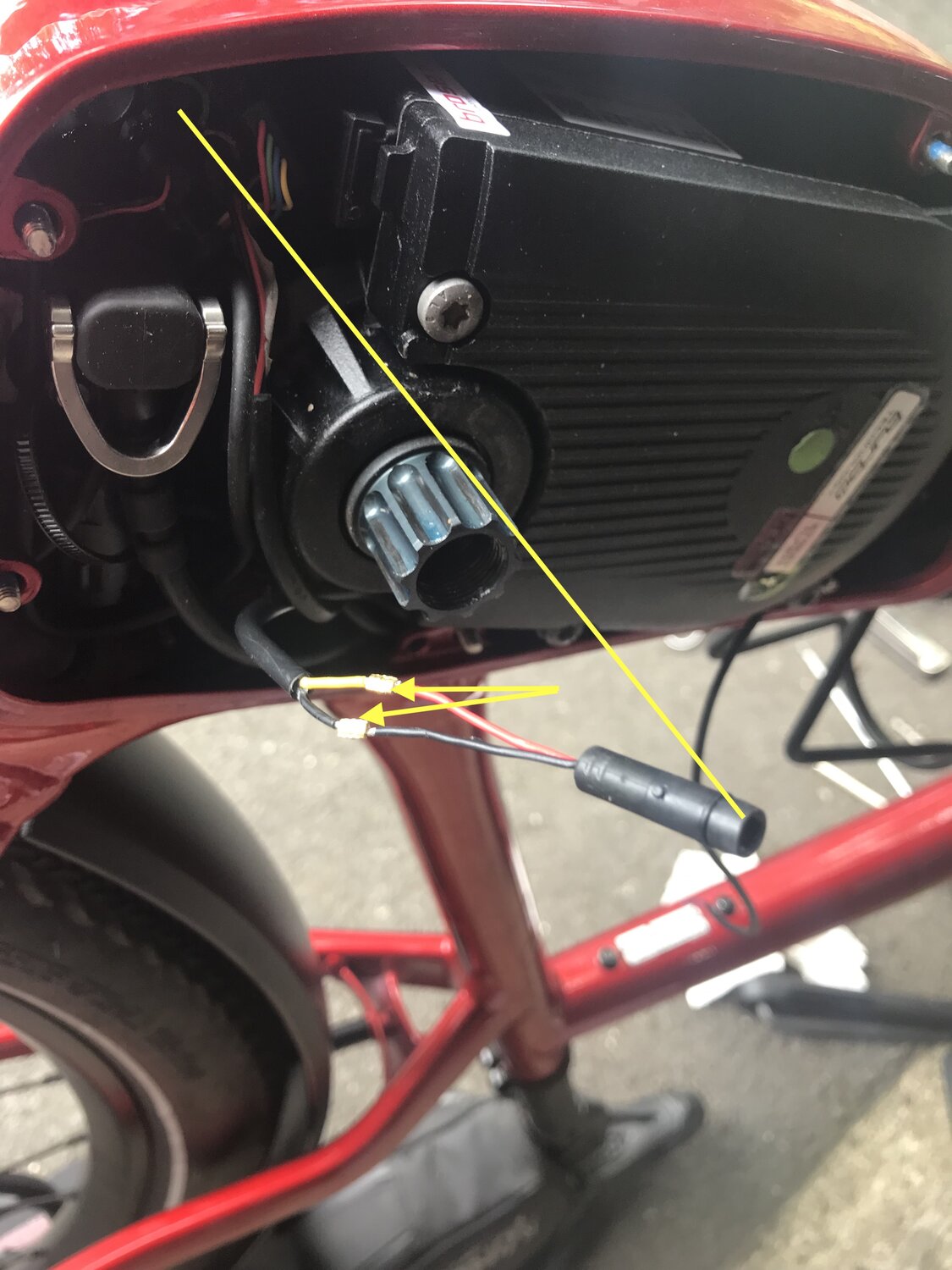

OK, removed the crank arm, popped the side cover on the motor, tied the horn wires into the plug for the light (soldered, shrink/heat tube wrapped), and 100% works.
