Magnum battery connector

[Oldbkr]

Does any one with knowledge of 48v Magnum batteries know what type of connector is used at the charge port? I would like to get one to make a "pig tail" to do quick voltage checks w/o removing the battery. I just don't know the type and name for a female connector. ?Thanks



[Oldbkr]

Does any one with knowledge of 48v Magnum batteries know what type of connector is used at the charge port? I would like to get one to make a "pig tail" to do quick voltage checks w/o removing the battery. I just don't know the type and name for a female connector. ?Thanks

I finally located a plug type I can use as an adapter for a quick voltage check on my Magnum battery. Now I can set up my timed charge with out taking the battery off all the time. I have this fear of dropping the battery on a bad day and really having a bad day?...any way photos enclosed...Thanks



[Trail Cruiser]

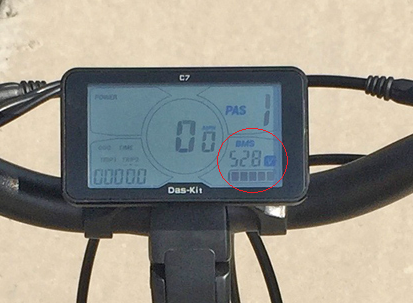

Why not use the voltage reading at the ebike's display? It also has a digital voltage reading. Before my ride today, my Magnum metro+ showed 54.2 volts. At the end of my 26 mile ride, it showed 47.6 volts.



[Oldbkr]

Why not use the voltage reading at the ebike's display? It also has a digital voltage reading. Before my ride today, my Magnum metro+ showed 54.2 volts, at the end of my 26 mile ride, it showed 47.6 volts.

View attachment 24722

My display does not have that function. Ui6 2017. L7 I think



[Trail Cruiser]

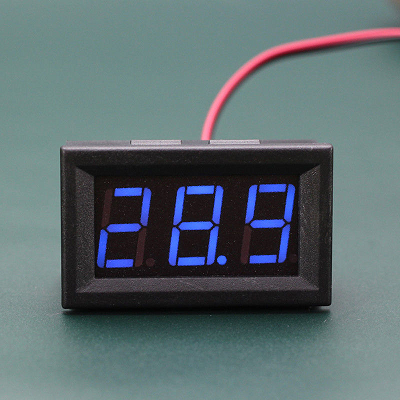

Maybe you can stick this one to the casing of your battery while attached to your plug so you can have a real time voltage reading while riding and then unplug it when charging.


(Link Removed - No Longer Exists)

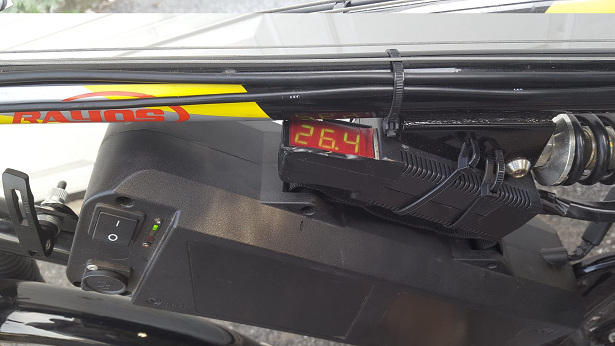

I added a similar voltage meter on my previous lead acid 24-volt e-bike.



[Oldbkr]

Maybe you can stick this one to the casing of your battery while attached to your plug so you can have a real time voltage reading while riding and then unplug it when charging.

View attachment 24749
(Link Removed - No Longer Exists)

I added a similar voltage meter on my previous lead acid 24-volt e-bike.

View attachment 24750

Thanks..I was thinking about something like that?
