Let's talk about the NEW Photon Pro | UL Certified 1040Wh battery | 750W 52V Midmotor | 160 Nm Torque and Throttle

[Kriti Yad]

Hello EBR Community,

We’re excited to introduce the New Photon Pro, back in its third production run! This e-bike is a trio of long-range performance, ultra-low maintenance, and reliability.

At the core of the Photon Pro is a belt-drive system paired with an internal gear hub, delivering smooth rides with minimal upkeep. This setup means you spend more time riding and less time worrying about maintenance. We’ve added a effortlessly powerful 750W 52V custom built mid-drive motor and a long-range 1040 Ah 52V battery to keep you going further and longer.

After 2 production runs and a year of intense prototype testing, we can confidently say the Photon Pro offers a seamless, worry-free ride every time. It’s built for those who demand the best in performance and durability.

Specifications:

• Motor: Custom 52V Ananda M6100, 750W, 160 Nm Mid Drive
• Battery: 52V, 20 Ah, 1040Wh (UL Certified)
• Charger: 4A UL-Certified
• Gears: Enviolo Heavy Duty 380 Internal Gear Hub
• Brakes: Tektro E725 Hydraulic Disc (4-pistons)
• Frame: Hydroformed Aluminum 6061
• Suspension: RST Aerial 120mm air suspension with lockout
• Tires: Schwalbe Supermoto 27.5” x 2.4”
• Drive: Gates Belt Drive
• Speed: Max 32Km/h (Canada), 27 Mph (USA)
• Colors: Aurora Blue, Earthstone Brown, Zen Ivory
• Throttle: Yes, Thumb Throttle
• Warranty: 3 Years
• Lights: 400 Lumens
• Display: Center mount KD986 Bluetooth-enabled LCD



[vincent]

Super cool bike!



[JGcycle]

Love the new colours.



[Ebiker33]

Aurora Blue looks good



[Blunoser]

Kriti, that blue looks even better than I expected. Now I'm getting really excited to see my bike arrive. Any good news to share?



[Ravi Kempaiah]

Aurora Blue 360 degree view:

https://imgur.com/s99ySDc

Earthstone Brown:

https://imgur.com/Ycan5OV



[Ravi Kempaiah]

Some of our shipments have been late but we have never missed anyone's order so far. We refuse to ship sub-standard products, and we have actually refunded some customer's money because of tight timelines. Many of our customers have been very understanding, and we are grateful to them.

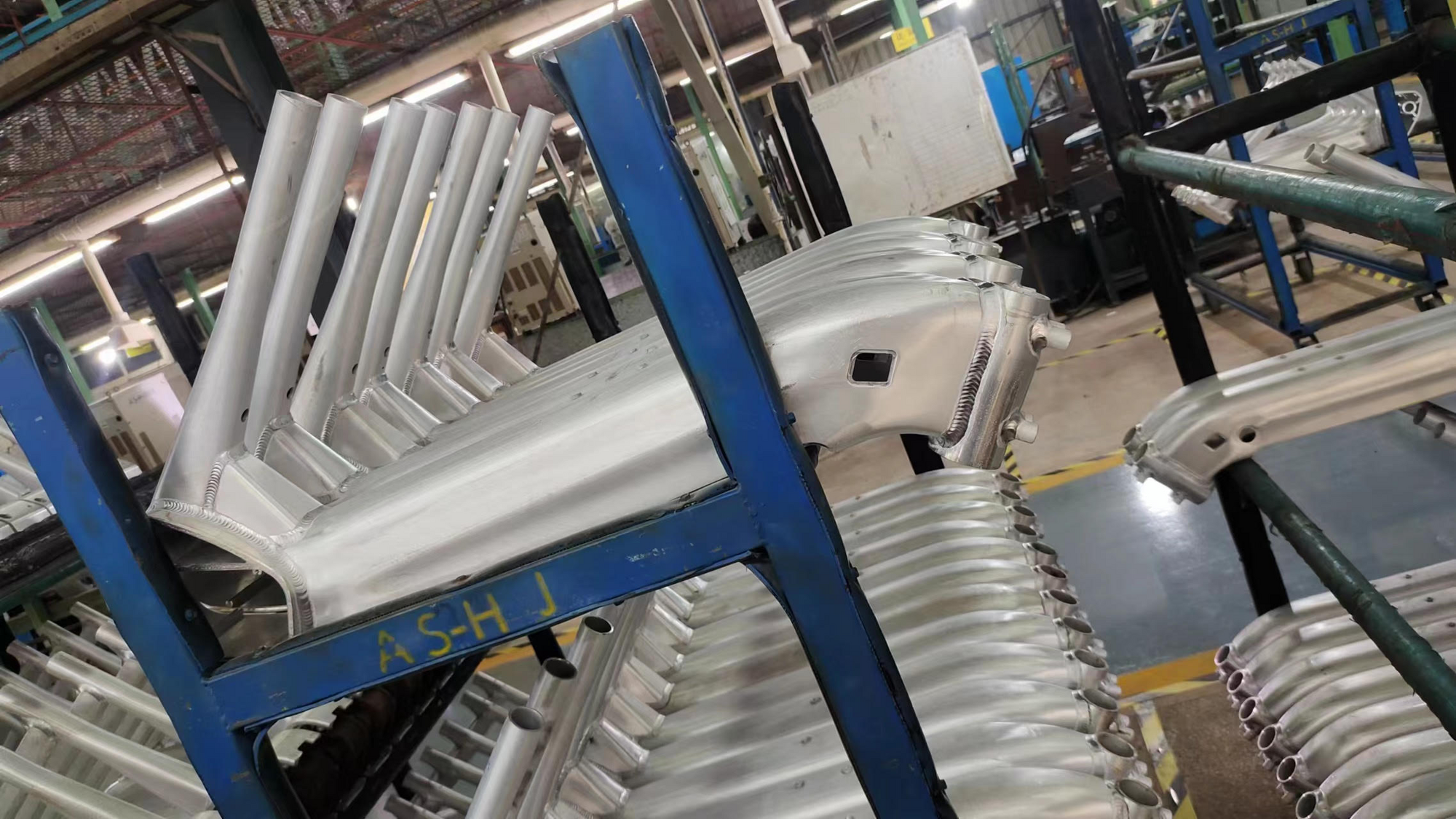

We listened to your feedback for this shipment and improved several items, such as the frame and bottom bracket gusset, to provide torsional stiffness.
Here are the improvements:

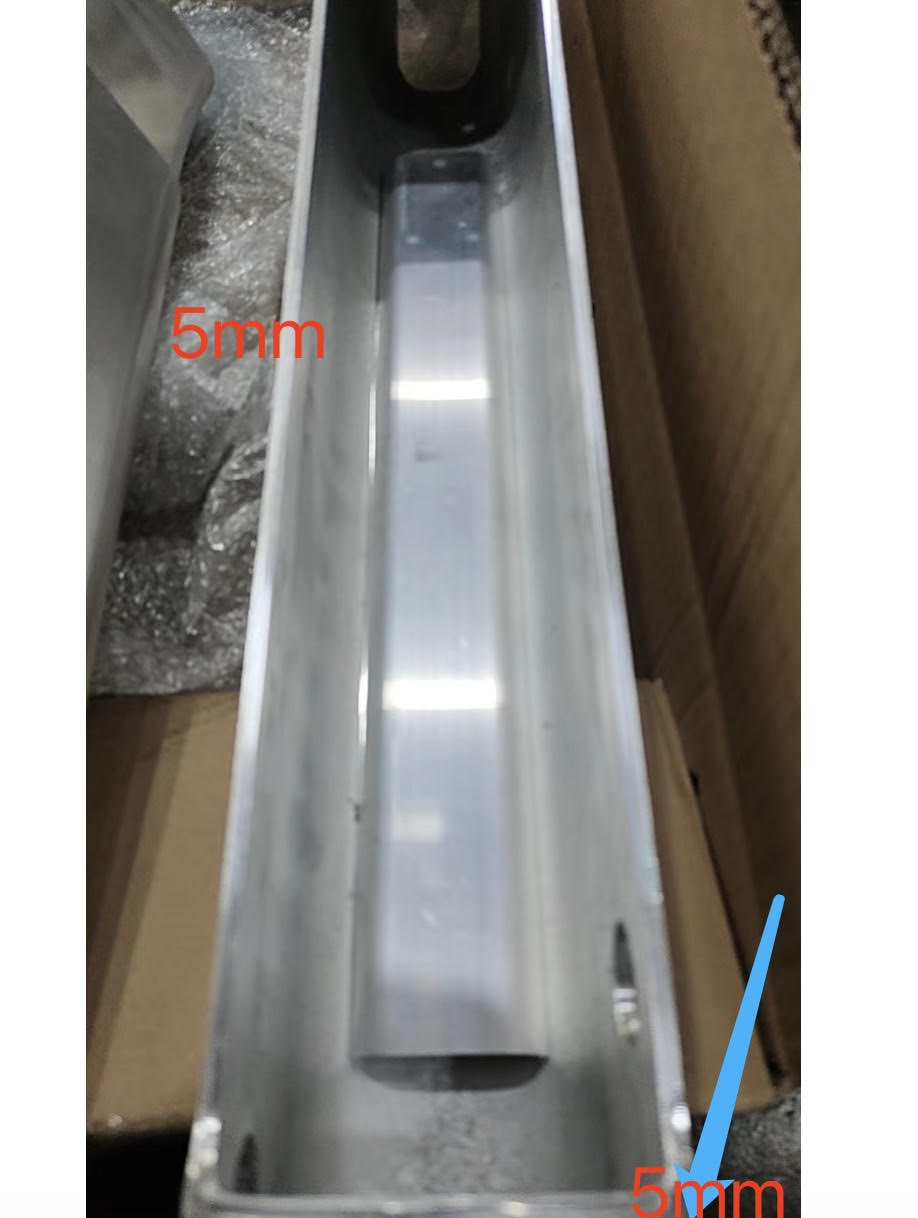

• We increased the side wall thickness to 5mm (from 3.5mm), providing excellent stiffness at the cost of being slightly heavier. (Image below)
• We added a new gusset at the motor hanger to ensure the step-through frame doesn't flex.
• We worked with our motor manufacturer to mass produce a 750W, 160Nm mid-drive that is suited for the US market.
• New colors that look very nice in person
• Maintaining full UL 2271 certification on the battery and charger, as usual, even with the added cost of tariffs for packs from China.
  We are now setting up our battery factory, and starting Q2-2025, all our batteries will be manufactured in our own factory with much more advanced BMS and pack design.



[Blunoser]

Looking good Ravi, how is our timeline going for delivery of our bikes? BTW, Terry here.



[Ravi Kempaiah]

Folks,
Just to clarify, all bikes will be shipped within the legal regulation.

• US customers will get the 750W version motor unless they ask for a 500W motor.
• Canadian customers will get a 500W motor unless they specifically request something else for private road usage.
