hello

[Bigdutchman]

Hi
someone gave me an A2B and am looking for parts. glad to be here. Vashon Island, usa.



[Bigdutchman]

What parts?

Kuo+ gears for motor/hub. I put something in the parts wanted section also.



[Bigdutchman]

As you can see, there are different gears, so I think you need to know what motor you have.

6.13US $ 31% OFF|Electric Bike Bicycle 36t Gears With 70mmclutch Kits Set For Bafang Motor Metal Gear Solid Planetary Gear Diameter 38mm Hot Sale - Electric Bicycle Accessories - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

www.aliexpress.com

26.0US $ |Bafang G070 And G040 Cst Motor Nylon Gear Set Xd Bpm Engine 3pcs For Clutch Spare Part - Electric Bicycle Accessories - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

www.aliexpress.com

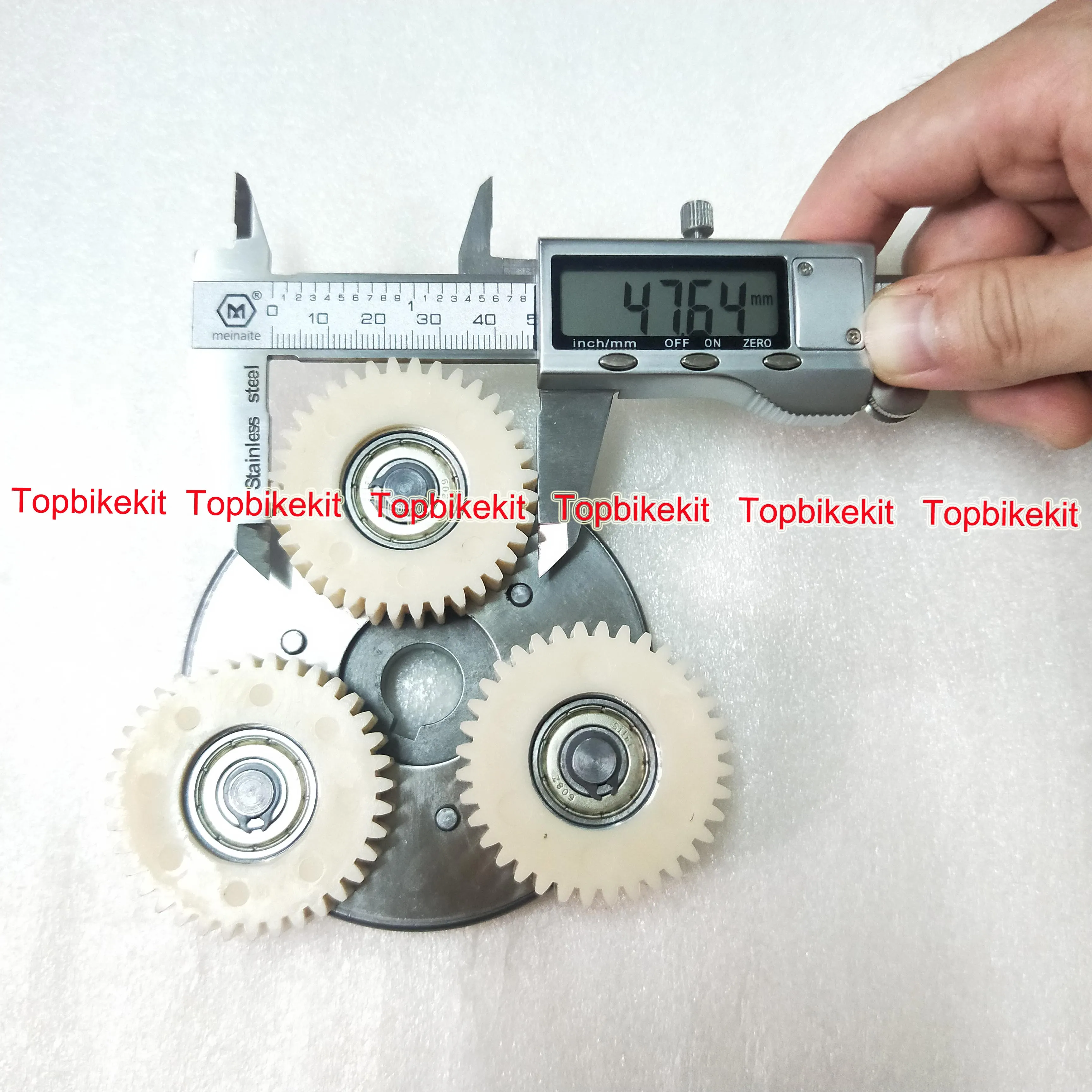

39.99US $ 7% OFF|Bafang Gear Set For Replacement Swx02 Motor Gear Set For Replacement/ 8fun Swx02 - Electric Bicycle Accessories - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

www.aliexpress.com

similar to this. but 36/18. i will try to figure out what motor is in there.



[Bigdutchman]

Okay, maybe it's a Bafang G310, anyways, do you know what motor you have?

Looks almost the same and likely is interchangeable with this Bafang. Mine likely is priopetary to A2B but don't know for sure. I did find a long 20ish digit number on the outside of the hub. finding no references to that on any website.



[Bigdutchman]

Is there any manufacture written on the motor?

no manufacturer's name. this is the long number SY1236200D0639PS1W . There is a number on the inside of the hub on the motor parts that looks to be 714C218 although the ink stamping is a little blurred. interestingly, there is an SY molded into the casting on the hub.



[Bigdutchman]

You probably have a Shengyi motor.

SY = Shengyi
12 = probably the model #, SY12 motor
36 = Rated for 36V, doesn't necessarily you can't go higher
200D = 200W, and it a D motor not DC. D means freewheel and DC means cassette for Bafang, however I don't know if it's the same with Shengyi.
06 = 06T winding

Shengyi motor usually starts with SY product number.

shengyi CST 48V500W rear black hub motor 255RPM speed sensor integrated : Amazon.co.uk: Sports & Outdoors

Shop shengyi CST 48V500W rear black hub motor 255RPM speed sensor integrated. Free delivery and returns on all eligible orders.

www.amazon.co.uk

EUNORAU 36V250W Black Rear Cassette Hub Motor

All Motors with 1 speed magnet Brand Name EUNORAU Voltage 36V Design Brushless Wattage 201 - 300w Motor Type Brushless Gear Hub Motor Type DGWH2C Specification 16-28in 36(Holes) Rated Power 250W Rated Voltage 36V Fork size 135mm Outgoing line Right Efficiency ≥80%

eunorau-ebike.com

Wow-you are good. This Eunorau motor looks like the exact same one. Three scews holding the motor in the hub and even looks like the same pin layout in the connector cord.



[Bigdutchman]

Ok, do you have a cassette or freewheel?

Looks like you might have freewheel, but I can't tell from these pictures.

A2B Kuo+ Review | ElectricBikeReview.com

Price: $1699.00 | Model Year: 2014 | Improves on the standard Kuo with smoother cadence sensing pedal assist, a larger motor and battery and upgraded drivetrain using Shimano Alivio vs. Shimano Tourney

electricbikereview.com

Here is one for cassette

EUNORAU 36V250W Black Rear Cassette Hub Motor

All Motors with 1 speed magnet Brand Name EUNORAU Voltage 36V Design Brushless Wattage 201 - 300w Motor Type Brushless Gear Hub Motor Type DGWH2C Specification 16-28in 36(Holes) Rated Power 250W Rated Voltage 36V Fork size 135mm Outgoing line Right Efficiency ≥80%

eunorau-ebike.com

Here is one for freewheel

EUNORAU DGW07C-MD 36V250W Rear Screw Freewheel Hub Motor

All Motors with 1 speed magnet integrated Brand Name EUNORAU Voltage 36V Design Brushless Wattage 250W,255RPM Motor Type Brushless Gear Hub Motor SKU MINI-DB-R Type DGW07 Specification 16-28in 36(Holes) Rated Power 250W Rated Voltage 36V Fork size 135mm Outgoing line Right

eunorau-ebike.com

Cassette.



[luiskisasoul]

Also intereted in getting gears for that kind of motor... anyone ?



[luiskisasoul]

planetary gears exactly



[luiskisasoul]

DWG07
