Hall sensor bad

Doebu

New Member
Region
USA
I just acquired a Totem ebike. Got a 24 error which hall sensor communication. After checking everything I took the motor apart to find the wires broken on the hall sensors.

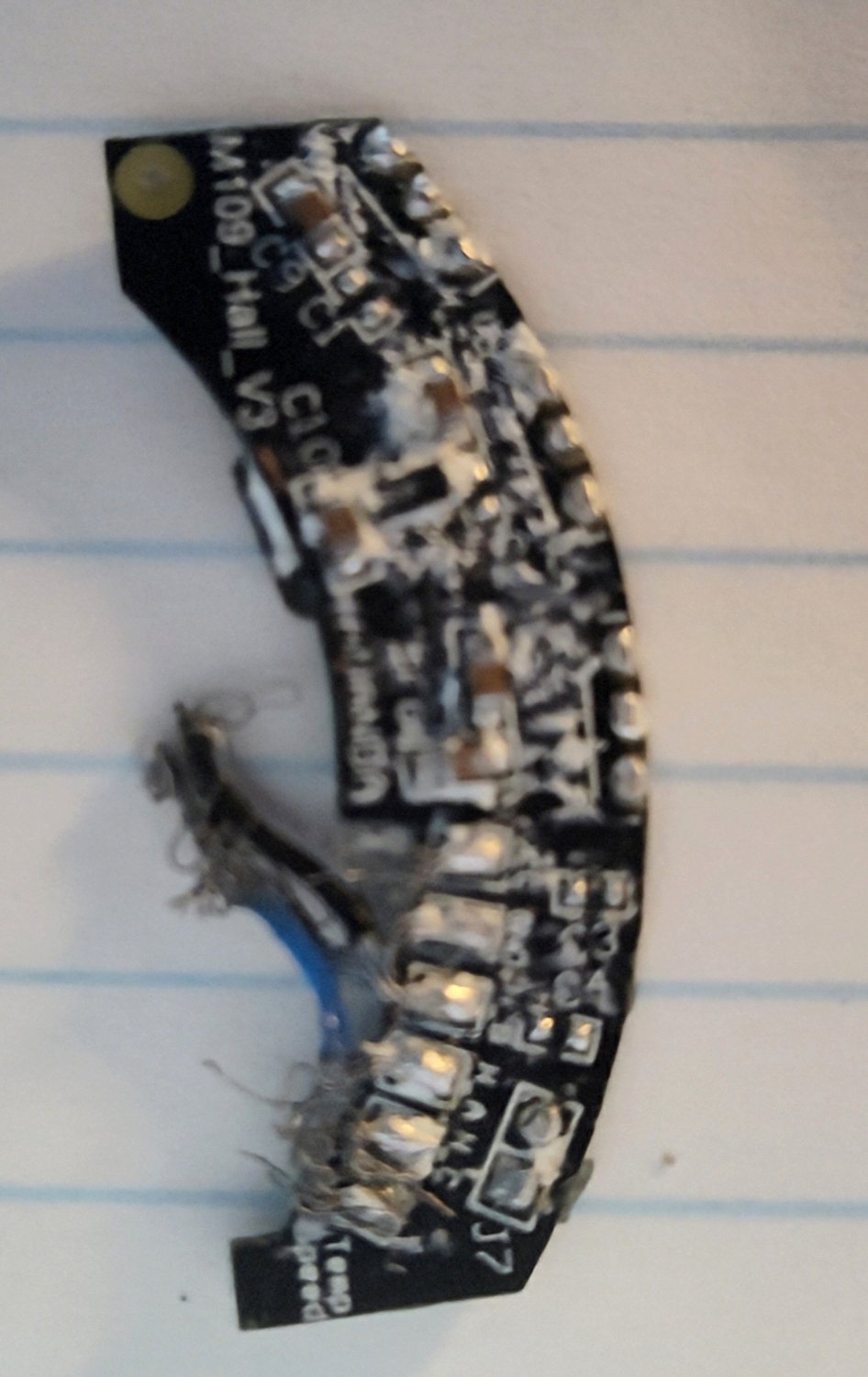

I need to replace the sensors. Can anyone help me identify the Hall sensors.
I have a photo of it. Thank you


Attachments

  • IMG_20250515_014257509~2.jpg
    148.3 KB · Views: 15
The hall sensors are typically glued in between the magnets of the motor. They usually have a Bat+, Gnd, and Sig.

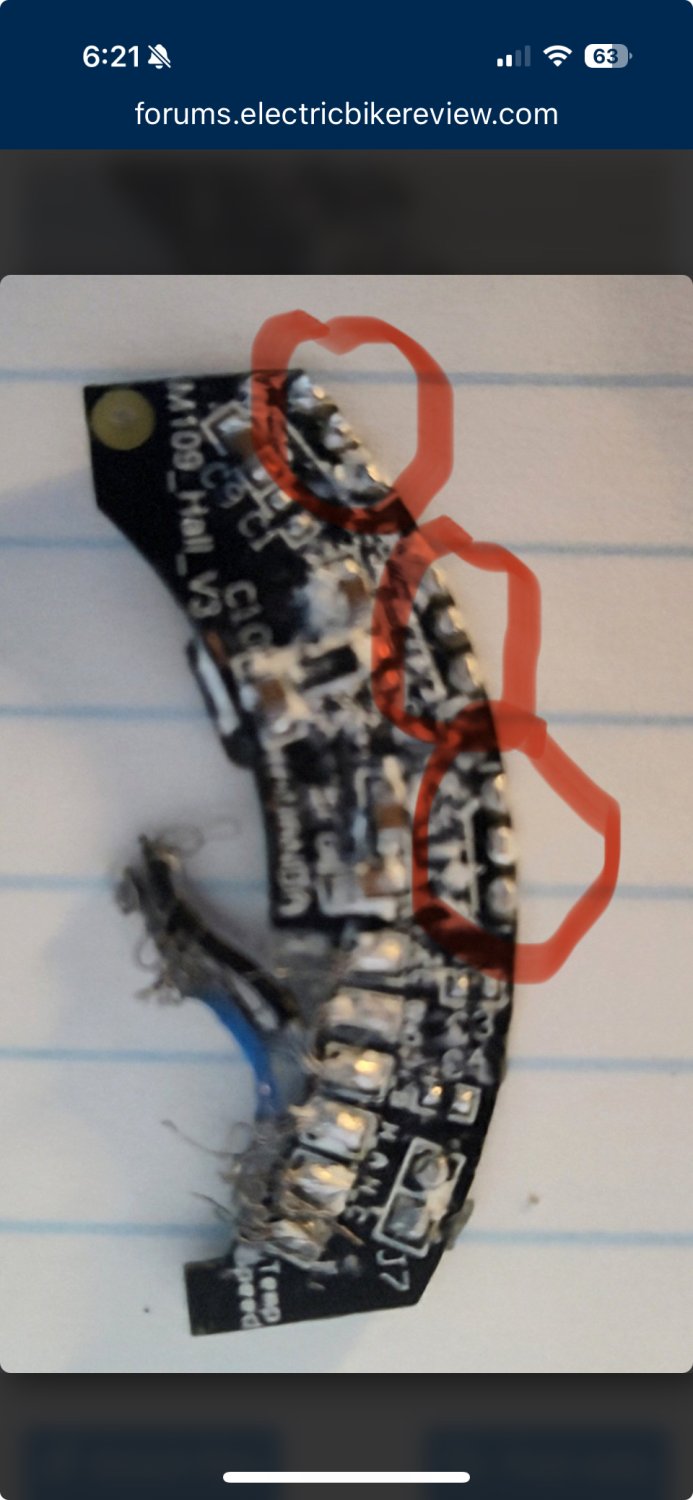

I circled where there are 3 sets of 3 solder points that the sensors usually connected to. Maybe the sensors are on the other side of the board?



But it seems like you need to repair the wiring and not replace the sensors. We would need a clearer picture of this side of the board.
